ADG819BRTZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 600 mOhm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 16ns
-3db Bandwidth : 17MHz
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 80pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -72dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 600 mOhm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 16ns
-3db Bandwidth : 17MHz
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 80pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -72dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
0
11654 in stock
ADG821BRMZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 600 mOhm
Channel-to-Channel Matching (δRon) : 160 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 16ns
-3db Bandwidth : 24MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 85pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -82dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 600 mOhm
Channel-to-Channel Matching (δRon) : 160 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 16ns
-3db Bandwidth : 24MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 85pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -82dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
0
2035 in stock

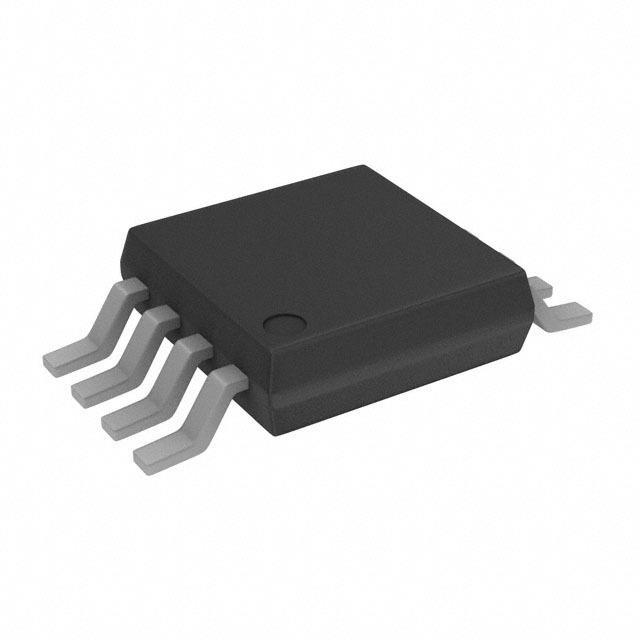

ADG821BRMZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 600 mOhm
Channel-to-Channel Matching (δRon) : 160 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 16ns
-3db Bandwidth : 24MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 85pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -82dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 600 mOhm
Channel-to-Channel Matching (δRon) : 160 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 16ns
-3db Bandwidth : 24MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 85pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -82dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
0
15927 in stock
ADG822BRMZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 600 mOhm
Channel-to-Channel Matching (δRon) : 160 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 16ns
-3db Bandwidth : 24MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 85pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -82dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 600 mOhm
Channel-to-Channel Matching (δRon) : 160 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 16ns
-3db Bandwidth : 24MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 85pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -82dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
0
827 in stock
ADG823BRMZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 600 mOhm
Channel-to-Channel Matching (δRon) : 160 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 16ns
-3db Bandwidth : 24MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 85pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -82dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 600 mOhm
Channel-to-Channel Matching (δRon) : 160 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 16ns
-3db Bandwidth : 24MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 85pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -82dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
0
382 in stock
ADG823BRMZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 600 mOhm
Channel-to-Channel Matching (δRon) : 160 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 16ns
-3db Bandwidth : 24MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 85pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -82dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 600 mOhm
Channel-to-Channel Matching (δRon) : 160 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 16ns
-3db Bandwidth : 24MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 85pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -82dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
0
498 in stock

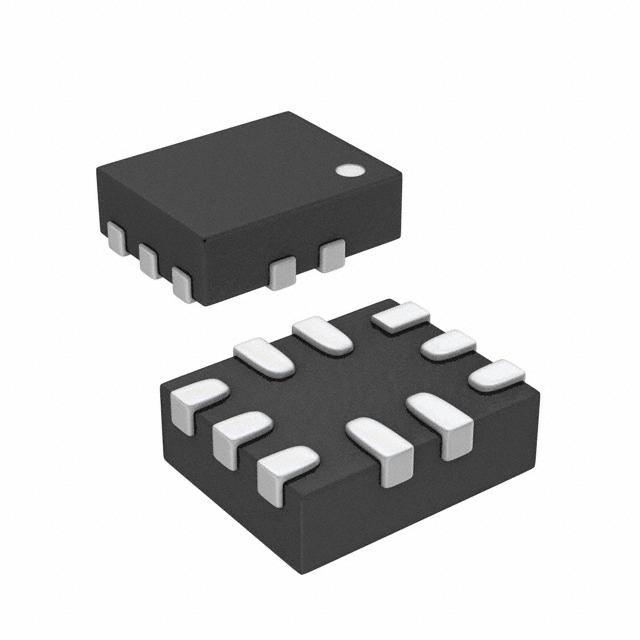

ADG824BCPZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 800 mOhm
Channel-to-Channel Matching (δRon) : 3 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 9.5ns, 7.7ns
-3db Bandwidth : 90MHz
Charge Injection : 27pC
Channel Capacitance (CS(off), CD(off)) : 25pF
Current - Leakage (IS(off)) (Max) : 200pA (Typ)
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN, CSP
Supplier Device Package : 10-LFCSP-UQ (1.6x1.3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 800 mOhm
Channel-to-Channel Matching (δRon) : 3 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 9.5ns, 7.7ns
-3db Bandwidth : 90MHz
Charge Injection : 27pC
Channel Capacitance (CS(off), CD(off)) : 25pF
Current - Leakage (IS(off)) (Max) : 200pA (Typ)
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN, CSP
Supplier Device Package : 10-LFCSP-UQ (1.6x1.3)
0
10806 in stock

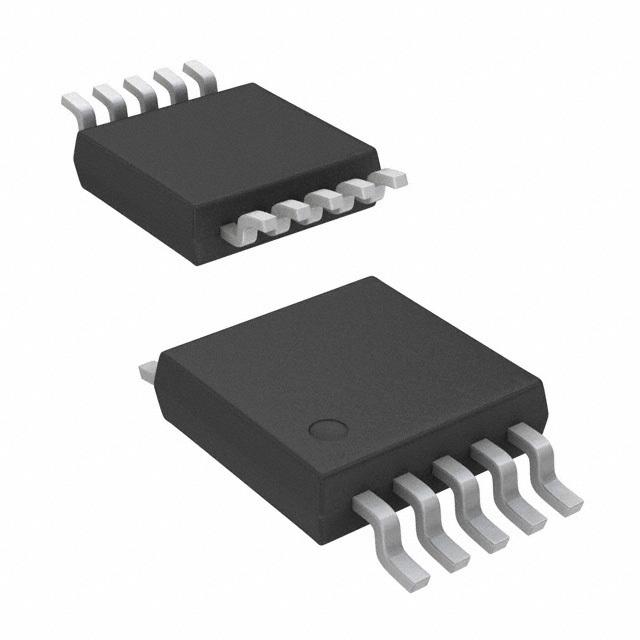

ADG836LYRMZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 650 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 26ns, 7ns
-3db Bandwidth : 57MHz
Charge Injection : 40pC
Channel Capacitance (CS(off), CD(off)) : 25pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-MSOP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 650 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 26ns, 7ns
-3db Bandwidth : 57MHz
Charge Injection : 40pC
Channel Capacitance (CS(off), CD(off)) : 25pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-MSOP
0
1312 in stock
ADG836YCPZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 650 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 26ns, 7ns
-3db Bandwidth : 57MHz
Charge Injection : 40pC
Channel Capacitance (CS(off), CD(off)) : 25pF
Current - Leakage (IS(off)) (Max) : 200pA (Typ)
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 12-VFQFN Exposed Pad, CSP
Supplier Device Package : 12-LFCSP-VQ (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 650 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 26ns, 7ns
-3db Bandwidth : 57MHz
Charge Injection : 40pC
Channel Capacitance (CS(off), CD(off)) : 25pF
Current - Leakage (IS(off)) (Max) : 200pA (Typ)
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 12-VFQFN Exposed Pad, CSP
Supplier Device Package : 12-LFCSP-VQ (3x3)
0
2460 in stock
ADG836YRMZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 650 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 26ns, 7ns
-3db Bandwidth : 57MHz
Charge Injection : 40pC
Channel Capacitance (CS(off), CD(off)) : 25pF
Current - Leakage (IS(off)) (Max) : 200pA (Typ)
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-MSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 650 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 26ns, 7ns
-3db Bandwidth : 57MHz
Charge Injection : 40pC
Channel Capacitance (CS(off), CD(off)) : 25pF
Current - Leakage (IS(off)) (Max) : 200pA (Typ)
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-MSOP
0
1447 in stock
ADG836YRMZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 650 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 26ns, 7ns
-3db Bandwidth : 57MHz
Charge Injection : 40pC
Channel Capacitance (CS(off), CD(off)) : 25pF
Current - Leakage (IS(off)) (Max) : 200pA (Typ)
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-MSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 650 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 26ns, 7ns
-3db Bandwidth : 57MHz
Charge Injection : 40pC
Channel Capacitance (CS(off), CD(off)) : 25pF
Current - Leakage (IS(off)) (Max) : 200pA (Typ)
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-MSOP
0
189 in stock
ADG839YKSZ-500RL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 500 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 16ns, 8.5ns
-3db Bandwidth : 25MHz
Charge Injection : 70pC
Channel Capacitance (CS(off), CD(off)) : 74pF
Current - Leakage (IS(off)) (Max) : 200pA (Typ)
Crosstalk : -57dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-70-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 500 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 16ns, 8.5ns
-3db Bandwidth : 25MHz
Charge Injection : 70pC
Channel Capacitance (CS(off), CD(off)) : 74pF
Current - Leakage (IS(off)) (Max) : 200pA (Typ)
Crosstalk : -57dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-70-6
0
1010 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
