Welcome to Weijie Semiconductor
- Integrated Circuits (ICs)
- Interface - Analog Switches, Multiplexers, Demultiplexers
Part Number
Manufacturer
Description
Unit Price
In Stock
ADG794BRQZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 7 Ohm
Channel-to-Channel Matching (δRon) : 400 mOhm
Voltage - Supply, Single (V+) : 3.3V, 5V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 7ns, 5ns (Typ)
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 14pF
Current - Leakage (IS(off)) (Max) : 1pA (Typ)
Crosstalk : -70dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SSOP (0.154", 3.90mm Width)
Supplier Device Package : 16-QSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 7 Ohm
Channel-to-Channel Matching (δRon) : 400 mOhm
Voltage - Supply, Single (V+) : 3.3V, 5V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 7ns, 5ns (Typ)
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 14pF
Current - Leakage (IS(off)) (Max) : 1pA (Typ)
Crosstalk : -70dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SSOP (0.154", 3.90mm Width)
Supplier Device Package : 16-QSOP
0
811 in stock

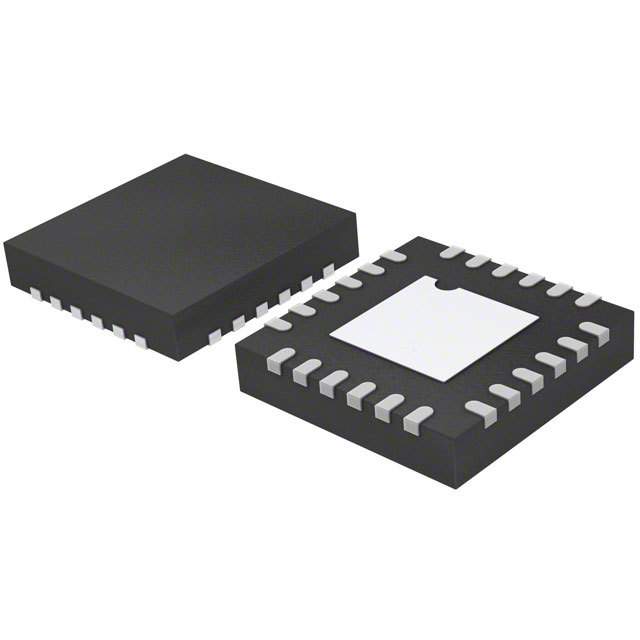

ADG795ABCPZ-REEL
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Obsolete
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 5
On-State Resistance (Max) : 4 Ohm
Channel-to-Channel Matching (δRon) : 150 mOhm
Voltage - Supply, Single (V+) : 3V, 5V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 250ns, 240ns
-3db Bandwidth : 325MHz
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 10pF, 13pF
Current - Leakage (IS(off)) (Max) : 250pA (Typ)
Crosstalk : -70dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 24-VFQFN Exposed Pad, CSP
Supplier Device Package : 24-LFCSP-VQ (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Obsolete
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 5
On-State Resistance (Max) : 4 Ohm
Channel-to-Channel Matching (δRon) : 150 mOhm
Voltage - Supply, Single (V+) : 3V, 5V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 250ns, 240ns
-3db Bandwidth : 325MHz
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 10pF, 13pF
Current - Leakage (IS(off)) (Max) : 250pA (Typ)
Crosstalk : -70dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 24-VFQFN Exposed Pad, CSP
Supplier Device Package : 24-LFCSP-VQ (4x4)
0
344 in stock

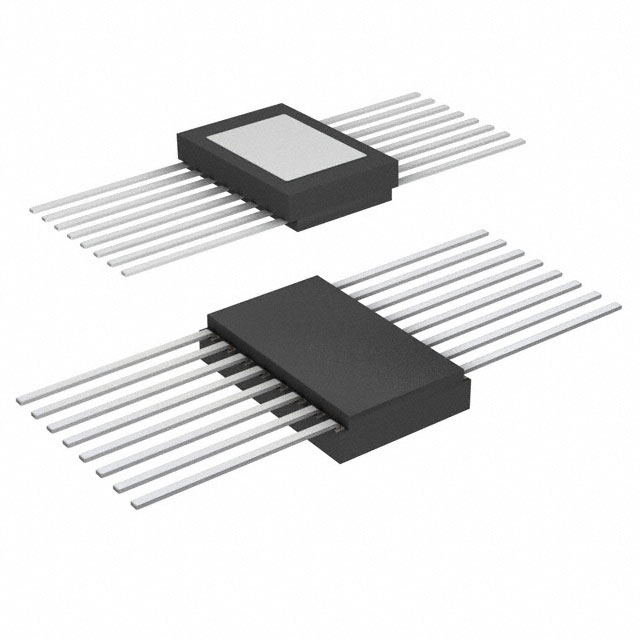

ADG798HFRZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 1.25 Ohm
Voltage - Supply, Single (V+) : 3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : ±2.5V
Switch Time (Ton, Toff) (Max) : 30ns, 20ns
-3db Bandwidth : 55MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 13pF, 85pF
Current - Leakage (IS(off)) (Max) : 180nA
Crosstalk : -60dB @ 10MHz
Operating Temperature : -55°C ~ 210°C (TA)
Package / Case : 16-CFlatPack
Supplier Device Package : 16-CFlatPack
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 1.25 Ohm
Voltage - Supply, Single (V+) : 3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : ±2.5V
Switch Time (Ton, Toff) (Max) : 30ns, 20ns
-3db Bandwidth : 55MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 13pF, 85pF
Current - Leakage (IS(off)) (Max) : 180nA
Crosstalk : -60dB @ 10MHz
Operating Temperature : -55°C ~ 210°C (TA)
Package / Case : 16-CFlatPack
Supplier Device Package : 16-CFlatPack
0
19 in stock
ADG798HFZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 1.25 Ohm
Voltage - Supply, Single (V+) : 3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : ±2.5V
Switch Time (Ton, Toff) (Max) : 30ns, 20ns
-3db Bandwidth : 55MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 13pF, 85pF
Current - Leakage (IS(off)) (Max) : 180nA
Crosstalk : -60dB @ 10MHz
Operating Temperature : -55°C ~ 210°C (TA)
Package / Case : 16-CFlatPack
Supplier Device Package : 16-CFlatPack
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 1.25 Ohm
Voltage - Supply, Single (V+) : 3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : ±2.5V
Switch Time (Ton, Toff) (Max) : 30ns, 20ns
-3db Bandwidth : 55MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 13pF, 85pF
Current - Leakage (IS(off)) (Max) : 180nA
Crosstalk : -60dB @ 10MHz
Operating Temperature : -55°C ~ 210°C (TA)
Package / Case : 16-CFlatPack
Supplier Device Package : 16-CFlatPack
0
11 in stock
ADG798HRUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : -
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 9 Ohm
Channel-to-Channel Matching (δRon) : 600 mOhm
Voltage - Supply, Single (V+) : 3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : ±2.5V
Switch Time (Ton, Toff) (Max) : 28ns, 13ns
-3db Bandwidth : 55MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 13pF, 85pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -60dB @ 10MHz
Operating Temperature : -55°C ~ 175°C
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : -
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 9 Ohm
Channel-to-Channel Matching (δRon) : 600 mOhm
Voltage - Supply, Single (V+) : 3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : ±2.5V
Switch Time (Ton, Toff) (Max) : 28ns, 13ns
-3db Bandwidth : 55MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 13pF, 85pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -60dB @ 10MHz
Operating Temperature : -55°C ~ 175°C
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
11 in stock
ADG801BRMZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 300 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 15ns
-3db Bandwidth : 12MHz
Charge Injection : 50pC
Channel Capacitance (CS(off), CD(off)) : 180pF, 180pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 300 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 15ns
-3db Bandwidth : 12MHz
Charge Injection : 50pC
Channel Capacitance (CS(off), CD(off)) : 180pF, 180pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
0
4867 in stock
ADG801BRMZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 300 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 15ns
-3db Bandwidth : 12MHz
Charge Injection : 50pC
Channel Capacitance (CS(off), CD(off)) : 180pF, 180pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 300 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 15ns
-3db Bandwidth : 12MHz
Charge Injection : 50pC
Channel Capacitance (CS(off), CD(off)) : 180pF, 180pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
0
3207 in stock
ADG801BRTZ-500RL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 300 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 15ns
-3db Bandwidth : 12MHz
Charge Injection : 50pC
Channel Capacitance (CS(off), CD(off)) : 180pF, 180pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 300 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 15ns
-3db Bandwidth : 12MHz
Charge Injection : 50pC
Channel Capacitance (CS(off), CD(off)) : 180pF, 180pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
0
948 in stock
ADG801BRTZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 300 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 15ns
-3db Bandwidth : 12MHz
Charge Injection : 50pC
Channel Capacitance (CS(off), CD(off)) : 180pF, 180pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 300 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 15ns
-3db Bandwidth : 12MHz
Charge Injection : 50pC
Channel Capacitance (CS(off), CD(off)) : 180pF, 180pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
0
308 in stock
ADG802BRMZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 300 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 15ns
-3db Bandwidth : 12MHz
Charge Injection : 50pC
Channel Capacitance (CS(off), CD(off)) : 180pF, 180pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 300 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 15ns
-3db Bandwidth : 12MHz
Charge Injection : 50pC
Channel Capacitance (CS(off), CD(off)) : 180pF, 180pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
0
73 in stock
ADG802BRTZ-500RL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 300 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 15ns
-3db Bandwidth : 12MHz
Charge Injection : 50pC
Channel Capacitance (CS(off), CD(off)) : 180pF, 180pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 300 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 15ns
-3db Bandwidth : 12MHz
Charge Injection : 50pC
Channel Capacitance (CS(off), CD(off)) : 180pF, 180pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
0
100 in stock
ADG802BRTZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 300 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 15ns
-3db Bandwidth : 12MHz
Charge Injection : 50pC
Channel Capacitance (CS(off), CD(off)) : 180pF, 180pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 300 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 15ns
-3db Bandwidth : 12MHz
Charge Injection : 50pC
Channel Capacitance (CS(off), CD(off)) : 180pF, 180pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
