TMUX1072RUTR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 18 Ohm
Channel-to-Channel Matching (δRon) : 70 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 250µs, 10µs
-3db Bandwidth : 1.2GHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 4pF, 4pF
Current - Leakage (IS(off)) (Max) : 185µA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C
Package / Case : 12-UFQFN
Supplier Device Package : 12-UQFN (1.7x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 18 Ohm
Channel-to-Channel Matching (δRon) : 70 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 250µs, 10µs
-3db Bandwidth : 1.2GHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 4pF, 4pF
Current - Leakage (IS(off)) (Max) : 185µA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C
Package / Case : 12-UFQFN
Supplier Device Package : 12-UQFN (1.7x2)
0
100 in stock
TMUX136MRSER
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 9.5 Ohm
Channel-to-Channel Matching (δRon) : 100 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 4.8 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : -
-3db Bandwidth : 6.1GHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 1.6pF, 1.6pF
Current - Leakage (IS(off)) (Max) : 2µA
Crosstalk : -37dB @ 240MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN
Supplier Device Package : 10-UQFN (2.0x1.5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 9.5 Ohm
Channel-to-Channel Matching (δRon) : 100 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 4.8 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : -
-3db Bandwidth : 6.1GHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 1.6pF, 1.6pF
Current - Leakage (IS(off)) (Max) : 2µA
Crosstalk : -37dB @ 240MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN
Supplier Device Package : 10-UQFN (2.0x1.5)
0
5953 in stock

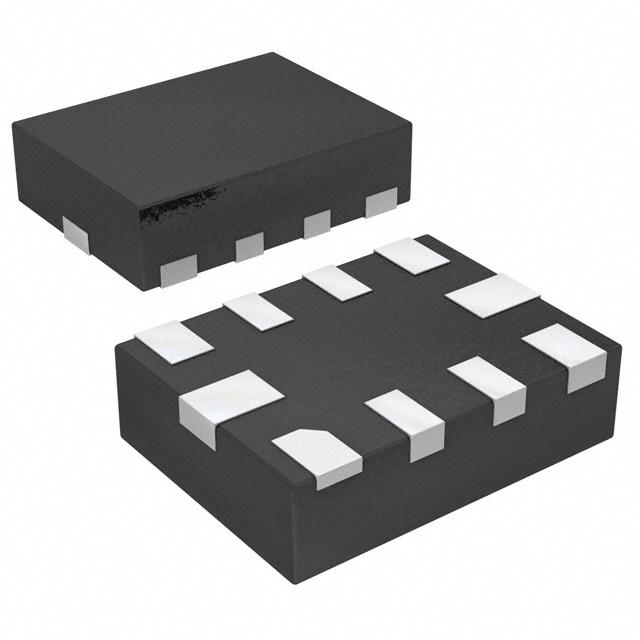

TMUX136RSER
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 9.5 Ohm
Channel-to-Channel Matching (δRon) : 100 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 4.8 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : -
-3db Bandwidth : 6.1GHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 1.6pF, 1.6pF
Current - Leakage (IS(off)) (Max) : 2µA
Crosstalk : -37dB @ 240MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFDFN Exposed Pad
Supplier Device Package : 10-UQFN (2.0x1.5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 9.5 Ohm
Channel-to-Channel Matching (δRon) : 100 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 4.8 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : -
-3db Bandwidth : 6.1GHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 1.6pF, 1.6pF
Current - Leakage (IS(off)) (Max) : 2µA
Crosstalk : -37dB @ 240MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFDFN Exposed Pad
Supplier Device Package : 10-UQFN (2.0x1.5)
0
3022 in stock
TMUX154EDGSR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 350 mOhm
Voltage - Supply, Single (V+) : 3 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 30ns, 25ns
-3db Bandwidth : 900MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 2pF, 7.5pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -97dB @ 1MHz
Operating Temperature : -40°C ~ 85°C
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-VSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 350 mOhm
Voltage - Supply, Single (V+) : 3 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 30ns, 25ns
-3db Bandwidth : 900MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 2pF, 7.5pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -97dB @ 1MHz
Operating Temperature : -40°C ~ 85°C
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-VSSOP
0
2194 in stock

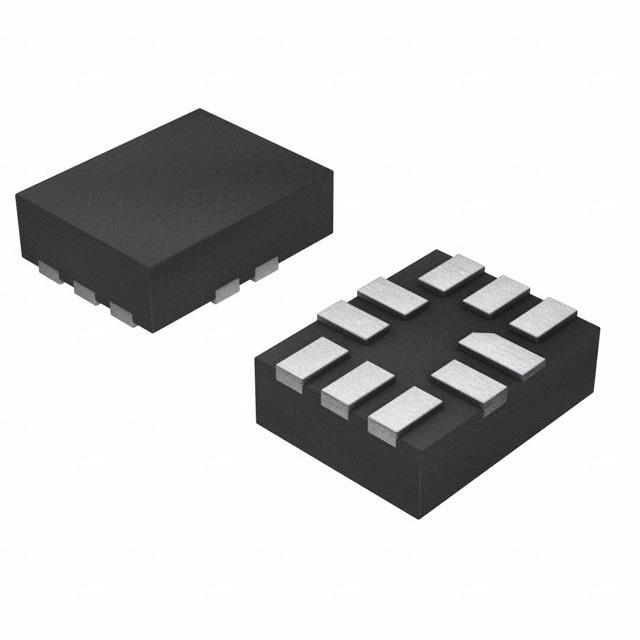

TMUX154ERSWR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 350 mOhm
Voltage - Supply, Single (V+) : 3 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 30ns, 25ns
-3db Bandwidth : 900MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 2pF, 7.5pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -97dB @ 1MHz
Operating Temperature : -40°C ~ 85°C
Package / Case : 10-UFQFN
Supplier Device Package : 10-UQFN (1.4x1.8)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 350 mOhm
Voltage - Supply, Single (V+) : 3 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 30ns, 25ns
-3db Bandwidth : 900MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 2pF, 7.5pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -97dB @ 1MHz
Operating Temperature : -40°C ~ 85°C
Package / Case : 10-UFQFN
Supplier Device Package : 10-UQFN (1.4x1.8)
0
2895 in stock
TMUX6104PWR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : 1.5 Ohm
Voltage - Supply, Single (V+) : 10 V ~ 36 V
Voltage - Supply, Dual (V±) : ±5 V ~ 18 V
Switch Time (Ton, Toff) (Max) : 85ns, 53ns
-3db Bandwidth : 500MHz
Charge Injection : -0.41pC
Channel Capacitance (CS(off), CD(off)) : 1.6pF, 3.8pF
Current - Leakage (IS(off)) (Max) : 20pA
Crosstalk : -105dB @ 1MHz
Operating Temperature : -40°C ~ 125°C
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : 1.5 Ohm
Voltage - Supply, Single (V+) : 10 V ~ 36 V
Voltage - Supply, Dual (V±) : ±5 V ~ 18 V
Switch Time (Ton, Toff) (Max) : 85ns, 53ns
-3db Bandwidth : 500MHz
Charge Injection : -0.41pC
Channel Capacitance (CS(off), CD(off)) : 1.6pF, 3.8pF
Current - Leakage (IS(off)) (Max) : 20pA
Crosstalk : -105dB @ 1MHz
Operating Temperature : -40°C ~ 125°C
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
0
100 in stock

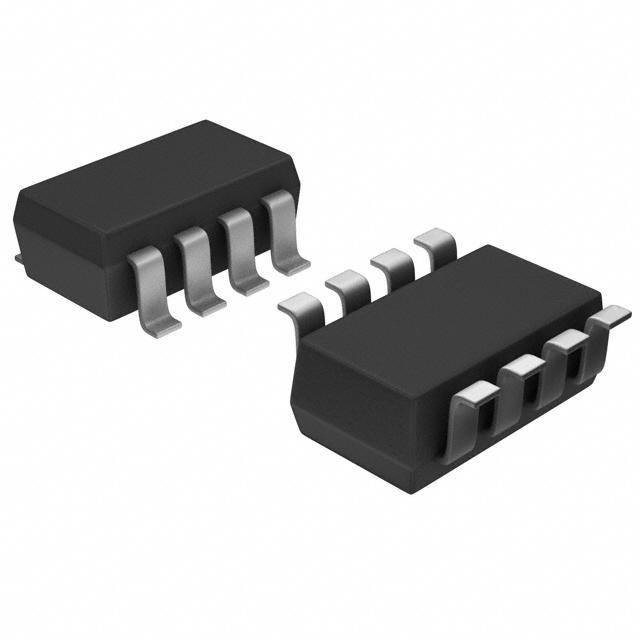

TS12A12511DCNR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 5 Ohm (Typ)
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2.7 V ~ 12 V
Voltage - Supply, Dual (V±) : ±2.7 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 95ns, 50ns
-3db Bandwidth : 93MHz
Charge Injection : 26pC
Channel Capacitance (CS(off), CD(off)) : 14pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -70dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SOT-23-8
Supplier Device Package : SOT-23-8
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 5 Ohm (Typ)
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2.7 V ~ 12 V
Voltage - Supply, Dual (V±) : ±2.7 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 95ns, 50ns
-3db Bandwidth : 93MHz
Charge Injection : 26pC
Channel Capacitance (CS(off), CD(off)) : 14pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -70dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SOT-23-8
Supplier Device Package : SOT-23-8
0
66092 in stock

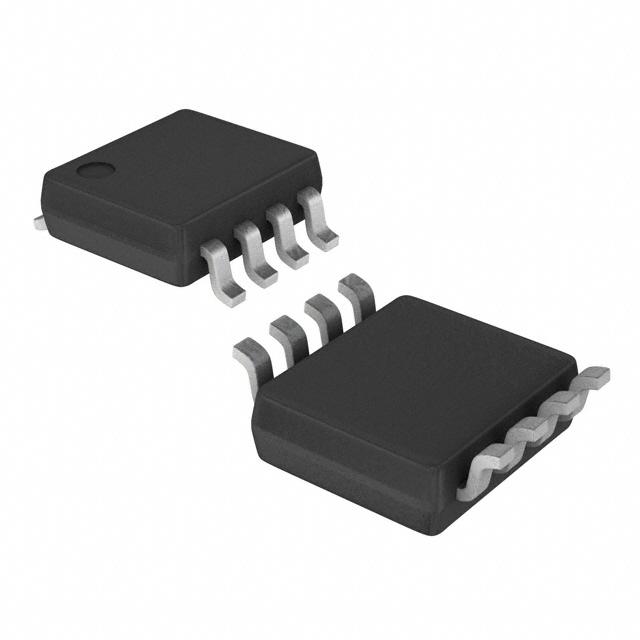

TS12A12511DGKR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 5 Ohm (Typ)
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2.7 V ~ 12 V
Voltage - Supply, Dual (V±) : ±2.7 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 95ns, 50ns
-3db Bandwidth : 93MHz
Charge Injection : 26pC
Channel Capacitance (CS(off), CD(off)) : 14pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -70dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-VSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 5 Ohm (Typ)
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2.7 V ~ 12 V
Voltage - Supply, Dual (V±) : ±2.7 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 95ns, 50ns
-3db Bandwidth : 93MHz
Charge Injection : 26pC
Channel Capacitance (CS(off), CD(off)) : 14pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -70dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-VSSOP
0
2364 in stock
TS12A12511DRJR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 5 Ohm (Typ)
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2.7 V ~ 12 V
Voltage - Supply, Dual (V±) : ±2.7 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 95ns, 50ns
-3db Bandwidth : 93MHz
Charge Injection : 26pC
Channel Capacitance (CS(off), CD(off)) : 14pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -70dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-WDFN Exposed Pad
Supplier Device Package : 8-SON (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 5 Ohm (Typ)
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2.7 V ~ 12 V
Voltage - Supply, Dual (V±) : ±2.7 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 95ns, 50ns
-3db Bandwidth : 93MHz
Charge Injection : 26pC
Channel Capacitance (CS(off), CD(off)) : 14pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -70dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-WDFN Exposed Pad
Supplier Device Package : 8-SON (4x4)
0
1975 in stock
TS12A44513DR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 2.5 Ohm (Max)
Voltage - Supply, Single (V+) : 2.7 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 75ns, 45ns
-3db Bandwidth : 530MHz
Charge Injection : -10.5pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 8pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 14-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 2.5 Ohm (Max)
Voltage - Supply, Single (V+) : 2.7 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 75ns, 45ns
-3db Bandwidth : 530MHz
Charge Injection : -10.5pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 8pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 14-SOIC
0
2834 in stock
TS12A44513PWR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 2.5 Ohm (Max)
Voltage - Supply, Single (V+) : 2.7 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 75ns, 45ns
-3db Bandwidth : 530MHz
Charge Injection : -10.5pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 8pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 2.5 Ohm (Max)
Voltage - Supply, Single (V+) : 2.7 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 75ns, 45ns
-3db Bandwidth : 530MHz
Charge Injection : -10.5pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 8pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
0
2433 in stock
TS12A44514DR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 2.5 Ohm (Max)
Voltage - Supply, Single (V+) : 2.7 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 75ns, 45ns
-3db Bandwidth : 530MHz
Charge Injection : -10.5pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 8pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 14-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 2.5 Ohm (Max)
Voltage - Supply, Single (V+) : 2.7 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 75ns, 45ns
-3db Bandwidth : 530MHz
Charge Injection : -10.5pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 8pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 14-SOIC
0
11418 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
