SW06GSZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 150 Ohm
Channel-to-Channel Matching (δRon) : 30 Ohm
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 700ns, 500ns
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 7pF, 5.5pF
Current - Leakage (IS(off)) (Max) : 60nA
Crosstalk : -70dB @ 500kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 150 Ohm
Channel-to-Channel Matching (δRon) : 30 Ohm
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 700ns, 500ns
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 7pF, 5.5pF
Current - Leakage (IS(off)) (Max) : 60nA
Crosstalk : -70dB @ 500kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
0
91 in stock
TC4052BFELNF
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 2
On-State Resistance (Max) : 160 Ohm
Channel-to-Channel Matching (δRon) : 4 Ohm
Voltage - Supply, Single (V+) : 3 V ~ 18 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : -
-3db Bandwidth : 30MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 0.2pF, 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -50dB @ 1.5MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.209", 5.30mm Width)
Supplier Device Package : 16-SOP
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 2
On-State Resistance (Max) : 160 Ohm
Channel-to-Channel Matching (δRon) : 4 Ohm
Voltage - Supply, Single (V+) : 3 V ~ 18 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : -
-3db Bandwidth : 30MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 0.2pF, 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -50dB @ 1.5MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.209", 5.30mm Width)
Supplier Device Package : 16-SOP
0
2000 in stock
TC4052BFTELN
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 2
On-State Resistance (Max) : 160 Ohm
Channel-to-Channel Matching (δRon) : 4 Ohm
Voltage - Supply, Single (V+) : 3 V ~ 18 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : -
-3db Bandwidth : 30MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 0.2pF, 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -50dB @ 1.5MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 2
On-State Resistance (Max) : 160 Ohm
Channel-to-Channel Matching (δRon) : 4 Ohm
Voltage - Supply, Single (V+) : 3 V ~ 18 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : -
-3db Bandwidth : 30MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 0.2pF, 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -50dB @ 1.5MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
100 in stock
TC4053BFTEL
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 160 Ohm
Channel-to-Channel Matching (δRon) : 4 Ohm
Voltage - Supply, Single (V+) : 3 V ~ 18 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : -
-3db Bandwidth : 30MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 0.2pF, 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -50dB @ 1.5MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 160 Ohm
Channel-to-Channel Matching (δRon) : 4 Ohm
Voltage - Supply, Single (V+) : 3 V ~ 18 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : -
-3db Bandwidth : 30MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 0.2pF, 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -50dB @ 1.5MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
100 in stock
TC4S66F,LF
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 160 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 3 V ~ 18 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : -
-3db Bandwidth : 30MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 0.5pF, 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SC-74A, SOT-753
Supplier Device Package : SMV
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 160 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 3 V ~ 18 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : -
-3db Bandwidth : 30MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 0.5pF, 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SC-74A, SOT-753
Supplier Device Package : SMV
0
1 in stock

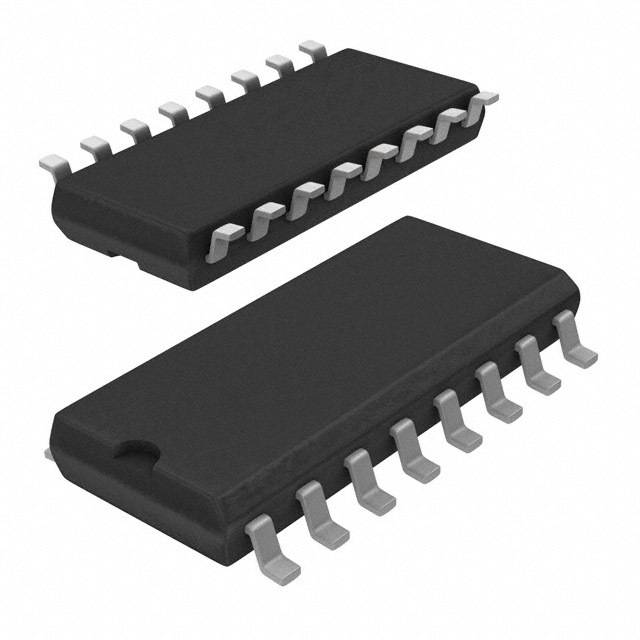

.jpg "Show details for TC74HC4051AF(EL,F)")
TC74HC4051AF(EL,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 6 V
Voltage - Supply, Dual (V±) : ±2 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 18ns, 29ns
-3db Bandwidth : 85MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 2pF, 70pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -50dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.209", 5.30mm Width)
Supplier Device Package : 16-SOP
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 6 V
Voltage - Supply, Dual (V±) : ±2 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 18ns, 29ns
-3db Bandwidth : 85MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 2pF, 70pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -50dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.209", 5.30mm Width)
Supplier Device Package : 16-SOP
0
2000 in stock
TC74HC4051APF
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 6 V
Voltage - Supply, Dual (V±) : ±2 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 18ns, 29ns (Typ)
-3db Bandwidth : 85MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 2pF, 70pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -50dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 6 V
Voltage - Supply, Dual (V±) : ±2 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 18ns, 29ns (Typ)
-3db Bandwidth : 85MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 2pF, 70pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -50dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
0
13 in stock
TC74HC4066AF-ELF
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 12ns, 18ns
-3db Bandwidth : 200MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 10pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 14-SOIC (0.209", 5.30mm Width)
Supplier Device Package : 14-SOP
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 12ns, 18ns
-3db Bandwidth : 200MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 10pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 14-SOIC (0.209", 5.30mm Width)
Supplier Device Package : 14-SOP
0
6000 in stock
TC7SB66CFU,LF(CT
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 7 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 4.5ns
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 5pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package : USV
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 7 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 4.5ns
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 5pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package : USV
0
9224 in stock
TC7SBL384CFU,LF
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 18 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 6ns, 6ns
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package : USV
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 18 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 6ns, 6ns
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package : USV
0
8 in stock
TC7SBL66CFU,LF
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 18 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 6ns, 6ns
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package : USV
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 18 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 6ns, 6ns
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package : USV
0
100 in stock
TMUX1072DGSR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 18 Ohm
Channel-to-Channel Matching (δRon) : 70 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 250µs, 10µs
-3db Bandwidth : 1.2GHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 4pF, 4pF
Current - Leakage (IS(off)) (Max) : 185µA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-VSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 18 Ohm
Channel-to-Channel Matching (δRon) : 70 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 250µs, 10µs
-3db Bandwidth : 1.2GHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 4pF, 4pF
Current - Leakage (IS(off)) (Max) : 185µA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-VSSOP
0
10001 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
