- Integrated Circuits (ICs)
- Interface - Analog Switches, Multiplexers, Demultiplexers
Part Number
Manufacturer
Description
Unit Price
In Stock

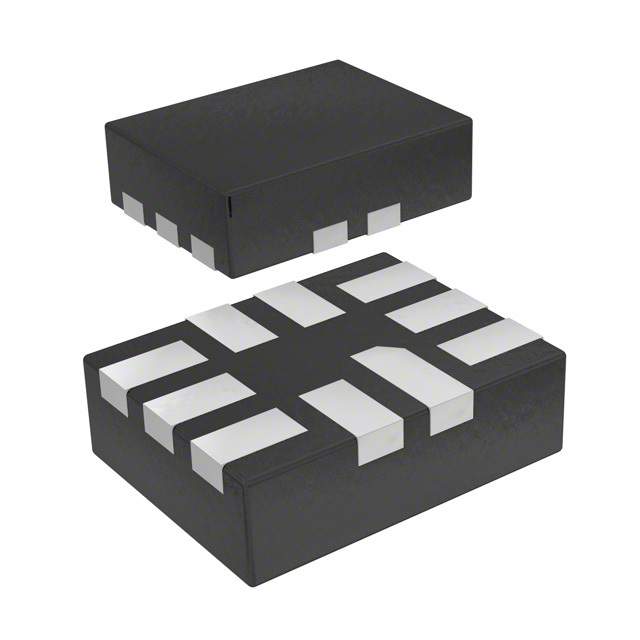

FSA2259UMX
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 500 mOhm (Typ)
Channel-to-Channel Matching (δRon) : 80 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 4.4 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 55ns, 30ns
-3db Bandwidth : 50MHz
Charge Injection : 25pC
Channel Capacitance (CS(off), CD(off)) : 30pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -100dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN
Supplier Device Package : 10-UMLP (1.8x1.4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 500 mOhm (Typ)
Channel-to-Channel Matching (δRon) : 80 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 4.4 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 55ns, 30ns
-3db Bandwidth : 50MHz
Charge Injection : 25pC
Channel Capacitance (CS(off), CD(off)) : 30pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -100dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN
Supplier Device Package : 10-UMLP (1.8x1.4)
0
4397 in stock
FSA2457UMX
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 7 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 2.7 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 7ns, 4ns
-3db Bandwidth : 160MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -54dB @ 25MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-UFQFN
Supplier Device Package : 16-UMLP (1.8x2.6)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 7 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 2.7 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 7ns, 4ns
-3db Bandwidth : 160MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -54dB @ 25MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-UFQFN
Supplier Device Package : 16-UMLP (1.8x2.6)
0
5997 in stock

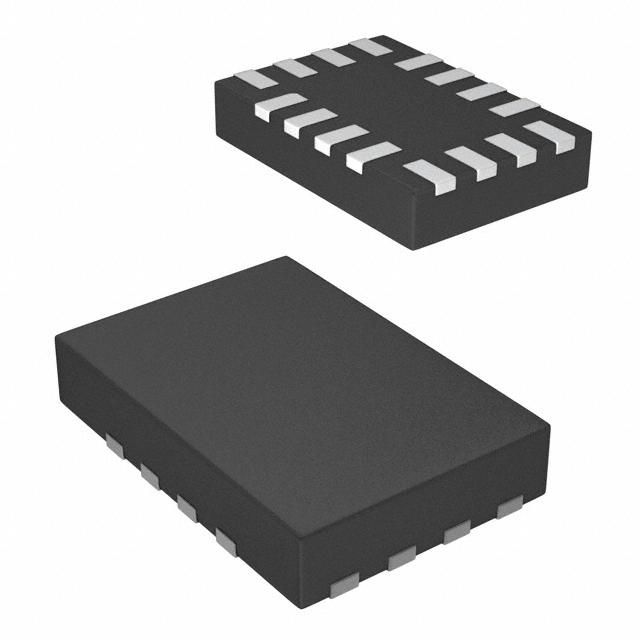

FSA2466UMX
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 2
On-State Resistance (Max) : 1.6 Ohm (Typ)
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 4.45 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 50ns, 32ns
-3db Bandwidth : 240MHz
Charge Injection : 8pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-UFQFN
Supplier Device Package : 16-UMLP (1.8x2.6)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 2
On-State Resistance (Max) : 1.6 Ohm (Typ)
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 4.45 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 50ns, 32ns
-3db Bandwidth : 240MHz
Charge Injection : 8pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-UFQFN
Supplier Device Package : 16-UMLP (1.8x2.6)
0
38 in stock

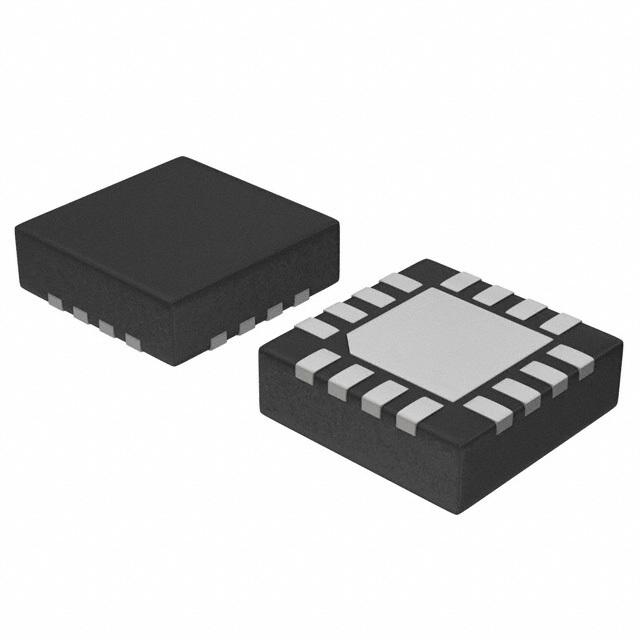

FSA2467MPX
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 2
On-State Resistance (Max) : 400 Ohm (Typ)
Channel-to-Channel Matching (δRon) : 40 mOhm (Min)
Voltage - Supply, Single (V+) : 1.65 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 50ns, 32ns
-3db Bandwidth : 85MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 32pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -75dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-WFQFN Exposed Pad
Supplier Device Package : 16-MLP (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 2
On-State Resistance (Max) : 400 Ohm (Typ)
Channel-to-Channel Matching (δRon) : 40 mOhm (Min)
Voltage - Supply, Single (V+) : 1.65 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 50ns, 32ns
-3db Bandwidth : 85MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 32pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -75dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-WFQFN Exposed Pad
Supplier Device Package : 16-MLP (3x3)
0
102 in stock
FSA2467UMX
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 2
On-State Resistance (Max) : 400 Ohm (Typ)
Channel-to-Channel Matching (δRon) : 40 mOhm (Min)
Voltage - Supply, Single (V+) : 1.65 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 50ns, 32ns
-3db Bandwidth : 85MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 32pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -75dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-UFQFN
Supplier Device Package : 16-UMLP (1.8x2.6)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 2
On-State Resistance (Max) : 400 Ohm (Typ)
Channel-to-Channel Matching (δRon) : 40 mOhm (Min)
Voltage - Supply, Single (V+) : 1.65 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 50ns, 32ns
-3db Bandwidth : 85MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 32pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -75dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-UFQFN
Supplier Device Package : 16-UMLP (1.8x2.6)
0
2495 in stock

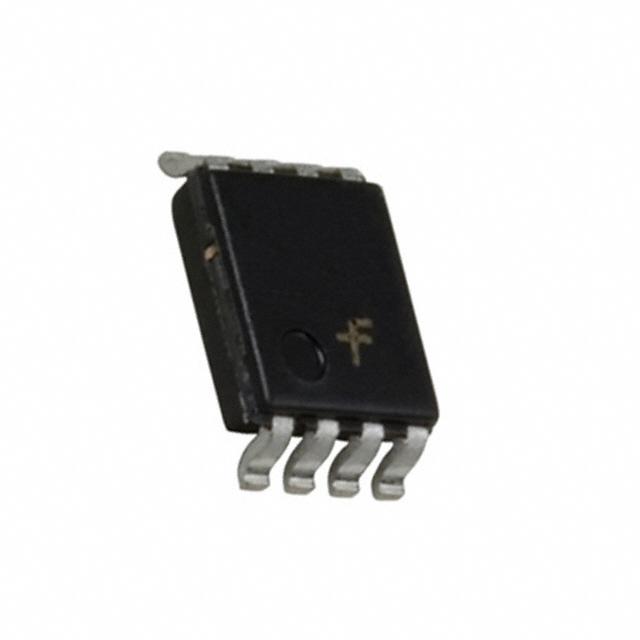

FSA266K8X
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 200 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 3.2ns, 4.1ns
-3db Bandwidth : 300MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -70dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 200 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 3.2ns, 4.1ns
-3db Bandwidth : 300MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -70dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
0
3200 in stock

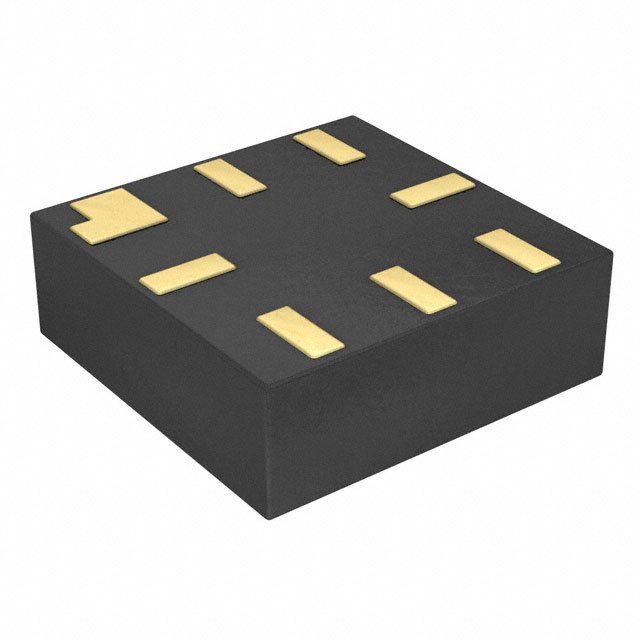

FSA266L8X
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 200 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 3.2ns, 4.1ns
-3db Bandwidth : 300MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -70dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-UFQFN
Supplier Device Package : 8-MicroPak™
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 200 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 3.2ns, 4.1ns
-3db Bandwidth : 300MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -70dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-UFQFN
Supplier Device Package : 8-MicroPak™
0
3707 in stock

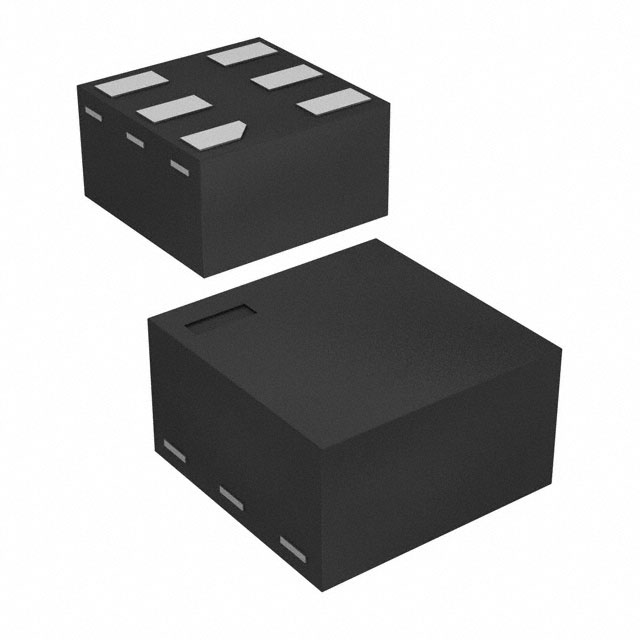

FSA3051TMX
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 350 mOhm
Voltage - Supply, Single (V+) : 1.6 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 34ns, 23ns (Typ)
-3db Bandwidth : 1GHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.3pF
Current - Leakage (IS(off)) (Max) : 2µA
Crosstalk : -23dB @ 240MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-TMLP (1X1)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 350 mOhm
Voltage - Supply, Single (V+) : 1.6 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 34ns, 23ns (Typ)
-3db Bandwidth : 1GHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.3pF
Current - Leakage (IS(off)) (Max) : 2µA
Crosstalk : -23dB @ 240MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-TMLP (1X1)
0
43 in stock

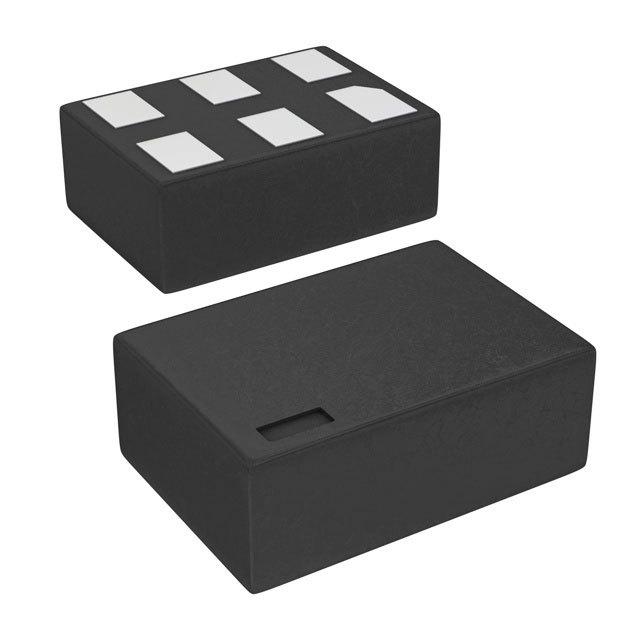

FSA3157L6X
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 15 Ohm
Channel-to-Channel Matching (δRon) : 150 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.7ns, 3.8ns
-3db Bandwidth : 250MHz
Charge Injection : 7pC
Channel Capacitance (CS(off), CD(off)) : 6.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -54dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-UFDFN
Supplier Device Package : 6-MicroPak
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 15 Ohm
Channel-to-Channel Matching (δRon) : 150 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.7ns, 3.8ns
-3db Bandwidth : 250MHz
Charge Injection : 7pC
Channel Capacitance (CS(off), CD(off)) : 6.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -54dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-UFDFN
Supplier Device Package : 6-MicroPak
0
38 in stock
FSA3157P6X
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 15 Ohm
Channel-to-Channel Matching (δRon) : 150 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.7ns, 3.8ns
-3db Bandwidth : 250MHz
Charge Injection : 7pC
Channel Capacitance (CS(off), CD(off)) : 6.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -54dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-70-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 15 Ohm
Channel-to-Channel Matching (δRon) : 150 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.7ns, 3.8ns
-3db Bandwidth : 250MHz
Charge Injection : 7pC
Channel Capacitance (CS(off), CD(off)) : 6.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -54dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-70-6
0
100 in stock
FSA3357K8X
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP3T
Multiplexer/Demultiplexer Circuit : 3:1
Number of Circuits : 1
On-State Resistance (Max) : 15 Ohm
Channel-to-Channel Matching (δRon) : 150 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 6.5ns, 3.7ns
-3db Bandwidth : 200MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 3.6pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP3T
Multiplexer/Demultiplexer Circuit : 3:1
Number of Circuits : 1
On-State Resistance (Max) : 15 Ohm
Channel-to-Channel Matching (δRon) : 150 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 6.5ns, 3.7ns
-3db Bandwidth : 200MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 3.6pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
0
7040 in stock
FSA3357L8X
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP3T
Multiplexer/Demultiplexer Circuit : 3:1
Number of Circuits : 1
On-State Resistance (Max) : 15 Ohm
Channel-to-Channel Matching (δRon) : 150 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 6.5ns, 3.7ns
-3db Bandwidth : 200MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 3.6pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-UFQFN
Supplier Device Package : 8-MicroPak™
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP3T
Multiplexer/Demultiplexer Circuit : 3:1
Number of Circuits : 1
On-State Resistance (Max) : 15 Ohm
Channel-to-Channel Matching (δRon) : 150 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 6.5ns, 3.7ns
-3db Bandwidth : 200MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 3.6pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-UFQFN
Supplier Device Package : 8-MicroPak™
0
4882 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
