Welcome to Weijie Semiconductor
- Integrated Circuits (ICs)
- Interface - Analog Switches, Multiplexers, Demultiplexers
Part Number
Manufacturer
Description
Unit Price
In Stock
FSA1156P6X
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 20ns, 30ns
-3db Bandwidth : 300MHz
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-70-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 20ns, 30ns
-3db Bandwidth : 300MHz
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-70-6
0
6627 in stock

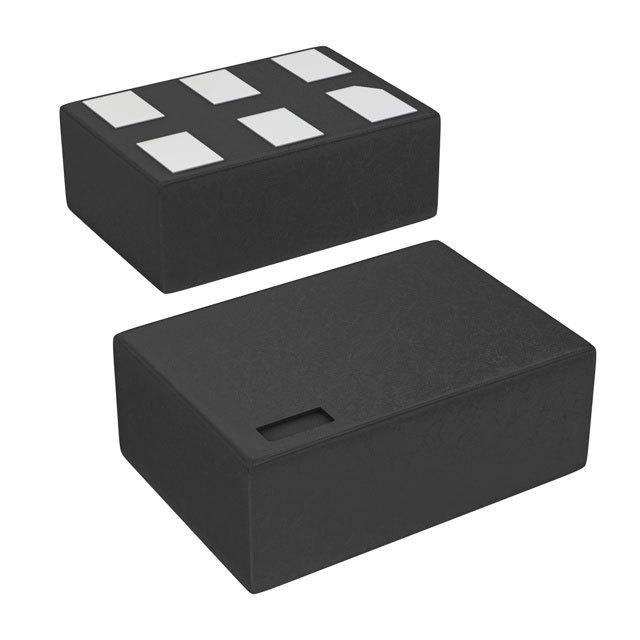

FSA1157L6X
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 20ns, 30ns
-3db Bandwidth : 300MHz
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-UFDFN
Supplier Device Package : 6-MicroPak
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 20ns, 30ns
-3db Bandwidth : 300MHz
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-UFDFN
Supplier Device Package : 6-MicroPak
0
3475 in stock
FSA1157P6X
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 20ns, 30ns
-3db Bandwidth : 300MHz
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-70-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 20ns, 30ns
-3db Bandwidth : 300MHz
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-70-6
0
3431 in stock
FSA1256AL8X
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 1.15 Ohm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 2.7 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 35ns, 15ns
-3db Bandwidth : 300MHz
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 11.5pF
Current - Leakage (IS(off)) (Max) : 2nA (Typ)
Crosstalk : -100dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-UFQFN
Supplier Device Package : 8-MicroPak™
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 1.15 Ohm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 2.7 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 35ns, 15ns
-3db Bandwidth : 300MHz
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 11.5pF
Current - Leakage (IS(off)) (Max) : 2nA (Typ)
Crosstalk : -100dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-UFQFN
Supplier Device Package : 8-MicroPak™
0
1620 in stock
FSA1256L8X
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 1.15 Ohm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 35ns, 15ns
-3db Bandwidth : 300MHz
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 11.5pF
Current - Leakage (IS(off)) (Max) : 2nA (Typ)
Crosstalk : -100dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-UFQFN
Supplier Device Package : 8-MicroPak™
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 1.15 Ohm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 35ns, 15ns
-3db Bandwidth : 300MHz
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 11.5pF
Current - Leakage (IS(off)) (Max) : 2nA (Typ)
Crosstalk : -100dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-UFQFN
Supplier Device Package : 8-MicroPak™
0
22219 in stock

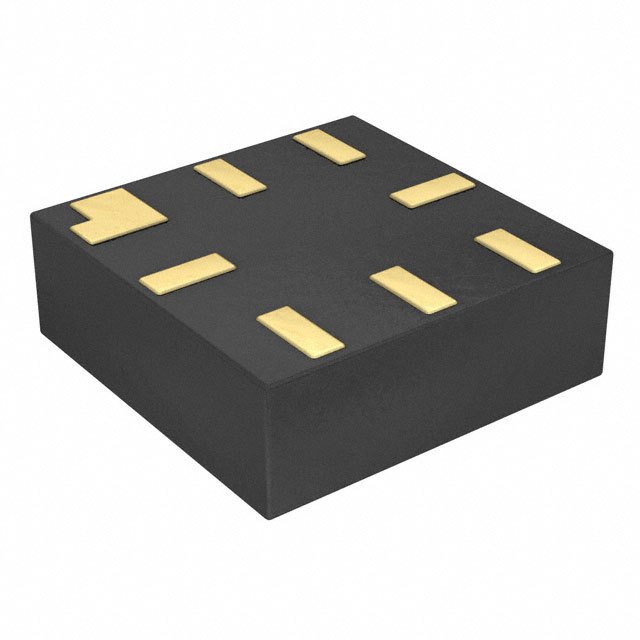

FSA1257AL8X
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 1.15 Ohm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 2.7 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 35ns, 15ns
-3db Bandwidth : 300MHz
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 11.5pF
Current - Leakage (IS(off)) (Max) : 2nA (Typ)
Crosstalk : -100dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-UFQFN
Supplier Device Package : 8-MicroPak™
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 1.15 Ohm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 2.7 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 35ns, 15ns
-3db Bandwidth : 300MHz
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 11.5pF
Current - Leakage (IS(off)) (Max) : 2nA (Typ)
Crosstalk : -100dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-UFQFN
Supplier Device Package : 8-MicroPak™
0
690 in stock
FSA1257L8X
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 1.15 Ohm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 35ns, 15ns
-3db Bandwidth : 300MHz
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 11.5pF
Current - Leakage (IS(off)) (Max) : 2nA (Typ)
Crosstalk : -100dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8035 J-Lead
Supplier Device Package : 8-MicroPak™
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 1.15 Ohm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 35ns, 15ns
-3db Bandwidth : 300MHz
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 11.5pF
Current - Leakage (IS(off)) (Max) : 2nA (Typ)
Crosstalk : -100dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8035 J-Lead
Supplier Device Package : 8-MicroPak™
0
1722 in stock

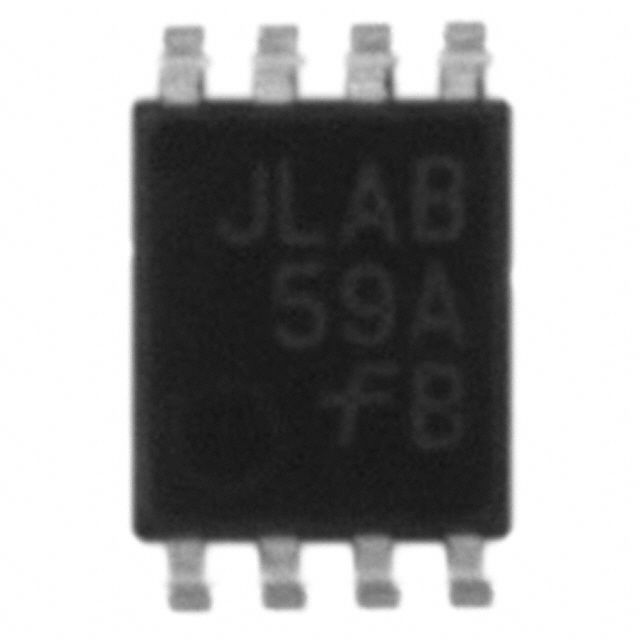

FSA1259AK8X
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 850 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 7.5ns, 17ns
-3db Bandwidth : 240MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 21pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -73dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 850 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 7.5ns, 17ns
-3db Bandwidth : 240MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 21pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -73dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
0
43 in stock
FSA2257L10X
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 1.15 Ohm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 35ns, 15ns
-3db Bandwidth : 200MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 12pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -75dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN
Supplier Device Package : 10-MicroPak™
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 1.15 Ohm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 35ns, 15ns
-3db Bandwidth : 200MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 12pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -75dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN
Supplier Device Package : 10-MicroPak™
0
892 in stock
FSA2257MTCX
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 1.5 Ohm (Typ)
Channel-to-Channel Matching (δRon) : 700 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 35ns, 15ns
-3db Bandwidth : 200MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 12pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -75dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 1.5 Ohm (Typ)
Channel-to-Channel Matching (δRon) : 700 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 35ns, 15ns
-3db Bandwidth : 200MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 12pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -75dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
0
34 in stock
FSA2257MUX
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 1.5 Ohm (Typ)
Channel-to-Channel Matching (δRon) : 700 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 35ns, 15ns
-3db Bandwidth : 200MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 12pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -75dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-MSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 1.5 Ohm (Typ)
Channel-to-Channel Matching (δRon) : 700 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 35ns, 15ns
-3db Bandwidth : 200MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 12pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -75dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-MSOP
0
11767 in stock

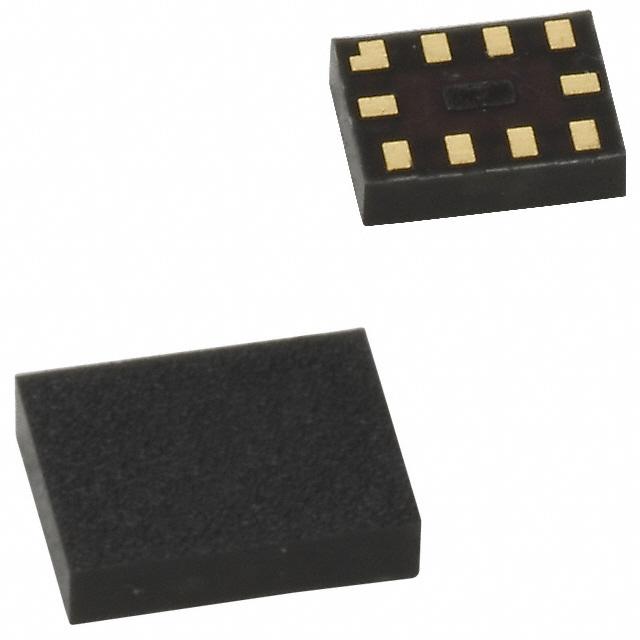

FSA2258L10X
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 500 mOhm (Typ)
Channel-to-Channel Matching (δRon) : 80 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 55ns, 30ns
-3db Bandwidth : 50MHz
Charge Injection : 25pC
Channel Capacitance (CS(off), CD(off)) : 3.3pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -100dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN
Supplier Device Package : 10-MicroPak™
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 500 mOhm (Typ)
Channel-to-Channel Matching (δRon) : 80 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 55ns, 30ns
-3db Bandwidth : 50MHz
Charge Injection : 25pC
Channel Capacitance (CS(off), CD(off)) : 3.3pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -100dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN
Supplier Device Package : 10-MicroPak™
0
54728 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
