- Inductors, Coils, Chokes
- Fixed Inductors
Part Number
Manufacturer
Description
Unit Price
In Stock
36501E39NJTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 39nH
Tolerance : ±5%
Current Rating : 200mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 550 mOhm Max
Q @ Freq : 25 @ 250MHz
Frequency - Self Resonant : 2.1GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 39nH
Tolerance : ±5%
Current Rating : 200mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 550 mOhm Max
Q @ Freq : 25 @ 250MHz
Frequency - Self Resonant : 2.1GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
1852 in stock
36501E3N3JTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 3.3nH
Tolerance : ±5%
Current Rating : 840mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 66 mOhm Max
Q @ Freq : 19 @ 250MHz
Frequency - Self Resonant : 7GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 3.3nH
Tolerance : ±5%
Current Rating : 840mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 66 mOhm Max
Q @ Freq : 19 @ 250MHz
Frequency - Self Resonant : 7GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
1712 in stock
36501E3N6JTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 3.6nH
Tolerance : ±5%
Current Rating : 840mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 66 mOhm Max
Q @ Freq : 19 @ 250MHz
Frequency - Self Resonant : 6.8GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 3.6nH
Tolerance : ±5%
Current Rating : 840mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 66 mOhm Max
Q @ Freq : 19 @ 250MHz
Frequency - Self Resonant : 6.8GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
3384 in stock
36501E3N9JTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 3.9nH
Tolerance : ±5%
Current Rating : 840mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 66 mOhm Max
Q @ Freq : 19 @ 250MHz
Frequency - Self Resonant : 5.8GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 3.9nH
Tolerance : ±5%
Current Rating : 840mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 66 mOhm Max
Q @ Freq : 19 @ 250MHz
Frequency - Self Resonant : 5.8GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
230 in stock
36501E4N3JTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 4.3nH
Tolerance : ±5%
Current Rating : 700mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 91 mOhm Max
Q @ Freq : 18 @ 250MHz
Frequency - Self Resonant : 6GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.050" L x 0.030" W (1.27mm x 0.76mm)
Height - Seated (Max) : 0.024" (0.60mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 4.3nH
Tolerance : ±5%
Current Rating : 700mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 91 mOhm Max
Q @ Freq : 18 @ 250MHz
Frequency - Self Resonant : 6GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.050" L x 0.030" W (1.27mm x 0.76mm)
Height - Seated (Max) : 0.024" (0.60mm)
0
4000 in stock
36501E4N7JTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 4.7nH
Tolerance : ±5%
Current Rating : 640mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 130 mOhm Max
Q @ Freq : 15 @ 250MHz
Frequency - Self Resonant : 4.7GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.050" L x 0.030" W (1.27mm x 0.76mm)
Height - Seated (Max) : 0.024" (0.60mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 4.7nH
Tolerance : ±5%
Current Rating : 640mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 130 mOhm Max
Q @ Freq : 15 @ 250MHz
Frequency - Self Resonant : 4.7GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.050" L x 0.030" W (1.27mm x 0.76mm)
Height - Seated (Max) : 0.024" (0.60mm)
0
2000 in stock
36501E56NJTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 56nH
Tolerance : ±5%
Current Rating : 100mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 970 mOhm Max
Q @ Freq : 22 @ 250MHz
Frequency - Self Resonant : 1.76GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 56nH
Tolerance : ±5%
Current Rating : 100mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 970 mOhm Max
Q @ Freq : 22 @ 250MHz
Frequency - Self Resonant : 1.76GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
1425 in stock
36501E5N1JTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 5.1nH
Tolerance : ±5%
Current Rating : 800mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 83 mOhm Max
Q @ Freq : 20 @ 250MHz
Frequency - Self Resonant : 4.8GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.050" L x 0.030" W (1.27mm x 0.76mm)
Height - Seated (Max) : 0.024" (0.60mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 5.1nH
Tolerance : ±5%
Current Rating : 800mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 83 mOhm Max
Q @ Freq : 20 @ 250MHz
Frequency - Self Resonant : 4.8GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.050" L x 0.030" W (1.27mm x 0.76mm)
Height - Seated (Max) : 0.024" (0.60mm)
0
2000 in stock
36501E5N6JTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 5.6nH
Tolerance : ±5%
Current Rating : 760mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 83 mOhm Max
Q @ Freq : 20 @ 250MHz
Frequency - Self Resonant : 4.8GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 5.6nH
Tolerance : ±5%
Current Rating : 760mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 83 mOhm Max
Q @ Freq : 20 @ 250MHz
Frequency - Self Resonant : 4.8GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
2103 in stock

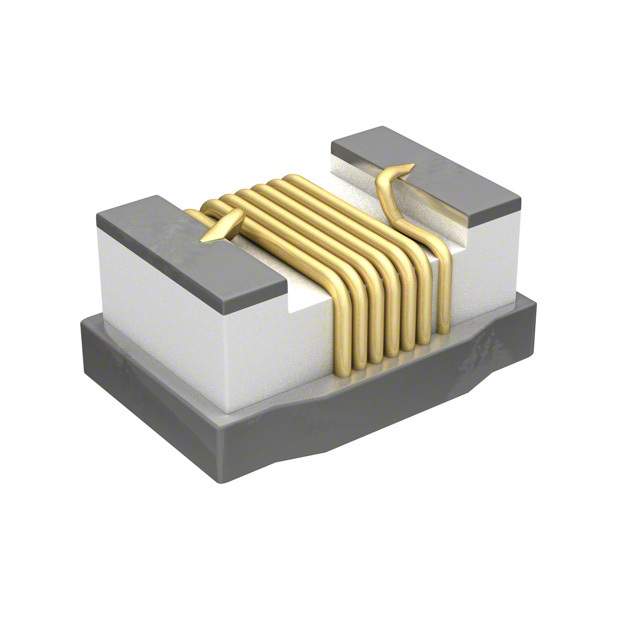

36501E68NJTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 68nH
Tolerance : ±5%
Current Rating : 100mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.12 Ohm Max
Q @ Freq : 22 @ 250MHz
Frequency - Self Resonant : 1.62GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 68nH
Tolerance : ±5%
Current Rating : 100mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.12 Ohm Max
Q @ Freq : 22 @ 250MHz
Frequency - Self Resonant : 1.62GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
3085 in stock
36501E6N2JTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 6.2nH
Tolerance : ±5%
Current Rating : 760mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 83 mOhm Max
Q @ Freq : 20 @ 250MHz
Frequency - Self Resonant : 4.8GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 6.2nH
Tolerance : ±5%
Current Rating : 760mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 83 mOhm Max
Q @ Freq : 20 @ 250MHz
Frequency - Self Resonant : 4.8GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
1823 in stock
36501E6N8JTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 6.8nH
Tolerance : ±5%
Current Rating : 680mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 83 mOhm Max
Q @ Freq : 20 @ 250MHz
Frequency - Self Resonant : 4.8GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 6.8nH
Tolerance : ±5%
Current Rating : 680mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 83 mOhm Max
Q @ Freq : 20 @ 250MHz
Frequency - Self Resonant : 4.8GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
192 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
