- Inductors, Coils, Chokes
- Fixed Inductors
Part Number
Manufacturer
Description
Unit Price
In Stock

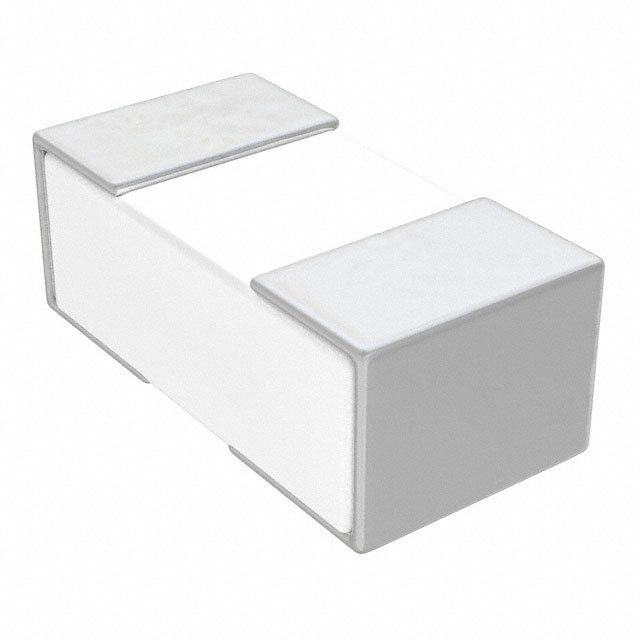

36401E5N6ATDF
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3640, Sigma Inductors
Part Status : Active
Type : Thin Film
Material - Core : -
Inductance : 5.6nH
Tolerance : ±0.2nH
Current Rating : 280mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 850 mOhm Max
Q @ Freq : 13 @ 500MHz
Frequency - Self Resonant : 6GHz
Ratings : -
Operating Temperature : -
Inductance Frequency - Test : 500MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3640, Sigma Inductors
Part Status : Active
Type : Thin Film
Material - Core : -
Inductance : 5.6nH
Tolerance : ±0.2nH
Current Rating : 280mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 850 mOhm Max
Q @ Freq : 13 @ 500MHz
Frequency - Self Resonant : 6GHz
Ratings : -
Operating Temperature : -
Inductance Frequency - Test : 500MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
3000 in stock
36401E6N8ATDF
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3640, Sigma Inductors
Part Status : Active
Type : Thin Film
Material - Core : -
Inductance : 6.8nH
Tolerance : ±0.2nH
Current Rating : 260mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.05 Ohm Max
Q @ Freq : 13 @ 500MHz
Frequency - Self Resonant : 6GHz
Ratings : -
Operating Temperature : -
Inductance Frequency - Test : 500MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3640, Sigma Inductors
Part Status : Active
Type : Thin Film
Material - Core : -
Inductance : 6.8nH
Tolerance : ±0.2nH
Current Rating : 260mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.05 Ohm Max
Q @ Freq : 13 @ 500MHz
Frequency - Self Resonant : 6GHz
Ratings : -
Operating Temperature : -
Inductance Frequency - Test : 500MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
2000 in stock
36401E7N2ATDF
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3640, Sigma Inductors
Part Status : Active
Type : Thin Film
Material - Core : -
Inductance : 7.2nH
Tolerance : ±0.2nH
Current Rating : 260mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.05 Ohm Max
Q @ Freq : 13 @ 500MHz
Frequency - Self Resonant : 6GHz
Ratings : -
Operating Temperature : -
Inductance Frequency - Test : 500MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3640, Sigma Inductors
Part Status : Active
Type : Thin Film
Material - Core : -
Inductance : 7.2nH
Tolerance : ±0.2nH
Current Rating : 260mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.05 Ohm Max
Q @ Freq : 13 @ 500MHz
Frequency - Self Resonant : 6GHz
Ratings : -
Operating Temperature : -
Inductance Frequency - Test : 500MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
6000 in stock
36401E8N2ATDF
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3640, Sigma Inductors
Part Status : Active
Type : Thin Film
Material - Core : -
Inductance : 8.2nH
Tolerance : ±0.2nH
Current Rating : 220mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.25 Ohm Max
Q @ Freq : 13 @ 500MHz
Frequency - Self Resonant : 5.5GHz
Ratings : -
Operating Temperature : -
Inductance Frequency - Test : 500MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3640, Sigma Inductors
Part Status : Active
Type : Thin Film
Material - Core : -
Inductance : 8.2nH
Tolerance : ±0.2nH
Current Rating : 220mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.25 Ohm Max
Q @ Freq : 13 @ 500MHz
Frequency - Self Resonant : 5.5GHz
Ratings : -
Operating Temperature : -
Inductance Frequency - Test : 500MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
2945 in stock
36401E9N1ATDF
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3640, Sigma Inductors
Part Status : Active
Type : Thin Film
Material - Core : -
Inductance : 9.1nH
Tolerance : ±0.2nH
Current Rating : 220mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.25 Ohm Max
Q @ Freq : 13 @ 500MHz
Frequency - Self Resonant : 5.5GHz
Ratings : -
Operating Temperature : -
Inductance Frequency - Test : 500MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3640, Sigma Inductors
Part Status : Active
Type : Thin Film
Material - Core : -
Inductance : 9.1nH
Tolerance : ±0.2nH
Current Rating : 220mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.25 Ohm Max
Q @ Freq : 13 @ 500MHz
Frequency - Self Resonant : 5.5GHz
Ratings : -
Operating Temperature : -
Inductance Frequency - Test : 500MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
3000 in stock
36472C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3600
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 4.7µH
Tolerance : ±25%
Current Rating : 3.6A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 41 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : -
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Max) : 0.165" (4.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3600
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 4.7µH
Tolerance : ±25%
Current Rating : 3.6A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 41 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : -
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Max) : 0.165" (4.20mm)
0
3415 in stock
36501E10NJ
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 10nH
Tolerance : ±5%
Current Rating : 480mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 195 mOhm Max
Q @ Freq : 21 @ 250MHz
Frequency - Self Resonant : 3.9GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 10nH
Tolerance : ±5%
Current Rating : 480mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 195 mOhm Max
Q @ Freq : 21 @ 250MHz
Frequency - Self Resonant : 3.9GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
2719 in stock
36501E11NJTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 11nH
Tolerance : ±5%
Current Rating : 640mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 120 mOhm Max
Q @ Freq : 24 @ 250MHz
Frequency - Self Resonant : 3.68GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 11nH
Tolerance : ±5%
Current Rating : 640mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 120 mOhm Max
Q @ Freq : 24 @ 250MHz
Frequency - Self Resonant : 3.68GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
72 in stock
36501E12NJTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 12nH
Tolerance : ±5%
Current Rating : 640mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 120 mOhm Max
Q @ Freq : 24 @ 250MHz
Frequency - Self Resonant : 3.6GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 12nH
Tolerance : ±5%
Current Rating : 640mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 120 mOhm Max
Q @ Freq : 24 @ 250MHz
Frequency - Self Resonant : 3.6GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
3318 in stock
36501E13NJTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 13nH
Tolerance : ±5%
Current Rating : 440mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 210 mOhm Max
Q @ Freq : 24 @ 250MHz
Frequency - Self Resonant : 3.45GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 13nH
Tolerance : ±5%
Current Rating : 440mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 210 mOhm Max
Q @ Freq : 24 @ 250MHz
Frequency - Self Resonant : 3.45GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
1419 in stock
36501E15NJTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 15nH
Tolerance : ±5%
Current Rating : 560mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 172 mOhm Max
Q @ Freq : 24 @ 250MHz
Frequency - Self Resonant : 3.28GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 15nH
Tolerance : ±5%
Current Rating : 560mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 172 mOhm Max
Q @ Freq : 24 @ 250MHz
Frequency - Self Resonant : 3.28GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
1211 in stock
36501E16NJTDG
AMP Connectors / TE Connectivity
Manufacturer : TE Connectivity Passive Product
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 16nH
Tolerance : ±5%
Current Rating : 560mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 220 mOhm Max
Q @ Freq : 24 @ 250MHz
Frequency - Self Resonant : 3.1GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3650, Sigma Inductors
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 16nH
Tolerance : ±5%
Current Rating : 560mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 220 mOhm Max
Q @ Freq : 24 @ 250MHz
Frequency - Self Resonant : 3.1GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402 (1005 Metric)
Size / Dimension : 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) : 0.015" (0.37mm)
0
3690 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
