Part Number
Manufacturer
Description
Unit Price
In Stock
PA0135.471NLT
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tape & Reel (TR)
Series : PA0135
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 118nH
Inductance - Connected In Series : 470nH
Tolerance : ±20%
Current Rating - Parallel : 40A
Current Rating - Series : 20A
Current Saturation - Parallel : 40A
Current Saturation - Series : 26A
DC Resistance (DCR) - Parallel : 0.225 mOhm Max
DC Resistance (DCR) - Series : 0.9 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : -
Size / Dimension : 0.510" L x 0.510" W (12.95mm x 12.95mm)
Height : 0.280" (7.11mm)
Packaging : Tape & Reel (TR)
Series : PA0135
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 118nH
Inductance - Connected In Series : 470nH
Tolerance : ±20%
Current Rating - Parallel : 40A
Current Rating - Series : 20A
Current Saturation - Parallel : 40A
Current Saturation - Series : 26A
DC Resistance (DCR) - Parallel : 0.225 mOhm Max
DC Resistance (DCR) - Series : 0.9 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : -
Size / Dimension : 0.510" L x 0.510" W (12.95mm x 12.95mm)
Height : 0.280" (7.11mm)
0
100 in stock

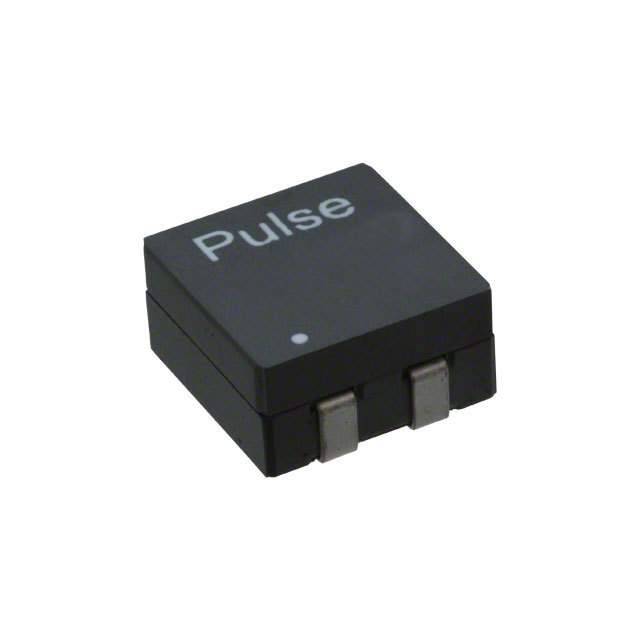

PA0766.561NLT
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PA0766NL
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 284nH
Inductance - Connected In Series : 1.14µH
Tolerance : ±20%
Current Rating - Parallel : 37A
Current Rating - Series : 18.5A
Current Saturation - Parallel : 37A
Current Saturation - Series : 18.5A
DC Resistance (DCR) - Parallel : 0.38 mOhm Max
DC Resistance (DCR) - Series : 1.5 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.551" L x 0.531" W (14.00mm x 13.50mm)
Height : 0.276" (7.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PA0766NL
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 284nH
Inductance - Connected In Series : 1.14µH
Tolerance : ±20%
Current Rating - Parallel : 37A
Current Rating - Series : 18.5A
Current Saturation - Parallel : 37A
Current Saturation - Series : 18.5A
DC Resistance (DCR) - Parallel : 0.38 mOhm Max
DC Resistance (DCR) - Series : 1.5 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.551" L x 0.531" W (14.00mm x 13.50mm)
Height : 0.276" (7.00mm)
0
100 in stock
PA3142AHL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : -
Series : PA314xAHL
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : -
Inductance - Connected In Series : 100nH
Tolerance : ±15%
Current Rating - Parallel : -
Current Rating - Series : 40A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : -
DC Resistance (DCR) - Series : 0.3 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.669" L x 0.413" W (17.00mm x 10.50mm)
Height : 0.315" (8.00mm)
Packaging : -
Series : PA314xAHL
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : -
Inductance - Connected In Series : 100nH
Tolerance : ±15%
Current Rating - Parallel : -
Current Rating - Series : 40A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : -
DC Resistance (DCR) - Series : 0.3 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.669" L x 0.413" W (17.00mm x 10.50mm)
Height : 0.315" (8.00mm)
0
94 in stock
PA3143AHL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : -
Series : PA314xAHL
Part Status : Active
Number of Coils : 3
Inductance - Connected In Parallel : -
Inductance - Connected In Series : 150nH
Tolerance : ±15%
Current Rating - Parallel : -
Current Rating - Series : 40A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : -
DC Resistance (DCR) - Series : 0.3 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Size / Dimension : 1.043" L x 0.413" W (26.50mm x 10.50mm)
Height : 0.315" (8.00mm)
Packaging : -
Series : PA314xAHL
Part Status : Active
Number of Coils : 3
Inductance - Connected In Parallel : -
Inductance - Connected In Series : 150nH
Tolerance : ±15%
Current Rating - Parallel : -
Current Rating - Series : 40A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : -
DC Resistance (DCR) - Series : 0.3 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Size / Dimension : 1.043" L x 0.413" W (26.50mm x 10.50mm)
Height : 0.315" (8.00mm)
0
114 in stock
PA3144AHL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : -
Series : PA314xAHL
Part Status : Active
Number of Coils : 4
Inductance - Connected In Parallel : -
Inductance - Connected In Series : 200nH
Tolerance : ±15%
Current Rating - Parallel : -
Current Rating - Series : 40A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : -
DC Resistance (DCR) - Series : 0.3 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead
Size / Dimension : 1.398" L x 0.413" W (35.50mm x 10.50mm)
Height : 0.315" (8.00mm)
Packaging : -
Series : PA314xAHL
Part Status : Active
Number of Coils : 4
Inductance - Connected In Parallel : -
Inductance - Connected In Series : 200nH
Tolerance : ±15%
Current Rating - Parallel : -
Current Rating - Series : 40A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : -
DC Resistance (DCR) - Series : 0.3 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead
Size / Dimension : 1.398" L x 0.413" W (35.50mm x 10.50mm)
Height : 0.315" (8.00mm)
0
895 in stock

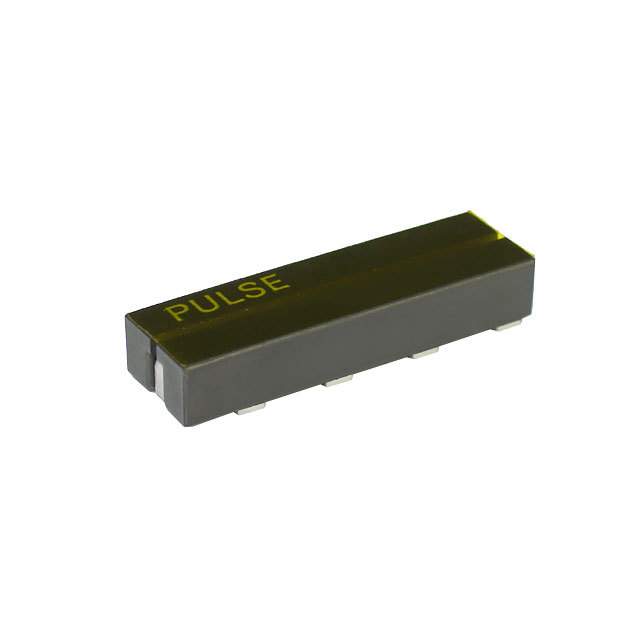

PA3144HL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tray
Series : PA314HL
Part Status : Obsolete
Number of Coils : 4
Inductance - Connected In Parallel : -
Inductance - Connected In Series : -
Tolerance : -
Current Rating - Parallel : -
Current Rating - Series : -
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : -
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead
Size / Dimension : 1.417" L x 0.433" W (36.00mm x 11.00mm)
Height : 0.315" (8.00mm)
Packaging : Tray
Series : PA314HL
Part Status : Obsolete
Number of Coils : 4
Inductance - Connected In Parallel : -
Inductance - Connected In Series : -
Tolerance : -
Current Rating - Parallel : -
Current Rating - Series : -
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : -
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead
Size / Dimension : 1.417" L x 0.433" W (36.00mm x 11.00mm)
Height : 0.315" (8.00mm)
0
100 in stock
PA3145AHL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : -
Series : PA314xAHL
Part Status : Active
Number of Coils : 5
Inductance - Connected In Parallel : -
Inductance - Connected In Series : 250nH
Tolerance : ±15%
Current Rating - Parallel : -
Current Rating - Series : 40A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : -
DC Resistance (DCR) - Series : 0.3 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : 10-SMD, No Lead
Size / Dimension : 1.752" L x 0.413" W (44.50mm x 10.50mm)
Height : 0.315" (8.00mm)
Packaging : -
Series : PA314xAHL
Part Status : Active
Number of Coils : 5
Inductance - Connected In Parallel : -
Inductance - Connected In Series : 250nH
Tolerance : ±15%
Current Rating - Parallel : -
Current Rating - Series : 40A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : -
DC Resistance (DCR) - Series : 0.3 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : 10-SMD, No Lead
Size / Dimension : 1.752" L x 0.413" W (44.50mm x 10.50mm)
Height : 0.315" (8.00mm)
0
94 in stock
PF0552.102NLT
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tape & Reel (TR)
Series : PF0552NL
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 910nH
Inductance - Connected In Series : 3.6µH
Tolerance : ±20%
Current Rating - Parallel : 12.9A
Current Rating - Series : 6.5A
Current Saturation - Parallel : 24A
Current Saturation - Series : 11.8A
DC Resistance (DCR) - Parallel : 2.4 mOhm Max
DC Resistance (DCR) - Series : 9.6 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.236" (6.00mm)
Packaging : Tape & Reel (TR)
Series : PF0552NL
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 910nH
Inductance - Connected In Series : 3.6µH
Tolerance : ±20%
Current Rating - Parallel : 12.9A
Current Rating - Series : 6.5A
Current Saturation - Parallel : 24A
Current Saturation - Series : 11.8A
DC Resistance (DCR) - Parallel : 2.4 mOhm Max
DC Resistance (DCR) - Series : 9.6 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.236" (6.00mm)
0
100 in stock
PF0552.103NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tray
Alternate Packaging
Series : PF0552NL
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 9.7µH
Inductance - Connected In Series : 39µH
Tolerance : ±20%
Current Rating - Parallel : 6A
Current Rating - Series : 3A
Current Saturation - Parallel : 7.2A
Current Saturation - Series : 3.6A
DC Resistance (DCR) - Parallel : 19 mOhm Max
DC Resistance (DCR) - Series : 73 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.236" (6.00mm)
Packaging : Tray
Alternate Packaging
Series : PF0552NL
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 9.7µH
Inductance - Connected In Series : 39µH
Tolerance : ±20%
Current Rating - Parallel : 6A
Current Rating - Series : 3A
Current Saturation - Parallel : 7.2A
Current Saturation - Series : 3.6A
DC Resistance (DCR) - Parallel : 19 mOhm Max
DC Resistance (DCR) - Series : 73 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.236" (6.00mm)
0
30 in stock
PF0552.104NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tray
Alternate Packaging
Series : PF0552NL
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 100µH
Inductance - Connected In Series : 410µH
Tolerance : ±20%
Current Rating - Parallel : 2.3A
Current Rating - Series : 1.1A
Current Saturation - Parallel : 2.2A
Current Saturation - Series : 1.1A
DC Resistance (DCR) - Parallel : 160 mOhm Max
DC Resistance (DCR) - Series : 640 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.236" (6.00mm)
Packaging : Tray
Alternate Packaging
Series : PF0552NL
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 100µH
Inductance - Connected In Series : 410µH
Tolerance : ±20%
Current Rating - Parallel : 2.3A
Current Rating - Series : 1.1A
Current Saturation - Parallel : 2.2A
Current Saturation - Series : 1.1A
DC Resistance (DCR) - Parallel : 160 mOhm Max
DC Resistance (DCR) - Series : 640 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.236" (6.00mm)
0
120 in stock

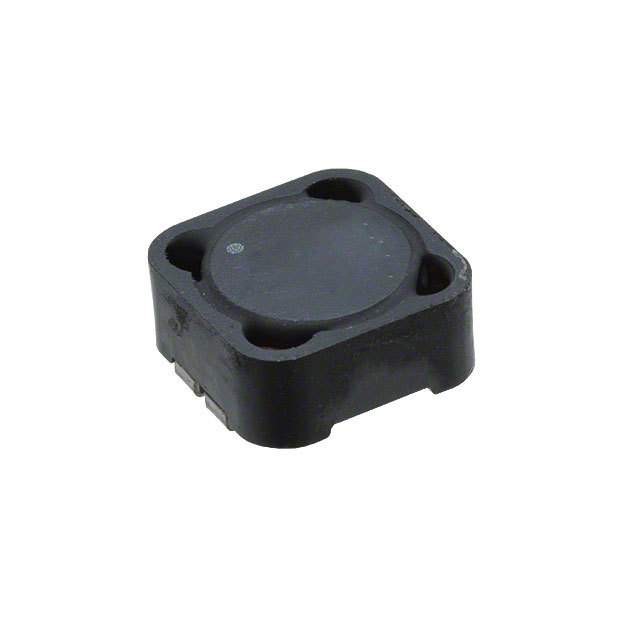

PF0552.104NLT
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PF0552NL
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 100µH
Inductance - Connected In Series : 410µH
Tolerance : ±20%
Current Rating - Parallel : 2.2A
Current Rating - Series : 1.1A
Current Saturation - Parallel : 2.2A
Current Saturation - Series : 1.1A
DC Resistance (DCR) - Parallel : 160 mOhm Max
DC Resistance (DCR) - Series : 640 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.236" (6.00mm)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PF0552NL
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 100µH
Inductance - Connected In Series : 410µH
Tolerance : ±20%
Current Rating - Parallel : 2.2A
Current Rating - Series : 1.1A
Current Saturation - Parallel : 2.2A
Current Saturation - Series : 1.1A
DC Resistance (DCR) - Parallel : 160 mOhm Max
DC Resistance (DCR) - Series : 640 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.236" (6.00mm)
0
100 in stock
PF0552.152NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tray
Alternate Packaging
Series : PF0552NL
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 1.5µH
Inductance - Connected In Series : 5.9µH
Tolerance : ±20%
Current Rating - Parallel : 12.4A
Current Rating - Series : 6.2A
Current Saturation - Parallel : 18.4A
Current Saturation - Series : 9.2A
DC Resistance (DCR) - Parallel : 2.9 mOhm Max
DC Resistance (DCR) - Series : 12 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.236" (6.00mm)
Packaging : Tray
Alternate Packaging
Series : PF0552NL
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 1.5µH
Inductance - Connected In Series : 5.9µH
Tolerance : ±20%
Current Rating - Parallel : 12.4A
Current Rating - Series : 6.2A
Current Saturation - Parallel : 18.4A
Current Saturation - Series : 9.2A
DC Resistance (DCR) - Parallel : 2.9 mOhm Max
DC Resistance (DCR) - Series : 12 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.236" (6.00mm)
0
38 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
