Part Number
Manufacturer
Description
Unit Price
In Stock
P0402
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : Tomcat
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 40.5µH
Inductance - Connected In Series : 161.8µH
Tolerance : ±20%
Current Rating - Parallel : 3.54A
Current Rating - Series : 1.77A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 53.21 mOhm
DC Resistance (DCR) - Series : 212.8 mOhm
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.715" L x 0.590" W (18.16mm x 14.99mm)
Height : 0.310" (7.87mm)
Packaging : Tube
Series : Tomcat
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 40.5µH
Inductance - Connected In Series : 161.8µH
Tolerance : ±20%
Current Rating - Parallel : 3.54A
Current Rating - Series : 1.77A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 53.21 mOhm
DC Resistance (DCR) - Series : 212.8 mOhm
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.715" L x 0.590" W (18.16mm x 14.99mm)
Height : 0.310" (7.87mm)
0
100 in stock
P0402NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tube
Alternate Packaging
Series : Tomcat
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 40.5µH
Inductance - Connected In Series : 161.8µH
Tolerance : ±20%
Current Rating - Parallel : 3.54A
Current Rating - Series : 1.77A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 53.21 mOhm
DC Resistance (DCR) - Series : 212.8 mOhm
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.715" L x 0.590" W (18.16mm x 14.99mm)
Height : 0.310" (7.87mm)
Packaging : Tube
Alternate Packaging
Series : Tomcat
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 40.5µH
Inductance - Connected In Series : 161.8µH
Tolerance : ±20%
Current Rating - Parallel : 3.54A
Current Rating - Series : 1.77A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 53.21 mOhm
DC Resistance (DCR) - Series : 212.8 mOhm
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.715" L x 0.590" W (18.16mm x 14.99mm)
Height : 0.310" (7.87mm)
0
2389 in stock
P0403NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tube
Alternate Packaging
Series : Tomcat
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 50.5µH
Inductance - Connected In Series : 202.2µH
Tolerance : ±20%
Current Rating - Parallel : 3A
Current Rating - Series : 1.5A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 73.89 mOhm
DC Resistance (DCR) - Series : 295.6 mOhm
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.715" L x 0.590" W (18.16mm x 14.99mm)
Height : 0.310" (7.87mm)
Packaging : Tube
Alternate Packaging
Series : Tomcat
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 50.5µH
Inductance - Connected In Series : 202.2µH
Tolerance : ±20%
Current Rating - Parallel : 3A
Current Rating - Series : 1.5A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 73.89 mOhm
DC Resistance (DCR) - Series : 295.6 mOhm
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.715" L x 0.590" W (18.16mm x 14.99mm)
Height : 0.310" (7.87mm)
0
29 in stock
P0595NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tube
Alternate Packaging
Series : HCCI-80
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 10.5µH
Inductance - Connected In Series : 42µH
Tolerance : ±15%
Current Rating - Parallel : 19A
Current Rating - Series : 9.5A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 4.8 mOhm Max
DC Resistance (DCR) - Series : 19.3 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height : 0.500" (12.70mm)
Packaging : Tube
Alternate Packaging
Series : HCCI-80
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 10.5µH
Inductance - Connected In Series : 42µH
Tolerance : ±15%
Current Rating - Parallel : 19A
Current Rating - Series : 9.5A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 4.8 mOhm Max
DC Resistance (DCR) - Series : 19.3 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height : 0.500" (12.70mm)
0
8 in stock
P0595NLT
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Cut Tape (CT)
Alternate Packaging
Series : HCCI-80
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 10.5µH
Inductance - Connected In Series : 42µH
Tolerance : ±15%
Current Rating - Parallel : 19A
Current Rating - Series : 9.5A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 4.8 mOhm Max
DC Resistance (DCR) - Series : 19.3 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height : 0.500" (12.70mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : HCCI-80
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 10.5µH
Inductance - Connected In Series : 42µH
Tolerance : ±15%
Current Rating - Parallel : 19A
Current Rating - Series : 9.5A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 4.8 mOhm Max
DC Resistance (DCR) - Series : 19.3 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height : 0.500" (12.70mm)
0
451 in stock
P0596NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tube
Alternate Packaging
Series : HCCI-80
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 8µH
Inductance - Connected In Series : 32µH
Tolerance : ±15%
Current Rating - Parallel : 24A
Current Rating - Series : 12A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 3.5 mOhm Max
DC Resistance (DCR) - Series : 13.8 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height : 0.500" (12.70mm)
Packaging : Tube
Alternate Packaging
Series : HCCI-80
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 8µH
Inductance - Connected In Series : 32µH
Tolerance : ±15%
Current Rating - Parallel : 24A
Current Rating - Series : 12A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 3.5 mOhm Max
DC Resistance (DCR) - Series : 13.8 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height : 0.500" (12.70mm)
0
592 in stock

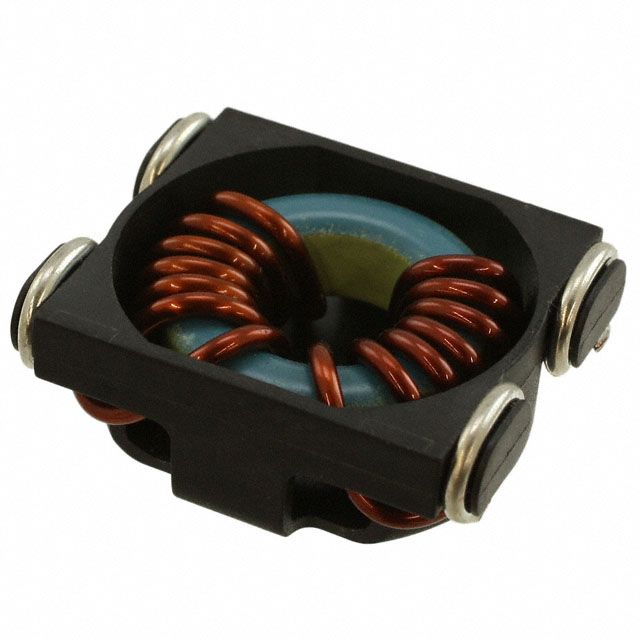

P0597NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tube
Alternate Packaging
Series : HCCI-80
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 5.7µH
Inductance - Connected In Series : 22.8µH
Tolerance : ±15%
Current Rating - Parallel : 27A
Current Rating - Series : 13.5A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 2.5 mOhm Max
DC Resistance (DCR) - Series : 10.1 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height : 0.500" (12.70mm)
Packaging : Tube
Alternate Packaging
Series : HCCI-80
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 5.7µH
Inductance - Connected In Series : 22.8µH
Tolerance : ±15%
Current Rating - Parallel : 27A
Current Rating - Series : 13.5A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 2.5 mOhm Max
DC Resistance (DCR) - Series : 10.1 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height : 0.500" (12.70mm)
0
642 in stock
P0597NLT
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Cut Tape (CT)
Alternate Packaging
Series : HCCI-80
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 5.7µH
Inductance - Connected In Series : 22.8µH
Tolerance : ±15%
Current Rating - Parallel : 27A
Current Rating - Series : 13.5A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 2.5 mOhm Max
DC Resistance (DCR) - Series : 10.1 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height : 0.500" (12.70mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : HCCI-80
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 5.7µH
Inductance - Connected In Series : 22.8µH
Tolerance : ±15%
Current Rating - Parallel : 27A
Current Rating - Series : 13.5A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 2.5 mOhm Max
DC Resistance (DCR) - Series : 10.1 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height : 0.500" (12.70mm)
0
643 in stock
P0598NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tube
Alternate Packaging
Series : HCCI-80
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 3.9µH
Inductance - Connected In Series : 15.6µH
Tolerance : ±15%
Current Rating - Parallel : 34A
Current Rating - Series : 17A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 1.6 mOhm Max
DC Resistance (DCR) - Series : 6.4 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height : 0.500" (12.70mm)
Packaging : Tube
Alternate Packaging
Series : HCCI-80
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 3.9µH
Inductance - Connected In Series : 15.6µH
Tolerance : ±15%
Current Rating - Parallel : 34A
Current Rating - Series : 17A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 1.6 mOhm Max
DC Resistance (DCR) - Series : 6.4 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height : 0.500" (12.70mm)
0
817 in stock
P0599NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tube
Alternate Packaging
Series : HCCI-80
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 2.1µH
Inductance - Connected In Series : 8.4µH
Tolerance : ±15%
Current Rating - Parallel : 38A
Current Rating - Series : 19A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 1.3 mOhm Max
DC Resistance (DCR) - Series : 5.1 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height : 0.500" (12.70mm)
Packaging : Tube
Alternate Packaging
Series : HCCI-80
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 2.1µH
Inductance - Connected In Series : 8.4µH
Tolerance : ±15%
Current Rating - Parallel : 38A
Current Rating - Series : 19A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 1.3 mOhm Max
DC Resistance (DCR) - Series : 5.1 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height : 0.500" (12.70mm)
0
810 in stock
PA0135.102NLT
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tape & Reel (TR)
Series : PA0135
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 250nH
Inductance - Connected In Series : 1µH
Tolerance : ±20%
Current Rating - Parallel : 24A
Current Rating - Series : 14A
Current Saturation - Parallel : 24A
Current Saturation - Series : 14A
DC Resistance (DCR) - Parallel : 0.225 mOhm Max
DC Resistance (DCR) - Series : 0.9 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : -
Size / Dimension : 0.510" L x 0.510" W (12.95mm x 12.95mm)
Height : 0.280" (7.11mm)
Packaging : Tape & Reel (TR)
Series : PA0135
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 250nH
Inductance - Connected In Series : 1µH
Tolerance : ±20%
Current Rating - Parallel : 24A
Current Rating - Series : 14A
Current Saturation - Parallel : 24A
Current Saturation - Series : 14A
DC Resistance (DCR) - Parallel : 0.225 mOhm Max
DC Resistance (DCR) - Series : 0.9 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : -
Size / Dimension : 0.510" L x 0.510" W (12.95mm x 12.95mm)
Height : 0.280" (7.11mm)
0
100 in stock
PA0135.331NLT
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tape & Reel (TR)
Series : PA0135
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 82.5nH
Inductance - Connected In Series : 330nH
Tolerance : ±20%
Current Rating - Parallel : 40A
Current Rating - Series : 20A
Current Saturation - Parallel : 40A
Current Saturation - Series : 32A
DC Resistance (DCR) - Parallel : 0.225 mOhm Max
DC Resistance (DCR) - Series : 0.9 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : -
Size / Dimension : 0.510" L x 0.510" W (12.95mm x 12.95mm)
Height : 0.280" (7.11mm)
Packaging : Tape & Reel (TR)
Series : PA0135
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 82.5nH
Inductance - Connected In Series : 330nH
Tolerance : ±20%
Current Rating - Parallel : 40A
Current Rating - Series : 20A
Current Saturation - Parallel : 40A
Current Saturation - Series : 32A
DC Resistance (DCR) - Parallel : 0.225 mOhm Max
DC Resistance (DCR) - Series : 0.9 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : -
Size / Dimension : 0.510" L x 0.510" W (12.95mm x 12.95mm)
Height : 0.280" (7.11mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
