Part Number

Manufacturer

Description

Unit Price

In Stock

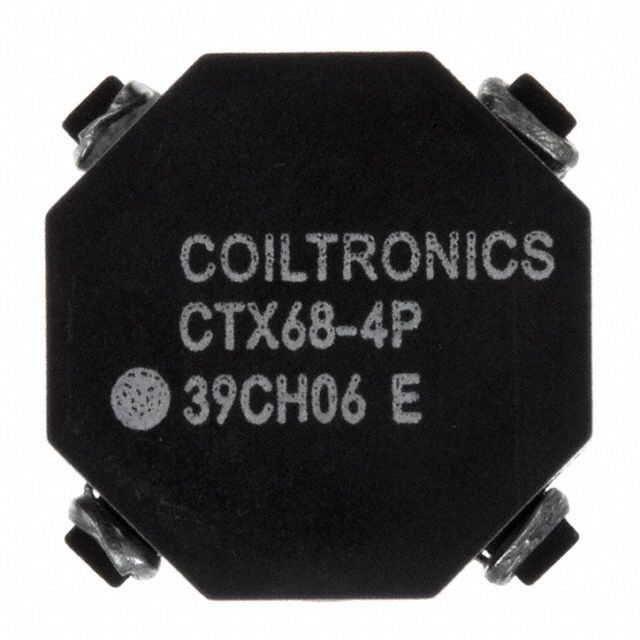

CTX68-4P-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Econo-Pac™
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 67.37µH
Inductance - Connected In Series : 269.5µH
Tolerance : ±20%
Current Rating - Parallel : 1.1A
Current Rating - Series : 550mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 238 mOhm Max
DC Resistance (DCR) - Series : 952 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)

100 in stock

CTX8-1A-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 7.94µH
Inductance - Connected In Series : 31.77µH
Tolerance : ±25%
Current Rating - Parallel : 3.37A
Current Rating - Series : 1.69A
Current Saturation - Parallel : 2.88A
Current Saturation - Series : 1.44A
DC Resistance (DCR) - Parallel : 33 mOhm Max
DC Resistance (DCR) - Series : 130 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)

100 in stock

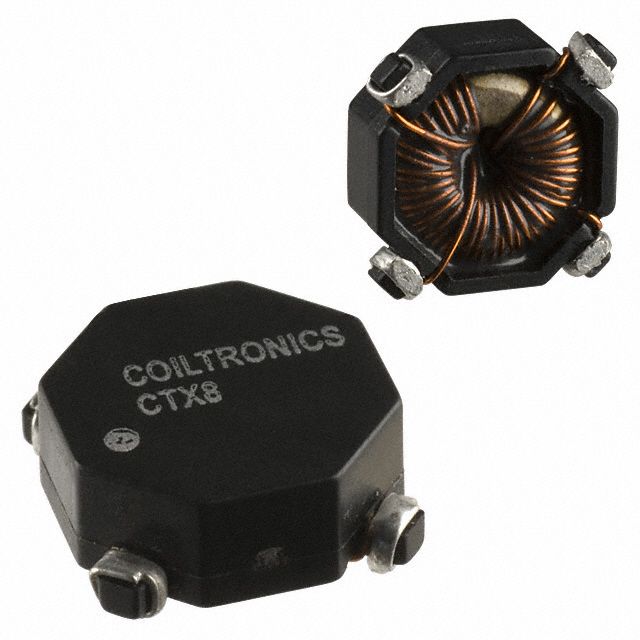

CTX8-1P-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Econo-Pac™
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 8.08µH
Inductance - Connected In Series : 32.33µH
Tolerance : ±20%
Current Rating - Parallel : 1.8A
Current Rating - Series : 900mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 52 mOhm Max
DC Resistance (DCR) - Series : 207 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)

100 in stock

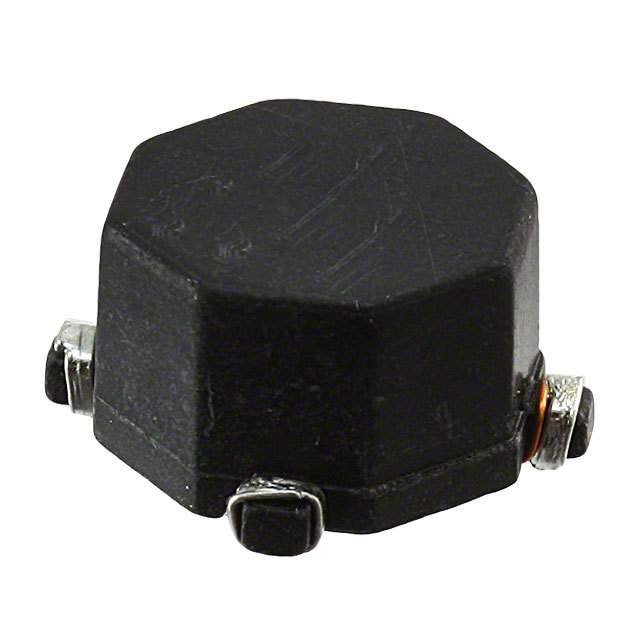

CTX8-2A-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 7.9µH
Inductance - Connected In Series : 31.6µH
Tolerance : ±25%
Current Rating - Parallel : 3.5A
Current Rating - Series : 1.75A
Current Saturation - Parallel : 3.75A
Current Saturation - Series : 1.88A
DC Resistance (DCR) - Parallel : 32 mOhm Max
DC Resistance (DCR) - Series : 129 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)

100 in stock

CTX8-3A-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 8.43µH
Inductance - Connected In Series : 33.77µH
Tolerance : ±25%
Current Rating - Parallel : 4.23A
Current Rating - Series : 2.12A
Current Saturation - Parallel : 3.21A
Current Saturation - Series : 1.61A
DC Resistance (DCR) - Parallel : 23 mOhm Max
DC Resistance (DCR) - Series : 93 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.190" (4.83mm)

100 in stock

CTX8-4A-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC® PLUS
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 8.7µH
Inductance - Connected In Series : 34.8µH
Tolerance : ±25%
Current Rating - Parallel : 5.49A
Current Rating - Series : 2.74A
Current Saturation - Parallel : 4.5A
Current Saturation - Series : 2.25A
DC Resistance (DCR) - Parallel : 15 mOhm Max
DC Resistance (DCR) - Series : 59 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)

267 in stock

DRAQ127-100-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : DRAQ127
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 9.63µH
Inductance - Connected In Series : 38.5µH
Tolerance : ±25%
Current Rating - Parallel : 6.02A
Current Rating - Series : 3.01A
Current Saturation - Parallel : 8.96A
Current Saturation - Series : 4.48A
DC Resistance (DCR) - Parallel : 22 mOhm Max
DC Resistance (DCR) - Series : 89 mOhm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 165°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height : 0.315" (8.00mm)

11433 in stock

DRAQ127-150-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : DRAQ127
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 14.9µH
Inductance - Connected In Series : 59.6µH
Tolerance : ±25%
Current Rating - Parallel : 4.83A
Current Rating - Series : 2.41A
Current Saturation - Parallel : 7.23A
Current Saturation - Series : 3.61A
DC Resistance (DCR) - Parallel : 32 mOhm Max
DC Resistance (DCR) - Series : 128 mOhm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 165°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height : 0.315" (8.00mm)

1022 in stock

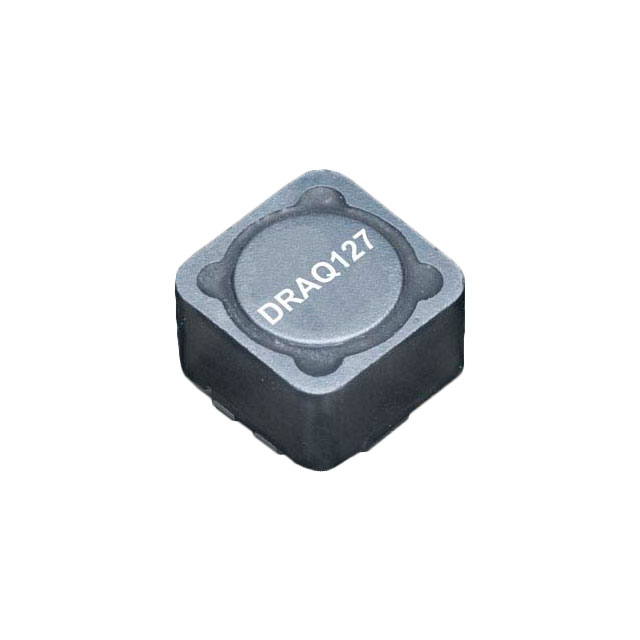

DRAQ127-220-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : DRAQ127
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 22µH
Inductance - Connected In Series : 88µH
Tolerance : ±25%
Current Rating - Parallel : 3.98A
Current Rating - Series : 1.99A
Current Saturation - Parallel : 6.05A
Current Saturation - Series : 3.03A
DC Resistance (DCR) - Parallel : 47 mOhm Max
DC Resistance (DCR) - Series : 192 mOhm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 165°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height : 0.315" (8.00mm)

4896 in stock

DRAQ127-330-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : DRAQ127
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 32µH
Inductance - Connected In Series : 128µH
Tolerance : ±25%
Current Rating - Parallel : 3.22A
Current Rating - Series : 1.61A
Current Saturation - Parallel : 4.98A
Current Saturation - Series : 2.49A
DC Resistance (DCR) - Parallel : 72 mOhm Max
DC Resistance (DCR) - Series : 288 mOhm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 165°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height : 0.315" (8.00mm)

1287 in stock

DRAQ127-470-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : DRAQ127
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 47.9µH
Inductance - Connected In Series : 192µH
Tolerance : ±25%
Current Rating - Parallel : 2.62A
Current Rating - Series : 1.31A
Current Saturation - Parallel : 4.07A
Current Saturation - Series : 2.03A
DC Resistance (DCR) - Parallel : 110 mOhm Max
DC Resistance (DCR) - Series : 440 mOhm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 165°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height : 0.315" (8.00mm)

459 in stock

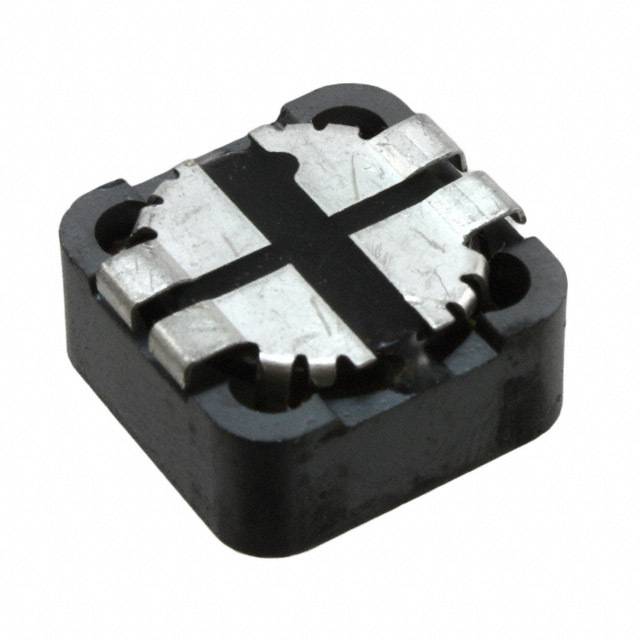

DRQ125-100-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : DRQ
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 9.654µH
Inductance - Connected In Series : 38.62µH
Tolerance : ±20%
Current Rating - Parallel : 5.35A
Current Rating - Series : 2.67A
Current Saturation - Parallel : 7.17A
Current Saturation - Series : 3.59A
DC Resistance (DCR) - Parallel : 18.9 mOhm
DC Resistance (DCR) - Series : 75.7 mOhm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.236" (6.00mm)

6291 in stock
