Part Number
Manufacturer
Description
Unit Price
In Stock

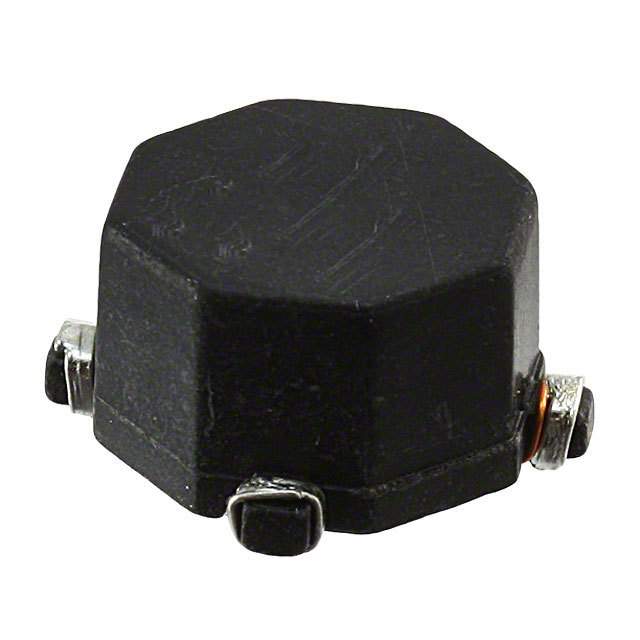

CTX5-2A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 5.06µH
Inductance - Connected In Series : 20.22µH
Tolerance : ±25%
Current Rating - Parallel : 4.34A
Current Rating - Series : 2.17A
Current Saturation - Parallel : 4.69A
Current Saturation - Series : 2.34A
DC Resistance (DCR) - Parallel : 21 mOhm Max
DC Resistance (DCR) - Series : 84 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 5.06µH
Inductance - Connected In Series : 20.22µH
Tolerance : ±25%
Current Rating - Parallel : 4.34A
Current Rating - Series : 2.17A
Current Saturation - Parallel : 4.69A
Current Saturation - Series : 2.34A
DC Resistance (DCR) - Parallel : 21 mOhm Max
DC Resistance (DCR) - Series : 84 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)
0
100 in stock

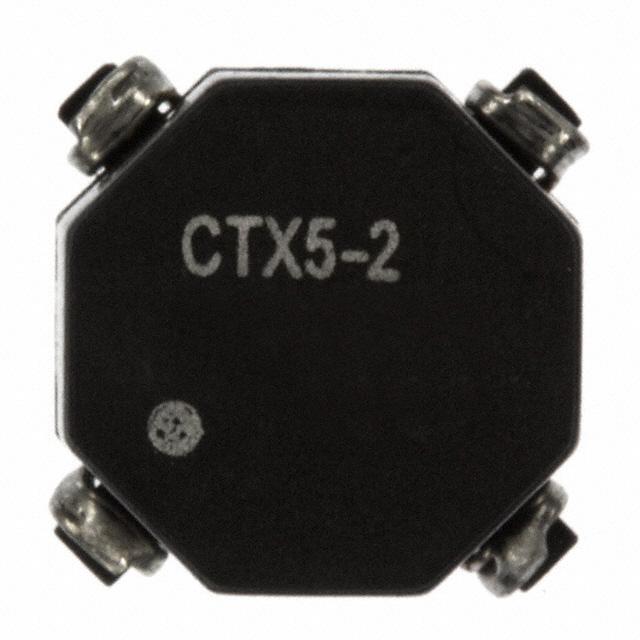

CTX5-2-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC®
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 4.7µH
Inductance - Connected In Series : 18.8µH
Tolerance : ±20%
Current Rating - Parallel : 3A
Current Rating - Series : 1.5A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 21 mOhm Max
DC Resistance (DCR) - Series : 84 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC®
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 4.7µH
Inductance - Connected In Series : 18.8µH
Tolerance : ±20%
Current Rating - Parallel : 3A
Current Rating - Series : 1.5A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 21 mOhm Max
DC Resistance (DCR) - Series : 84 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)
0
836 in stock
CTX5-3A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 5.2µH
Inductance - Connected In Series : 20.81µH
Tolerance : ±25%
Current Rating - Parallel : 5.24A
Current Rating - Series : 2.62A
Current Saturation - Parallel : 4.09A
Current Saturation - Series : 2.05A
DC Resistance (DCR) - Parallel : 15 mOhm Max
DC Resistance (DCR) - Series : 61 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.190" (4.83mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 5.2µH
Inductance - Connected In Series : 20.81µH
Tolerance : ±25%
Current Rating - Parallel : 5.24A
Current Rating - Series : 2.62A
Current Saturation - Parallel : 4.09A
Current Saturation - Series : 2.05A
DC Resistance (DCR) - Parallel : 15 mOhm Max
DC Resistance (DCR) - Series : 61 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.190" (4.83mm)
0
100 in stock

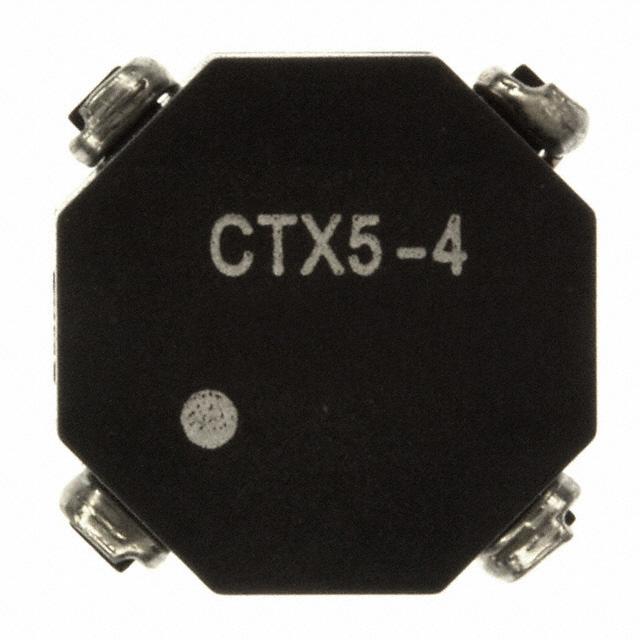

CTX5-4
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC®
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 4.9µH
Inductance - Connected In Series : 19.6µH
Tolerance : ±20%
Current Rating - Parallel : 4.4A
Current Rating - Series : 2.2A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 14 mOhm Max
DC Resistance (DCR) - Series : 56 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC®
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 4.9µH
Inductance - Connected In Series : 19.6µH
Tolerance : ±20%
Current Rating - Parallel : 4.4A
Current Rating - Series : 2.2A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 14 mOhm Max
DC Resistance (DCR) - Series : 56 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
0
100 in stock

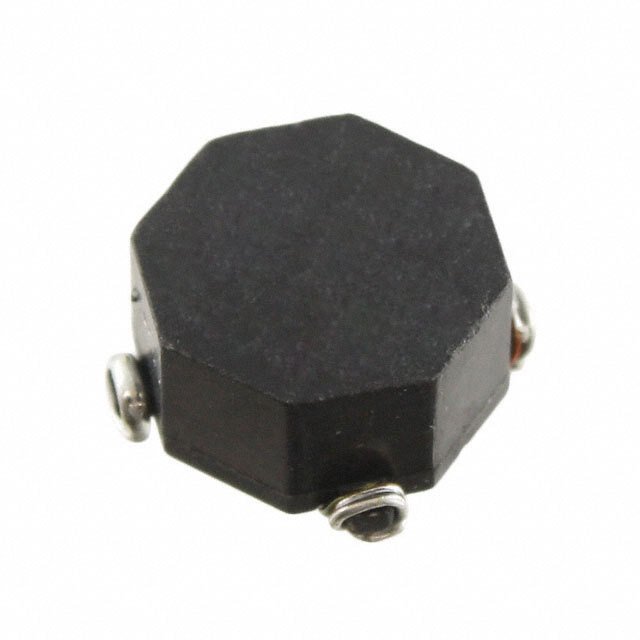

CTX5-4A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC® PLUS
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 4.26µH
Inductance - Connected In Series : 17.05µH
Tolerance : ±25%
Current Rating - Parallel : 7.21A
Current Rating - Series : 3.61A
Current Saturation - Parallel : 6.43A
Current Saturation - Series : 3.21A
DC Resistance (DCR) - Parallel : 8.5 mOhm Max
DC Resistance (DCR) - Series : 33.9 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC® PLUS
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 4.26µH
Inductance - Connected In Series : 17.05µH
Tolerance : ±25%
Current Rating - Parallel : 7.21A
Current Rating - Series : 3.61A
Current Saturation - Parallel : 6.43A
Current Saturation - Series : 3.21A
DC Resistance (DCR) - Parallel : 8.5 mOhm Max
DC Resistance (DCR) - Series : 33.9 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
0
920 in stock
CTX5-4-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC®
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 4.9µH
Inductance - Connected In Series : 19.6µH
Tolerance : ±20%
Current Rating - Parallel : 4.4A
Current Rating - Series : 2.2A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 14 mOhm Max
DC Resistance (DCR) - Series : 56 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC®
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 4.9µH
Inductance - Connected In Series : 19.6µH
Tolerance : ±20%
Current Rating - Parallel : 4.4A
Current Rating - Series : 2.2A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 14 mOhm Max
DC Resistance (DCR) - Series : 56 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
0
2422 in stock
CTX60-5P-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : -
Series : Econo-Pac™
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 60µH
Inductance - Connected In Series : -
Tolerance : -
Current Rating - Parallel : 1.83A
Current Rating - Series : 305mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 380 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard SMD
Size / Dimension : 0.669" L x 0.669" W (17.00mm x 17.00mm)
Height : 0.325" (8.26mm)
Packaging : -
Series : Econo-Pac™
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 60µH
Inductance - Connected In Series : -
Tolerance : -
Current Rating - Parallel : 1.83A
Current Rating - Series : 305mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 380 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard SMD
Size / Dimension : 0.669" L x 0.669" W (17.00mm x 17.00mm)
Height : 0.325" (8.26mm)
0
100 in stock
CTX68-1A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 67.87µH
Inductance - Connected In Series : 271.5µH
Tolerance : ±25%
Current Rating - Parallel : 920mA
Current Rating - Series : 460mA
Current Saturation - Parallel : 990mA
Current Saturation - Series : 490mA
DC Resistance (DCR) - Parallel : 437 mOhm Max
DC Resistance (DCR) - Series : 1.749 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 67.87µH
Inductance - Connected In Series : 271.5µH
Tolerance : ±25%
Current Rating - Parallel : 920mA
Current Rating - Series : 460mA
Current Saturation - Parallel : 990mA
Current Saturation - Series : 490mA
DC Resistance (DCR) - Parallel : 437 mOhm Max
DC Resistance (DCR) - Series : 1.749 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)
0
100 in stock
CTX68-2A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 66.44µH
Inductance - Connected In Series : 265.8µH
Tolerance : ±25%
Current Rating - Parallel : 1.07A
Current Rating - Series : 540mA
Current Saturation - Parallel : 1.29A
Current Saturation - Series : 650mA
DC Resistance (DCR) - Parallel : 342 mOhm Max
DC Resistance (DCR) - Series : 1.367 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 66.44µH
Inductance - Connected In Series : 265.8µH
Tolerance : ±25%
Current Rating - Parallel : 1.07A
Current Rating - Series : 540mA
Current Saturation - Parallel : 1.29A
Current Saturation - Series : 650mA
DC Resistance (DCR) - Parallel : 342 mOhm Max
DC Resistance (DCR) - Series : 1.367 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)
0
100 in stock
CTX68-3A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 68.8µH
Inductance - Connected In Series : 275.2µH
Tolerance : ±25%
Current Rating - Parallel : 1.28A
Current Rating - Series : 640mA
Current Saturation - Parallel : 1.13A
Current Saturation - Series : 560mA
DC Resistance (DCR) - Parallel : 253 mOhm Max
DC Resistance (DCR) - Series : 1.013 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.190" (4.83mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 68.8µH
Inductance - Connected In Series : 275.2µH
Tolerance : ±25%
Current Rating - Parallel : 1.28A
Current Rating - Series : 640mA
Current Saturation - Parallel : 1.13A
Current Saturation - Series : 560mA
DC Resistance (DCR) - Parallel : 253 mOhm Max
DC Resistance (DCR) - Series : 1.013 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.190" (4.83mm)
0
100 in stock
CTX68-4
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC®
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 67.08µH
Inductance - Connected In Series : 268.32µH
Tolerance : ±20%
Current Rating - Parallel : 1.2A
Current Rating - Series : 600mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 157 mOhm Max
DC Resistance (DCR) - Series : 630 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC®
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 67.08µH
Inductance - Connected In Series : 268.32µH
Tolerance : ±20%
Current Rating - Parallel : 1.2A
Current Rating - Series : 600mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 157 mOhm Max
DC Resistance (DCR) - Series : 630 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
0
100 in stock
CTX68-4A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC® PLUS
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 68.21µH
Inductance - Connected In Series : 272.8µH
Tolerance : ±25%
Current Rating - Parallel : 1.7A
Current Rating - Series : 850mA
Current Saturation - Parallel : 1.61A
Current Saturation - Series : 800mA
DC Resistance (DCR) - Parallel : 153 mOhm Max
DC Resistance (DCR) - Series : 612 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC® PLUS
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 68.21µH
Inductance - Connected In Series : 272.8µH
Tolerance : ±25%
Current Rating - Parallel : 1.7A
Current Rating - Series : 850mA
Current Saturation - Parallel : 1.61A
Current Saturation - Series : 800mA
DC Resistance (DCR) - Parallel : 153 mOhm Max
DC Resistance (DCR) - Series : 612 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
