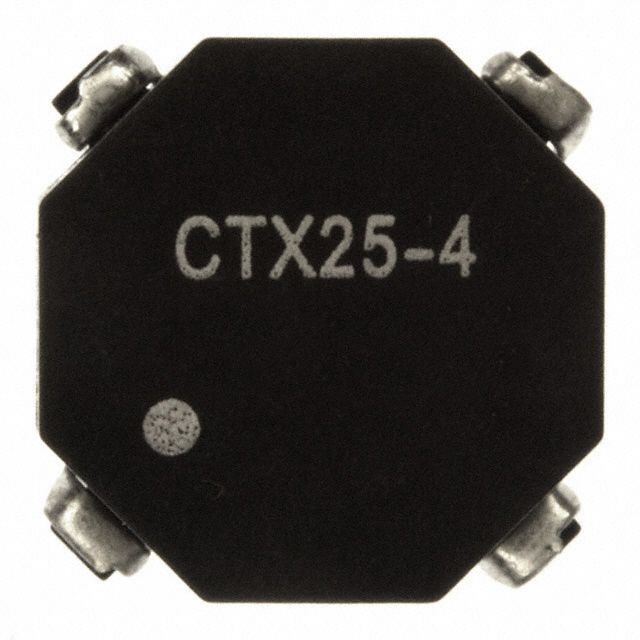

CTX25-4
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC®
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 25.92µH
Inductance - Connected In Series : 103.68µH
Tolerance : ±20%
Current Rating - Parallel : 2A
Current Rating - Series : 1A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 63 mOhm Max
DC Resistance (DCR) - Series : 253 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC®
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 25.92µH
Inductance - Connected In Series : 103.68µH
Tolerance : ±20%
Current Rating - Parallel : 2A
Current Rating - Series : 1A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 63 mOhm Max
DC Resistance (DCR) - Series : 253 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
0
100 in stock

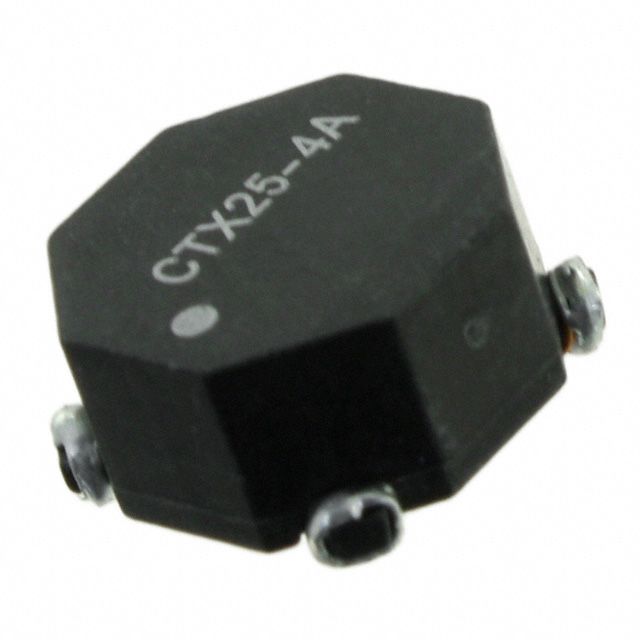

CTX25-4A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC® PLUS
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 25.14µH
Inductance - Connected In Series : 100.51µH
Tolerance : ±25%
Current Rating - Parallel : 3.02A
Current Rating - Series : 1.51A
Current Saturation - Parallel : 2.65A
Current Saturation - Series : 1.32A
DC Resistance (DCR) - Parallel : 48 mOhm Max
DC Resistance (DCR) - Series : 193 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC® PLUS
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 25.14µH
Inductance - Connected In Series : 100.51µH
Tolerance : ±25%
Current Rating - Parallel : 3.02A
Current Rating - Series : 1.51A
Current Saturation - Parallel : 2.65A
Current Saturation - Series : 1.32A
DC Resistance (DCR) - Parallel : 48 mOhm Max
DC Resistance (DCR) - Series : 193 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
0
211 in stock
CTX25-4-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC®
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 25.92µH
Inductance - Connected In Series : 103.68µH
Tolerance : ±20%
Current Rating - Parallel : 2A
Current Rating - Series : 1A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 63 mOhm Max
DC Resistance (DCR) - Series : 253 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC®
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 25.92µH
Inductance - Connected In Series : 103.68µH
Tolerance : ±20%
Current Rating - Parallel : 2A
Current Rating - Series : 1A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 63 mOhm Max
DC Resistance (DCR) - Series : 253 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
0
194 in stock
CTX300-1A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 300.8µH
Inductance - Connected In Series : 1.2mH
Tolerance : ±25%
Current Rating - Parallel : 560mA
Current Rating - Series : 280mA
Current Saturation - Parallel : 470mA
Current Saturation - Series : 230mA
DC Resistance (DCR) - Parallel : 1.181 Ohm Max
DC Resistance (DCR) - Series : 4.726 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 300.8µH
Inductance - Connected In Series : 1.2mH
Tolerance : ±25%
Current Rating - Parallel : 560mA
Current Rating - Series : 280mA
Current Saturation - Parallel : 470mA
Current Saturation - Series : 230mA
DC Resistance (DCR) - Parallel : 1.181 Ohm Max
DC Resistance (DCR) - Series : 4.726 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)
0
100 in stock

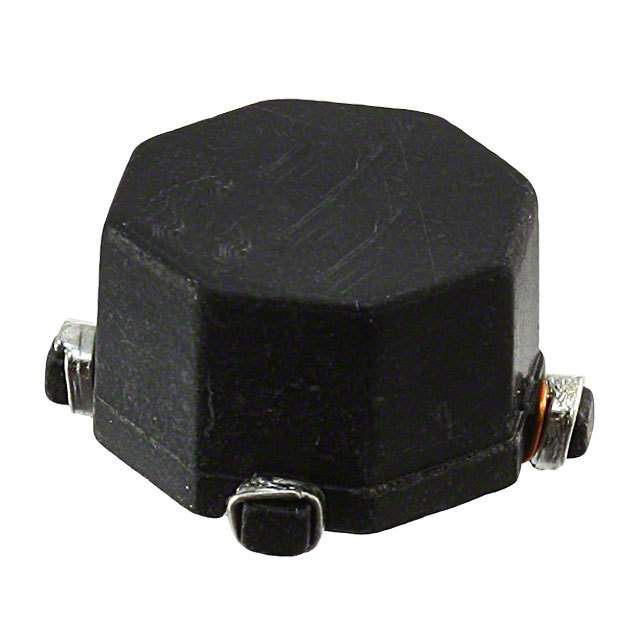

CTX300-2A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 303.7µH
Inductance - Connected In Series : 1.215mH
Tolerance : ±25%
Current Rating - Parallel : 580mA
Current Rating - Series : 290mA
Current Saturation - Parallel : 600mA
Current Saturation - Series : 300mA
DC Resistance (DCR) - Parallel : 1.174 Ohm Max
DC Resistance (DCR) - Series : 4.697 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 303.7µH
Inductance - Connected In Series : 1.215mH
Tolerance : ±25%
Current Rating - Parallel : 580mA
Current Rating - Series : 290mA
Current Saturation - Parallel : 600mA
Current Saturation - Series : 300mA
DC Resistance (DCR) - Parallel : 1.174 Ohm Max
DC Resistance (DCR) - Series : 4.697 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)
0
100 in stock
CTX300-3A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 296.2µH
Inductance - Connected In Series : 1.2mH
Tolerance : ±25%
Current Rating - Parallel : 560mA
Current Rating - Series : 280mA
Current Saturation - Parallel : 540mA
Current Saturation - Series : 270mA
DC Resistance (DCR) - Parallel : 1.309 Ohm Max
DC Resistance (DCR) - Series : 5.236 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.190" (4.83mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 296.2µH
Inductance - Connected In Series : 1.2mH
Tolerance : ±25%
Current Rating - Parallel : 560mA
Current Rating - Series : 280mA
Current Saturation - Parallel : 540mA
Current Saturation - Series : 270mA
DC Resistance (DCR) - Parallel : 1.309 Ohm Max
DC Resistance (DCR) - Series : 5.236 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.190" (4.83mm)
0
100 in stock

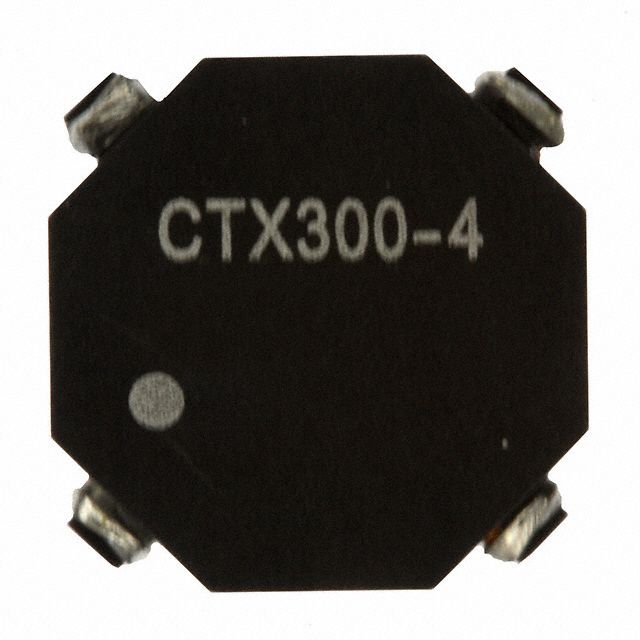

CTX300-4
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC®
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 298.12µH
Inductance - Connected In Series : 1.2mH
Tolerance : ±20%
Current Rating - Parallel : 620mA
Current Rating - Series : 310mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 672 mOhm Max
DC Resistance (DCR) - Series : 2.687 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC®
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 298.12µH
Inductance - Connected In Series : 1.2mH
Tolerance : ±20%
Current Rating - Parallel : 620mA
Current Rating - Series : 310mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 672 mOhm Max
DC Resistance (DCR) - Series : 2.687 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
0
100 in stock

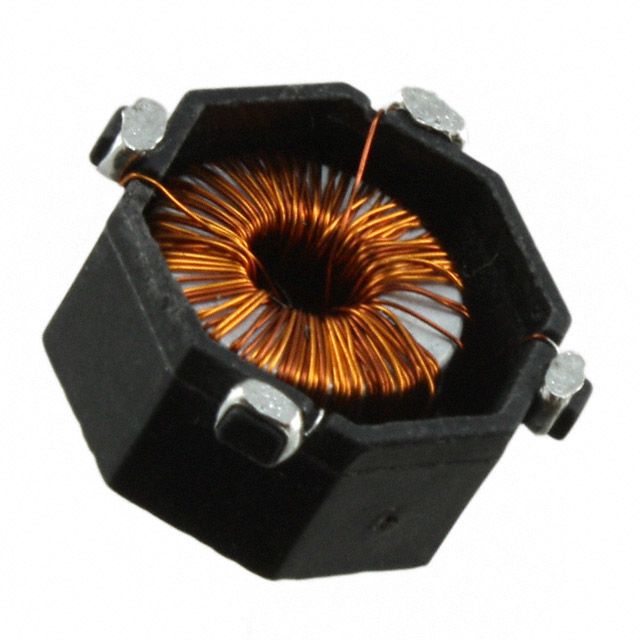

CTX300-4A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC® PLUS
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 302.8µH
Inductance - Connected In Series : 1.2mH
Tolerance : ±25%
Current Rating - Parallel : 750mA
Current Rating - Series : 370mA
Current Saturation - Parallel : 760mA
Current Saturation - Series : 380mA
DC Resistance (DCR) - Parallel : 787 mOhm Max
DC Resistance (DCR) - Series : 3.148 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC® PLUS
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 302.8µH
Inductance - Connected In Series : 1.2mH
Tolerance : ±25%
Current Rating - Parallel : 750mA
Current Rating - Series : 370mA
Current Saturation - Parallel : 760mA
Current Saturation - Series : 380mA
DC Resistance (DCR) - Parallel : 787 mOhm Max
DC Resistance (DCR) - Series : 3.148 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
0
349 in stock
CTX300-4-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC®
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 298.12µH
Inductance - Connected In Series : 1.2mH
Tolerance : ±20%
Current Rating - Parallel : 620mA
Current Rating - Series : 310mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 672 mOhm Max
DC Resistance (DCR) - Series : 2.687 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC®
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 298.12µH
Inductance - Connected In Series : 1.2mH
Tolerance : ±20%
Current Rating - Parallel : 620mA
Current Rating - Series : 310mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 672 mOhm Max
DC Resistance (DCR) - Series : 2.687 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
0
1668 in stock

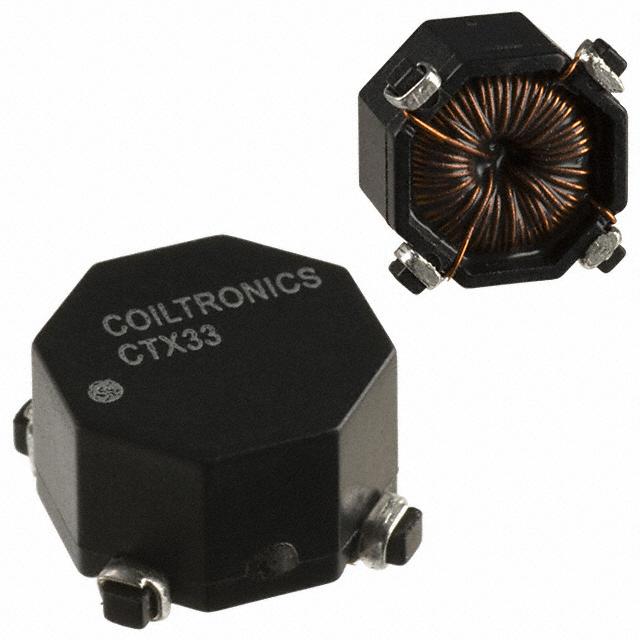

CTX33-1A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 34.26µH
Inductance - Connected In Series : 137.1µH
Tolerance : ±25%
Current Rating - Parallel : 1.22A
Current Rating - Series : 610mA
Current Saturation - Parallel : 1.39A
Current Saturation - Series : 690mA
DC Resistance (DCR) - Parallel : 249 mOhm Max
DC Resistance (DCR) - Series : 995 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 34.26µH
Inductance - Connected In Series : 137.1µH
Tolerance : ±25%
Current Rating - Parallel : 1.22A
Current Rating - Series : 610mA
Current Saturation - Parallel : 1.39A
Current Saturation - Series : 690mA
DC Resistance (DCR) - Parallel : 249 mOhm Max
DC Resistance (DCR) - Series : 995 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)
0
100 in stock
CTX33-1P
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : Econo-Pac™
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 32.33µH
Inductance - Connected In Series : 129.32µH
Tolerance : ±20%
Current Rating - Parallel : 800mA
Current Rating - Series : 400mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 250 mOhm Max
DC Resistance (DCR) - Series : 1.001 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)
Packaging : Tape & Reel (TR)
Series : Econo-Pac™
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 32.33µH
Inductance - Connected In Series : 129.32µH
Tolerance : ±20%
Current Rating - Parallel : 800mA
Current Rating - Series : 400mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 250 mOhm Max
DC Resistance (DCR) - Series : 1.001 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)
0
100 in stock
CTX33-1P-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Econo-Pac™
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 32.33µH
Inductance - Connected In Series : 129.32µH
Tolerance : ±20%
Current Rating - Parallel : 800mA
Current Rating - Series : 400mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 250 mOhm Max
DC Resistance (DCR) - Series : 1.001 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Econo-Pac™
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 32.33µH
Inductance - Connected In Series : 129.32µH
Tolerance : ±20%
Current Rating - Parallel : 800mA
Current Rating - Series : 400mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 250 mOhm Max
DC Resistance (DCR) - Series : 1.001 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)
0
2125 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
