Part Number
Manufacturer
Description
Unit Price
In Stock

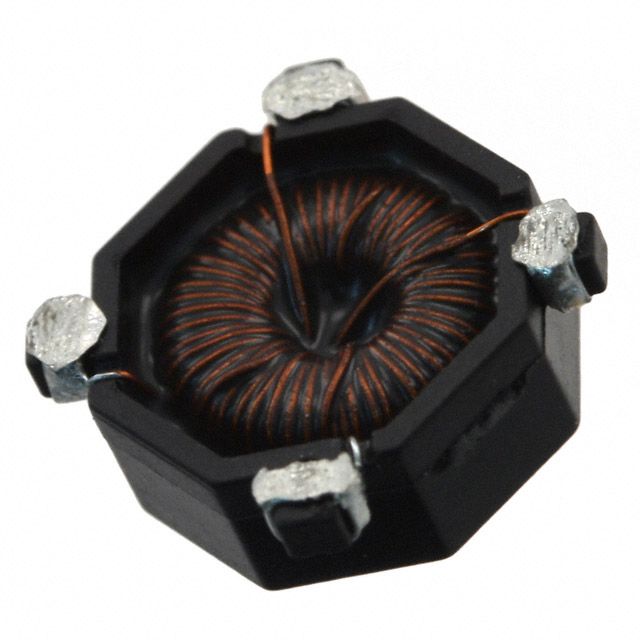

CTX20-1
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC®
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 19.6µH
Inductance - Connected In Series : 78.4µH
Tolerance : ±20%
Current Rating - Parallel : 1A
Current Rating - Series : 500mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 146 mOhm Max
DC Resistance (DCR) - Series : 583 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC®
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 19.6µH
Inductance - Connected In Series : 78.4µH
Tolerance : ±20%
Current Rating - Parallel : 1A
Current Rating - Series : 500mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 146 mOhm Max
DC Resistance (DCR) - Series : 583 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)
0
100 in stock
CTX20-1A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 20.73µH
Inductance - Connected In Series : 82.91µH
Tolerance : ±25%
Current Rating - Parallel : 1.71A
Current Rating - Series : 860mA
Current Saturation - Parallel : 1.79A
Current Saturation - Series : 890mA
DC Resistance (DCR) - Parallel : 127 mOhm Max
DC Resistance (DCR) - Series : 507 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 20.73µH
Inductance - Connected In Series : 82.91µH
Tolerance : ±25%
Current Rating - Parallel : 1.71A
Current Rating - Series : 860mA
Current Saturation - Parallel : 1.79A
Current Saturation - Series : 890mA
DC Resistance (DCR) - Parallel : 127 mOhm Max
DC Resistance (DCR) - Series : 507 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)
0
100 in stock
CTX20-1-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC®
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 19.6µH
Inductance - Connected In Series : 78.4µH
Tolerance : ±20%
Current Rating - Parallel : 1A
Current Rating - Series : 500mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 146 mOhm Max
DC Resistance (DCR) - Series : 583 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC®
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 19.6µH
Inductance - Connected In Series : 78.4µH
Tolerance : ±20%
Current Rating - Parallel : 1A
Current Rating - Series : 500mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 146 mOhm Max
DC Resistance (DCR) - Series : 583 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)
0
679 in stock

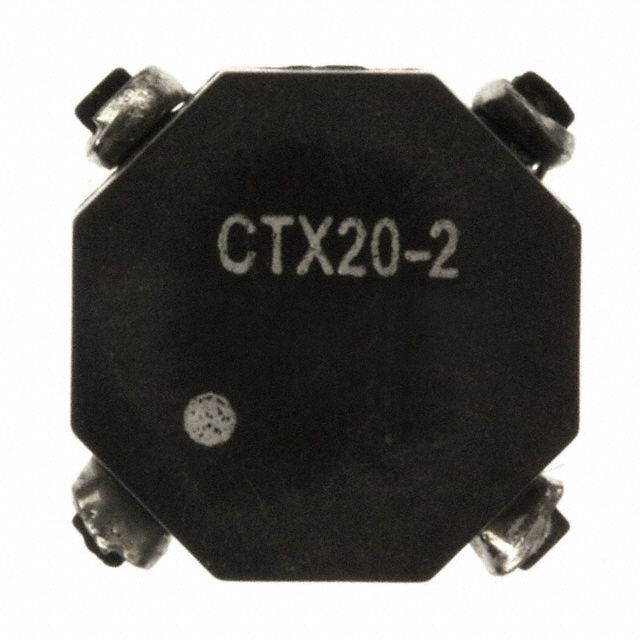

CTX20-2
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC®
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 20.73µH
Inductance - Connected In Series : 82.91µH
Tolerance : ±20%
Current Rating - Parallel : 1.3A
Current Rating - Series : 650mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 107 mOhm Max
DC Resistance (DCR) - Series : 426 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC®
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 20.73µH
Inductance - Connected In Series : 82.91µH
Tolerance : ±20%
Current Rating - Parallel : 1.3A
Current Rating - Series : 650mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 107 mOhm Max
DC Resistance (DCR) - Series : 426 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)
0
100 in stock

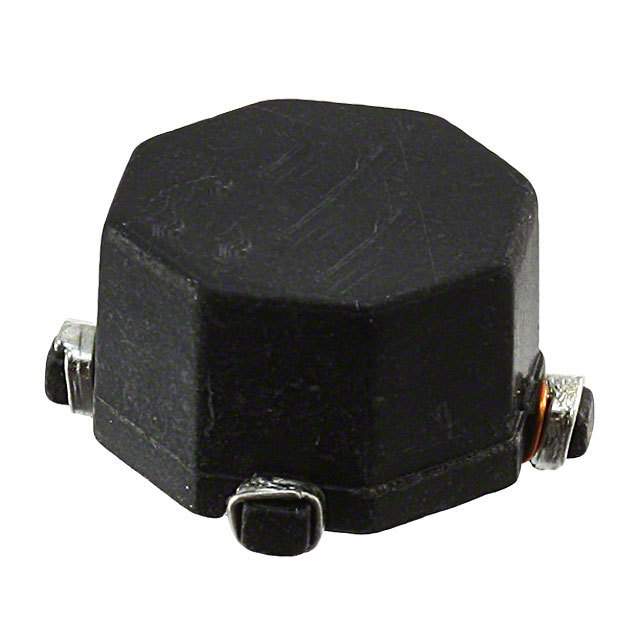

CTX20-2A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 20.22µH
Inductance - Connected In Series : 80.9µH
Tolerance : ±25%
Current Rating - Parallel : 2.24A
Current Rating - Series : 1.12A
Current Saturation - Parallel : 2.34A
Current Saturation - Series : 1.17A
DC Resistance (DCR) - Parallel : 78 mOhm Max
DC Resistance (DCR) - Series : 313 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 20.22µH
Inductance - Connected In Series : 80.9µH
Tolerance : ±25%
Current Rating - Parallel : 2.24A
Current Rating - Series : 1.12A
Current Saturation - Parallel : 2.34A
Current Saturation - Series : 1.17A
DC Resistance (DCR) - Parallel : 78 mOhm Max
DC Resistance (DCR) - Series : 313 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)
0
100 in stock

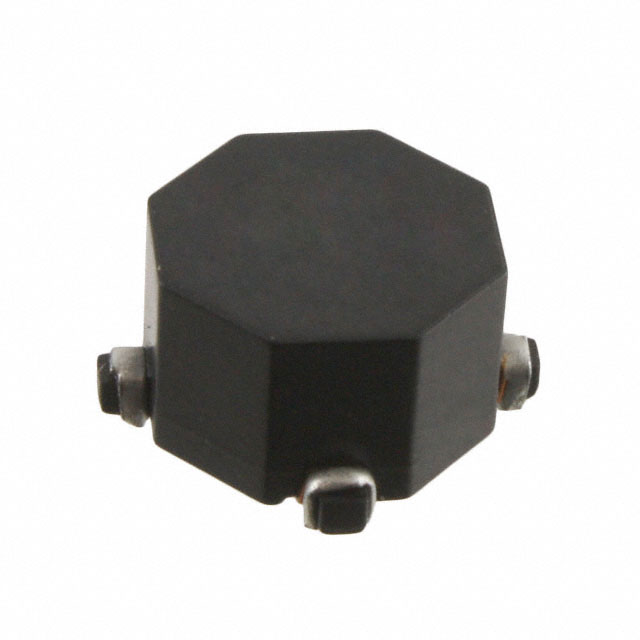

CTX20-2P-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Econo-Pac™
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 19.58µH
Inductance - Connected In Series : 78.34µH
Tolerance : ±20%
Current Rating - Parallel : 1.5A
Current Rating - Series : 750mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 97 mOhm Max
DC Resistance (DCR) - Series : 387 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Econo-Pac™
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 19.58µH
Inductance - Connected In Series : 78.34µH
Tolerance : ±20%
Current Rating - Parallel : 1.5A
Current Rating - Series : 750mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 97 mOhm Max
DC Resistance (DCR) - Series : 387 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)
0
864 in stock
CTX20-2-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC®
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 20.73µH
Inductance - Connected In Series : 82.91µH
Tolerance : ±20%
Current Rating - Parallel : 1.3A
Current Rating - Series : 650mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 107 mOhm Max
DC Resistance (DCR) - Series : 426 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC®
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 20.73µH
Inductance - Connected In Series : 82.91µH
Tolerance : ±20%
Current Rating - Parallel : 1.3A
Current Rating - Series : 650mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 107 mOhm Max
DC Resistance (DCR) - Series : 426 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)
0
1100 in stock
CTX20-3A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 20.81µH
Inductance - Connected In Series : 83.25µH
Tolerance : ±25%
Current Rating - Parallel : 2.43A
Current Rating - Series : 1.22A
Current Saturation - Parallel : 2.05A
Current Saturation - Series : 1.02A
DC Resistance (DCR) - Parallel : 71 mOhm Max
DC Resistance (DCR) - Series : 282 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.190" (4.83mm)
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 20.81µH
Inductance - Connected In Series : 83.25µH
Tolerance : ±25%
Current Rating - Parallel : 2.43A
Current Rating - Series : 1.22A
Current Saturation - Parallel : 2.05A
Current Saturation - Series : 1.02A
DC Resistance (DCR) - Parallel : 71 mOhm Max
DC Resistance (DCR) - Series : 282 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.190" (4.83mm)
0
100 in stock

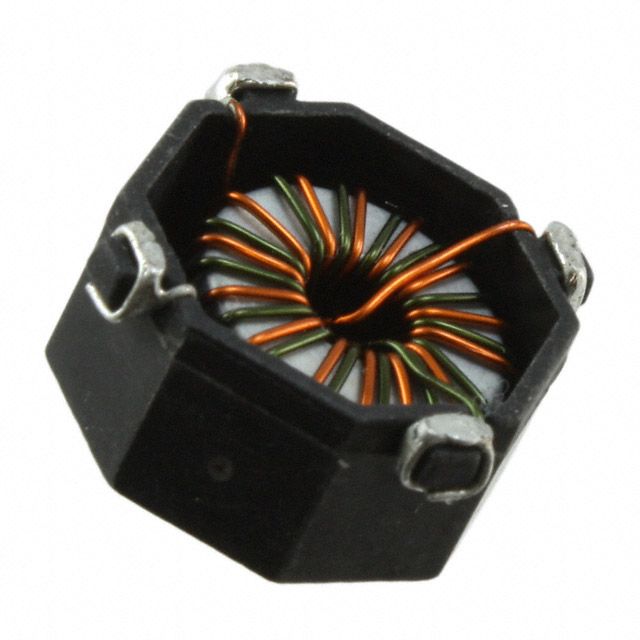

CTX20-4A-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC® PLUS
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 19.58µH
Inductance - Connected In Series : 78.3µH
Tolerance : ±25%
Current Rating - Parallel : 3.62A
Current Rating - Series : 1.81A
Current Saturation - Parallel : 3A
Current Saturation - Series : 1.5A
DC Resistance (DCR) - Parallel : 34 mOhm Max
DC Resistance (DCR) - Series : 135 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC® PLUS
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 19.58µH
Inductance - Connected In Series : 78.3µH
Tolerance : ±25%
Current Rating - Parallel : 3.62A
Current Rating - Series : 1.81A
Current Saturation - Parallel : 3A
Current Saturation - Series : 1.5A
DC Resistance (DCR) - Parallel : 34 mOhm Max
DC Resistance (DCR) - Series : 135 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
0
748 in stock
CTX20-4P
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : Econo-Pac™
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 20.62µH
Inductance - Connected In Series : 82.47µH
Tolerance : ±20%
Current Rating - Parallel : 1.9A
Current Rating - Series : 950mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 84 mOhm Max
DC Resistance (DCR) - Series : 337 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
Packaging : Tape & Reel (TR)
Series : Econo-Pac™
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 20.62µH
Inductance - Connected In Series : 82.47µH
Tolerance : ±20%
Current Rating - Parallel : 1.9A
Current Rating - Series : 950mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 84 mOhm Max
DC Resistance (DCR) - Series : 337 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
0
100 in stock

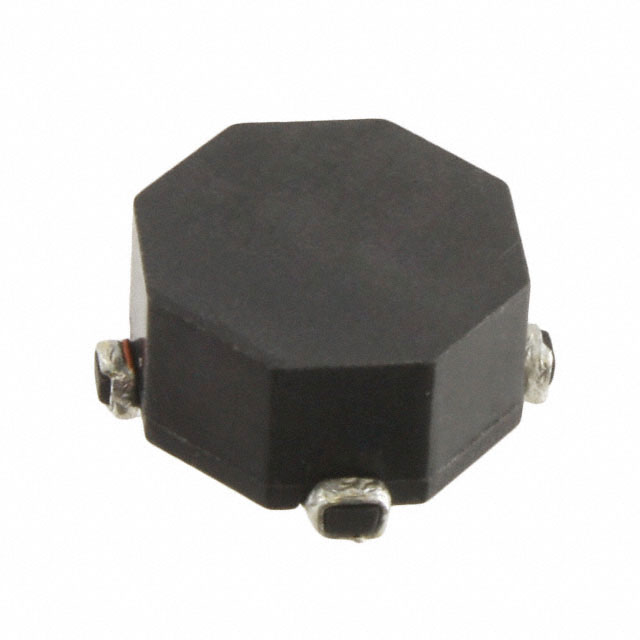

CTX20-4P-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Econo-Pac™
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 20.62µH
Inductance - Connected In Series : 82.47µH
Tolerance : ±20%
Current Rating - Parallel : 1.9A
Current Rating - Series : 950mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 84 mOhm Max
DC Resistance (DCR) - Series : 337 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Econo-Pac™
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 20.62µH
Inductance - Connected In Series : 82.47µH
Tolerance : ±20%
Current Rating - Parallel : 1.9A
Current Rating - Series : 950mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 84 mOhm Max
DC Resistance (DCR) - Series : 337 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
0
785 in stock

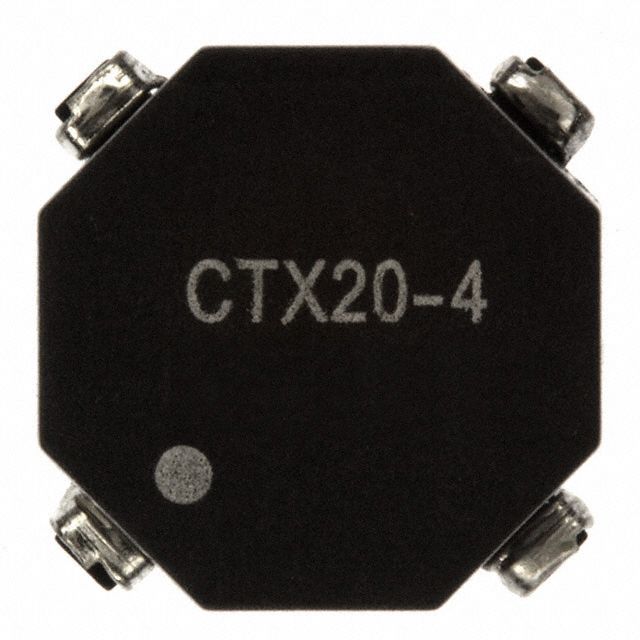

CTX20-4-R
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC®
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 19.6µH
Inductance - Connected In Series : 78.4µH
Tolerance : ±20%
Current Rating - Parallel : 2.1A
Current Rating - Series : 1.05A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 55 mOhm Max
DC Resistance (DCR) - Series : 220 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC®
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 19.6µH
Inductance - Connected In Series : 78.4µH
Tolerance : ±20%
Current Rating - Parallel : 2.1A
Current Rating - Series : 1.05A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 55 mOhm Max
DC Resistance (DCR) - Series : 220 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.250" (6.35mm)
0
1381 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
