SKP02N60XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 2A
Power - Max : 30W
Switching Energy : 64µJ
Input Type : Standard
Gate Charge : 14nC
Td (on/off) @ 25°C : 20ns/259ns
Test Condition : 400V, 2A, 118 Ohm, 15V
Reverse Recovery Time (trr) : 130ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 2A
Power - Max : 30W
Switching Energy : 64µJ
Input Type : Standard
Gate Charge : 14nC
Td (on/off) @ 25°C : 20ns/259ns
Test Condition : 400V, 2A, 118 Ohm, 15V
Reverse Recovery Time (trr) : 130ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
0
100 in stock
SKP04N60XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 9.4A
Current - Collector Pulsed (Icm) : 19A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 4A
Power - Max : 50W
Switching Energy : 131µJ
Input Type : Standard
Gate Charge : 24nC
Td (on/off) @ 25°C : 22ns/237ns
Test Condition : 400V, 4A, 67 Ohm, 15V
Reverse Recovery Time (trr) : 180ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 9.4A
Current - Collector Pulsed (Icm) : 19A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 4A
Power - Max : 50W
Switching Energy : 131µJ
Input Type : Standard
Gate Charge : 24nC
Td (on/off) @ 25°C : 22ns/237ns
Test Condition : 400V, 4A, 67 Ohm, 15V
Reverse Recovery Time (trr) : 180ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
0
100 in stock
SKP06N60XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 6A
Power - Max : 68W
Switching Energy : 215µJ
Input Type : Standard
Gate Charge : 32nC
Td (on/off) @ 25°C : 25ns/220ns
Test Condition : 400V, 6A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 6A
Power - Max : 68W
Switching Energy : 215µJ
Input Type : Standard
Gate Charge : 32nC
Td (on/off) @ 25°C : 25ns/220ns
Test Condition : 400V, 6A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
0
100 in stock
SKP10N60AXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 10A
Power - Max : 92W
Switching Energy : 320µJ
Input Type : Standard
Gate Charge : 52nC
Td (on/off) @ 25°C : 28ns/178ns
Test Condition : 400V, 10A, 25 Ohm, 15V
Reverse Recovery Time (trr) : 220ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 10A
Power - Max : 92W
Switching Energy : 320µJ
Input Type : Standard
Gate Charge : 52nC
Td (on/off) @ 25°C : 28ns/178ns
Test Condition : 400V, 10A, 25 Ohm, 15V
Reverse Recovery Time (trr) : 220ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
0
100 in stock
SKP15N60XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 62A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 15A
Power - Max : 139W
Switching Energy : 570µJ
Input Type : Standard
Gate Charge : 76nC
Td (on/off) @ 25°C : 32ns/234ns
Test Condition : 400V, 15A, 21 Ohm, 15V
Reverse Recovery Time (trr) : 279ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 62A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 15A
Power - Max : 139W
Switching Energy : 570µJ
Input Type : Standard
Gate Charge : 76nC
Td (on/off) @ 25°C : 32ns/234ns
Test Condition : 400V, 15A, 21 Ohm, 15V
Reverse Recovery Time (trr) : 279ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
0
100 in stock
SKW07N120FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 16.5A
Current - Collector Pulsed (Icm) : 27A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 8A
Power - Max : 125W
Switching Energy : 1mJ
Input Type : Standard
Gate Charge : 70nC
Td (on/off) @ 25°C : 27ns/440ns
Test Condition : 800V, 8A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 16.5A
Current - Collector Pulsed (Icm) : 27A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 8A
Power - Max : 125W
Switching Energy : 1mJ
Input Type : Standard
Gate Charge : 70nC
Td (on/off) @ 25°C : 27ns/440ns
Test Condition : 800V, 8A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
SKW15N120FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 15A
Power - Max : 198W
Switching Energy : 1.9mJ
Input Type : Standard
Gate Charge : 130nC
Td (on/off) @ 25°C : 18ns/580ns
Test Condition : 800V, 15A, 33 Ohm, 15V
Reverse Recovery Time (trr) : 65ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 15A
Power - Max : 198W
Switching Energy : 1.9mJ
Input Type : Standard
Gate Charge : 130nC
Td (on/off) @ 25°C : 18ns/580ns
Test Condition : 800V, 15A, 33 Ohm, 15V
Reverse Recovery Time (trr) : 65ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock

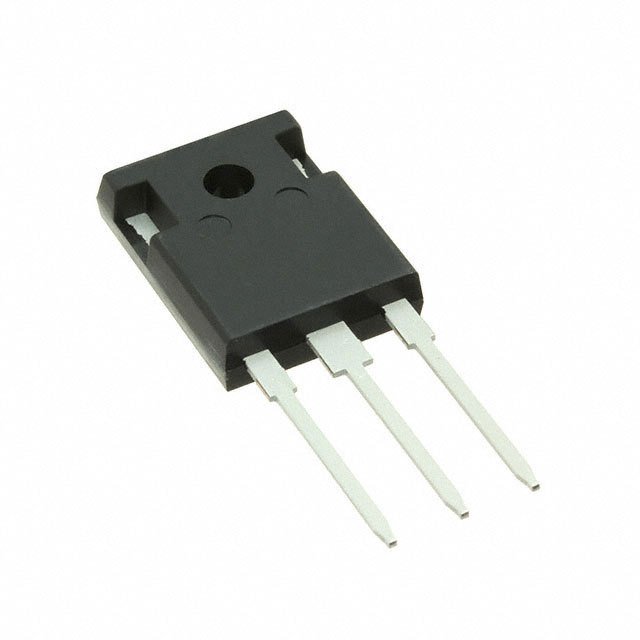

SKW20N60FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 20A
Power - Max : 179W
Switching Energy : 440µJ (on), 330µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 36ns/225ns
Test Condition : 400V, 20A, 16 Ohm, 15V
Reverse Recovery Time (trr) : 300ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 20A
Power - Max : 179W
Switching Energy : 440µJ (on), 330µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 36ns/225ns
Test Condition : 400V, 20A, 16 Ohm, 15V
Reverse Recovery Time (trr) : 300ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
SKW20N60HSFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 36A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 3.15V @ 15V, 20A
Power - Max : 178W
Switching Energy : 690µJ
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 18ns/207ns
Test Condition : 400V, 20A, 16 Ohm, 15V
Reverse Recovery Time (trr) : 130ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 36A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 3.15V @ 15V, 20A
Power - Max : 178W
Switching Energy : 690µJ
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 18ns/207ns
Test Condition : 400V, 20A, 16 Ohm, 15V
Reverse Recovery Time (trr) : 130ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
SKW25N120FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 46A
Current - Collector Pulsed (Icm) : 84A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 25A
Power - Max : 313W
Switching Energy : 3.7mJ
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 45ns/730ns
Test Condition : 800V, 25A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 46A
Current - Collector Pulsed (Icm) : 84A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 25A
Power - Max : 313W
Switching Energy : 3.7mJ
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 45ns/730ns
Test Condition : 800V, 25A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
SKW30N60FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 41A
Current - Collector Pulsed (Icm) : 112A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 30A
Power - Max : 250W
Switching Energy : 1.29mJ
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 44ns/291ns
Test Condition : 400V, 30A, 11 Ohm, 15V
Reverse Recovery Time (trr) : 400ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 41A
Current - Collector Pulsed (Icm) : 112A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 30A
Power - Max : 250W
Switching Energy : 1.29mJ
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 44ns/291ns
Test Condition : 400V, 30A, 11 Ohm, 15V
Reverse Recovery Time (trr) : 400ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
SKW30N60HSFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 41A
Current - Collector Pulsed (Icm) : 112A
Vce(on) (Max) @ Vge, Ic : 3.15V @ 15V, 30A
Power - Max : 250W
Switching Energy : 1.15mJ
Input Type : Standard
Gate Charge : 141nC
Td (on/off) @ 25°C : 20ns/250ns
Test Condition : 400V, 30A, 11 Ohm, 15V
Reverse Recovery Time (trr) : 125ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 41A
Current - Collector Pulsed (Icm) : 112A
Vce(on) (Max) @ Vge, Ic : 3.15V @ 15V, 30A
Power - Max : 250W
Switching Energy : 1.15mJ
Input Type : Standard
Gate Charge : 141nC
Td (on/off) @ 25°C : 20ns/250ns
Test Condition : 400V, 30A, 11 Ohm, 15V
Reverse Recovery Time (trr) : 125ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
