- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
SGW13N60UFDTM
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 13A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 6.5A
Power - Max : 60W
Switching Energy : 85µJ (on), 95µJ (off)
Input Type : Standard
Gate Charge : 25nC
Td (on/off) @ 25°C : 20ns/70ns
Test Condition : 300V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 55ns
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 13A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 6.5A
Power - Max : 60W
Switching Energy : 85µJ (on), 95µJ (off)
Input Type : Standard
Gate Charge : 25nC
Td (on/off) @ 25°C : 20ns/70ns
Test Condition : 300V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 55ns
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK
0
100 in stock

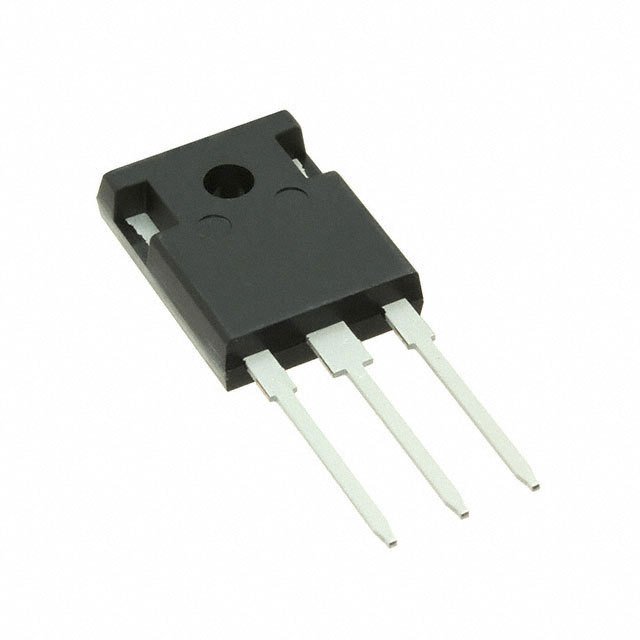

SGW15N120FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 15A
Power - Max : 198W
Switching Energy : 1.9mJ
Input Type : Standard
Gate Charge : 130nC
Td (on/off) @ 25°C : 18ns/580ns
Test Condition : 800V, 15A, 33 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 15A
Power - Max : 198W
Switching Energy : 1.9mJ
Input Type : Standard
Gate Charge : 130nC
Td (on/off) @ 25°C : 18ns/580ns
Test Condition : 800V, 15A, 33 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
SGW15N60FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 62A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 15A
Power - Max : 139W
Switching Energy : 570µJ
Input Type : Standard
Gate Charge : 76nC
Td (on/off) @ 25°C : 32ns/234ns
Test Condition : 400V, 15A, 21 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 62A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 15A
Power - Max : 139W
Switching Energy : 570µJ
Input Type : Standard
Gate Charge : 76nC
Td (on/off) @ 25°C : 32ns/234ns
Test Condition : 400V, 15A, 21 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
SGW20N60FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 20A
Power - Max : 179W
Switching Energy : 440µJ (on), 330µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 36ns/225ns
Test Condition : 400V, 20A, 16 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 20A
Power - Max : 179W
Switching Energy : 440µJ (on), 330µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 36ns/225ns
Test Condition : 400V, 20A, 16 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
SGW20N60HSFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 36A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 3.15V @ 15V, 20A
Power - Max : 178W
Switching Energy : 690µJ
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 18ns/207ns
Test Condition : 400V, 20A, 16 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 36A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 3.15V @ 15V, 20A
Power - Max : 178W
Switching Energy : 690µJ
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 18ns/207ns
Test Condition : 400V, 20A, 16 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
SGW23N60UFDTM
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 23A
Current - Collector Pulsed (Icm) : 92A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 12A
Power - Max : 100W
Switching Energy : 115µJ (on), 135µJ (off)
Input Type : Standard
Gate Charge : 49nC
Td (on/off) @ 25°C : 17ns/60ns
Test Condition : 300V, 12A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 23A
Current - Collector Pulsed (Icm) : 92A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 12A
Power - Max : 100W
Switching Energy : 115µJ (on), 135µJ (off)
Input Type : Standard
Gate Charge : 49nC
Td (on/off) @ 25°C : 17ns/60ns
Test Condition : 300V, 12A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK
0
100 in stock
SGW25N120FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 46A
Current - Collector Pulsed (Icm) : 84A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 25A
Power - Max : 313W
Switching Energy : 3.7mJ
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 45ns/730ns
Test Condition : 800V, 25A, 22 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 46A
Current - Collector Pulsed (Icm) : 84A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 25A
Power - Max : 313W
Switching Energy : 3.7mJ
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 45ns/730ns
Test Condition : 800V, 25A, 22 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
SGW30N60FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 41A
Current - Collector Pulsed (Icm) : 112A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 30A
Power - Max : 250W
Switching Energy : 1.29mJ
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 44ns/291ns
Test Condition : 400V, 30A, 11 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 41A
Current - Collector Pulsed (Icm) : 112A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 30A
Power - Max : 250W
Switching Energy : 1.29mJ
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 44ns/291ns
Test Condition : 400V, 30A, 11 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
SGW30N60HSFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 41A
Current - Collector Pulsed (Icm) : 112A
Vce(on) (Max) @ Vge, Ic : 3.15V @ 15V, 30A
Power - Max : 250W
Switching Energy : 1.15mJ
Input Type : Standard
Gate Charge : 141nC
Td (on/off) @ 25°C : 20ns/250ns
Test Condition : 400V, 30A, 11 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 41A
Current - Collector Pulsed (Icm) : 112A
Vce(on) (Max) @ Vge, Ic : 3.15V @ 15V, 30A
Power - Max : 250W
Switching Energy : 1.15mJ
Input Type : Standard
Gate Charge : 141nC
Td (on/off) @ 25°C : 20ns/250ns
Test Condition : 400V, 30A, 11 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
SGW50N60HSFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 3.15V @ 15V, 50A
Power - Max : 416W
Switching Energy : 1.96mJ
Input Type : Standard
Gate Charge : 179nC
Td (on/off) @ 25°C : 47ns/310ns
Test Condition : 400V, 50A, 6.8 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 3.15V @ 15V, 50A
Power - Max : 416W
Switching Energy : 1.96mJ
Input Type : Standard
Gate Charge : 179nC
Td (on/off) @ 25°C : 47ns/310ns
Test Condition : 400V, 50A, 6.8 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
SGW5N60RUFDTM
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 15A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 5A
Power - Max : 60W
Switching Energy : 88µJ (on), 107µJ (off)
Input Type : Standard
Gate Charge : 16nC
Td (on/off) @ 25°C : 13ns/34ns
Test Condition : 300V, 5A, 40 Ohm, 15V
Reverse Recovery Time (trr) : 55ns
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 15A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 5A
Power - Max : 60W
Switching Energy : 88µJ (on), 107µJ (off)
Input Type : Standard
Gate Charge : 16nC
Td (on/off) @ 25°C : 13ns/34ns
Test Condition : 300V, 5A, 40 Ohm, 15V
Reverse Recovery Time (trr) : 55ns
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK
0
100 in stock
SIGC109T120R3LEX1SA2
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Bulk
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 100A
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Die
Supplier Device Package : Die
Packaging : Bulk
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 100A
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Die
Supplier Device Package : Die
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
