- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
RJH60V2BDPP-M0#T2
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 12A
Power - Max : 34W
Switching Energy : 30µJ (on), 180µJ (off)
Input Type : Standard
Gate Charge : 32nC
Td (on/off) @ 25°C : 33ns/65ns
Test Condition : 300V, 12A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 12A
Power - Max : 34W
Switching Energy : 30µJ (on), 180µJ (off)
Input Type : Standard
Gate Charge : 32nC
Td (on/off) @ 25°C : 33ns/65ns
Test Condition : 300V, 12A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
0
26 in stock

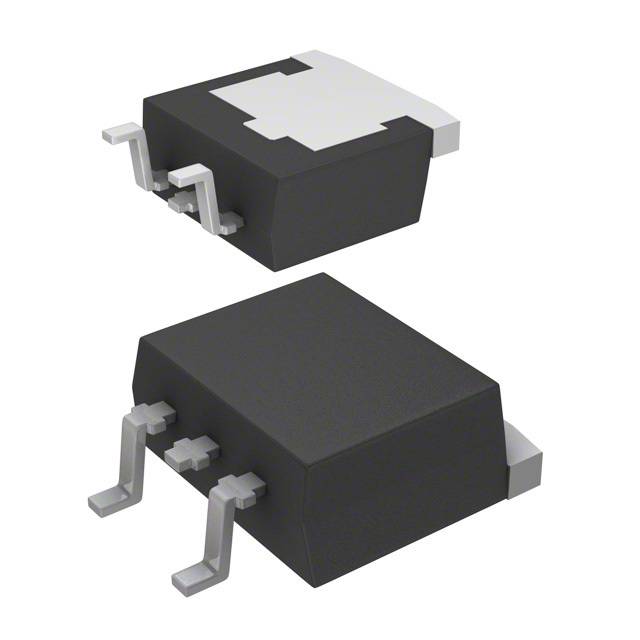

RJH60V3BDPE-00#J3
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 35A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 17A
Power - Max : 113W
Switching Energy : 90µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 60nC
Td (on/off) @ 25°C : 40ns/90ns
Test Condition : 300V, 17A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 35A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 17A
Power - Max : 113W
Switching Energy : 90µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 60nC
Td (on/off) @ 25°C : 40ns/90ns
Test Condition : 300V, 17A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
0
100 in stock
RJH65D27BDPQ-A0#T0
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : -
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : -
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : -
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Packaging : -
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : -
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : -
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock
RJH65D27BDPQ-A0#T2
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.65V @ 15V, 50A
Power - Max : 375W
Switching Energy : 1mJ (on), 1.5mJ (off)
Input Type : Standard
Gate Charge : 175nC
Td (on/off) @ 25°C : 20ns/165ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 80ns
Operating Temperature : 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247A
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.65V @ 15V, 50A
Power - Max : 375W
Switching Energy : 1mJ (on), 1.5mJ (off)
Input Type : Standard
Gate Charge : 175nC
Td (on/off) @ 25°C : 20ns/165ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 80ns
Operating Temperature : 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247A
0
100 in stock
RJH65T04BDPMA0#T2F
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 30A
Power - Max : 65W
Switching Energy : 360µJ (on), 350µJ (off)
Input Type : Standard
Gate Charge : 74nC
Td (on/off) @ 25°C : 35ns/115ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 80ns
Operating Temperature : 175°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-94
Supplier Device Package : TO-3PFP
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 30A
Power - Max : 65W
Switching Energy : 360µJ (on), 350µJ (off)
Input Type : Standard
Gate Charge : 74nC
Td (on/off) @ 25°C : 35ns/115ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 80ns
Operating Temperature : 175°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-94
Supplier Device Package : TO-3PFP
0
100 in stock
RJH65T14DPQ-A0#T0
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 50A
Power - Max : 250W
Switching Energy : 1.3mJ (on), 1.2mJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 38ns/125ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 250ns
Operating Temperature : 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247A
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 50A
Power - Max : 250W
Switching Energy : 1.3mJ (on), 1.2mJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 38ns/125ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 250ns
Operating Temperature : 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247A
0
100 in stock

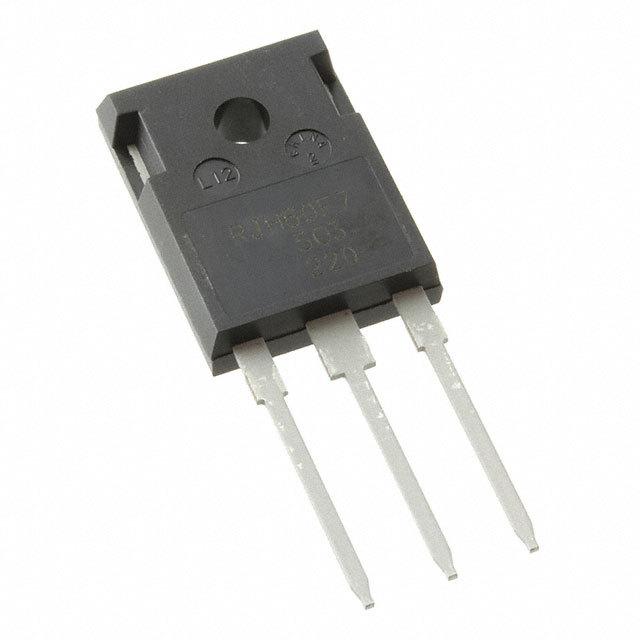

RJH65T46DPQ-A0#T0
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 340.9W
Switching Energy : 450µJ (on), 550µJ (off)
Input Type : Standard
Gate Charge : 138nC
Td (on/off) @ 25°C : 45ns/170ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247A
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 340.9W
Switching Energy : 450µJ (on), 550µJ (off)
Input Type : Standard
Gate Charge : 138nC
Td (on/off) @ 25°C : 45ns/170ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247A
0
100 in stock
RJH65T47DPQ-A0#T0
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 45A
Power - Max : 375W
Switching Energy : 520µJ (on), 560µJ (off)
Input Type : Standard
Gate Charge : 127nC
Td (on/off) @ 25°C : 45ns/190ns
Test Condition : 400V, 45A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247A
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 45A
Power - Max : 375W
Switching Energy : 520µJ (on), 560µJ (off)
Input Type : Standard
Gate Charge : 127nC
Td (on/off) @ 25°C : 45ns/190ns
Test Condition : 400V, 45A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247A
0
100 in stock

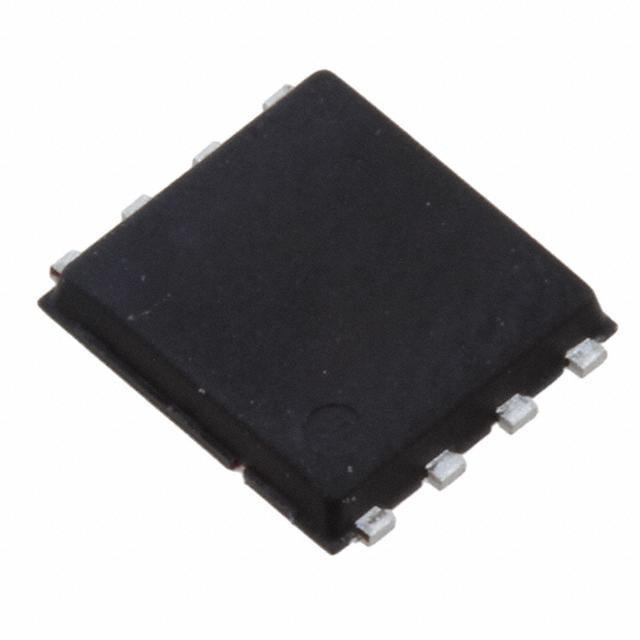

RJP4009ANS-01#Q6
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 400V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 9V @ 2.5V, 150A
Power - Max : 1.8W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN
Supplier Device Package : 8-VSON (3x4.4)
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 400V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 9V @ 2.5V, 150A
Power - Max : 1.8W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN
Supplier Device Package : 8-VSON (3x4.4)
0
100 in stock
RJP4010AGE-00#P5
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 400V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 9V @ 3V, 150A
Power - Max : 1.6W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-TSSOJ (0.094", 2.40mm Width)
Supplier Device Package : 8-TSOJ
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 400V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 9V @ 3V, 150A
Power - Max : 1.6W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-TSSOJ (0.094", 2.40mm Width)
Supplier Device Package : 8-TSOJ
0
100 in stock
RJP4301APP-M0#T2
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 430V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 10V @ 26V, 200A
Power - Max : 30W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 50ns/100ns
Test Condition : 300V, 200A, 30 Ohm, 26V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 430V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 10V @ 26V, 200A
Power - Max : 30W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 50ns/100ns
Test Condition : 300V, 200A, 30 Ohm, 26V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
0
100 in stock
RJP5001APP-M0#T2
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 500V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 10V @ 12V, 300A
Power - Max : 45W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 100ns/200ns
Test Condition : 300V, 300A, 30 Ohm, 12V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 500V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 10V @ 12V, 300A
Power - Max : 45W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 100ns/200ns
Test Condition : 300V, 300A, 30 Ohm, 12V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
