Part Number
Manufacturer
Description
Unit Price
In Stock
RJH60F7BDPQ-A0#T0
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 50A
Power - Max : 328.9W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 63ns/142ns
Test Condition : 400V, 30A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247A
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 50A
Power - Max : 328.9W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 63ns/142ns
Test Condition : 400V, 30A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247A
0
100 in stock

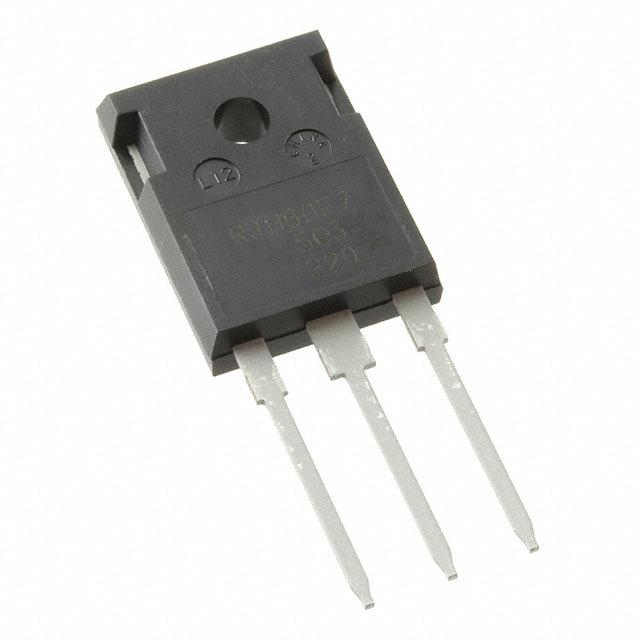

RJH60F7DPQ-A0#T0
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 50A
Power - Max : 328.9W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 63ns/142ns
Test Condition : 400V, 30A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247A
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 50A
Power - Max : 328.9W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 63ns/142ns
Test Condition : 400V, 30A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247A
0
350 in stock
RJH60M1DPE-00#J3
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 8A
Power - Max : 52W
Switching Energy : 80µJ (on), 90µJ (off)
Input Type : Standard
Gate Charge : 20.5nC
Td (on/off) @ 25°C : 30ns/55ns
Test Condition : 300V, 8A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 8A
Power - Max : 52W
Switching Energy : 80µJ (on), 90µJ (off)
Input Type : Standard
Gate Charge : 20.5nC
Td (on/off) @ 25°C : 30ns/55ns
Test Condition : 300V, 8A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
0
987 in stock
RJH60M1DPP-M0#T2
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 8A
Power - Max : 30W
Switching Energy : 80µJ (on), 90µJ (off)
Input Type : Standard
Gate Charge : 20.5nC
Td (on/off) @ 25°C : 30ns/55ns
Test Condition : 300V, 8A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 75ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 8A
Power - Max : 30W
Switching Energy : 80µJ (on), 90µJ (off)
Input Type : Standard
Gate Charge : 20.5nC
Td (on/off) @ 25°C : 30ns/55ns
Test Condition : 300V, 8A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 75ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
0
67 in stock

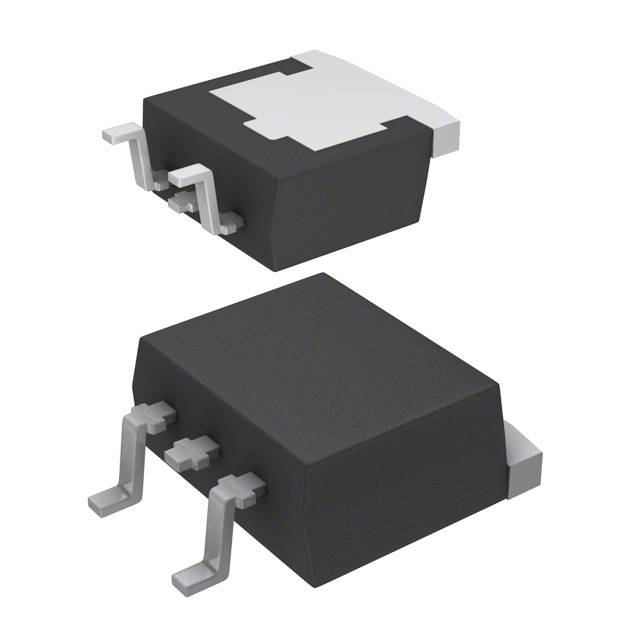

RJH60M2DPE-00#J3
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 63W
Switching Energy : 180µJ (on), 180µJ (off)
Input Type : Standard
Gate Charge : 33nC
Td (on/off) @ 25°C : 32ns/70ns
Test Condition : 300V, 12A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 63W
Switching Energy : 180µJ (on), 180µJ (off)
Input Type : Standard
Gate Charge : 33nC
Td (on/off) @ 25°C : 32ns/70ns
Test Condition : 300V, 12A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
0
100 in stock
RJH60M2DPP-M0#T2
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 33.8W
Switching Energy : 180µJ (on), 180µJ (off)
Input Type : Standard
Gate Charge : 33nC
Td (on/off) @ 25°C : 32ns/70ns
Test Condition : 300V, 12A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 33.8W
Switching Energy : 180µJ (on), 180µJ (off)
Input Type : Standard
Gate Charge : 33nC
Td (on/off) @ 25°C : 32ns/70ns
Test Condition : 300V, 12A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
0
100 in stock
RJH60M3DPE-00#J3
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 35A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 17A
Power - Max : 113W
Switching Energy : 290µJ (on), 290µJ (off)
Input Type : Standard
Gate Charge : 60nC
Td (on/off) @ 25°C : 38ns/90ns
Test Condition : 300V, 17A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 35A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 17A
Power - Max : 113W
Switching Energy : 290µJ (on), 290µJ (off)
Input Type : Standard
Gate Charge : 60nC
Td (on/off) @ 25°C : 38ns/90ns
Test Condition : 300V, 17A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
0
100 in stock
RJH60M3DPP-M0#T2
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 35A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 17A
Power - Max : 39.7W
Switching Energy : 290µJ (on), 290µJ (off)
Input Type : Standard
Gate Charge : 60nC
Td (on/off) @ 25°C : 38ns/90ns
Test Condition : 300V, 17A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 35A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 17A
Power - Max : 39.7W
Switching Energy : 290µJ (on), 290µJ (off)
Input Type : Standard
Gate Charge : 60nC
Td (on/off) @ 25°C : 38ns/90ns
Test Condition : 300V, 17A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
0
100 in stock
RJH60T04DPQ-A1#T0
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 30A
Power - Max : 208.3W
Switching Energy : -
Input Type : Standard
Gate Charge : 87nC
Td (on/off) @ 25°C : 54ns/136ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247A
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 30A
Power - Max : 208.3W
Switching Energy : -
Input Type : Standard
Gate Charge : 87nC
Td (on/off) @ 25°C : 54ns/136ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247A
0
100 in stock
RJH60V1BDPE-00#J3
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 8A
Power - Max : 52W
Switching Energy : 17µJ (on), 110µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 30ns/55ns
Test Condition : 300V, 8A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 8A
Power - Max : 52W
Switching Energy : 17µJ (on), 110µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 30ns/55ns
Test Condition : 300V, 8A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
0
100 in stock
RJH60V1BDPP-M0#T2
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 8A
Power - Max : 30W
Switching Energy : 17µJ (on), 110µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 30ns/55ns
Test Condition : 300V, 8A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 8A
Power - Max : 30W
Switching Energy : 17µJ (on), 110µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 30ns/55ns
Test Condition : 300V, 8A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
0
100 in stock
RJH60V2BDPE-00#J3
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 12A
Power - Max : 63W
Switching Energy : 30µJ (on), 180µJ (off)
Input Type : Standard
Gate Charge : 32nC
Td (on/off) @ 25°C : 33ns/65ns
Test Condition : 300V, 12A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 12A
Power - Max : 63W
Switching Energy : 30µJ (on), 180µJ (off)
Input Type : Standard
Gate Charge : 32nC
Td (on/off) @ 25°C : 33ns/65ns
Test Condition : 300V, 12A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
