Part Number
Manufacturer
Description
Unit Price
In Stock

NGTB05N60R2DT4G NGTB05N60R2DT4G

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 5A
Power - Max : 56W
Switching Energy : 188µJ (on), 60µJ (off)
Input Type : Standard
Gate Charge : 30nC
Td (on/off) @ 25°C : 44ns/82ns
Test Condition : 300V, 5A, 30 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
2498 in stock

NGTB10N60FG NGTB10N60FG

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 72A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 10A
Power - Max : 40W
Switching Energy : -
Input Type : Standard
Gate Charge : 55nC
Td (on/off) @ 25°C : 40ns/145ns
Test Condition : 300V, 10A, 30 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F-3FS
0
343 in stock

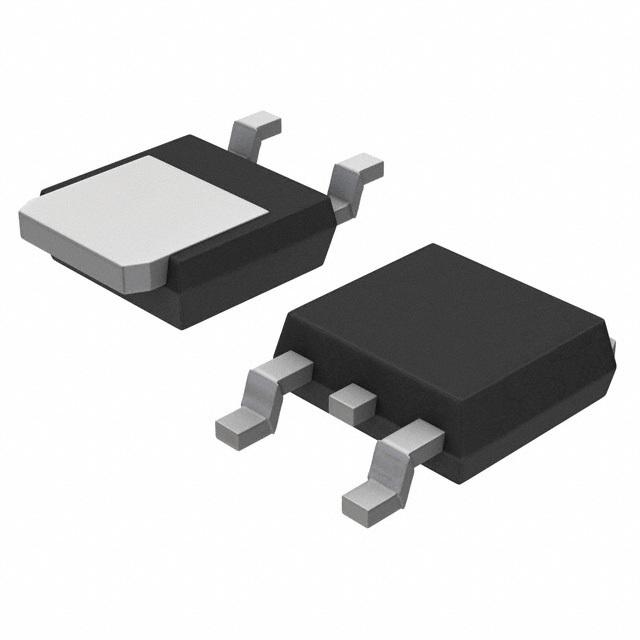

NGTB10N60R2DT4G NGTB10N60R2DT4G

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 10A
Power - Max : 72W
Switching Energy : 412µJ (on), 140µJ (off)
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 48ns/120ns
Test Condition : 300V, 10A, 30 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
5120 in stock

NGTB15N120FL2WG NGTB15N120FL2WG

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 15A
Power - Max : 294W
Switching Energy : 1.2mJ (on), 370µJ (off)
Input Type : Standard
Gate Charge : 109nC
Td (on/off) @ 25°C : 64ns/132ns
Test Condition : 600V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 110ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
123 in stock

NGTB15N120IHLWG NGTB15N120IHLWG

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 15A
Power - Max : 156W
Switching Energy : 560µJ (off)
Input Type : Standard
Gate Charge : 160nC
Td (on/off) @ 25°C : -/165ns
Test Condition : 600V, 15A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock

NGTB15N120IHRWG NGTB15N120IHRWG

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 15A
Power - Max : 333W
Switching Energy : 340µJ (off)
Input Type : Standard
Gate Charge : 160nC
Td (on/off) @ 25°C : -/170ns
Test Condition : 600V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
110 in stock

NGTB15N120IHTG NGTB15N120IHTG

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : -
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : -
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock

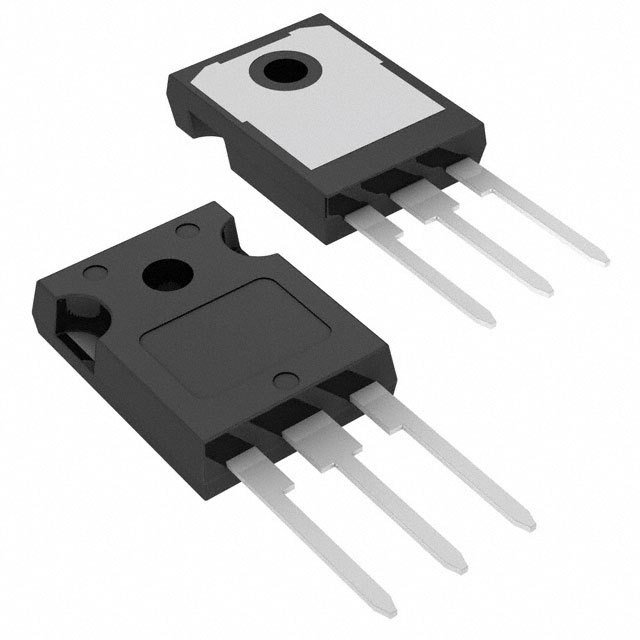

NGTB15N120IHWG NGTB15N120IHWG

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.45V @ 15V, 15A
Power - Max : 278W
Switching Energy : 360µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : -/130ns
Test Condition : 600V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
134 in stock

NGTB15N120LWG NGTB15N120LWG

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 15A
Power - Max : 229W
Switching Energy : 2.1mJ (on), 560µJ (off)
Input Type : Standard
Gate Charge : 160nC
Td (on/off) @ 25°C : 72ns/165ns
Test Condition : 600V, 15A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock

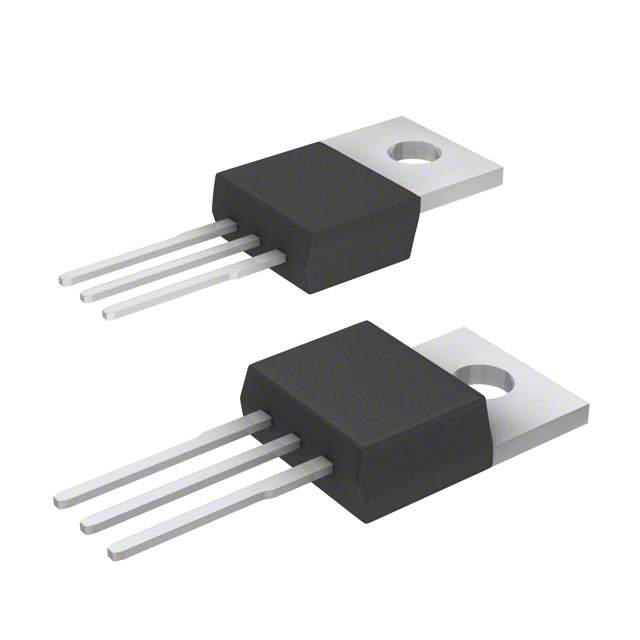

NGTB15N60EG NGTB15N60EG

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 15A
Power - Max : 117W
Switching Energy : 900µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 78ns/130ns
Test Condition : 400V, 15A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 270ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220
0
827 in stock

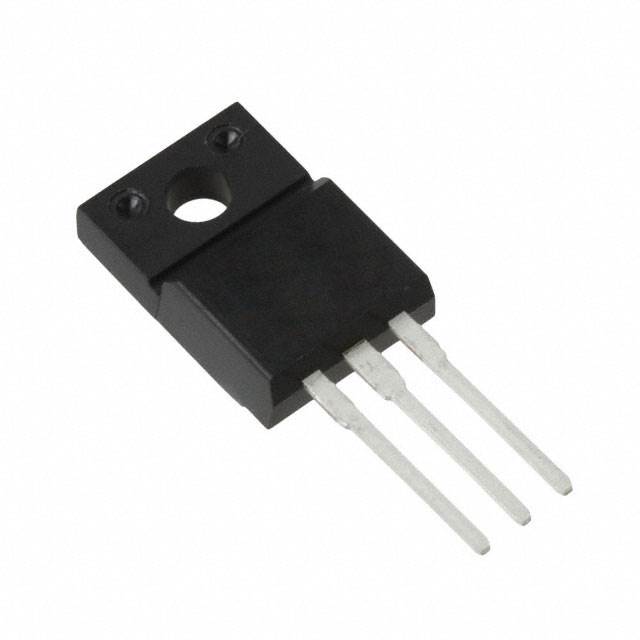

NGTB15N60R2FG NGTB15N60R2FG

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 24A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 15A
Power - Max : 54W
Switching Energy : 550µJ (on), 220µJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 70ns/190ns
Test Condition : 300V, 15A, 30 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F-3FS
0
100 in stock

NGTB15N60S1EG NGTB15N60S1EG

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 15A
Power - Max : 117W
Switching Energy : 550µJ (on), 350µJ (off)
Input Type : Standard
Gate Charge : 88nC
Td (on/off) @ 25°C : 65ns/170ns
Test Condition : 400V, 15A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 270ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220
0
460 in stock
