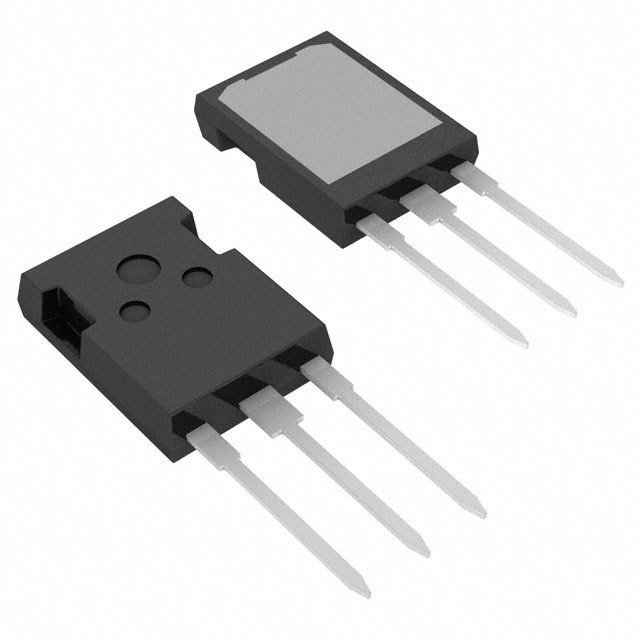

IXGX60N60B2D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST™
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 500W
Switching Energy : 1mJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 28ns/160ns
Test Condition : 400V, 50A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : HiPerFAST™
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 500W
Switching Energy : 1mJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 28ns/160ns
Test Condition : 400V, 50A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
100 in stock
IXGX60N60C2D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST™
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 480W
Switching Energy : 400µJ (on), 480µJ (off)
Input Type : Standard
Gate Charge : 146nC
Td (on/off) @ 25°C : 18ns/95ns
Test Condition : 400V, 50A, 2 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : HiPerFAST™
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 480W
Switching Energy : 400µJ (on), 480µJ (off)
Input Type : Standard
Gate Charge : 146nC
Td (on/off) @ 25°C : 18ns/95ns
Test Condition : 400V, 50A, 2 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
100 in stock

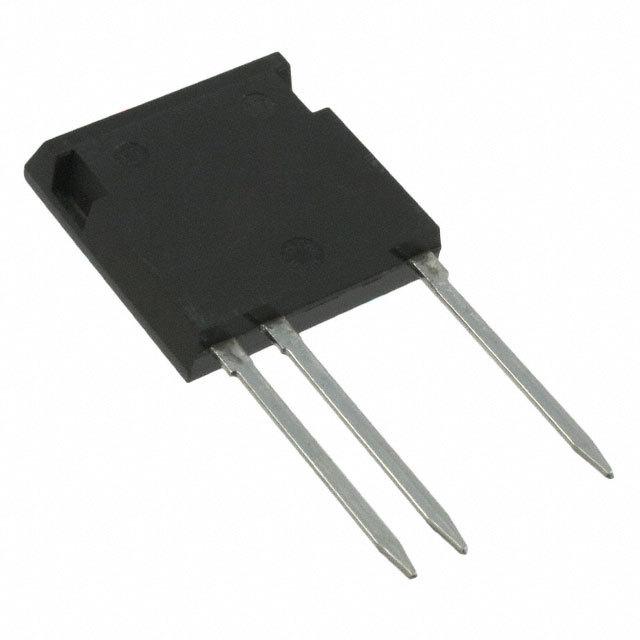

IXLF19N250A
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 2500V
Current - Collector (Ic) (Max) : 32A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 3.9V @ 15V, 19A
Power - Max : 250W
Switching Energy : 15mJ (on), 30mJ (off)
Input Type : Standard
Gate Charge : 142nC
Td (on/off) @ 25°C : -
Test Condition : 1500V, 19A, 47 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5 (3 Leads)
Supplier Device Package : ISOPLUS i4-PAC™
Packaging : Bulk
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 2500V
Current - Collector (Ic) (Max) : 32A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 3.9V @ 15V, 19A
Power - Max : 250W
Switching Energy : 15mJ (on), 30mJ (off)
Input Type : Standard
Gate Charge : 142nC
Td (on/off) @ 25°C : -
Test Condition : 1500V, 19A, 47 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5 (3 Leads)
Supplier Device Package : ISOPLUS i4-PAC™
0
100 in stock
IXRH40N120
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 30A
Power - Max : 300W
Switching Energy : 3mJ (on), 700µJ (off)
Input Type : Standard
Gate Charge : 90nC
Td (on/off) @ 25°C : -
Test Condition : 600V, 35A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 2.1µs
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 30A
Power - Max : 300W
Switching Energy : 3mJ (on), 700µJ (off)
Input Type : Standard
Gate Charge : 90nC
Td (on/off) @ 25°C : -
Test Condition : 600V, 35A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 2.1µs
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD
0
100 in stock
IXRP15N120
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.95V @ 15V, 10A
Power - Max : 300W
Switching Energy : 1.1mJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 36nC
Td (on/off) @ 25°C : -
Test Condition : 600V, 10A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 300ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.95V @ 15V, 10A
Power - Max : 300W
Switching Energy : 1.1mJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 36nC
Td (on/off) @ 25°C : -
Test Condition : 600V, 10A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 300ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IXSA10N60B2D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 10A
Power - Max : 100W
Switching Energy : 430µJ (off)
Input Type : Standard
Gate Charge : 17nC
Td (on/off) @ 25°C : 30ns/180ns
Test Condition : 480V, 10A, 30 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 AA (IXSA)
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 10A
Power - Max : 100W
Switching Energy : 430µJ (off)
Input Type : Standard
Gate Charge : 17nC
Td (on/off) @ 25°C : 30ns/180ns
Test Condition : 480V, 10A, 30 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 AA (IXSA)
0
100 in stock

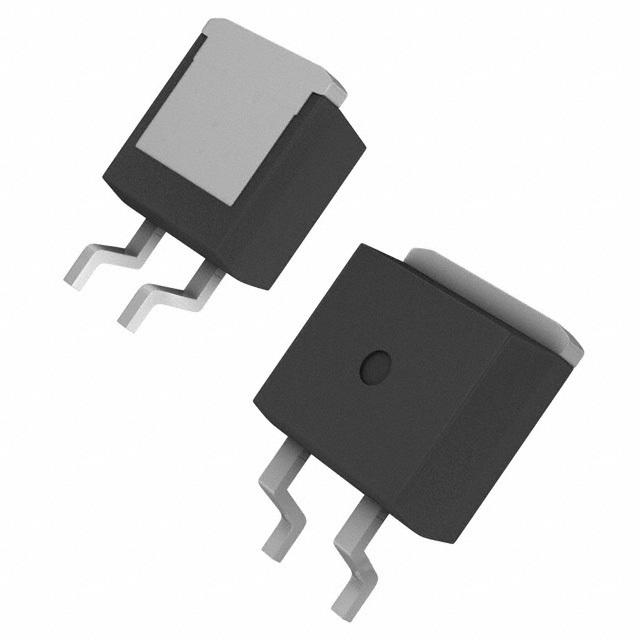

IXSA15N120B
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 15A
Power - Max : 150W
Switching Energy : 1.75mJ (off)
Input Type : Standard
Gate Charge : 57nC
Td (on/off) @ 25°C : 30ns/148ns
Test Condition : 960V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 AA (IXSA)
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 15A
Power - Max : 150W
Switching Energy : 1.75mJ (off)
Input Type : Standard
Gate Charge : 57nC
Td (on/off) @ 25°C : 30ns/148ns
Test Condition : 960V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 AA (IXSA)
0
100 in stock
IXSA20N60B2D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 35A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 16A
Power - Max : 190W
Switching Energy : 380µJ (off)
Input Type : Standard
Gate Charge : 33nC
Td (on/off) @ 25°C : 30ns/116ns
Test Condition : 480V, 16A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 30ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 AA (IXSA)
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 35A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 16A
Power - Max : 190W
Switching Energy : 380µJ (off)
Input Type : Standard
Gate Charge : 33nC
Td (on/off) @ 25°C : 30ns/116ns
Test Condition : 480V, 16A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 30ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 AA (IXSA)
0
100 in stock
IXSH10N60B2D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 10A
Power - Max : 100W
Switching Energy : 430µJ (off)
Input Type : Standard
Gate Charge : 17nC
Td (on/off) @ 25°C : 30ns/180ns
Test Condition : 480V, 10A, 30 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXSH)
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 10A
Power - Max : 100W
Switching Energy : 430µJ (off)
Input Type : Standard
Gate Charge : 17nC
Td (on/off) @ 25°C : 30ns/180ns
Test Condition : 480V, 10A, 30 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXSH)
0
100 in stock
IXSH15N120B
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 15A
Power - Max : 150W
Switching Energy : 1.5mJ (off)
Input Type : Standard
Gate Charge : 57nC
Td (on/off) @ 25°C : 30ns/148ns
Test Condition : 960V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXSH)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 15A
Power - Max : 150W
Switching Energy : 1.5mJ (off)
Input Type : Standard
Gate Charge : 57nC
Td (on/off) @ 25°C : 30ns/148ns
Test Condition : 960V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXSH)
0
100 in stock
IXSH15N120BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 15A
Power - Max : 150W
Switching Energy : 1.5mJ (off)
Input Type : Standard
Gate Charge : 57nC
Td (on/off) @ 25°C : 30ns/148ns
Test Condition : 960V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 30ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXSH)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 15A
Power - Max : 150W
Switching Energy : 1.5mJ (off)
Input Type : Standard
Gate Charge : 57nC
Td (on/off) @ 25°C : 30ns/148ns
Test Condition : 960V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 30ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXSH)
0
100 in stock
IXSH20N60B2D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 35A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 16A
Power - Max : 190W
Switching Energy : 380µJ (off)
Input Type : Standard
Gate Charge : 33nC
Td (on/off) @ 25°C : 30ns/116ns
Test Condition : 480V, 16A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 30ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXSH)
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 35A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 16A
Power - Max : 190W
Switching Energy : 380µJ (off)
Input Type : Standard
Gate Charge : 33nC
Td (on/off) @ 25°C : 30ns/116ns
Test Condition : 480V, 16A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 30ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXSH)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
