Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
IXGV25N250S
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 2500V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 5.2V @ 15V, 75A
Power - Max : 250W
Switching Energy : -
Input Type : Standard
Gate Charge : 75nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PLUS-220SMD
Supplier Device Package : PLUS-220SMD
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 2500V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 5.2V @ 15V, 75A
Power - Max : 250W
Switching Energy : -
Input Type : Standard
Gate Charge : 75nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PLUS-220SMD
Supplier Device Package : PLUS-220SMD
0
100 in stock
IXGX120N60B
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 200A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 120A
Power - Max : 660W
Switching Energy : 2.4mJ (on), 5.5mJ (off)
Input Type : Standard
Gate Charge : 350nC
Td (on/off) @ 25°C : 60ns/200ns
Test Condition : 480V, 100A, 2.4 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
Packaging : Bulk
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 200A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 120A
Power - Max : 660W
Switching Energy : 2.4mJ (on), 5.5mJ (off)
Input Type : Standard
Gate Charge : 350nC
Td (on/off) @ 25°C : 60ns/200ns
Test Condition : 480V, 100A, 2.4 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
0
100 in stock
IXGX120N60C2
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?Lightspeed?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 500A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 100A
Power - Max : 830W
Switching Energy : 1.7mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 370nC
Td (on/off) @ 25°C : 40ns/120ns
Test Condition : 400V, 80A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
Packaging : Tube
Series : HiPerFAST?Lightspeed?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 500A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 100A
Power - Max : 830W
Switching Energy : 1.7mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 370nC
Td (on/off) @ 25°C : 40ns/120ns
Test Condition : 400V, 80A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
0
100 in stock

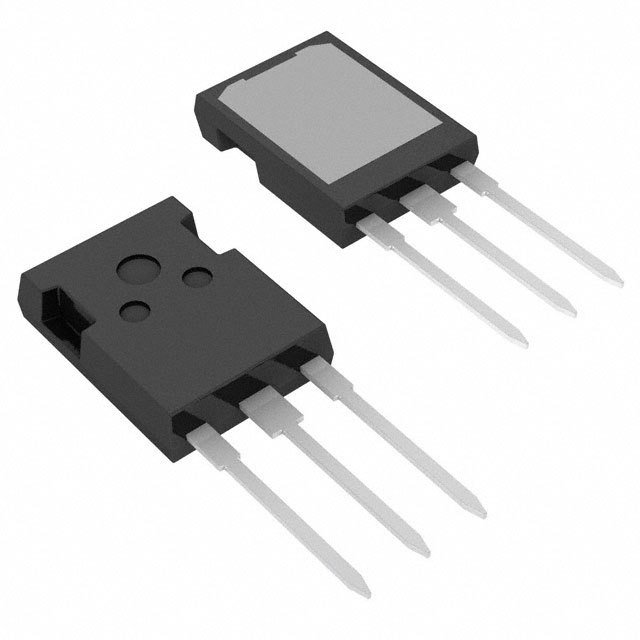

IXGX28N140B3H1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3?br/>Part Status : Last Time Buy
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1400V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 28A
Power - Max : 300W
Switching Energy : 3.6mJ (on), 3.9mJ (off)
Input Type : Standard
Gate Charge : 88nC
Td (on/off) @ 25°C : 16ns/190ns
Test Condition : 960V, 28A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 350ns
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
Packaging : Tube
Series : GenX3?br/>Part Status : Last Time Buy
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1400V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 28A
Power - Max : 300W
Switching Energy : 3.6mJ (on), 3.9mJ (off)
Input Type : Standard
Gate Charge : 88nC
Td (on/off) @ 25°C : 16ns/190ns
Test Condition : 960V, 28A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 350ns
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
0
100 in stock
IXGX32N170AH1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Last Time Buy
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 32A
Current - Collector Pulsed (Icm) : 110A
Vce(on) (Max) @ Vge, Ic : 5V @ 15V, 21A
Power - Max : 350W
Switching Energy : 4.1mJ (on), 1.25mJ (off)
Input Type : Standard
Gate Charge : 157nC
Td (on/off) @ 25°C : 27ns/270ns
Test Condition : 850V, 32A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 150ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
Packaging : Bulk
Series : -
Part Status : Last Time Buy
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 32A
Current - Collector Pulsed (Icm) : 110A
Vce(on) (Max) @ Vge, Ic : 5V @ 15V, 21A
Power - Max : 350W
Switching Energy : 4.1mJ (on), 1.25mJ (off)
Input Type : Standard
Gate Charge : 157nC
Td (on/off) @ 25°C : 27ns/270ns
Test Condition : 850V, 32A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 150ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
0
100 in stock
IXGX32N170H1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Last Time Buy
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 3.3V @ 15V, 32A
Power - Max : 350W
Switching Energy : 15mJ (off)
Input Type : Standard
Gate Charge : 155nC
Td (on/off) @ 25°C : 45ns/270ns
Test Condition : 1360V, 32A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 150ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
Packaging : Bulk
Series : -
Part Status : Last Time Buy
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 3.3V @ 15V, 32A
Power - Max : 350W
Switching Energy : 15mJ (off)
Input Type : Standard
Gate Charge : 155nC
Td (on/off) @ 25°C : 45ns/270ns
Test Condition : 1360V, 32A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 150ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
0
100 in stock
IXGX35N120CD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 140A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 35A
Power - Max : 350W
Switching Energy : 3mJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 50ns/150ns
Test Condition : 960V, 35A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 140A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 35A
Power - Max : 350W
Switching Energy : 3mJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 50ns/150ns
Test Condition : 960V, 35A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
0
100 in stock
IXGX40N60BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 2.7mJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 25ns/180ns
Test Condition : 480V, 40A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 2.7mJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 25ns/180ns
Test Condition : 480V, 40A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
0
100 in stock
IXGX50N60AU1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 50A
Power - Max : 300W
Switching Energy : 4.8mJ (off)
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : 50ns/200ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-247AD
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 50A
Power - Max : 300W
Switching Energy : 4.8mJ (off)
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : 50ns/200ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-247AD
0
100 in stock
IXGX50N60B2D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 40A
Power - Max : 400W
Switching Energy : 550µJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 18ns/190ns
Test Condition : 480V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 40A
Power - Max : 400W
Switching Energy : 550µJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 18ns/190ns
Test Condition : 480V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
0
100 in stock
IXGX50N60BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 50A
Power - Max : 300W
Switching Energy : 1.5mJ (off)
Input Type : Standard
Gate Charge : 110nC
Td (on/off) @ 25°C : 50ns/200ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 50A
Power - Max : 300W
Switching Energy : 1.5mJ (off)
Input Type : Standard
Gate Charge : 110nC
Td (on/off) @ 25°C : 50ns/200ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
0
100 in stock
IXGX50N60C2D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 40A
Power - Max : 480W
Switching Energy : 380µJ (off)
Input Type : Standard
Gate Charge : 138nC
Td (on/off) @ 25°C : 18ns/115ns
Test Condition : 480V, 40A, 2 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 40A
Power - Max : 480W
Switching Energy : 380µJ (off)
Input Type : Standard
Gate Charge : 138nC
Td (on/off) @ 25°C : 18ns/115ns
Test Condition : 480V, 40A, 2 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247?
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
