Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock

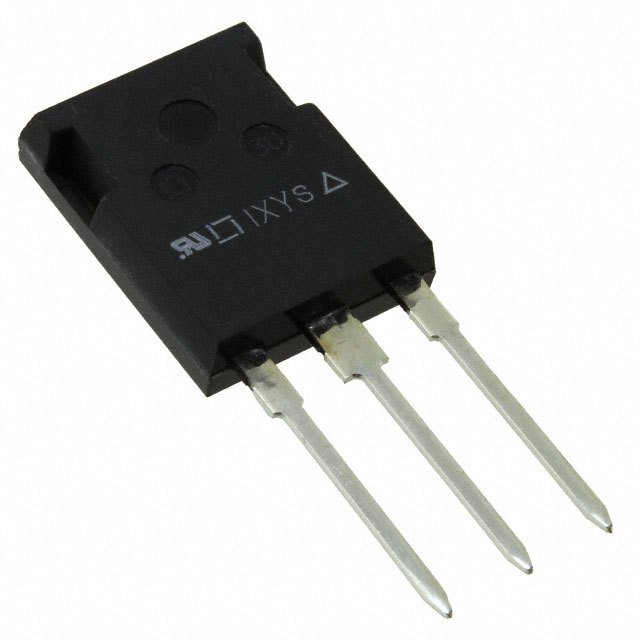

IXGR35N120C
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 140A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 35A
Power - Max : 200W
Switching Energy : 3mJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 50ns/150ns
Test Condition : 960V, 35A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 140A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 35A
Power - Max : 200W
Switching Energy : 3mJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 50ns/150ns
Test Condition : 960V, 35A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
0
100 in stock
IXGR39N60B
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 66A
Current - Collector Pulsed (Icm) : 152A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 39A
Power - Max : 140W
Switching Energy : 4mJ (off)
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : 25ns/250ns
Test Condition : 480V, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 66A
Current - Collector Pulsed (Icm) : 152A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 39A
Power - Max : 140W
Switching Energy : 4mJ (off)
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : 25ns/250ns
Test Condition : 480V, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
0
100 in stock
IXGR39N60BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 66A
Current - Collector Pulsed (Icm) : 152A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 39A
Power - Max : 140W
Switching Energy : 4mJ (off)
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : 25ns/250ns
Test Condition : 480V, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 66A
Current - Collector Pulsed (Icm) : 152A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 39A
Power - Max : 140W
Switching Energy : 4mJ (off)
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : 25ns/250ns
Test Condition : 480V, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
0
100 in stock
IXGR40N60B2
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 30A
Power - Max : 167W
Switching Energy : 400µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 18ns/130ns
Test Condition : 400V, 30A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 30A
Power - Max : 167W
Switching Energy : 400µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 18ns/130ns
Test Condition : 400V, 30A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
0
100 in stock
IXGR40N60B2D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 30A
Power - Max : 167W
Switching Energy : 400µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 18ns/130ns
Test Condition : 400V, 30A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 30A
Power - Max : 167W
Switching Energy : 400µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 18ns/130ns
Test Condition : 400V, 30A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
0
100 in stock
IXGR40N60BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 200W
Switching Energy : 2.7mJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 25ns/180ns
Test Condition : 480V, 40A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 200W
Switching Energy : 2.7mJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 25ns/180ns
Test Condition : 480V, 40A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
0
100 in stock
IXGR40N60C
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 40A
Power - Max : 200W
Switching Energy : 850µJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 25ns/100ns
Test Condition : 480V, 40A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 40A
Power - Max : 200W
Switching Energy : 850µJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 25ns/100ns
Test Condition : 480V, 40A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
0
100 in stock
IXGR40N60C2
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 56A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 30A
Power - Max : 170W
Switching Energy : 200µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 18ns/90ns
Test Condition : 400V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 56A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 30A
Power - Max : 170W
Switching Energy : 200µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 18ns/90ns
Test Condition : 400V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
0
100 in stock
IXGR40N60C2D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 56A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 30A
Power - Max : 170W
Switching Energy : 200µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 18ns/90ns
Test Condition : 400V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 56A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 30A
Power - Max : 170W
Switching Energy : 200µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 18ns/90ns
Test Condition : 400V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
0
100 in stock
IXGR40N60C2G1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
0
100 in stock
IXGR40N60CD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 40A
Power - Max : 200W
Switching Energy : 850µJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 25ns/100ns
Test Condition : 480V, 40A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 3.5ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 40A
Power - Max : 200W
Switching Energy : 850µJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 25ns/100ns
Test Condition : 480V, 40A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 3.5ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
0
100 in stock
IXGR48N60C3D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3?br/>Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 56A
Current - Collector Pulsed (Icm) : 230A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 30A
Power - Max : 125W
Switching Energy : 410µJ (on), 230µJ (off)
Input Type : Standard
Gate Charge : 77nC
Td (on/off) @ 25°C : 19ns/60ns
Test Condition : 400V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
Packaging : Tube
Series : GenX3?br/>Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 56A
Current - Collector Pulsed (Icm) : 230A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 30A
Power - Max : 125W
Switching Energy : 410µJ (on), 230µJ (off)
Input Type : Standard
Gate Charge : 77nC
Td (on/off) @ 25°C : 19ns/60ns
Test Condition : 400V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUS247?br/>Supplier Device Package : ISOPLUS247?br/>
0
145 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
