Part Number
Manufacturer
Description
Unit Price
In Stock
IXGP50N60C4
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 36A
Power - Max : 300W
Switching Energy : 950µJ (on), 840µJ (off)
Input Type : Standard
Gate Charge : 113nC
Td (on/off) @ 25°C : 40ns/270ns
Test Condition : 400V, 36A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 36A
Power - Max : 300W
Switching Energy : 950µJ (on), 840µJ (off)
Input Type : Standard
Gate Charge : 113nC
Td (on/off) @ 25°C : 40ns/270ns
Test Condition : 400V, 36A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IXGP7N60B
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 7A
Power - Max : 54W
Switching Energy : 70µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 25nC
Td (on/off) @ 25°C : 9ns/100ns
Test Condition : 480V, 7A, 22 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 7A
Power - Max : 54W
Switching Energy : 70µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 25nC
Td (on/off) @ 25°C : 9ns/100ns
Test Condition : 480V, 7A, 22 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IXGP7N60BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 7A
Power - Max : 80W
Switching Energy : 300µJ (off)
Input Type : Standard
Gate Charge : 25nC
Td (on/off) @ 25°C : 10ns/100ns
Test Condition : 480V, 7A, 18 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 7A
Power - Max : 80W
Switching Energy : 300µJ (off)
Input Type : Standard
Gate Charge : 25nC
Td (on/off) @ 25°C : 10ns/100ns
Test Condition : 480V, 7A, 18 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IXGP7N60C
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?Lightspeed?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 7A
Power - Max : 54W
Switching Energy : 70µJ (on), 120µJ (off)
Input Type : Standard
Gate Charge : 25nC
Td (on/off) @ 25°C : 9ns/65ns
Test Condition : 480V, 7A, 22 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : HiPerFAST?Lightspeed?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 7A
Power - Max : 54W
Switching Energy : 70µJ (on), 120µJ (off)
Input Type : Standard
Gate Charge : 25nC
Td (on/off) @ 25°C : 9ns/65ns
Test Condition : 480V, 7A, 22 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IXGP7N60CD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?Lightspeed?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 7A
Power - Max : 75W
Switching Energy : 120µJ (off)
Input Type : Standard
Gate Charge : 25nC
Td (on/off) @ 25°C : 10ns/65ns
Test Condition : 480V, 7A, 18 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : HiPerFAST?Lightspeed?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 7A
Power - Max : 75W
Switching Energy : 120µJ (off)
Input Type : Standard
Gate Charge : 25nC
Td (on/off) @ 25°C : 10ns/65ns
Test Condition : 480V, 7A, 18 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IXGP90N33TCM-A
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 330V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 330V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IXGQ150N30TC
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
IXGQ180N33TC
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 330V
Current - Collector (Ic) (Max) : 180A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 330V
Current - Collector (Ic) (Max) : 180A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
IXGQ30N60C2D4
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock

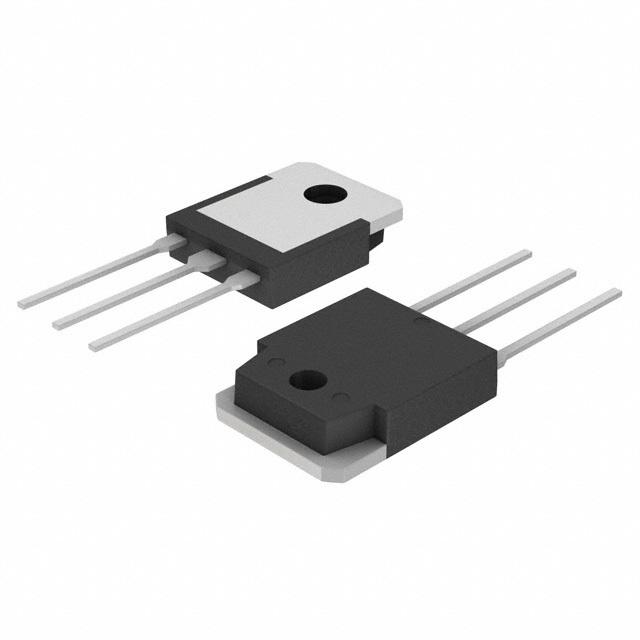

IXGQ50N60B4D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 230A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 36A
Power - Max : 300W
Switching Energy : 930µJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 110nC
Td (on/off) @ 25°C : 37ns/330ns
Test Condition : 400V, 36A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 230A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 36A
Power - Max : 300W
Switching Energy : 930µJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 110nC
Td (on/off) @ 25°C : 37ns/330ns
Test Condition : 400V, 36A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
IXGQ50N60C4D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 36A
Power - Max : 300W
Switching Energy : 950µJ (on), 840µJ (off)
Input Type : Standard
Gate Charge : 113nC
Td (on/off) @ 25°C : 40ns/270ns
Test Condition : 400V, 36A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 36A
Power - Max : 300W
Switching Energy : 950µJ (on), 840µJ (off)
Input Type : Standard
Gate Charge : 113nC
Td (on/off) @ 25°C : 40ns/270ns
Test Condition : 400V, 36A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
IXGQ90N33TC
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 330V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 45A
Power - Max : 200W
Switching Energy : -
Input Type : Standard
Gate Charge : 69nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 330V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 45A
Power - Max : 200W
Switching Energy : -
Input Type : Standard
Gate Charge : 69nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
