Part Number
Manufacturer
Description
Unit Price
In Stock
IXGK50N60A2U1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 15V, 50A
Power - Max : 400W
Switching Energy : 3.5mJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 20ns/410ns
Test Condition : 480V, 50A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 15V, 50A
Power - Max : 400W
Switching Energy : 3.5mJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 20ns/410ns
Test Condition : 480V, 50A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
0
100 in stock
IXGK50N60AU1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 50A
Power - Max : 300W
Switching Energy : 4.8mJ (off)
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : 50ns/200ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 50A
Power - Max : 300W
Switching Energy : 4.8mJ (off)
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : 50ns/200ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
0
100 in stock
IXGK50N60B
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 50A
Power - Max : 300W
Switching Energy : 3mJ (off)
Input Type : Standard
Gate Charge : 160nC
Td (on/off) @ 25°C : 50ns/150ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
Packaging : Bulk
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 50A
Power - Max : 300W
Switching Energy : 3mJ (off)
Input Type : Standard
Gate Charge : 160nC
Td (on/off) @ 25°C : 50ns/150ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
0
100 in stock
IXGK50N60BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 50A
Power - Max : 300W
Switching Energy : 1.5mJ (off)
Input Type : Standard
Gate Charge : 110nC
Td (on/off) @ 25°C : 50ns/200ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 50A
Power - Max : 300W
Switching Energy : 1.5mJ (off)
Input Type : Standard
Gate Charge : 110nC
Td (on/off) @ 25°C : 50ns/200ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
0
100 in stock
IXGK60N60
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 60A
Power - Max : 300W
Switching Energy : 8mJ (off)
Input Type : Standard
Gate Charge : 130nC
Td (on/off) @ 25°C : 50ns/300ns
Test Condition : 480V, 60A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 60A
Power - Max : 300W
Switching Energy : 8mJ (off)
Input Type : Standard
Gate Charge : 130nC
Td (on/off) @ 25°C : 50ns/300ns
Test Condition : 480V, 60A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
0
100 in stock

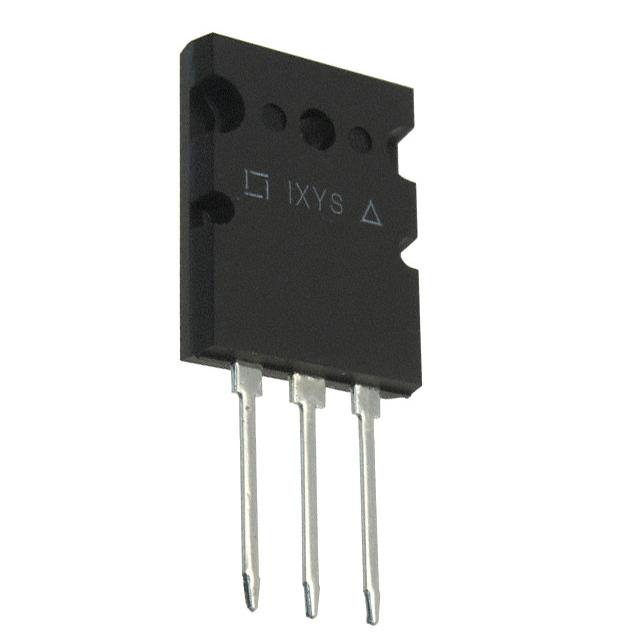

IXGK60N60B2D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 500W
Switching Energy : 1mJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 28ns/160ns
Test Condition : 400V, 50A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 500W
Switching Energy : 1mJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 28ns/160ns
Test Condition : 400V, 50A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
0
100 in stock
IXGK60N60C2D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 480W
Switching Energy : 400µJ (on), 480µJ (off)
Input Type : Standard
Gate Charge : 146nC
Td (on/off) @ 25°C : 18ns/95ns
Test Condition : 400V, 50A, 2 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 480W
Switching Energy : 400µJ (on), 480µJ (off)
Input Type : Standard
Gate Charge : 146nC
Td (on/off) @ 25°C : 18ns/95ns
Test Condition : 400V, 50A, 2 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
0
100 in stock
IXGK75N250
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 2500V
Current - Collector (Ic) (Max) : 170A
Current - Collector Pulsed (Icm) : 530A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 150A
Power - Max : 780W
Switching Energy : -
Input Type : Standard
Gate Charge : 410nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 2500V
Current - Collector (Ic) (Max) : 170A
Current - Collector Pulsed (Icm) : 530A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 150A
Power - Max : 780W
Switching Energy : -
Input Type : Standard
Gate Charge : 410nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
0
355 in stock
IXGL50N60BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : ISOPLUS264?br/>Supplier Device Package : ISOPLUS264?br/>
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : ISOPLUS264?br/>Supplier Device Package : ISOPLUS264?br/>
0
100 in stock
IXGM17N100A
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Last Time Buy
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1000V
Current - Collector (Ic) (Max) : 34A
Current - Collector Pulsed (Icm) : 68A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 17A
Power - Max : 150W
Switching Energy : 3mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 100ns/500ns
Test Condition : 800V, 17A, 82 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-204AE
Supplier Device Package : TO-204AE
Packaging : Tube
Series : -
Part Status : Last Time Buy
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1000V
Current - Collector (Ic) (Max) : 34A
Current - Collector Pulsed (Icm) : 68A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 17A
Power - Max : 150W
Switching Energy : 3mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 100ns/500ns
Test Condition : 800V, 17A, 82 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-204AE
Supplier Device Package : TO-204AE
0
100 in stock
IXGM20N60
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Last Time Buy
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 150W
Switching Energy : 2mJ (on), 3.2mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 100ns/600ns
Test Condition : 480V, 20A, 82 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-204AE
Supplier Device Package : TO-204AE
Packaging : Tube
Series : -
Part Status : Last Time Buy
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 150W
Switching Energy : 2mJ (on), 3.2mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 100ns/600ns
Test Condition : 480V, 20A, 82 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-204AE
Supplier Device Package : TO-204AE
0
100 in stock
IXGM20N60A
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Last Time Buy
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 20A
Power - Max : 150W
Switching Energy : 2mJ (on), 2mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 100ns/600ns
Test Condition : 480V, 20A, 82 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-204AE
Supplier Device Package : TO-204AE
Packaging : Tube
Series : -
Part Status : Last Time Buy
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 20A
Power - Max : 150W
Switching Energy : 2mJ (on), 2mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 100ns/600ns
Test Condition : 480V, 20A, 82 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-204AE
Supplier Device Package : TO-204AE
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
