Part Number
Manufacturer
Description
Unit Price
In Stock
IXGH50N60B2
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 40A
Power - Max : 400W
Switching Energy : 550µJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 18ns/190ns
Test Condition : 480V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXGH)
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 40A
Power - Max : 400W
Switching Energy : 550µJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 18ns/190ns
Test Condition : 480V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXGH)
0
100 in stock
IXGH50N60C2
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 40A
Power - Max : 400W
Switching Energy : 380µJ (off)
Input Type : Standard
Gate Charge : 138nC
Td (on/off) @ 25°C : 18ns/115ns
Test Condition : 480V, 40A, 2 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXGH)
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 40A
Power - Max : 400W
Switching Energy : 380µJ (off)
Input Type : Standard
Gate Charge : 138nC
Td (on/off) @ 25°C : 18ns/115ns
Test Condition : 480V, 40A, 2 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXGH)
0
100 in stock
IXGH50N60C4
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 36A
Power - Max : 300W
Switching Energy : 950µJ (on), 840µJ (off)
Input Type : Standard
Gate Charge : 113nC
Td (on/off) @ 25°C : 40ns/270ns
Test Condition : 400V, 36A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXGH)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 36A
Power - Max : 300W
Switching Energy : 950µJ (on), 840µJ (off)
Input Type : Standard
Gate Charge : 113nC
Td (on/off) @ 25°C : 40ns/270ns
Test Condition : 400V, 36A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXGH)
0
100 in stock
IXGH50N90B2D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 900V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 50A
Power - Max : 400W
Switching Energy : 4.7mJ (off)
Input Type : Standard
Gate Charge : 135nC
Td (on/off) @ 25°C : 20ns/350ns
Test Condition : 720V, 50A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXGH)
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 900V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 50A
Power - Max : 400W
Switching Energy : 4.7mJ (off)
Input Type : Standard
Gate Charge : 135nC
Td (on/off) @ 25°C : 20ns/350ns
Test Condition : 720V, 50A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXGH)
0
47 in stock
IXGH60N60
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 60A
Power - Max : 300W
Switching Energy : 8mJ (off)
Input Type : Standard
Gate Charge : 130nC
Td (on/off) @ 25°C : 50ns/300ns
Test Condition : 480V, 60A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXGH)
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 60A
Power - Max : 300W
Switching Energy : 8mJ (off)
Input Type : Standard
Gate Charge : 130nC
Td (on/off) @ 25°C : 50ns/300ns
Test Condition : 480V, 60A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXGH)
0
100 in stock
IXGH60N60B2
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 500W
Switching Energy : 1mJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 28ns/160ns
Test Condition : 400V, 50A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXGH)
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 500W
Switching Energy : 1mJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 28ns/160ns
Test Condition : 400V, 50A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXGH)
0
100 in stock
IXGH60N60C2
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 480W
Switching Energy : 480µJ (off)
Input Type : Standard
Gate Charge : 146nC
Td (on/off) @ 25°C : 18ns/95ns
Test Condition : 400V, 50A, 2 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXGH)
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 480W
Switching Energy : 480µJ (off)
Input Type : Standard
Gate Charge : 146nC
Td (on/off) @ 25°C : 18ns/95ns
Test Condition : 400V, 50A, 2 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXGH)
0
100 in stock

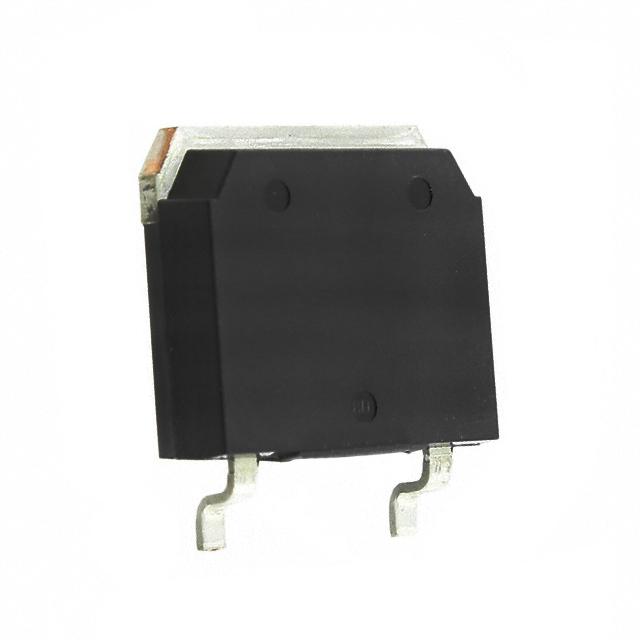

IXGJ40N60C2D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 30A
Power - Max : 300W
Switching Energy : 200µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 18ns/90ns
Test Condition : 400V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3, Short Tab
Supplier Device Package : TO-268
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 30A
Power - Max : 300W
Switching Energy : 200µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 18ns/90ns
Test Condition : 400V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3, Short Tab
Supplier Device Package : TO-268
0
100 in stock
IXGK120N120A3
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3?br/>Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 240A
Current - Collector Pulsed (Icm) : 600A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 100A
Power - Max : 830W
Switching Energy : 10mJ (on), 33mJ (off)
Input Type : Standard
Gate Charge : 420nC
Td (on/off) @ 25°C : 40ns/490ns
Test Condition : 960V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
Packaging : Tube
Series : GenX3?br/>Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 240A
Current - Collector Pulsed (Icm) : 600A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 100A
Power - Max : 830W
Switching Energy : 10mJ (on), 33mJ (off)
Input Type : Standard
Gate Charge : 420nC
Td (on/off) @ 25°C : 40ns/490ns
Test Condition : 960V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
0
1707 in stock
IXGK120N60B
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 200A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 120A
Power - Max : 660W
Switching Energy : 2.4mJ (on), 5.5mJ (off)
Input Type : Standard
Gate Charge : 350nC
Td (on/off) @ 25°C : 60ns/200ns
Test Condition : 480V, 100A, 2.4 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
Packaging : Tube
Series : HiPerFAST?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 200A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 120A
Power - Max : 660W
Switching Energy : 2.4mJ (on), 5.5mJ (off)
Input Type : Standard
Gate Charge : 350nC
Td (on/off) @ 25°C : 60ns/200ns
Test Condition : 480V, 100A, 2.4 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
0
100 in stock

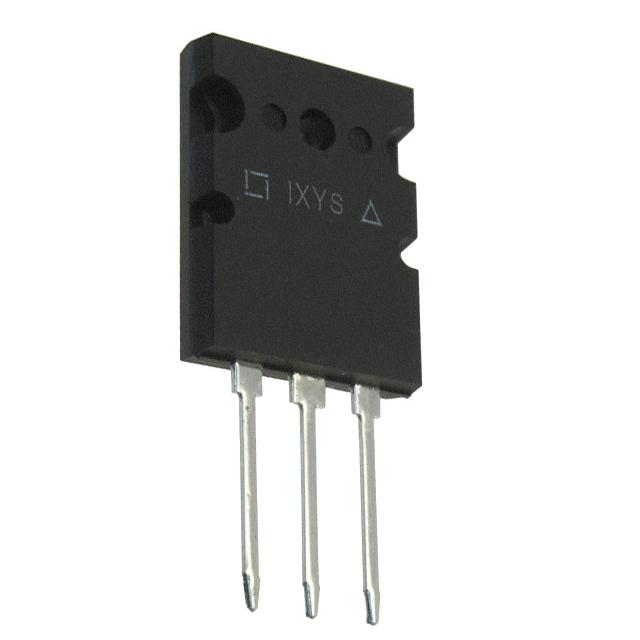

IXGK120N60C2
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFAST?Lightspeed 2?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 500A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 100A
Power - Max : 830W
Switching Energy : 1.7mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 370nC
Td (on/off) @ 25°C : 40ns/120ns
Test Condition : 400V, 80A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
Packaging : Tube
Series : HiPerFAST?Lightspeed 2?br/>Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 500A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 100A
Power - Max : 830W
Switching Energy : 1.7mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 370nC
Td (on/off) @ 25°C : 40ns/120ns
Test Condition : 400V, 80A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
0
100 in stock
IXGK28N140B3H1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3?br/>Part Status : Last Time Buy
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1400V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 28A
Power - Max : 300W
Switching Energy : 3.6mJ (on), 3.9mJ (off)
Input Type : Standard
Gate Charge : 88nC
Td (on/off) @ 25°C : 16ns/190ns
Test Condition : 960V, 28A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 350ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
Packaging : Tube
Series : GenX3?br/>Part Status : Last Time Buy
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1400V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 28A
Power - Max : 300W
Switching Energy : 3.6mJ (on), 3.9mJ (off)
Input Type : Standard
Gate Charge : 88nC
Td (on/off) @ 25°C : 16ns/190ns
Test Condition : 960V, 28A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 350ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXGK)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
