MG12300D-BA1MM MG12300D-BA1MM

Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 450A
Power - Max : 1800W
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 300A (Typ)
Current - Collector Cutoff (Max) : 2mA
Input Capacitance (Cies) @ Vce : 21.2nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : D3
0
100 in stock

MG12300D-BN2MM MG12300D-BN2MM

Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 480A
Power - Max : 1450W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 21nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : D-3 Module
Supplier Device Package : D3
0
31 in stock

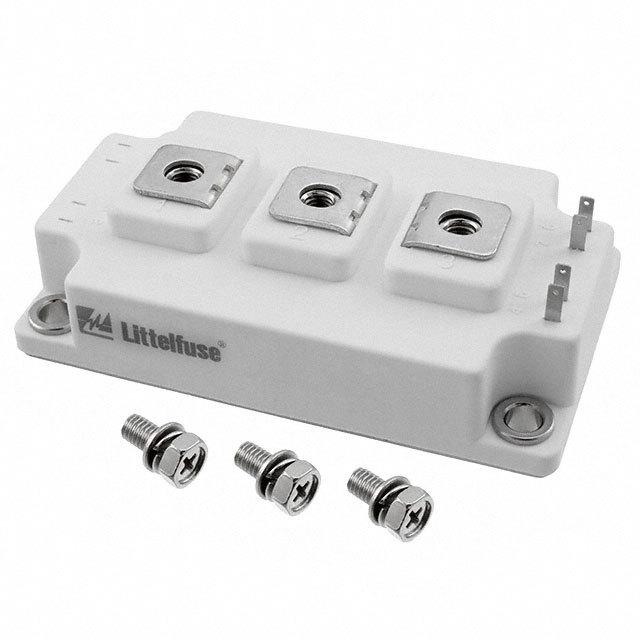

MG12300D-BN3MM MG12300D-BN3MM

Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 450A
Power - Max : 1450W
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 300A
Current - Collector Cutoff (Max) : 2mA
Input Capacitance (Cies) @ Vce : 22nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : D-3 Module
Supplier Device Package : D3
0
100 in stock

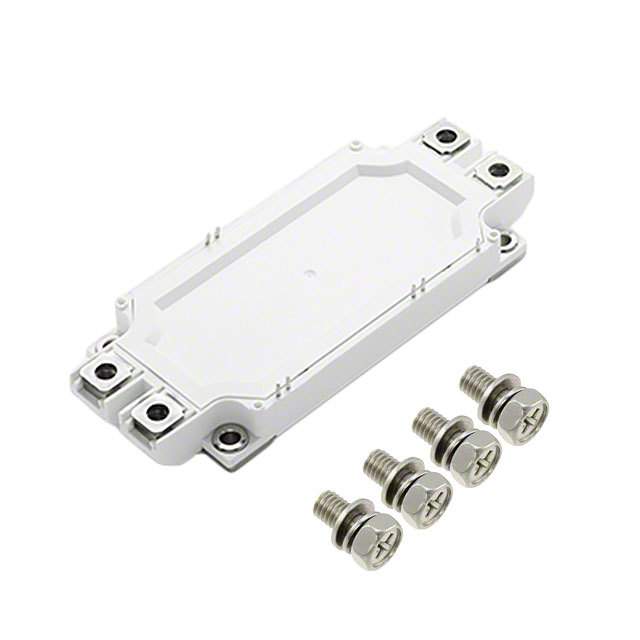

MG12300WB-BN2MM MG12300WB-BN2MM

Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 500A
Power - Max : 1400W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 300A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 21nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : WB
0
12 in stock

MG12400D-BN2MM MG12400D-BN2MM

Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 580A
Power - Max : 1925W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 400A (Typ)
Current - Collector Cutoff (Max) : 2mA
Input Capacitance (Cies) @ Vce : 28nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : D3
0
5 in stock

MG12450WB-BN2MM MG12450WB-BN2MM

Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 600A
Power - Max : 1950W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 450A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 32nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : WB
0
67 in stock

MG1250S-BA1MM MG1250S-BA1MM

Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Power - Max : 500W
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A (Typ)
Current - Collector Cutoff (Max) : 500µA
Input Capacitance (Cies) @ Vce : 4.29nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : S-3 Module
Supplier Device Package : S3
0
109 in stock

MG12600WB-BR2MM MG12600WB-BR2MM

Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 750A
Power - Max : 2500W
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 600A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : 60.5nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : WB
0
2 in stock

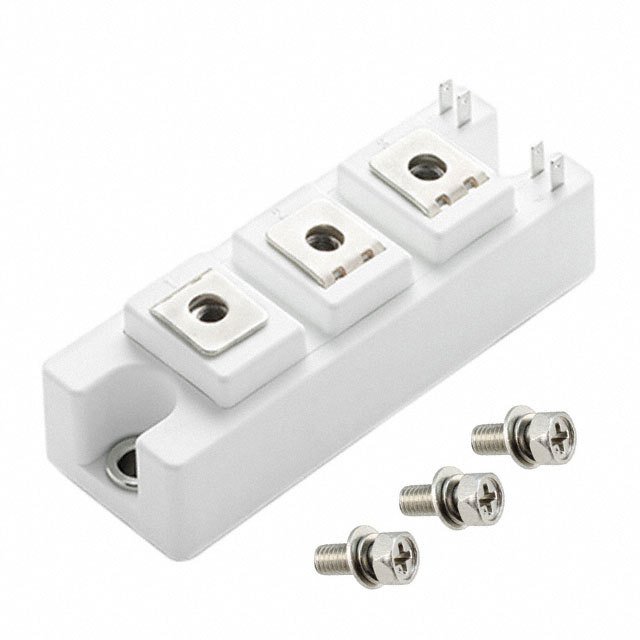

MG1275S-BA1MM MG1275S-BA1MM

Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 105A
Power - Max : 630W
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 75A (Typ)
Current - Collector Cutoff (Max) : 500µA
Input Capacitance (Cies) @ Vce : 5.52nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : S-3 Module
Supplier Device Package : S3
0
70 in stock

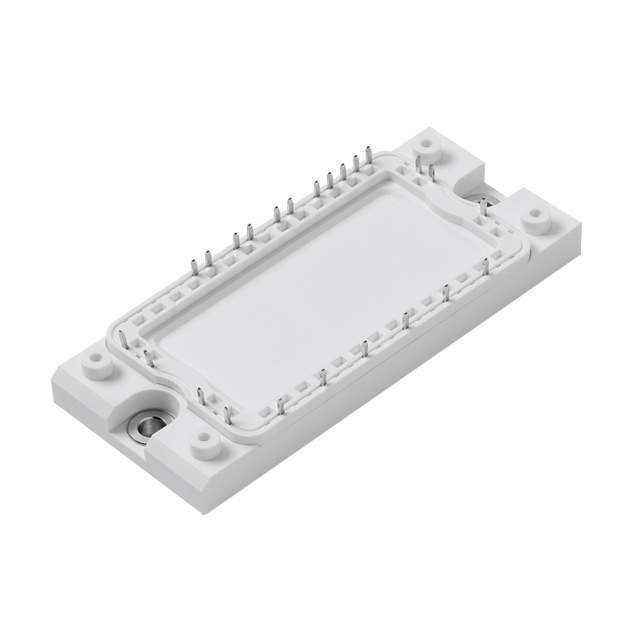

MG1275W-XBN2MM MG1275W-XBN2MM

Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : -
Configuration : Three Phase Inverter with Brake
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 105A
Power - Max : 348W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 75A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 5.3nF @ 25V
Input : Three Phase Bridge Rectifier
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
48 in stock

MG150J7KS61 MG150J7KS61

Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Three Phase Inverter with Brake
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 150A
Power - Max : 750W
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 150A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

MG200J6ES61 MG200J6ES61

Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 200A
Power - Max : 1000W
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 40nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
