Part Number
Manufacturer
Description
Unit Price
In Stock

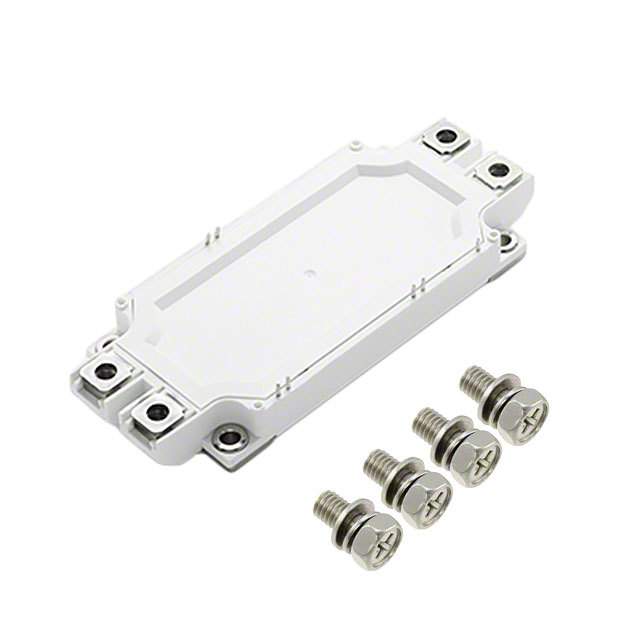

MG06600WB-BN4MM
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 700A
Power - Max : 1500W
Vce(on) (Max) @ Vge, Ic : 1.45V @ 15V, 600A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 39nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : -
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 700A
Power - Max : 1500W
Vce(on) (Max) @ Vge, Ic : 1.45V @ 15V, 600A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 39nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
1 in stock
MG0675S-BN4MM
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Power - Max : 250W
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 75A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 4.6nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : S-3 Module
Supplier Device Package : S3
Series : -
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Power - Max : 250W
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 75A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 4.6nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : S-3 Module
Supplier Device Package : S3
0
5 in stock
MG12100D-BA1MM
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 160A
Power - Max : 1000W
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 100A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 8.58nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : D3
Series : -
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 160A
Power - Max : 1000W
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 100A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 8.58nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : D3
0
18 in stock
MG12100S-BN2MM
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 140A
Power - Max : 450W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 100A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 7.1nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : S-3 Module
Supplier Device Package : S3
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 140A
Power - Max : 450W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 100A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 7.1nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : S-3 Module
Supplier Device Package : S3
0
15 in stock
MG12100W-XN2MM
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 140A
Power - Max : 450W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 100A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 7.1nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 140A
Power - Max : 450W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 100A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 7.1nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
MG12105S-BA1MM
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 150A
Power - Max : 690W
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 100A (Typ)
Current - Collector Cutoff (Max) : 500µA
Input Capacitance (Cies) @ Vce : 7.43nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : S-3 Module
Supplier Device Package : S3
Series : -
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 150A
Power - Max : 690W
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 100A (Typ)
Current - Collector Cutoff (Max) : 500µA
Input Capacitance (Cies) @ Vce : 7.43nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : S-3 Module
Supplier Device Package : S3
0
3 in stock

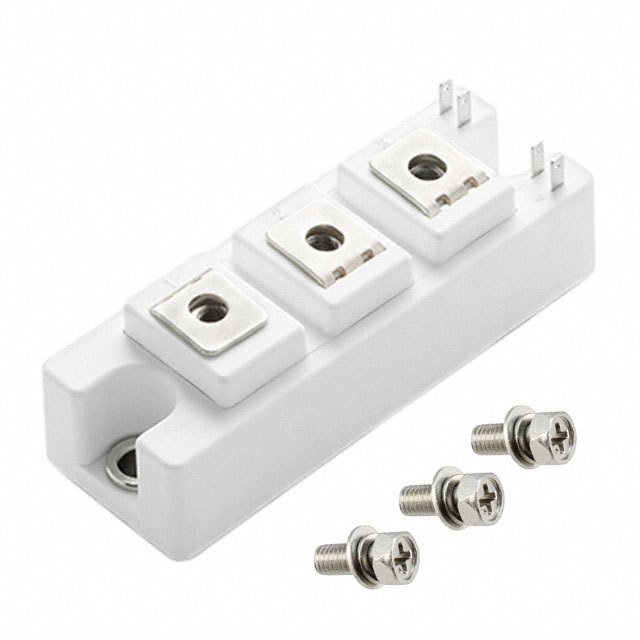

MG12150S-BN2MM
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 200A
Power - Max : 625W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 150A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 10.5nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : S-3 Module
Supplier Device Package : S3
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 200A
Power - Max : 625W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 150A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 10.5nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : S-3 Module
Supplier Device Package : S3
0
42 in stock

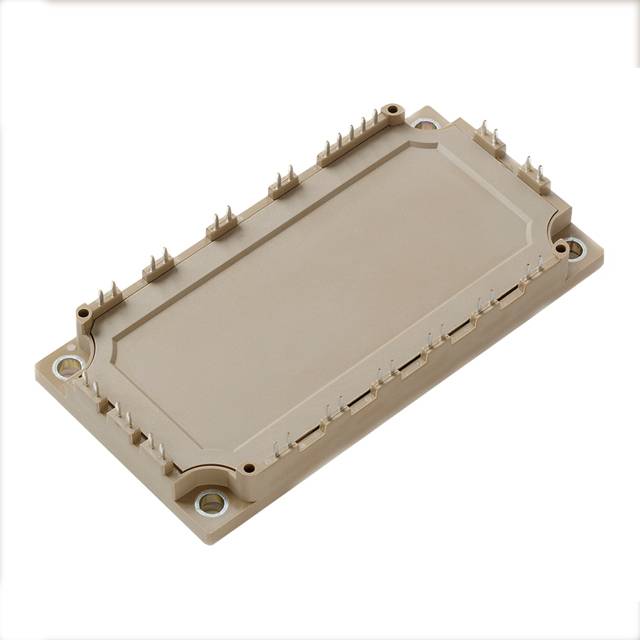

MG12150W-XN2MM
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 200A
Power - Max : 625W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 150A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 10.5nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 200A
Power - Max : 625W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 150A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 10.5nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

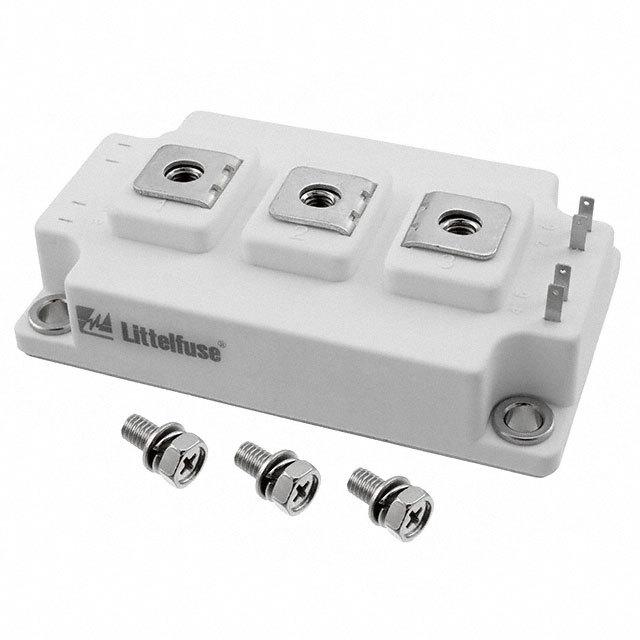

MG12200D-BA1MM
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 1400W
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 200A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 14.9nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : D3
Series : -
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 1400W
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 200A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 14.9nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : D3
0
30 in stock
MG12200D-BN2MM
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 290A
Power - Max : 1050W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 200A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 14nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : D3
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 290A
Power - Max : 1050W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 200A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 14nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : D3
0
20 in stock
MG12225WB-BN2MM
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 325A
Power - Max : 1050W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 225A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 16nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : WB
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 325A
Power - Max : 1050W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 225A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 16nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : WB
0
21 in stock
MG1225H-XN2MM
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Power - Max : 147W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 25A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : 1.81nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Power - Max : 147W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 25A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : 1.81nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
36 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
