FDC6321C
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 680mA, 460mA
Rds On (Max) @ Id, Vgs : 450 mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2.3nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 680mA, 460mA
Rds On (Max) @ Id, Vgs : 450 mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2.3nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
100 in stock
FDC6322C
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 220mA, 460mA
Rds On (Max) @ Id, Vgs : 4 Ohm @ 400mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 9.5pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 220mA, 460mA
Rds On (Max) @ Id, Vgs : 4 Ohm @ 400mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 9.5pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
100 in stock
FDC6327C
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.7A, 1.9A
Rds On (Max) @ Id, Vgs : 80 mOhm @ 2.7A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 325pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.7A, 1.9A
Rds On (Max) @ Id, Vgs : 80 mOhm @ 2.7A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 325pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
100 in stock
FDC6333C
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.5A, 2A
Rds On (Max) @ Id, Vgs : 95 mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6.6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 282pF @ 15V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.5A, 2A
Rds On (Max) @ Id, Vgs : 95 mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6.6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 282pF @ 15V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
100 in stock
FDC6401N
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 70 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 324pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 70 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 324pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
100 in stock
FDC6420C
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3A, 2.2A
Rds On (Max) @ Id, Vgs : 70 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 324pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3A, 2.2A
Rds On (Max) @ Id, Vgs : 70 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 324pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
79 in stock
FDC6432SH
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®, SyncFET™
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V, 12V
Current - Continuous Drain (Id) @ 25°C : 2.4A, 2.5A
Rds On (Max) @ Id, Vgs : 90 mOhm @ 2.4A, 10V
Vgs(th) (Max) @ Id : 3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 3.5nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds : 270pF @ 15V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Tape & Reel (TR)
Series : PowerTrench®, SyncFET™
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V, 12V
Current - Continuous Drain (Id) @ 25°C : 2.4A, 2.5A
Rds On (Max) @ Id, Vgs : 90 mOhm @ 2.4A, 10V
Vgs(th) (Max) @ Id : 3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 3.5nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds : 270pF @ 15V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
100 in stock
FDC6506P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 1.8A
Rds On (Max) @ Id, Vgs : 170 mOhm @ 1.8A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 190pF @ 15V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 1.8A
Rds On (Max) @ Id, Vgs : 170 mOhm @ 1.8A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 190pF @ 15V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
100 in stock
FDC6561AN
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.5A
Rds On (Max) @ Id, Vgs : 95 mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3.2nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds : 220pF @ 15V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.5A
Rds On (Max) @ Id, Vgs : 95 mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3.2nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds : 220pF @ 15V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
100 in stock
FDC8602
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 1.2A
Rds On (Max) @ Id, Vgs : 350 mOhm @ 1.2A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 70pF @ 50V
Power - Max : 690mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 1.2A
Rds On (Max) @ Id, Vgs : 350 mOhm @ 1.2A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 70pF @ 50V
Power - Max : 690mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
100 in stock
FDD3510H
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : N and P-Channel, Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 4.3A, 2.8A
Rds On (Max) @ Id, Vgs : 80 mOhm @ 4.3A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 18nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 800pF @ 40V
Power - Max : 1.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device Package : TO-252-4L
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : N and P-Channel, Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 4.3A, 2.8A
Rds On (Max) @ Id, Vgs : 80 mOhm @ 4.3A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 18nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 800pF @ 40V
Power - Max : 1.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device Package : TO-252-4L
0
2269 in stock

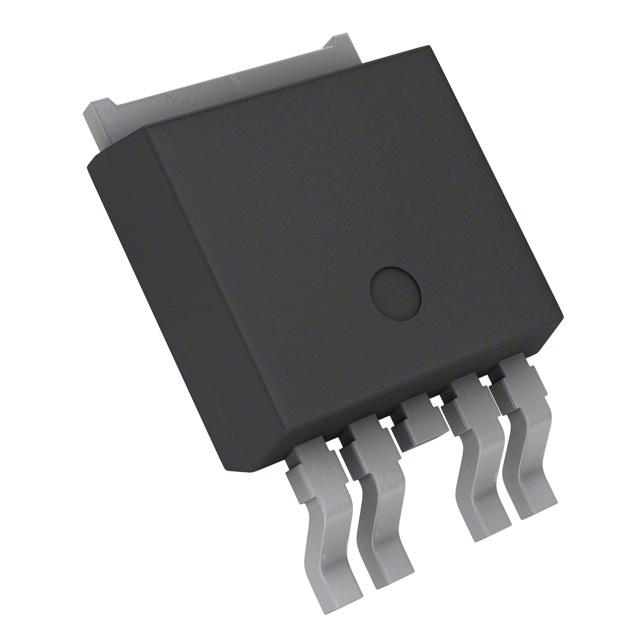

FDD8424H
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 9A, 6.5A
Rds On (Max) @ Id, Vgs : 24 mOhm @ 9A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1000pF @ 20V
Power - Max : 1.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device Package : TO-252-4L
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 9A, 6.5A
Rds On (Max) @ Id, Vgs : 24 mOhm @ 9A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1000pF @ 20V
Power - Max : 1.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device Package : TO-252-4L
0
28765 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
