Part Number
Manufacturer
Description
Unit Price
In Stock

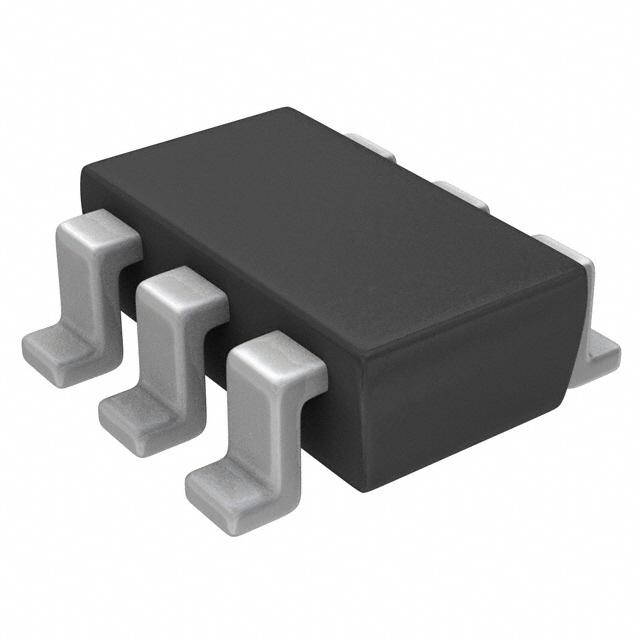

FDC6036P_F077
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 5A
Rds On (Max) @ Id, Vgs : 44 mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 14nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 992pF @ 10V
Power - Max : 900mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-SSOT Flat-lead, SuperSOT™6 FLMP
Supplier Device Package : SuperSOT™6
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 5A
Rds On (Max) @ Id, Vgs : 44 mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 14nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 992pF @ 10V
Power - Max : 900mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-SSOT Flat-lead, SuperSOT™6 FLMP
Supplier Device Package : SuperSOT™6
0
100 in stock
FDC6301N
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 220mA
Rds On (Max) @ Id, Vgs : 4 Ohm @ 400mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 9.5pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 220mA
Rds On (Max) @ Id, Vgs : 4 Ohm @ 400mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 9.5pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
100 in stock
FDC6301N_G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 220mA
Rds On (Max) @ Id, Vgs : 4 Ohm @ 400mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 9.5pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 220mA
Rds On (Max) @ Id, Vgs : 4 Ohm @ 400mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 9.5pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
100 in stock
FDC6302P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 120mA
Rds On (Max) @ Id, Vgs : 10 Ohm @ 200mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.31nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 11pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 120mA
Rds On (Max) @ Id, Vgs : 10 Ohm @ 200mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.31nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 11pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
854 in stock
FDC6303N
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 680mA
Rds On (Max) @ Id, Vgs : 450 mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 680mA
Rds On (Max) @ Id, Vgs : 450 mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
100 in stock
FDC6304P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 460mA
Rds On (Max) @ Id, Vgs : 1.1 Ohm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 62pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 460mA
Rds On (Max) @ Id, Vgs : 1.1 Ohm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 62pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
3877 in stock
FDC6305N
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.7A
Rds On (Max) @ Id, Vgs : 80 mOhm @ 2.7A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 310pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.7A
Rds On (Max) @ Id, Vgs : 80 mOhm @ 2.7A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 310pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
100 in stock
FDC6306P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 1.9A
Rds On (Max) @ Id, Vgs : 170 mOhm @ 1.9A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 441pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 1.9A
Rds On (Max) @ Id, Vgs : 170 mOhm @ 1.9A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 441pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
100 in stock
FDC6310P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.2A
Rds On (Max) @ Id, Vgs : 125 mOhm @ 2.2A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 337pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.2A
Rds On (Max) @ Id, Vgs : 125 mOhm @ 2.2A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 337pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
1251 in stock
FDC6312P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.3A
Rds On (Max) @ Id, Vgs : 115 mOhm @ 2.3A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 467pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.3A
Rds On (Max) @ Id, Vgs : 115 mOhm @ 2.3A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 467pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
100 in stock
FDC6318P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 12V
Current - Continuous Drain (Id) @ 25°C : 2.5A
Rds On (Max) @ Id, Vgs : 90 mOhm @ 2.5A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 455pF @ 6V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 12V
Current - Continuous Drain (Id) @ 25°C : 2.5A
Rds On (Max) @ Id, Vgs : 90 mOhm @ 2.5A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 455pF @ 6V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : SuperSOT™6
0
100 in stock
FDC6320C
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 220mA, 120mA
Rds On (Max) @ Id, Vgs : 4 Ohm @ 400mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 9.5pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : 6-SSOT
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 220mA, 120mA
Rds On (Max) @ Id, Vgs : 4 Ohm @ 400mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 9.5pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : 6-SSOT
0
2990 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
