APTC90H12T2G
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Tray
Series : CoolMOS™
Part Status : Obsolete
FET Type : 4 N-Channel (H-Bridge)
FET Feature : Super Junction
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 30A
Rds On (Max) @ Id, Vgs : 120 mOhm @ 26A, 10V
Vgs(th) (Max) @ Id : 3.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs : 270nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 6800pF @ 100V
Power - Max : 250W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP2
Supplier Device Package : SP2
Packaging : Tray
Series : CoolMOS™
Part Status : Obsolete
FET Type : 4 N-Channel (H-Bridge)
FET Feature : Super Junction
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 30A
Rds On (Max) @ Id, Vgs : 120 mOhm @ 26A, 10V
Vgs(th) (Max) @ Id : 3.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs : 270nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 6800pF @ 100V
Power - Max : 250W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP2
Supplier Device Package : SP2
0
100 in stock
APTC90HM60T3G
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Tray
Series : CoolMOS™
Part Status : Last Time Buy
FET Type : 4 N-Channel (H-Bridge)
FET Feature : Super Junction
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 59A
Rds On (Max) @ Id, Vgs : 60 mOhm @ 52A, 10V
Vgs(th) (Max) @ Id : 3.5V @ 6mA
Gate Charge (Qg) (Max) @ Vgs : 540nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 13600pF @ 100V
Power - Max : 462W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP3
Supplier Device Package : SP3
Packaging : Tray
Series : CoolMOS™
Part Status : Last Time Buy
FET Type : 4 N-Channel (H-Bridge)
FET Feature : Super Junction
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 59A
Rds On (Max) @ Id, Vgs : 60 mOhm @ 52A, 10V
Vgs(th) (Max) @ Id : 3.5V @ 6mA
Gate Charge (Qg) (Max) @ Vgs : 540nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 13600pF @ 100V
Power - Max : 462W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP3
Supplier Device Package : SP3
0
100 in stock
APTC90TAM60TPG
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Tray
Series : CoolMOS™
Part Status : Last Time Buy
FET Type : 6 N-Channel (3-Phase Bridge)
FET Feature : Super Junction
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 59A
Rds On (Max) @ Id, Vgs : 60 mOhm @ 52A, 10V
Vgs(th) (Max) @ Id : 3.5V @ 6mA
Gate Charge (Qg) (Max) @ Vgs : 540nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 13600pF @ 100V
Power - Max : 462W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP6
Supplier Device Package : SP6-P
Packaging : Tray
Series : CoolMOS™
Part Status : Last Time Buy
FET Type : 6 N-Channel (3-Phase Bridge)
FET Feature : Super Junction
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 59A
Rds On (Max) @ Id, Vgs : 60 mOhm @ 52A, 10V
Vgs(th) (Max) @ Id : 3.5V @ 6mA
Gate Charge (Qg) (Max) @ Vgs : 540nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 13600pF @ 100V
Power - Max : 462W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP6
Supplier Device Package : SP6-P
0
100 in stock
APTJC120AM13VCT1AG
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

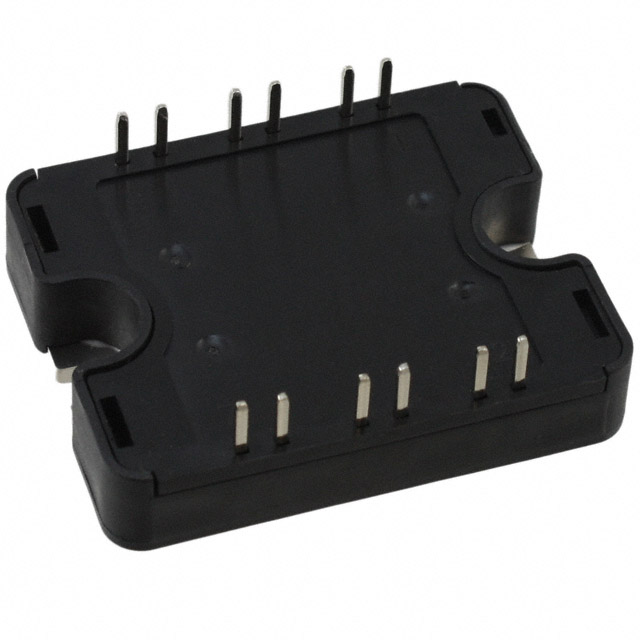

APTJC120AM25VCT1AG
Microsemi
Manufacturer : Microsemi Corporation
Packaging : -
Series : -
Part Status : Obsolete
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Packaging : -
Series : -
Part Status : Obsolete
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock

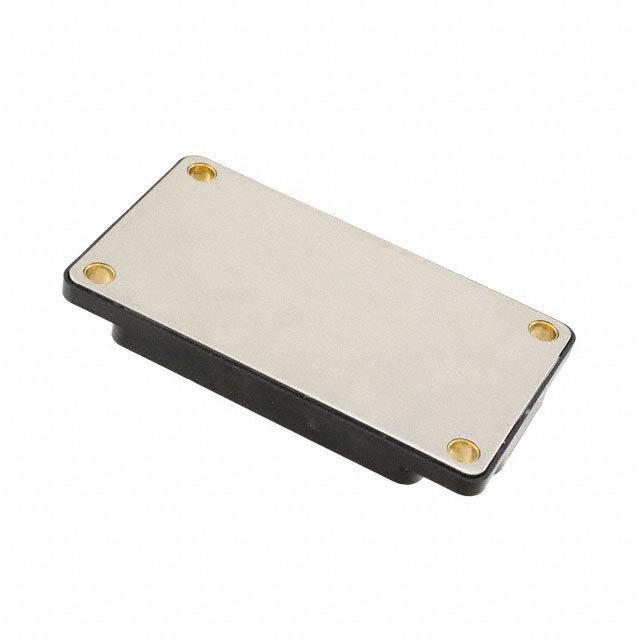

APTM08TDUM04PG
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : 6 N-Channel (3-Phase Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 75V
Current - Continuous Drain (Id) @ 25°C : 120A
Rds On (Max) @ Id, Vgs : 4.5 mOhm @ 60A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 153nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 4530pF @ 25V
Power - Max : 138W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP6
Supplier Device Package : SP6-P
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : 6 N-Channel (3-Phase Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 75V
Current - Continuous Drain (Id) @ 25°C : 120A
Rds On (Max) @ Id, Vgs : 4.5 mOhm @ 60A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 153nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 4530pF @ 25V
Power - Max : 138W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP6
Supplier Device Package : SP6-P
0
100 in stock
APTM100A12STG
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Discontinued at
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 1000V (1kV)
Current - Continuous Drain (Id) @ 25°C : 68A
Rds On (Max) @ Id, Vgs : 120 mOhm @ 34A, 10V
Vgs(th) (Max) @ Id : 5V @ 10mA
Gate Charge (Qg) (Max) @ Vgs : 616nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 17400pF @ 25V
Power - Max : 1250W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP3
Supplier Device Package : SP3
Packaging : Bulk
Series : -
Part Status : Discontinued at
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 1000V (1kV)
Current - Continuous Drain (Id) @ 25°C : 68A
Rds On (Max) @ Id, Vgs : 120 mOhm @ 34A, 10V
Vgs(th) (Max) @ Id : 5V @ 10mA
Gate Charge (Qg) (Max) @ Vgs : 616nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 17400pF @ 25V
Power - Max : 1250W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP3
Supplier Device Package : SP3
0
100 in stock

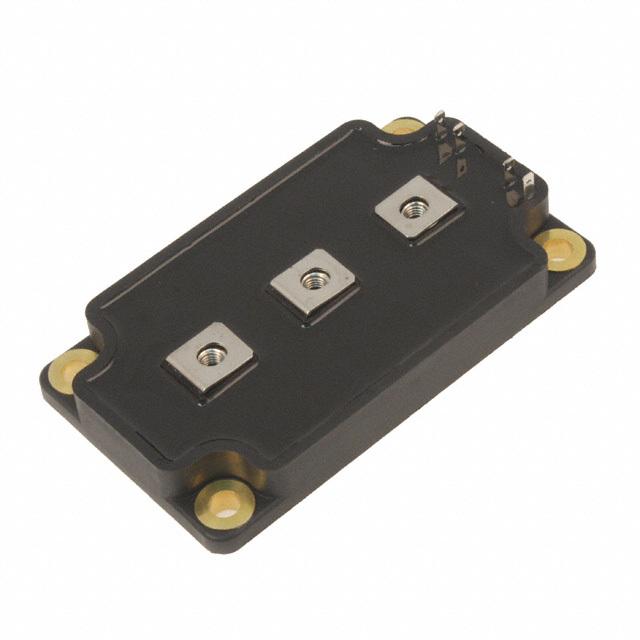

APTM100A13SCG
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 1000V (1kV)
Current - Continuous Drain (Id) @ 25°C : 65A
Rds On (Max) @ Id, Vgs : 156 mOhm @ 32.5A, 10V
Vgs(th) (Max) @ Id : 5V @ 6mA
Gate Charge (Qg) (Max) @ Vgs : 562nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 15200pF @ 25V
Power - Max : 1250W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP6
Supplier Device Package : SP6
Packaging : Bulk
Series : -
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 1000V (1kV)
Current - Continuous Drain (Id) @ 25°C : 65A
Rds On (Max) @ Id, Vgs : 156 mOhm @ 32.5A, 10V
Vgs(th) (Max) @ Id : 5V @ 6mA
Gate Charge (Qg) (Max) @ Vgs : 562nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 15200pF @ 25V
Power - Max : 1250W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP6
Supplier Device Package : SP6
0
59 in stock

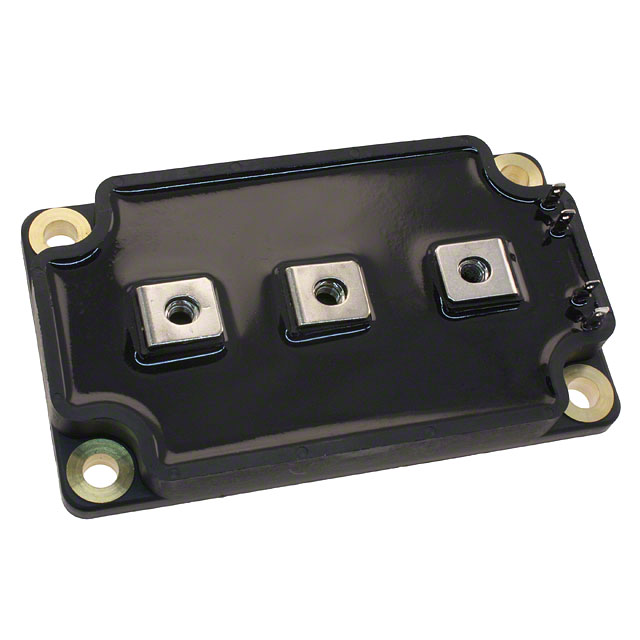

APTM100A13SG
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 1000V (1kV)
Current - Continuous Drain (Id) @ 25°C : 65A
Rds On (Max) @ Id, Vgs : 156 mOhm @ 32.5A, 10V
Vgs(th) (Max) @ Id : 5V @ 6mA
Gate Charge (Qg) (Max) @ Vgs : 562nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 15200pF @ 25V
Power - Max : 1250W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP6
Supplier Device Package : SP6
Packaging : Bulk
Series : -
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 1000V (1kV)
Current - Continuous Drain (Id) @ 25°C : 65A
Rds On (Max) @ Id, Vgs : 156 mOhm @ 32.5A, 10V
Vgs(th) (Max) @ Id : 5V @ 6mA
Gate Charge (Qg) (Max) @ Vgs : 562nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 15200pF @ 25V
Power - Max : 1250W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP6
Supplier Device Package : SP6
0
100 in stock
APTM100A23SCTG
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1000V (1kV)
Current - Continuous Drain (Id) @ 25°C : 36A
Rds On (Max) @ Id, Vgs : 270 mOhm @ 18A, 10V
Vgs(th) (Max) @ Id : 5V @ 5mA
Gate Charge (Qg) (Max) @ Vgs : 308nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 8700pF @ 25V
Power - Max : 694W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP4
Supplier Device Package : SP4
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1000V (1kV)
Current - Continuous Drain (Id) @ 25°C : 36A
Rds On (Max) @ Id, Vgs : 270 mOhm @ 18A, 10V
Vgs(th) (Max) @ Id : 5V @ 5mA
Gate Charge (Qg) (Max) @ Vgs : 308nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 8700pF @ 25V
Power - Max : 694W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP4
Supplier Device Package : SP4
0
100 in stock
APTM100A40FT1G
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 1000V (1kV)
Current - Continuous Drain (Id) @ 25°C : 21A
Rds On (Max) @ Id, Vgs : 480 mOhm @ 18A, 10V
Vgs(th) (Max) @ Id : 5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs : 305nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 7868pF @ 25V
Power - Max : 390W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP1
Supplier Device Package : SP1
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 1000V (1kV)
Current - Continuous Drain (Id) @ 25°C : 21A
Rds On (Max) @ Id, Vgs : 480 mOhm @ 18A, 10V
Vgs(th) (Max) @ Id : 5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs : 305nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 7868pF @ 25V
Power - Max : 390W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP1
Supplier Device Package : SP1
0
100 in stock
APTM100A46FT1G
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 1000V (1kV)
Current - Continuous Drain (Id) @ 25°C : 19A
Rds On (Max) @ Id, Vgs : 552 mOhm @ 16A, 10V
Vgs(th) (Max) @ Id : 5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs : 260nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 6800pF @ 25V
Power - Max : 357W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP1
Supplier Device Package : SP1
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 1000V (1kV)
Current - Continuous Drain (Id) @ 25°C : 19A
Rds On (Max) @ Id, Vgs : 552 mOhm @ 16A, 10V
Vgs(th) (Max) @ Id : 5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs : 260nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 6800pF @ 25V
Power - Max : 357W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP1
Supplier Device Package : SP1
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
