Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - FETs, MOSFETs - Arrays
Part Number
Manufacturer
Description
Unit Price
In Stock
SQJ260EP-T1_GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 20A (Tc), 54A (Tc)
Rds On (Max) @ Id, Vgs : 19 mOhm @ 6A, 10V, 8.5 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20nC @ 10V, 40nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1100pF @ 25V, 2500pF @ 25V
Power - Max : 27W (Tc), 48W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® SO-8 Dual
Supplier Device Package : PowerPAK® SO-8 Dual Asymmetric
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 20A (Tc), 54A (Tc)
Rds On (Max) @ Id, Vgs : 19 mOhm @ 6A, 10V, 8.5 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20nC @ 10V, 40nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1100pF @ 25V, 2500pF @ 25V
Power - Max : 27W (Tc), 48W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® SO-8 Dual
Supplier Device Package : PowerPAK® SO-8 Dual Asymmetric
0
2874 in stock
SQJ262EP-T1_GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 15A (Tc), 40A (Tc)
Rds On (Max) @ Id, Vgs : 35.5 mOhm @ 2A, 10V, 15.5 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V, 23nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 550pF @ 25V, 1260pF @ 25V
Power - Max : 27W (Tc), 48W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® SO-8 Dual
Supplier Device Package : PowerPAK® SO-8 Dual Asymmetric
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 15A (Tc), 40A (Tc)
Rds On (Max) @ Id, Vgs : 35.5 mOhm @ 2A, 10V, 15.5 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V, 23nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 550pF @ 25V, 1260pF @ 25V
Power - Max : 27W (Tc), 48W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® SO-8 Dual
Supplier Device Package : PowerPAK® SO-8 Dual Asymmetric
0
2900 in stock
SQJ500AEP-T1_GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : N and P-Channel
FET Feature : -
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 30A (Tc)
Rds On (Max) @ Id, Vgs : 27 mOhm @ 6A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 38.1nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1850pF @ 20V
Power - Max : 48W
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : PowerPAK® SO-8 Dual
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : N and P-Channel
FET Feature : -
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 30A (Tc)
Rds On (Max) @ Id, Vgs : 27 mOhm @ 6A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 38.1nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1850pF @ 20V
Power - Max : 48W
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : PowerPAK® SO-8 Dual
0
100 in stock
SQJ500EP
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Active
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Packaging : -
Series : -
Part Status : Active
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock
SQJ500EPTR
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Active
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Active
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock
SQJ504EP-T1_GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 30A (Tc)
Rds On (Max) @ Id, Vgs : 7.5 mOhm @ 8A, 10V, 17 mOhm @ 8A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 30nC @ 10V, 85nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1900pF @ 25V, 4600pF @ 25V
Power - Max : 34W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : PowerPAK® SO-8 Dual
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 30A (Tc)
Rds On (Max) @ Id, Vgs : 7.5 mOhm @ 8A, 10V, 17 mOhm @ 8A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 30nC @ 10V, 85nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1900pF @ 25V, 4600pF @ 25V
Power - Max : 34W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : PowerPAK® SO-8 Dual
0
100 in stock
SQJ560EP-T1_GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 30A (Tc), 18A (Tc)
Rds On (Max) @ Id, Vgs : 12 mOhm @ 10A, 10V, 52.6 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 30nC @ 10V, 45nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1650pF @ 25V
Power - Max : 34W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® SO-8 Dual
Supplier Device Package : PowerPAK® SO-8 Dual
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 30A (Tc), 18A (Tc)
Rds On (Max) @ Id, Vgs : 12 mOhm @ 10A, 10V, 52.6 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 30nC @ 10V, 45nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1650pF @ 25V
Power - Max : 34W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® SO-8 Dual
Supplier Device Package : PowerPAK® SO-8 Dual
0
100 in stock
SQJ570EP-T1_GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 15A (Tc), 9.5A (Tc)
Rds On (Max) @ Id, Vgs : 45 mOhm @ 6A, 10V, 146 mOhm @ 6A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20nC @ 10V, 15nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 650pF @ 25V, 600pF @ 25V
Power - Max : 27W
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® SO-8 Dual
Supplier Device Package : PowerPAK® SO-8 Dual
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 15A (Tc), 9.5A (Tc)
Rds On (Max) @ Id, Vgs : 45 mOhm @ 6A, 10V, 146 mOhm @ 6A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20nC @ 10V, 15nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 650pF @ 25V, 600pF @ 25V
Power - Max : 27W
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® SO-8 Dual
Supplier Device Package : PowerPAK® SO-8 Dual
0
100 in stock

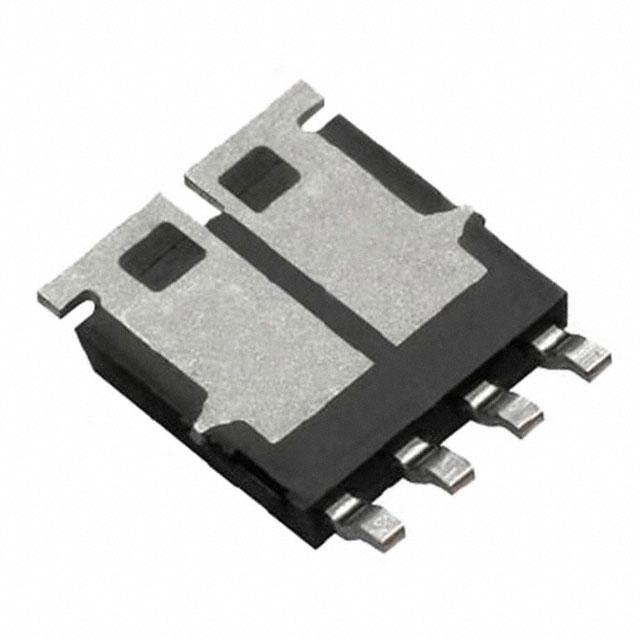

SQJ912AEP-T1_GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 30A
Rds On (Max) @ Id, Vgs : 9.3 mOhm @ 9.7A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 38nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1835pF @ 20V
Power - Max : 48W
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® SO-8 Dual
Supplier Device Package : PowerPAK® SO-8 Dual
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 30A
Rds On (Max) @ Id, Vgs : 9.3 mOhm @ 9.7A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 38nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1835pF @ 20V
Power - Max : 48W
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® SO-8 Dual
Supplier Device Package : PowerPAK® SO-8 Dual
0
5524 in stock
SQJ912BEP-T1_GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 30A (Tc)
Rds On (Max) @ Id, Vgs : 11 mOhm @ 9A, 10V
Vgs(th) (Max) @ Id : 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 60nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 3000pF @ 25V
Power - Max : 48W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : PowerPAK® SO-8 Dual
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 30A (Tc)
Rds On (Max) @ Id, Vgs : 11 mOhm @ 9A, 10V
Vgs(th) (Max) @ Id : 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 60nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 3000pF @ 25V
Power - Max : 48W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : PowerPAK® SO-8 Dual
0
100 in stock
SQJ914EP-T1_GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 30A (Tc)
Rds On (Max) @ Id, Vgs : 12 mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 25nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1110pF @ 15V
Power - Max : 27W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® SO-8 Dual
Supplier Device Package : PowerPAK® SO-8 Dual
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 30A (Tc)
Rds On (Max) @ Id, Vgs : 12 mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 25nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1110pF @ 15V
Power - Max : 27W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® SO-8 Dual
Supplier Device Package : PowerPAK® SO-8 Dual
0
2851 in stock
SQJ940EP-T1_GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 15A (Ta), 18A (Tc)
Rds On (Max) @ Id, Vgs : 16 mOhm @ 15A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 896pF @ 20V
Power - Max : 48W, 43W
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® SO-8 Dual
Supplier Device Package : PowerPAK® SO-8 Dual Asymmetric
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 15A (Ta), 18A (Tc)
Rds On (Max) @ Id, Vgs : 16 mOhm @ 15A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 896pF @ 20V
Power - Max : 48W, 43W
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® SO-8 Dual
Supplier Device Package : PowerPAK® SO-8 Dual Asymmetric
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
