Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - Bipolar (BJT) - Arrays
Part Number
Manufacturer
Description
Unit Price
In Stock
NST847BDP6T5G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 45V
Vce Saturation (Max) @ Ib, Ic : 600mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 2mA, 5V
Power - Max : 350mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-963
Supplier Device Package : SOT-963
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 45V
Vce Saturation (Max) @ Ib, Ic : 600mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 2mA, 5V
Power - Max : 350mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-963
Supplier Device Package : SOT-963
0
6990 in stock

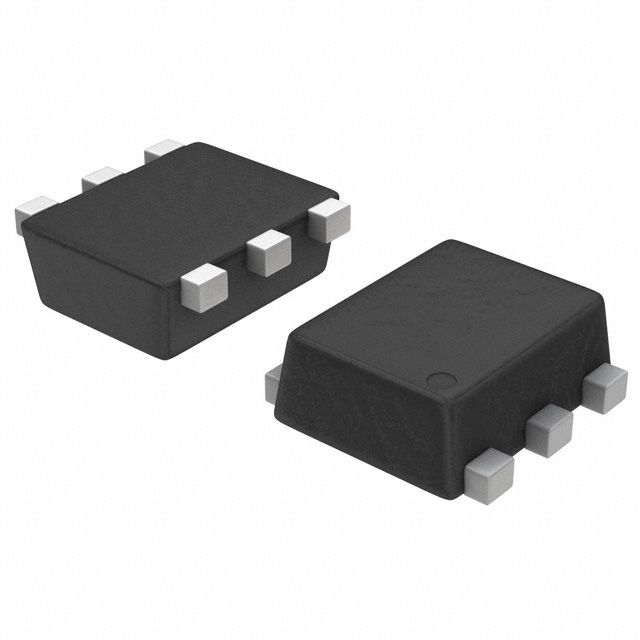

NST847BPDP6T5G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN, PNP
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 45V
Vce Saturation (Max) @ Ib, Ic : 600mV @ 5mA, 100mA / 700mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 2mA, 5V / 220 @ 2mA, 5V
Power - Max : 350mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-963
Supplier Device Package : SOT-963
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN, PNP
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 45V
Vce Saturation (Max) @ Ib, Ic : 600mV @ 5mA, 100mA / 700mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 2mA, 5V / 220 @ 2mA, 5V
Power - Max : 350mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-963
Supplier Device Package : SOT-963
0
10720 in stock
NST857BDP6T5G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 45V
Vce Saturation (Max) @ Ib, Ic : 700mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 220 @ 2mA, 5V
Power - Max : 350mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-963
Supplier Device Package : SOT-963
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 45V
Vce Saturation (Max) @ Ib, Ic : 700mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 220 @ 2mA, 5V
Power - Max : 350mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-963
Supplier Device Package : SOT-963
0
8000 in stock
NSV40302PDR2G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN, PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 115mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 1A, 2V
Power - Max : 653mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN, PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 115mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 1A, 2V
Power - Max : 653mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
2099 in stock

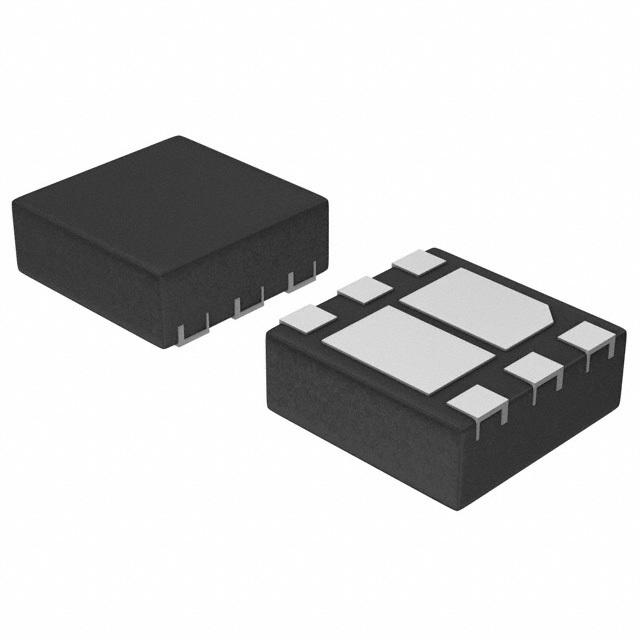

NSV60100DMTWTBG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 100mA, 2A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 500mA, 2V
Power - Max : 2.27W
Frequency - Transition : 155MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WDFN Exposed Pad
Supplier Device Package : 6-WDFN (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 100mA, 2A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 500mA, 2V
Power - Max : 2.27W
Frequency - Transition : 155MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WDFN Exposed Pad
Supplier Device Package : 6-WDFN (2x2)
0
3000 in stock
NSV60101DMTWTBG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 180mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 500mA, 2V
Power - Max : 2.27W
Frequency - Transition : 180MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WDFN Exposed Pad
Supplier Device Package : 6-WDFN (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 180mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 500mA, 2V
Power - Max : 2.27W
Frequency - Transition : 180MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WDFN Exposed Pad
Supplier Device Package : 6-WDFN (2x2)
0
3000 in stock
NSVBT2222ADW1T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 600mA
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 1V @ 50mA, 500mA
Current - Collector Cutoff (Max) : 10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 150mA, 10V
Power - Max : 150mW
Frequency - Transition : 300MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88/SC70-6/SOT-363
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 600mA
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 1V @ 50mA, 500mA
Current - Collector Cutoff (Max) : 10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 150mA, 10V
Power - Max : 150mW
Frequency - Transition : 300MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88/SC70-6/SOT-363
0
6000 in stock
NSVT45010MW6T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 45V
Vce Saturation (Max) @ Ib, Ic : 650mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 220 @ 2mA, 5V
Power - Max : 380mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88 (SOT-363)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 45V
Vce Saturation (Max) @ Ib, Ic : 650mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 220 @ 2mA, 5V
Power - Max : 380mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88 (SOT-363)
0
2500 in stock
NSVT65010MW6T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 65V
Vce Saturation (Max) @ Ib, Ic : 650mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 220 @ 2mA, 5V
Power - Max : 380mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88 (SOT-363)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 65V
Vce Saturation (Max) @ Ib, Ic : 650mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 220 @ 2mA, 5V
Power - Max : 380mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88 (SOT-363)
0
100 in stock
NSVT65011MW6T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 65V
Vce Saturation (Max) @ Ib, Ic : 600mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 2mA, 5V
Power - Max : 380mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88 (SOT-363)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 65V
Vce Saturation (Max) @ Ib, Ic : 600mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 2mA, 5V
Power - Max : 380mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88 (SOT-363)
0
100 in stock
PBSS2515VPN,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN, PNP
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 15V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 150 @ 100mA, 2V
Power - Max : 300mW
Frequency - Transition : 420MHz, 280MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN, PNP
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 15V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 150 @ 100mA, 2V
Power - Max : 300mW
Frequency - Transition : 420MHz, 280MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
0
17539 in stock
PBSS2515VS,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 15V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 150 @ 100mA, 2V
Power - Max : 200mW
Frequency - Transition : 420MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 15V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 150 @ 100mA, 2V
Power - Max : 200mW
Frequency - Transition : 420MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
0
3839 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
