- Discrete Semiconductor Products
- Transistors - Bipolar (BJT) - Arrays
Part Number
Manufacturer
Description
Unit Price
In Stock

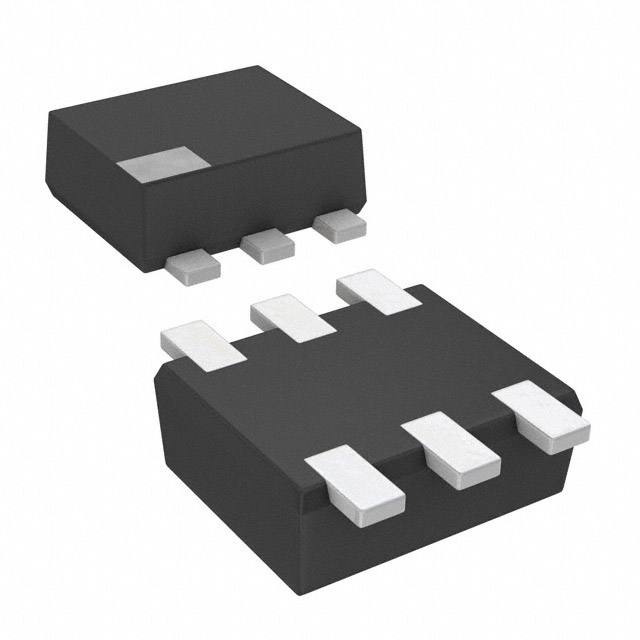

NP0A54700A
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 10mA
Voltage - Collector Emitter Breakdown (Max) : 7V
Vce Saturation (Max) @ Ib, Ic : -
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1mA, 1V / 80 @ 1mA, 1V
Power - Max : 50mW
Frequency - Transition : 4GHz
Operating Temperature : 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-963
Supplier Device Package : SSSMini6-F1
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 10mA
Voltage - Collector Emitter Breakdown (Max) : 7V
Vce Saturation (Max) @ Ib, Ic : -
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1mA, 1V / 80 @ 1mA, 1V
Power - Max : 50mW
Frequency - Transition : 4GHz
Operating Temperature : 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-963
Supplier Device Package : SSSMini6-F1
0
10000 in stock
NSM4002MR6T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 200mA, 500mA
Voltage - Collector Emitter Breakdown (Max) : 40V, 45V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 5mA, 50mA / 700mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 1V / 250 @ 100mA, 1V
Power - Max : 500mW
Frequency - Transition : 300MHz, 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-74, SOT-457
Supplier Device Package : SC-74
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 200mA, 500mA
Voltage - Collector Emitter Breakdown (Max) : 40V, 45V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 5mA, 50mA / 700mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 1V / 250 @ 100mA, 1V
Power - Max : 500mW
Frequency - Transition : 300MHz, 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-74, SOT-457
Supplier Device Package : SC-74
0
2990 in stock
NSS40300DDR2G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 170mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 1A, 2V
Power - Max : 653mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 170mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 1A, 2V
Power - Max : 653mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
100 in stock
NSS40300MDR2G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 170mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 1A, 2V
Power - Max : 653mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 170mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 1A, 2V
Power - Max : 653mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
2495 in stock
NSS40301MDR2G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 115mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 1A, 2V
Power - Max : 653mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 115mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 1A, 2V
Power - Max : 653mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
2480 in stock
NSS40302PDR2G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN, PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 115mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 1A, 2V
Power - Max : 653mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN, PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 115mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 1A, 2V
Power - Max : 653mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
213 in stock

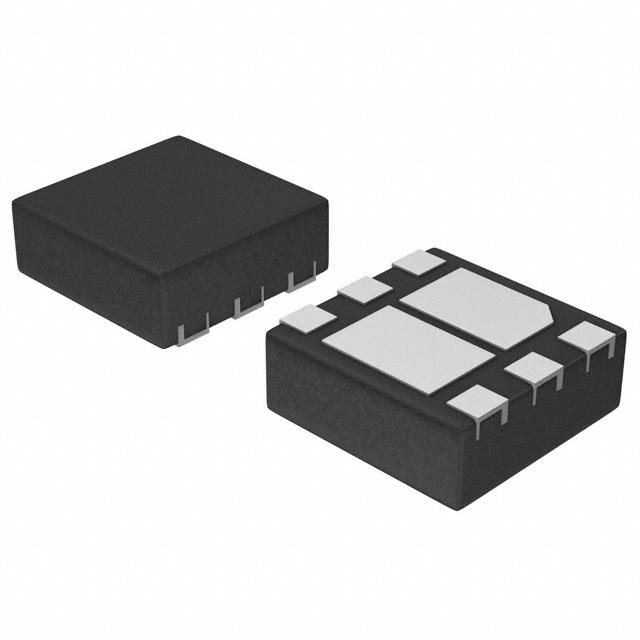

NSS60100DMTTBG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 500mA, 2V
Power - Max : 2.27W
Frequency - Transition : 155MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WDFN Exposed Pad
Supplier Device Package : 6-WDFN (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 500mA, 2V
Power - Max : 2.27W
Frequency - Transition : 155MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WDFN Exposed Pad
Supplier Device Package : 6-WDFN (2x2)
0
2879 in stock
NSS60101DMTTBG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 180mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 500mA, 2V
Power - Max : 2.27W
Frequency - Transition : 180MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WDFN Exposed Pad
Supplier Device Package : 6-WDFN (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 180mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 500mA, 2V
Power - Max : 2.27W
Frequency - Transition : 180MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WDFN Exposed Pad
Supplier Device Package : 6-WDFN (2x2)
0
3000 in stock
NST30010MXV6T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 PNP (Dual) Matched Pair
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 30V
Vce Saturation (Max) @ Ib, Ic : 600mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 420 @ 2mA, 5V
Power - Max : 500mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 PNP (Dual) Matched Pair
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 30V
Vce Saturation (Max) @ Ib, Ic : 600mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 420 @ 2mA, 5V
Power - Max : 500mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
4693 in stock
NST3904DP6T5G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 5mA, 50mA
Current - Collector Cutoff (Max) : -
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 1V
Power - Max : 350mW
Frequency - Transition : 200MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-963
Supplier Device Package : SOT-963
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 5mA, 50mA
Current - Collector Cutoff (Max) : -
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 1V
Power - Max : 350mW
Frequency - Transition : 200MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-963
Supplier Device Package : SOT-963
0
8651 in stock
NST3904DXV6T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 5mA, 50mA
Current - Collector Cutoff (Max) : -
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 1V
Power - Max : 500mW
Frequency - Transition : 300MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 5mA, 50mA
Current - Collector Cutoff (Max) : -
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 1V
Power - Max : 500mW
Frequency - Transition : 300MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
1117 in stock
NST3904DXV6T5
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 5mA, 50mA
Current - Collector Cutoff (Max) : -
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 1V
Power - Max : 500mW
Frequency - Transition : 300MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 5mA, 50mA
Current - Collector Cutoff (Max) : -
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 1V
Power - Max : 500mW
Frequency - Transition : 300MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
