Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Diodes - Rectifiers - Arrays
Part Number
Manufacturer
Description
Unit Price
In Stock
SBRB20200CTT4G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SWITCHMODE™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 200V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SWITCHMODE™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 200V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK-3
0
550 in stock
SBRB2545CTG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Alternate Packaging
Series : SWITCHMODE™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 620mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 45V
Operating Temperature - Junction : -65°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK-3
Packaging : Tube
Alternate Packaging
Series : SWITCHMODE™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 620mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 45V
Operating Temperature - Junction : -65°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK-3
0
250 in stock

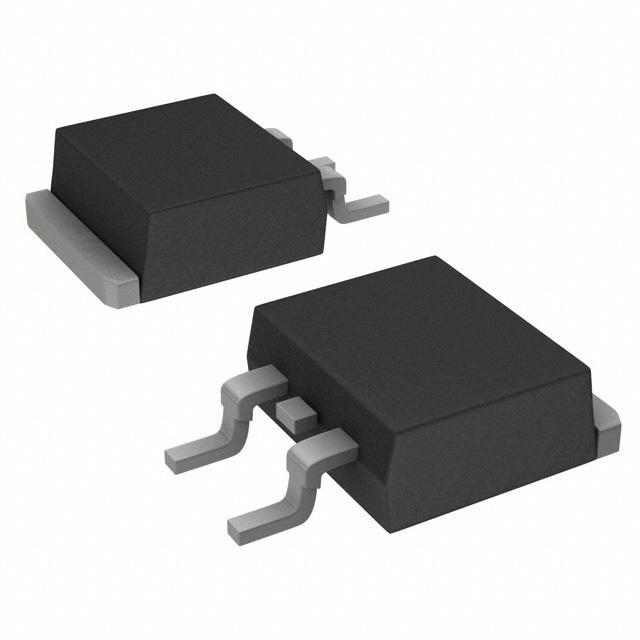

SBRB2545CTT4G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SWITCHMODE™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 620mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 45V
Operating Temperature - Junction : -65°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SWITCHMODE™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 620mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 45V
Operating Temperature - Junction : -65°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK-3
0
520 in stock

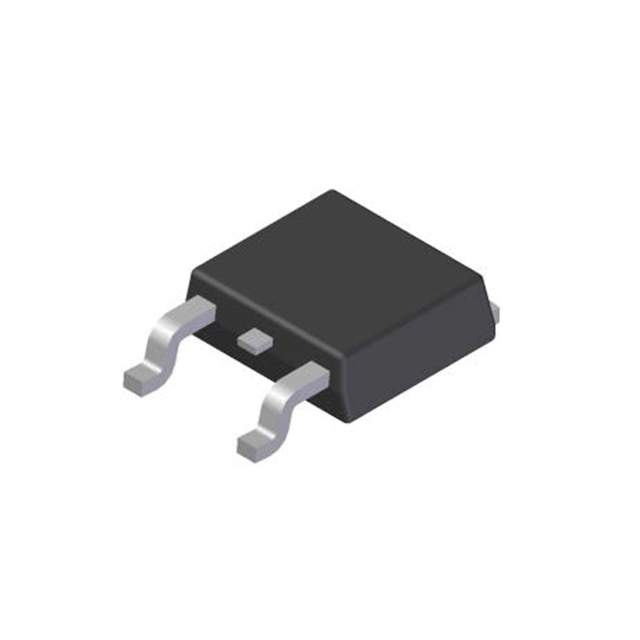

SBRT10A100CTL-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchSBR
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 5A
Voltage - Forward (Vf) (Max) @ If : 780mV @ 5A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 180µA @ 100V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchSBR
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 5A
Voltage - Forward (Vf) (Max) @ If : 780mV @ 5A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 180µA @ 100V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252
0
1281 in stock
SBRT20V45CT
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 520mV @ 10A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 300µA @ 45V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 520mV @ 10A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 300µA @ 45V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
40 in stock
SBRT20V60CT
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 10A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 300µA @ 60V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 10A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 300µA @ 60V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
30 in stock
SBRT30A100CT
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tube
Series : TrenchSBR
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 800mV @ 15A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 150µA @ 100V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : TrenchSBR
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 800mV @ 15A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 150µA @ 100V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
45 in stock
SBRT30A100CTFP
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tube
Series : TrenchSBR
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 800mV @ 15A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 150µA @ 100V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : ITO-220AB
Packaging : Tube
Series : TrenchSBR
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 800mV @ 15A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 150µA @ 100V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : ITO-220AB
0
30 in stock
SBRT30A45CT
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tube
Series : TrenchSBR
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 510mV @ 15A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 400µA @ 45V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : TrenchSBR
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 510mV @ 15A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 400µA @ 45V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
90 in stock
SBRT30A45CTFP
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tube
Series : TrenchSBR
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 510mV @ 15A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 400µA @ 45V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : ITO-220AB
Packaging : Tube
Series : TrenchSBR
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 510mV @ 15A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 400µA @ 45V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : ITO-220AB
0
50 in stock
SBRT30A60CT
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 560mV @ 15A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 400µA @ 60V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 560mV @ 15A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 400µA @ 60V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
30 in stock
SBRT30A60CTFP
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 560mV @ 15A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 400µA @ 60V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : ITO-220AB
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 560mV @ 15A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 400µA @ 60V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : ITO-220AB
0
50 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
