Part Number
Manufacturer
Description
Unit Price
In Stock
SBR40U45CT
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tube
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 520mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 600µA @ 45V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 520mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 600µA @ 45V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
46 in stock
SBR40U60CT
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tube
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 600mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 60V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 600mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 60V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
61 in stock
SBR60A100CT
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tube
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 840mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 840mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
36 in stock
SBR60A150CT
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tube
Alternate Packaging
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 930mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 150V
Operating Temperature - Junction : -65°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Alternate Packaging
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 930mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 150V
Operating Temperature - Junction : -65°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
57 in stock
SBR60A200CT
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tube
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 960mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 100µA @ 200V
Operating Temperature - Junction : -65°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 960mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 100µA @ 200V
Operating Temperature - Junction : -65°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
2 in stock
SBR60A45CT
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tube
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 45V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 45V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
SBR60A60CT
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tube
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 650mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 60V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 650mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 60V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
69 in stock
SBR6100CTLQ-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 6A
Voltage - Forward (Vf) (Max) @ If : 740mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 100V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 6A
Voltage - Forward (Vf) (Max) @ If : 740mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 100V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252
0
2886 in stock
SBR6200CTL-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Series : SBR®
Part Status : Discontinued at
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 3A
Voltage - Forward (Vf) (Max) @ If : 850mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 200V
Operating Temperature - Junction : -65°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252-3
Packaging : Cut Tape (CT)
Series : SBR®
Part Status : Discontinued at
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 3A
Voltage - Forward (Vf) (Max) @ If : 850mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 200V
Operating Temperature - Junction : -65°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252-3
0
264 in stock

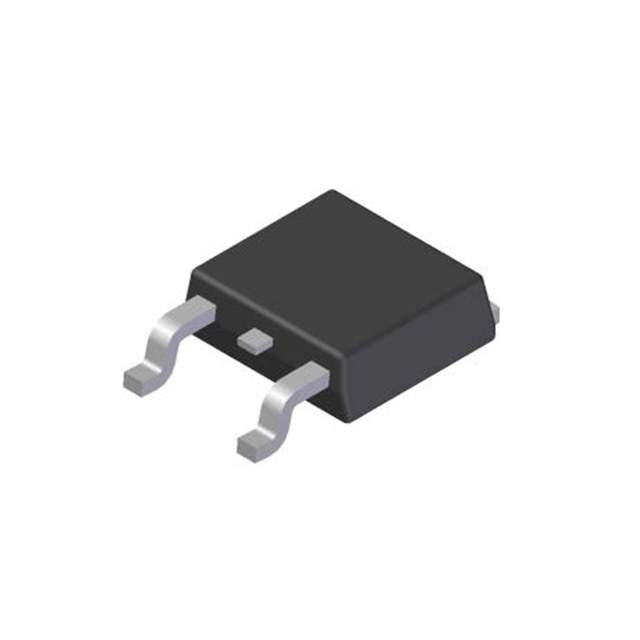

SBR660CTL-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 3A
Voltage - Forward (Vf) (Max) @ If : 570mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 60V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SBR®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 3A
Voltage - Forward (Vf) (Max) @ If : 570mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 60V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
0
1956 in stock
SBR660CTLQ-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Series : SBR®
Part Status : Discontinued at
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 3A
Voltage - Forward (Vf) (Max) @ If : 570mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 300µA @ 60V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
Packaging : Cut Tape (CT)
Series : SBR®
Part Status : Discontinued at
Diode Configuration : 1 Pair Common Cathode
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 3A
Voltage - Forward (Vf) (Max) @ If : 570mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 300µA @ 60V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
0
2396 in stock
SBRB1545CTT4G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SWITCHMODE™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 7.5A
Voltage - Forward (Vf) (Max) @ If : 840mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 45V
Operating Temperature - Junction : -65°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SWITCHMODE™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 7.5A
Voltage - Forward (Vf) (Max) @ If : 840mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 45V
Operating Temperature - Junction : -65°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK-3
0
800 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
