Part Number

Manufacturer

Description

Unit Price

In Stock

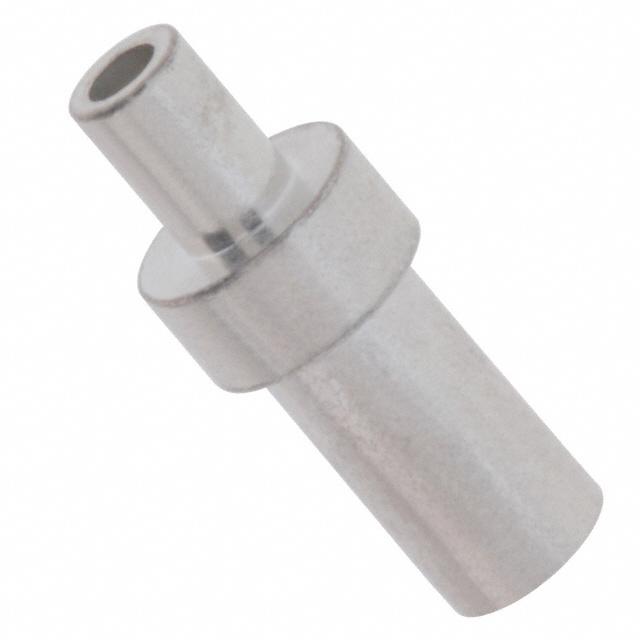

9357-0-15-80-18-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9357
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.220" (5.59mm)
Accepts Pin Diameter : 0.037" ~ 0.043" (0.94mm ~ 1.09mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.054" (1.37mm)
Mounting Hole Diameter : 0.078" (1.98mm)
Flange Diameter : 0.103" (2.62mm)
Tail Diameter : -
Socket Depth : 0.195" (4.95mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1832 in stock

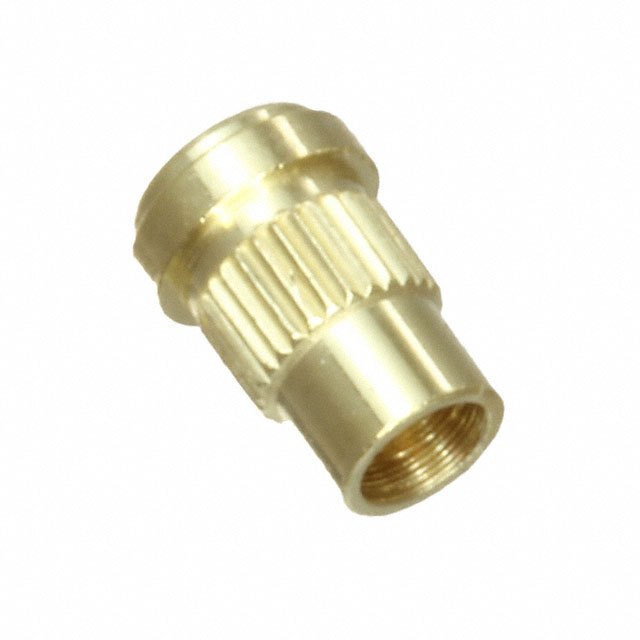

9359-0-15-15-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9359
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Knurled
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.090" (2.29mm)
Flange Diameter : 0.110" (2.79mm)
Tail Diameter : -
Socket Depth : 0.160" (4.06mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1000 in stock

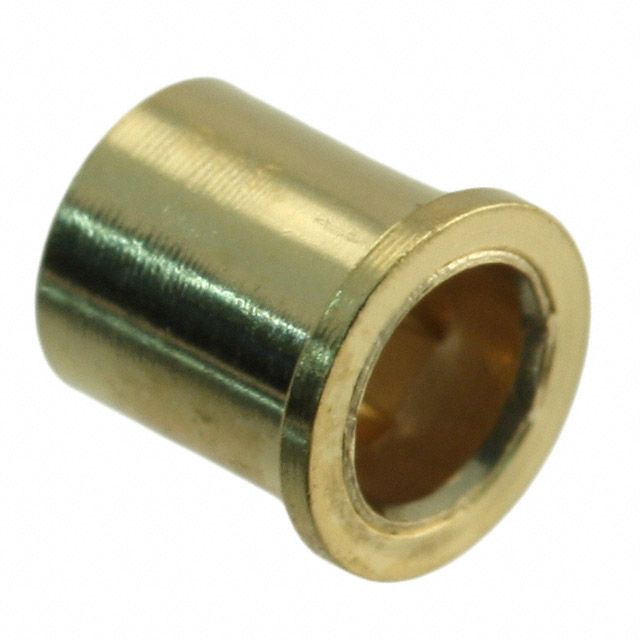

9372-0-15-15-23-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9372
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.120" (3.05mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.120" (3.05mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

23277 in stock

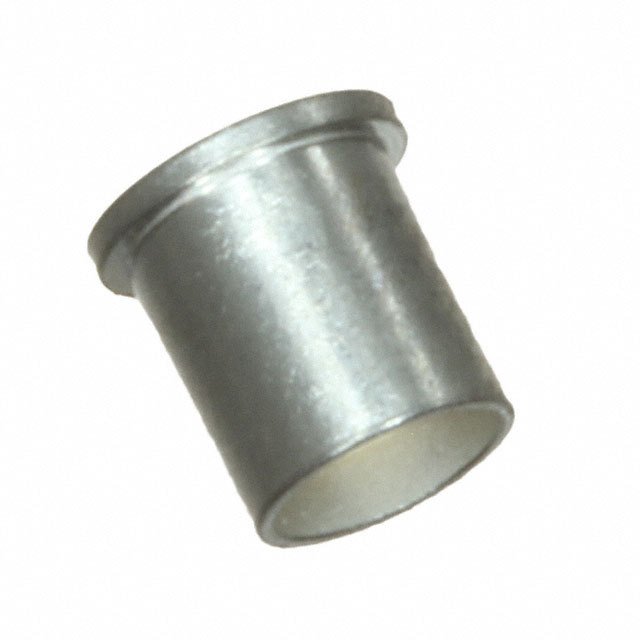

9372-0-15-80-23-27-10-0

Mill-Max

1000 in stock

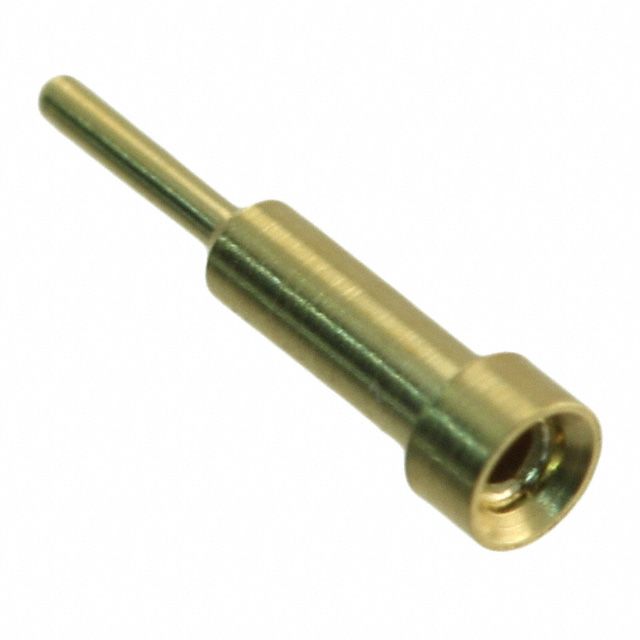

9407-0-15-15-11-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9407
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.236" (6.00mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.127" (3.23mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

56075 in stock

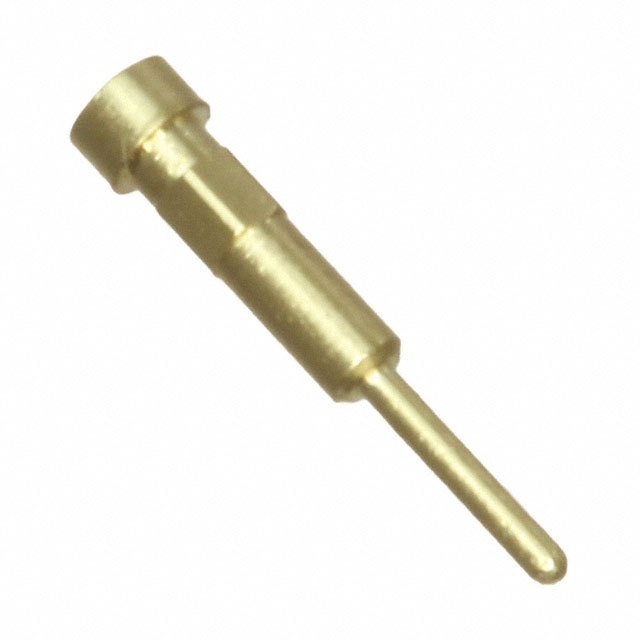

9462-0-15-15-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9462
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit, Hex
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Flange Diameter : 0.054" (1.37mm)
Tail Diameter : 0.020" (0.51mm)
Socket Depth : 0.015" (0.38mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

500 in stock

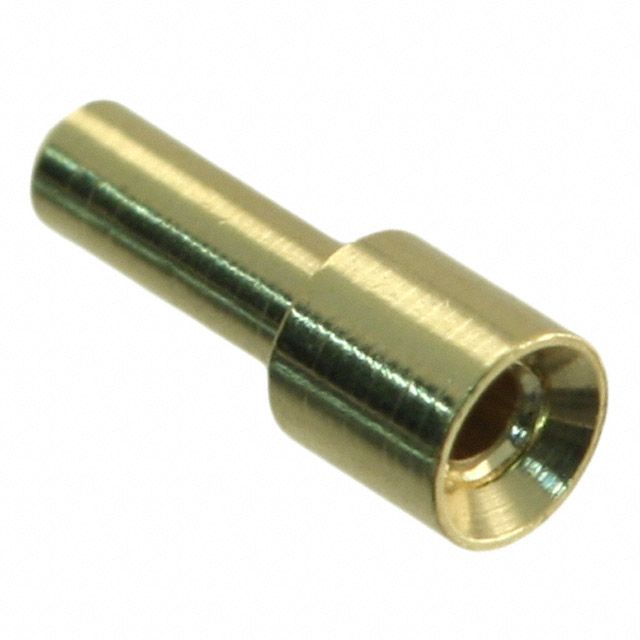

9548-0-15-15-21-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9548
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.155" (3.94mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.036" (0.91mm)
Flange Diameter : 0.058" (1.47mm)
Tail Diameter : -
Socket Depth : 0.138" (3.51mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1094 in stock

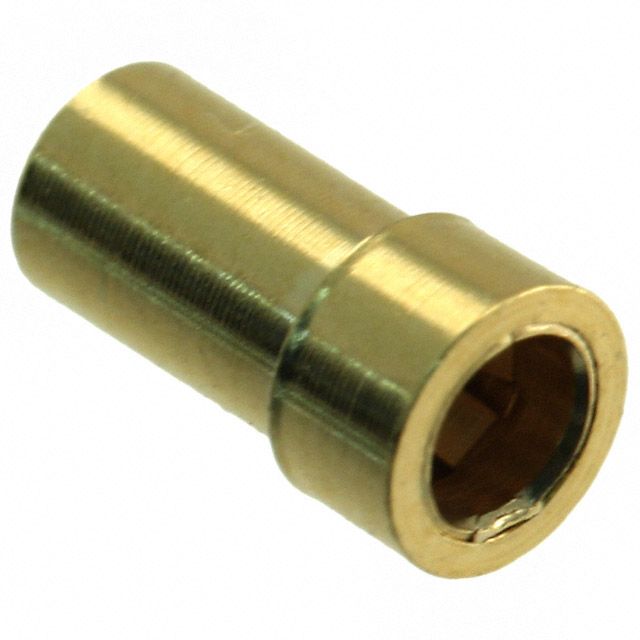

9801-0-15-15-23-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9801
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.230" (5.84mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : -
Socket Depth : 0.195" (4.95mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

13305 in stock

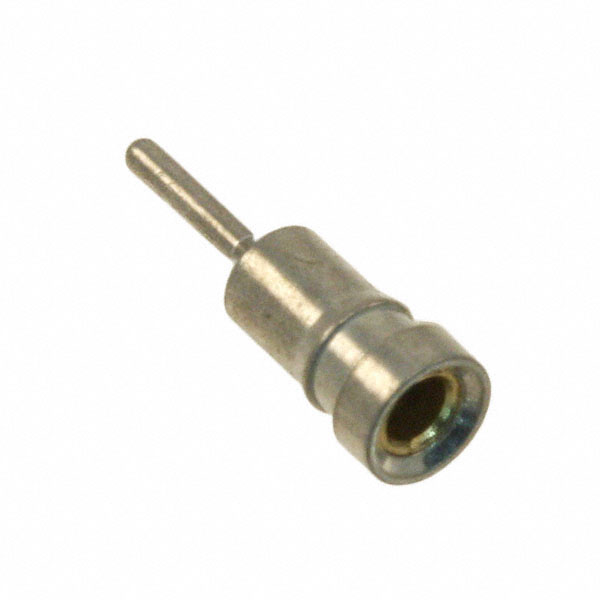

9808-0-15-01-16-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9808
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.255" (6.48mm)
Accepts Pin Diameter : 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Flange Diameter : 0.077" (1.96mm)
Tail Diameter : -
Socket Depth : 0.125" (3.18mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1108 in stock

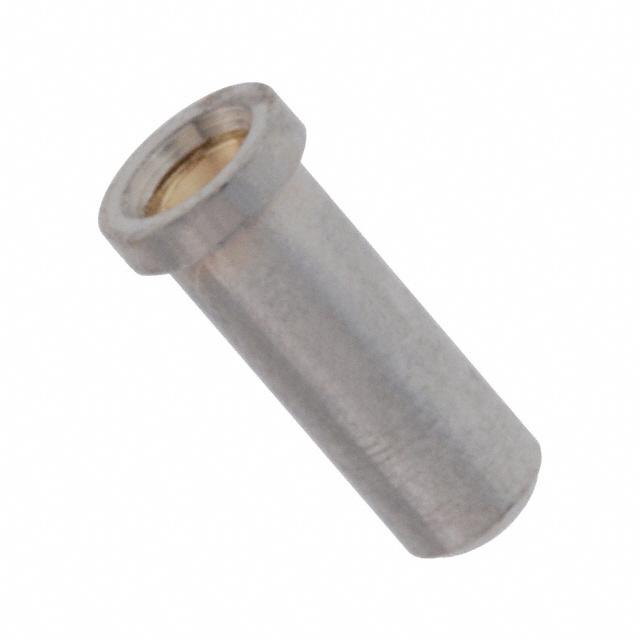

9837-0-15-80-14-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9837
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.306" (7.77mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.159" (4.04mm)
Flange Diameter : 0.187" (4.75mm)
Tail Diameter : -
Socket Depth : 0.306" (7.77mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1408 in stock

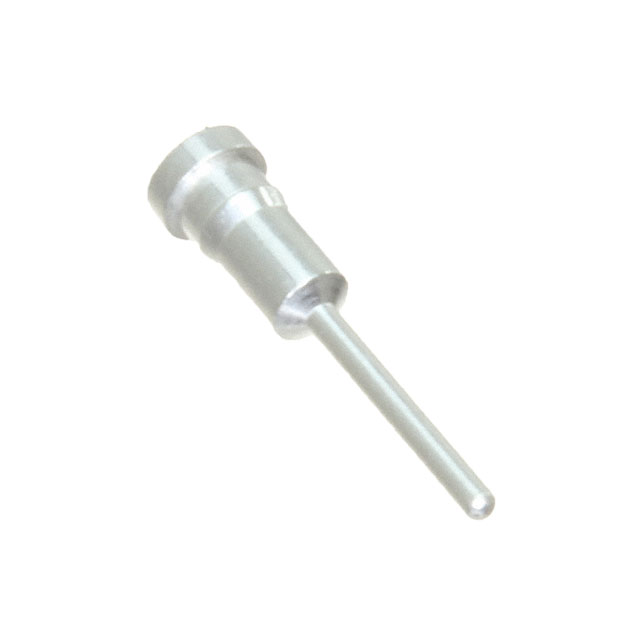

9900-0-15-80-22-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9900
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.307" (7.80mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.056" (1.42mm)
Flange Diameter : 0.070" (1.78mm)
Tail Diameter : 0.020" (0.51mm)
Socket Depth : 0.110" (2.79mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

3000 in stock

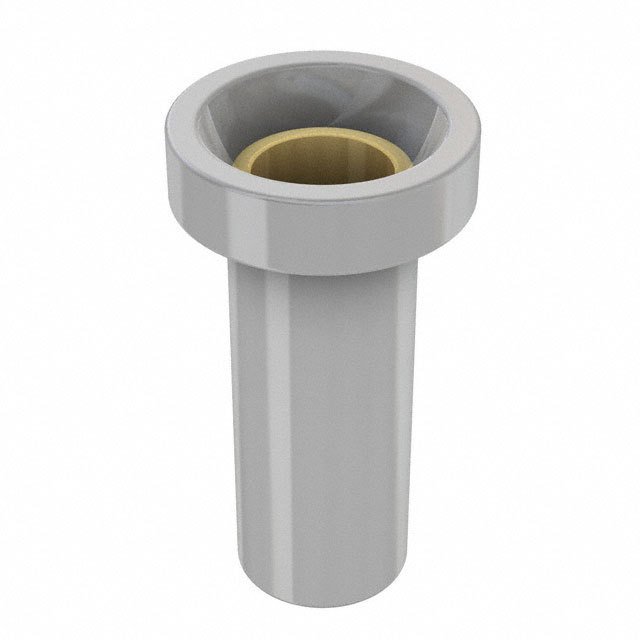

D01-9900801

Harwin

Manufacturer : Harwin Inc.
Packaging : Strip
Series : -
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.142" (3.61mm)
Accepts Pin Diameter : 0.016" ~ 0.020" (0.41mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.039" ~ 0.043" (0.99mm ~ 1.09mm)
Flange Diameter : 0.057" (1.45mm)
Tail Diameter : -
Socket Depth : 0.124" (3.15mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)

300 in stock
