Part Number

Manufacturer

Description

Unit Price

In Stock

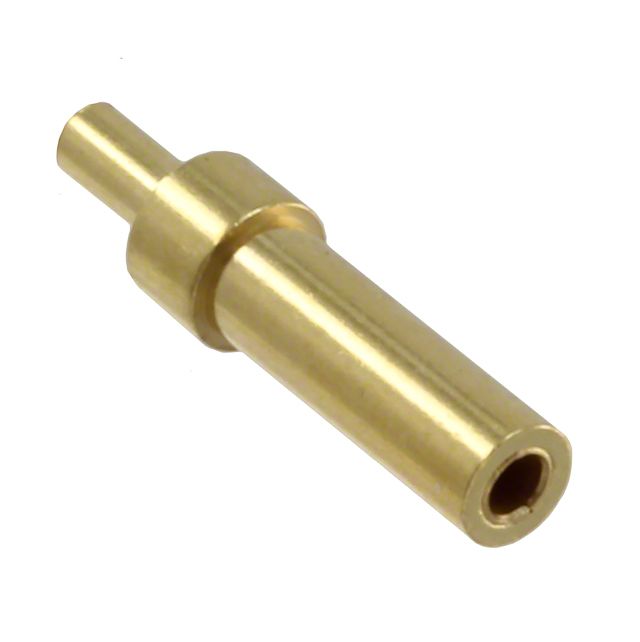

8731-0-19-15-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8731
Part Status : Active
Tail Type : No Tail
Termination : Crimp
Length - Overall : 0.510" (12.95mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : -
Flange Diameter : 0.125" (3.18mm)
Tail Diameter : -
Socket Depth : 0.280" (7.11mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1134 in stock

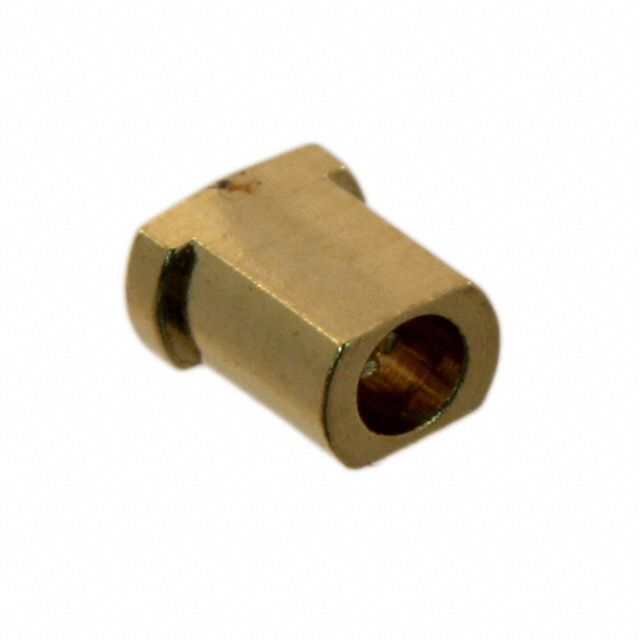

8806-0-18-15-47-27-40-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8806
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount
Length - Overall : 0.115" (2.92mm)
Accepts Pin Diameter : 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : -
Flange Diameter : 0.100" (2.54mm)
Tail Diameter : -
Socket Depth : 0.115" (2.92mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

9562 in stock

8806-0-58-15-47-27-40-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 8806
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount
Length - Overall : 0.115" (2.92mm)
Accepts Pin Diameter : 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : -
Flange Diameter : 0.100" (2.54mm)
Tail Diameter : -
Socket Depth : 0.115" (2.92mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

2900 in stock

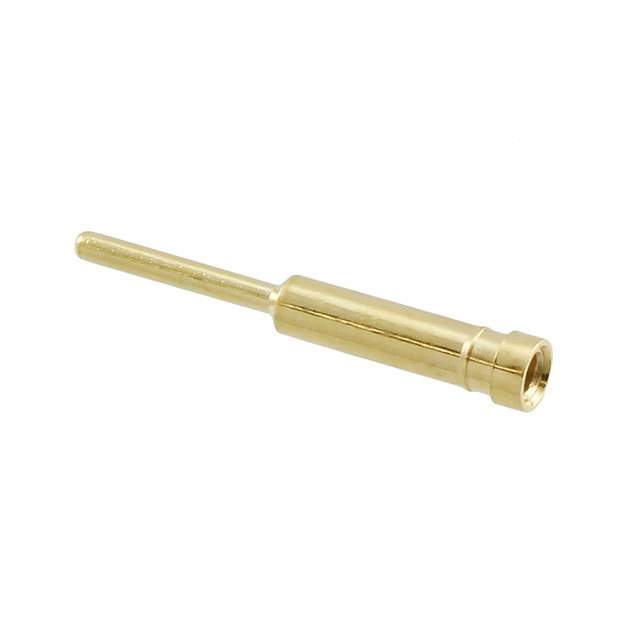

8827-0-15-15-16-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8827
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.490" (12.45mm)
Accepts Pin Diameter : 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.061" (1.55mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : 0.030" (0.76mm)
Socket Depth : 0.230" (5.84mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

7363 in stock

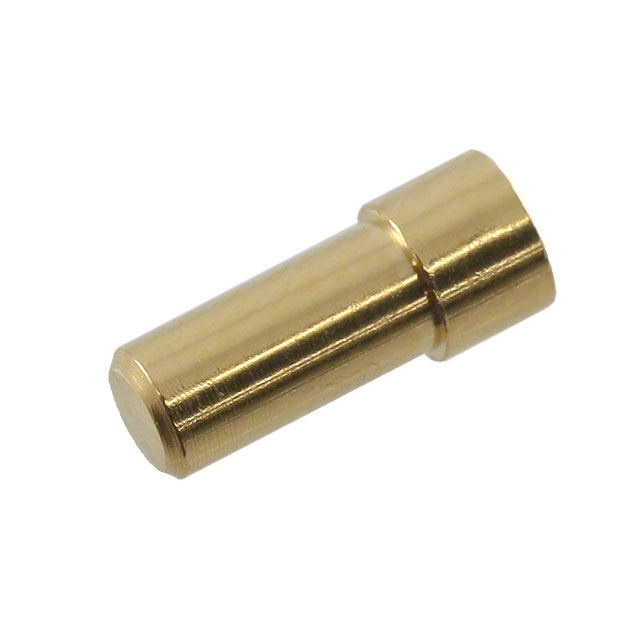

8829-0-15-15-23-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8829
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.296" (7.52mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : -
Socket Depth : 0.245" (6.22mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1010 in stock

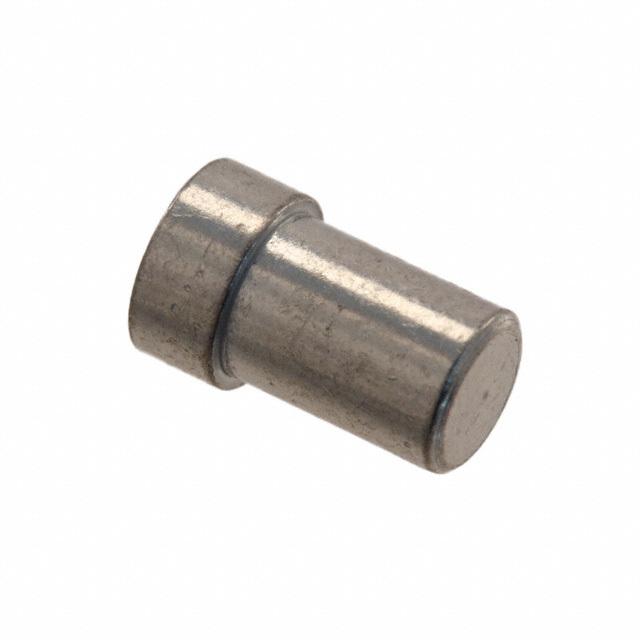

8837-0-15-01-14-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8837
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.306" (7.77mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.159" (4.04mm)
Flange Diameter : 0.187" (4.75mm)
Tail Diameter : -
Socket Depth : 0.250" (6.35mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1490 in stock

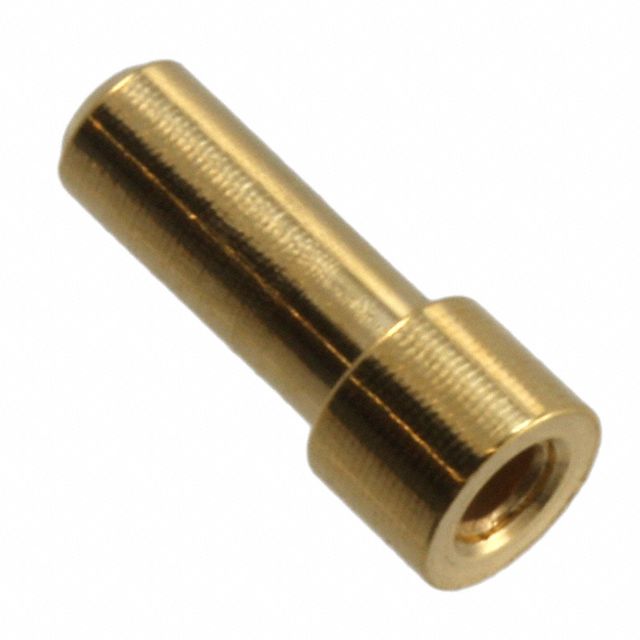

8838-0-15-15-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8838
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.296" (7.52mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.086" (2.18mm)
Flange Diameter : 0.115" (2.92mm)
Tail Diameter : -
Socket Depth : 0.250" (6.35mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

10369 in stock

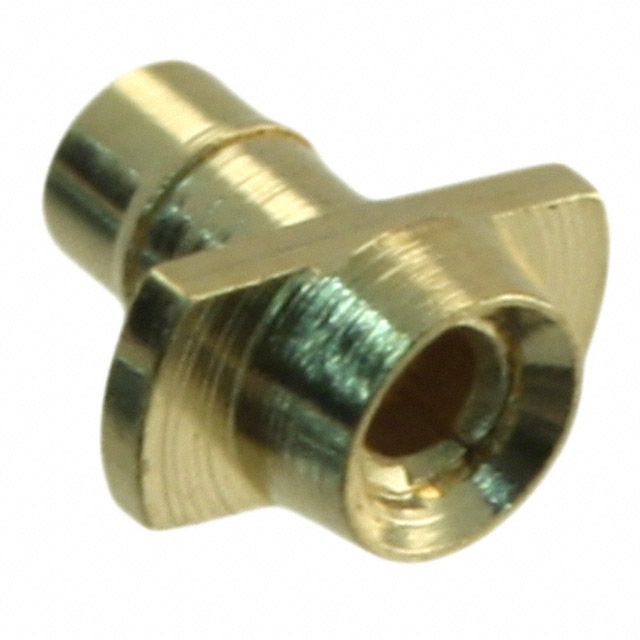

8874-0-15-15-11-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8874
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount - Bottom Entry
Length - Overall : 0.088" (2.24mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : -
Flange Diameter : 0.093" (2.36mm)
Tail Diameter : -
Socket Depth : 0.088" (2.24mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

4398 in stock

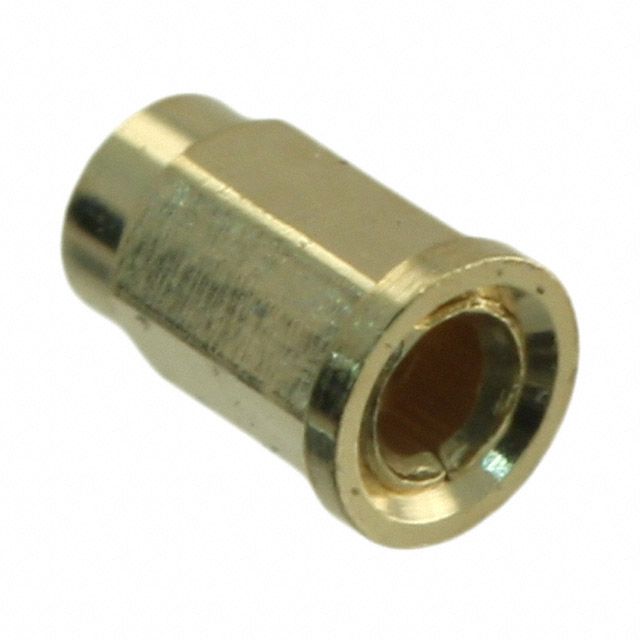

8894-0-15-15-12-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8894
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.100" (2.54mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.059" (1.50mm)
Flange Diameter : 0.068" (1.73mm)
Tail Diameter : -
Socket Depth : 0.100" (2.54mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

2151 in stock

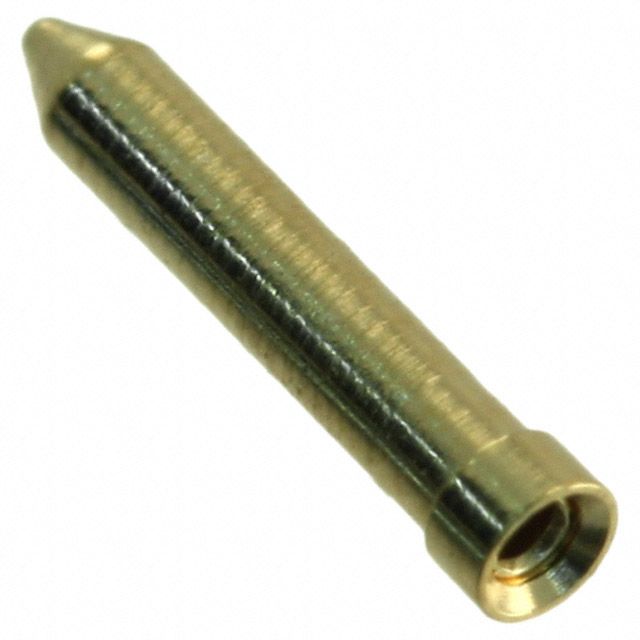

8947-0-15-15-10-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8947
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.225" (5.72mm)
Accepts Pin Diameter : 0.012" ~ 0.017" (0.30mm ~ 0.43mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.028" (0.71mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.045" (1.14mm)
Tail Diameter : -
Socket Depth : 0.155" (3.94mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

44130 in stock

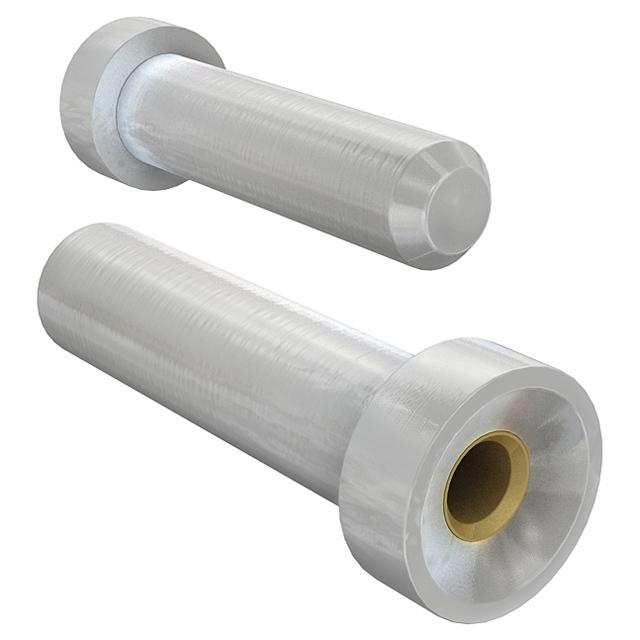

8975-0-15-01-21-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8975
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.250" (6.35mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.036" (0.91mm)
Flange Diameter : 0.042" (1.07mm)
Tail Diameter : -
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

21100 in stock

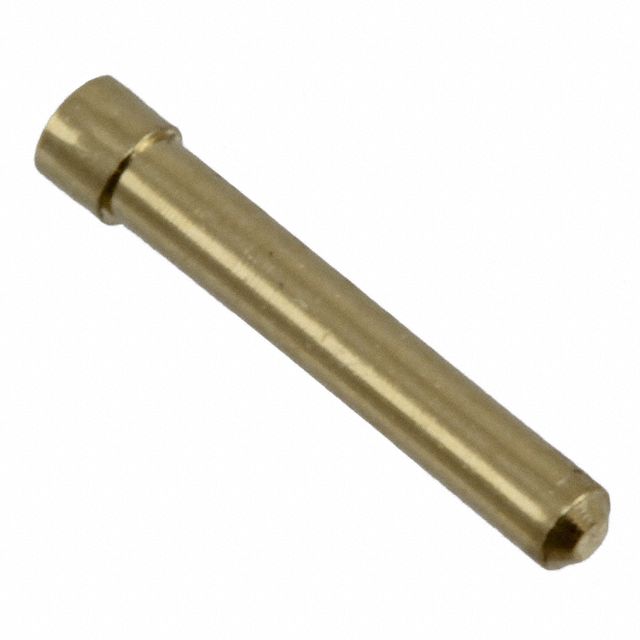

8975-0-15-15-21-27-10-0

Mill-Max

4336 in stock
