Part Number

Manufacturer

Description

Unit Price

In Stock

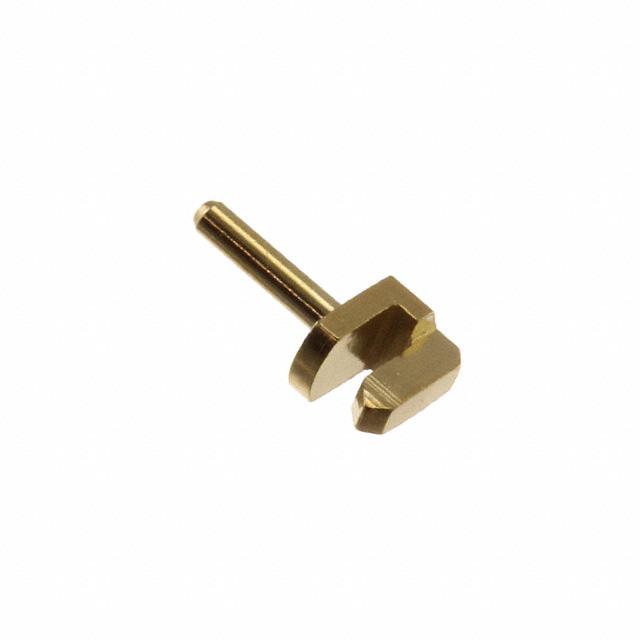

7310-0-01-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 7310
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.315" (8.00mm)
Accepts Pin Diameter : -
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : -
Flange Diameter : 0.156" (3.96mm)
Tail Diameter : 0.040" (1.02mm)
Socket Depth : -
Contact Material : -
Contact Finish : -
Contact Finish Thickness : -

2250 in stock

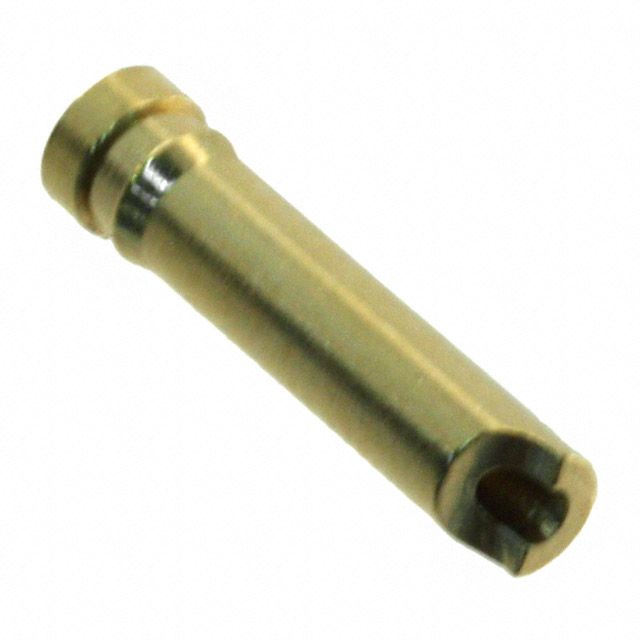

7405-0-18-15-18-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 7405
Part Status : Active
Tail Type : Solder Cup
Termination : Press-Fit
Length - Overall : 0.375" (9.53mm)
Accepts Pin Diameter : 0.037" ~ 0.043" (0.94mm ~ 1.09mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.054" (1.37mm)
Mounting Hole Diameter : 0.084" (2.13mm)
Flange Diameter : 0.090" (2.29mm)
Tail Diameter : -
Socket Depth : 0.220" (5.59mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

13313 in stock

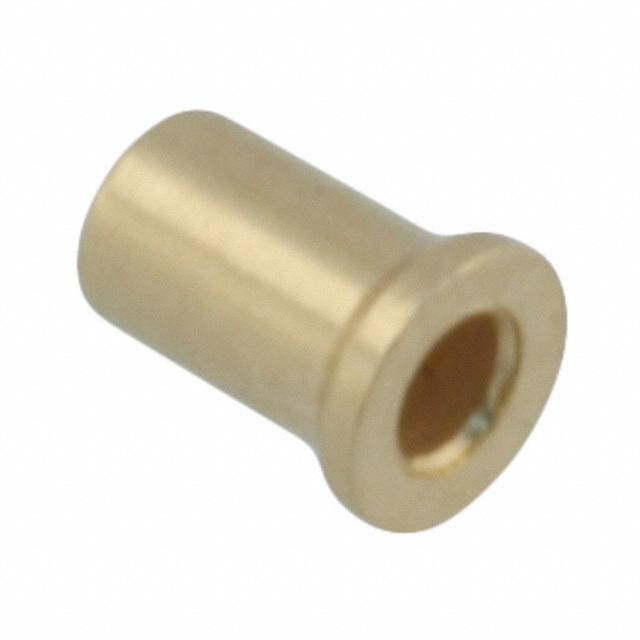

7406-0-15-15-18-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 7406
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.120" (3.05mm)
Accepts Pin Diameter : 0.037" ~ 0.043" (0.94mm ~ 1.09mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.054" (1.37mm)
Mounting Hole Diameter : 0.071" (1.80mm)
Flange Diameter : 0.091" (2.31mm)
Tail Diameter : -
Socket Depth : 0.120" (3.05mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

22526 in stock

7520-0-15-15-16-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 7520
Part Status : Active
Tail Type : Turret
Termination : Press-Fit
Length - Overall : 0.236" (6.00mm)
Accepts Pin Diameter : 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.066" (1.68mm)
Flange Diameter : 0.086" (2.18mm)
Tail Diameter : -
Socket Depth : 0.147" (3.73mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

975 in stock

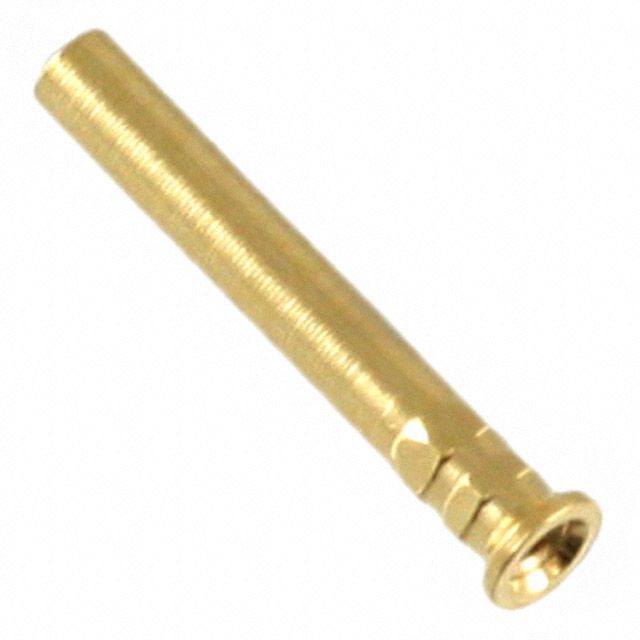

7553-0-15-15-11-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 7553
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.282" (7.16mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.041" (1.04mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.282" (7.16mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

17230 in stock

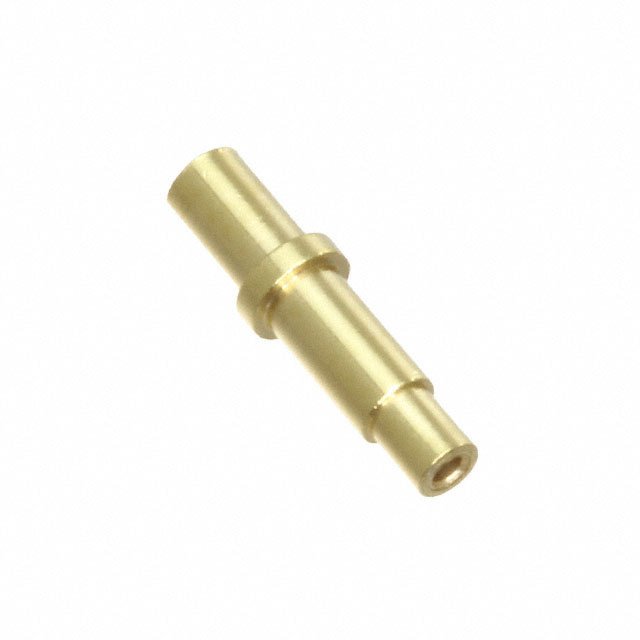

7620-0-34-15-16-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 7620
Part Status : Active
Tail Type : -
Termination : -
Length - Overall : 0.445" (11.30mm)
Accepts Pin Diameter : 0.022" ~ 0.034" (0.56mm ~ 0.86mm), 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm), 0.064" (1.63mm)
Mounting Hole Diameter : -
Flange Diameter : 0.125" (3.18mm)
Tail Diameter : -
Socket Depth : 0.083" (2.11mm), 0.120" (3.05mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1000 in stock

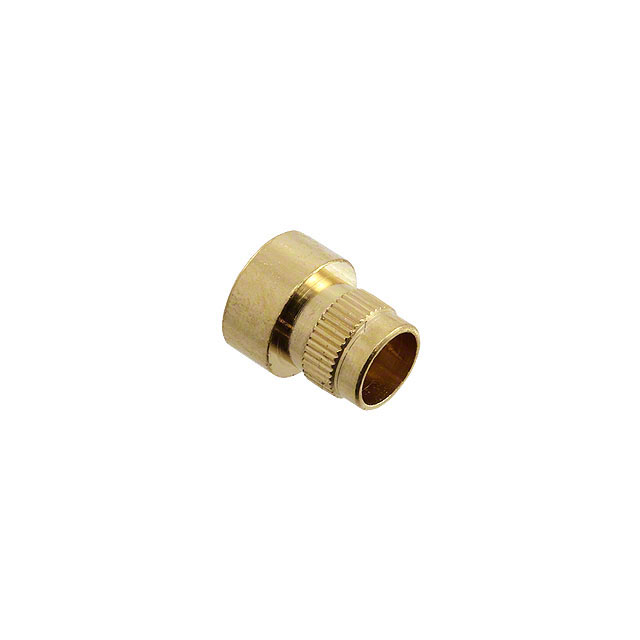

8016-0-15-15-07-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8016
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Knurled
Length - Overall : 0.210" (5.33mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.131" (3.33mm)
Flange Diameter : 0.172" (4.37mm)
Tail Diameter : -
Socket Depth : 0.210" (5.33mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

21461 in stock

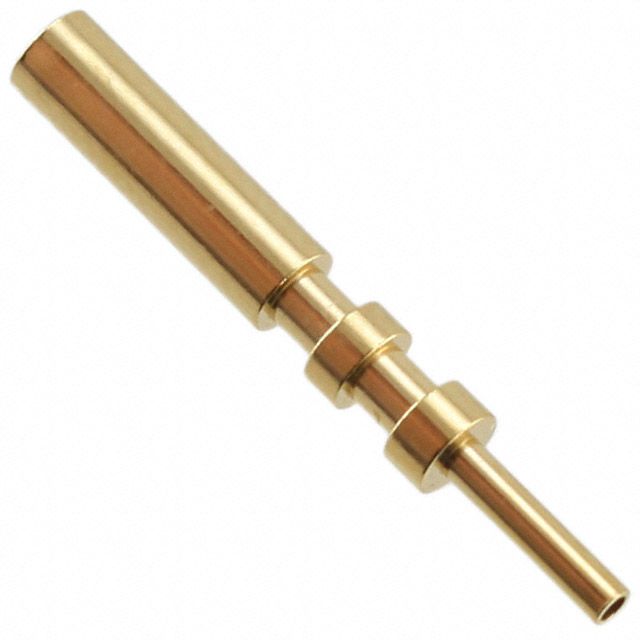

8067-0-19-15-13-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8067
Part Status : Active
Tail Type : Crimp
Termination : Solder
Length - Overall : 0.860" (21.84mm)
Accepts Pin Diameter : 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : -
Flange Diameter : 0.110" (2.79mm)
Tail Diameter : -
Socket Depth : 0.300" (7.62mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1093 in stock

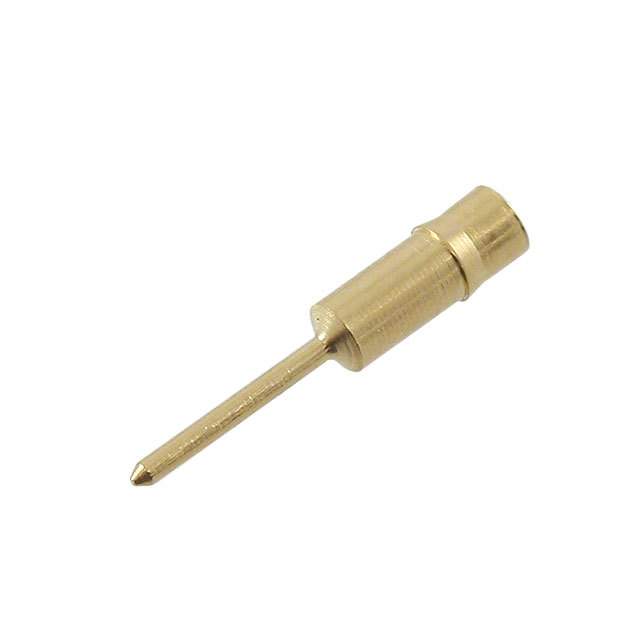

8114-0-15-15-16-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8114
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.370" (9.40mm)
Accepts Pin Diameter : 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.065" (1.65mm)
Flange Diameter : -
Tail Diameter : 0.020" (0.51mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

20592 in stock

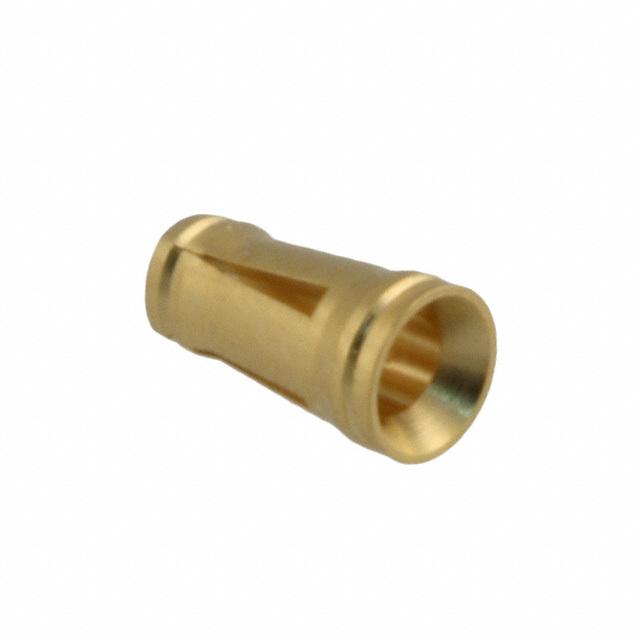

8134-HC-12P2

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : HOLTITE
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.156" (3.96mm)
Accepts Pin Diameter : 0.035" ~ 0.045" (0.89mm ~ 1.14mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.052" (1.32mm)
Mounting Hole Diameter : 0.082" (2.08mm)
Flange Diameter : -
Tail Diameter : -
Socket Depth : -
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 24.8µin (0.63µm)

36731 in stock

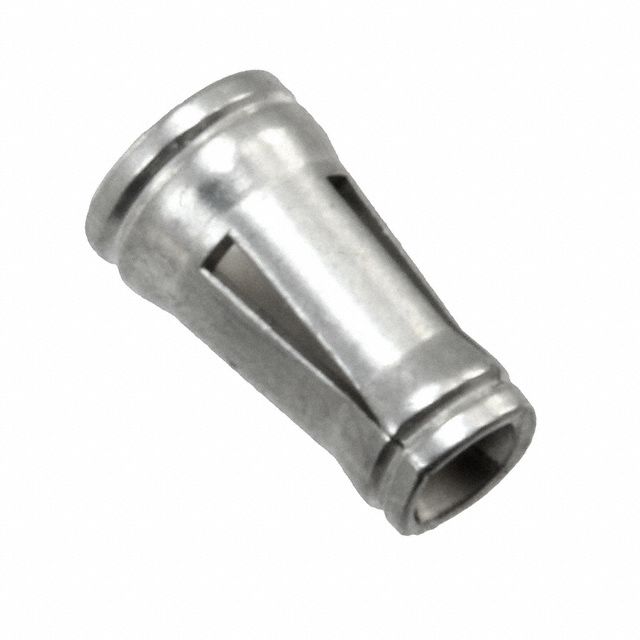

8134-HC-12P3

Agastat Relays / TE Connectivity

62501 in stock

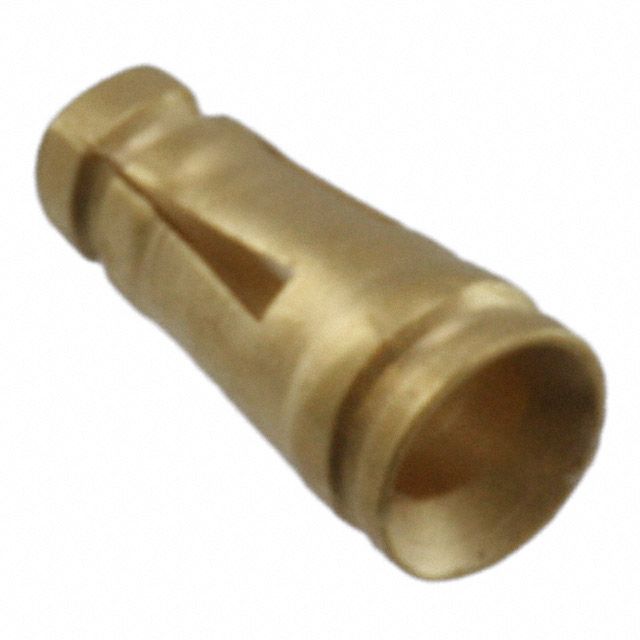

8134-HC-5P2

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : HOLTITE
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.094" (2.39mm)
Accepts Pin Diameter : 0.016" ~ 0.021" (0.41mm ~ 0.53mm)
Accepts Square Pin Size : 0.011" x 0.018" (0.28mm x 0.46mm)
Pin Hole Diameter : 0.026" (0.66mm)
Mounting Hole Diameter : 0.041" (1.04mm)
Flange Diameter : -
Tail Diameter : -
Socket Depth : -
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 24.8µin (0.63µm)

45340 in stock
