Part Number

Manufacturer

Description

Unit Price

In Stock

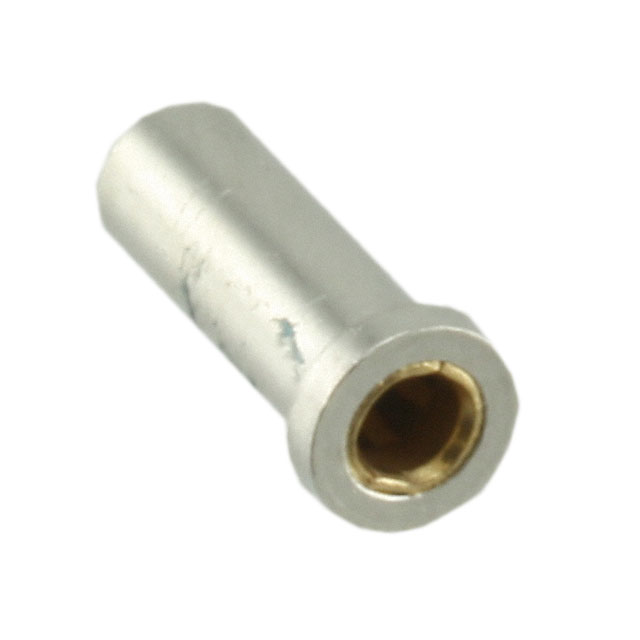

6021-0-15-80-16-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 6021
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.190" (4.83mm)
Accepts Pin Diameter : 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.062" (1.57mm)
Flange Diameter : 0.078" (1.98mm)
Tail Diameter : -
Socket Depth : 0.165" (4.19mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

5203 in stock

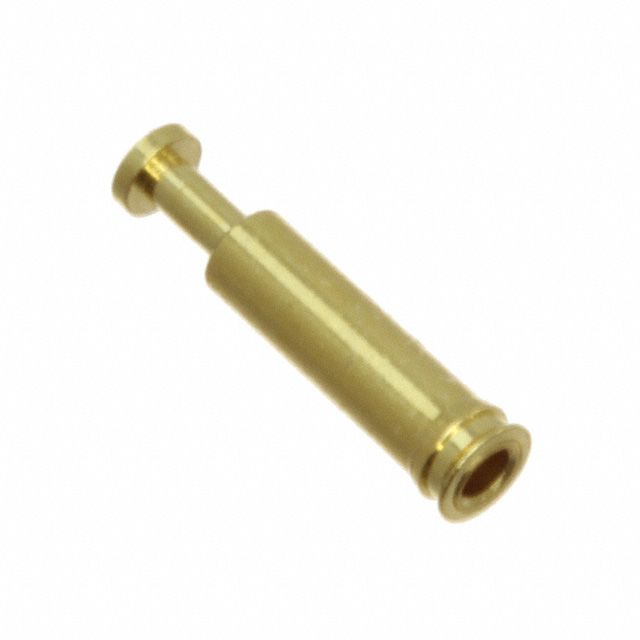

6-1437510-7

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : -
Series : -
Part Status : Active
Tail Type : -
Termination : -
Length - Overall : -
Accepts Pin Diameter : -
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : -
Flange Diameter : -
Tail Diameter : -
Socket Depth : -
Contact Material : -
Contact Finish : -
Contact Finish Thickness : -

4750 in stock

6214-0-15-15-21-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 6214
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.175" (4.45mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.155" (3.94mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1990 in stock

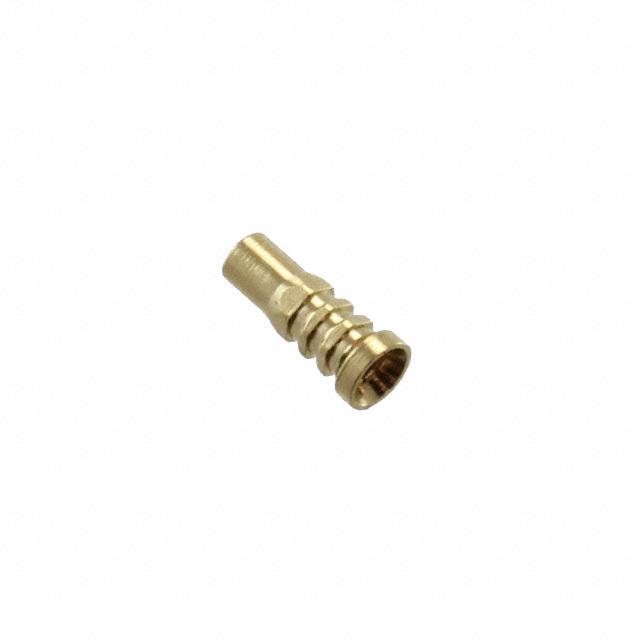

6252-0-15-15-32-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 6252
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.100" (2.54mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1000 in stock

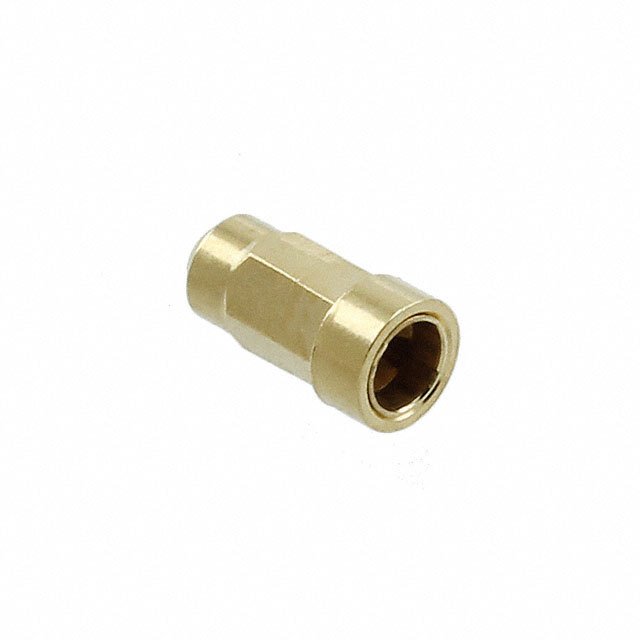

6342-0-15-15-42-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 6342
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.203" (5.16mm)
Accepts Pin Diameter : 0.059" ~ 0.063" (1.50mm ~ 1.60mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.090" (2.29mm)
Flange Diameter : 0.106" (2.69mm)
Tail Diameter : -
Socket Depth : 0.173" (4.39mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

965 in stock

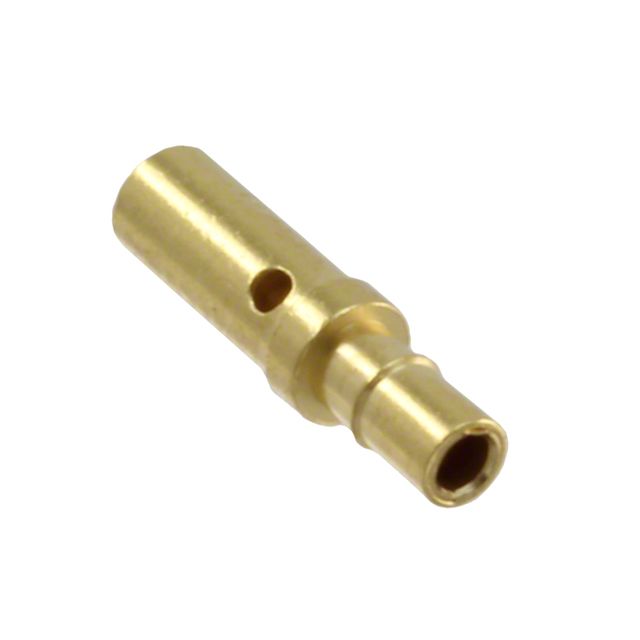

6368-0-33-15-47-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 6368
Part Status : Active
Tail Type : No Tail
Termination : Crimp
Length - Overall : 0.326" (8.28mm)
Accepts Pin Diameter : 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : -
Flange Diameter : 0.088" (2.24mm)
Tail Diameter : -
Socket Depth : 0.110" (2.79mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

380 in stock

6464-0-15-15-10-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 6464
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.400" (10.16mm)
Accepts Pin Diameter : 0.012" ~ 0.017" (0.30mm ~ 0.43mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.028" (0.71mm)
Mounting Hole Diameter : -
Flange Diameter : 0.037" (0.94mm)
Tail Diameter : 0.014" (0.36mm)
Socket Depth : 0.060" (1.52mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

2000 in stock

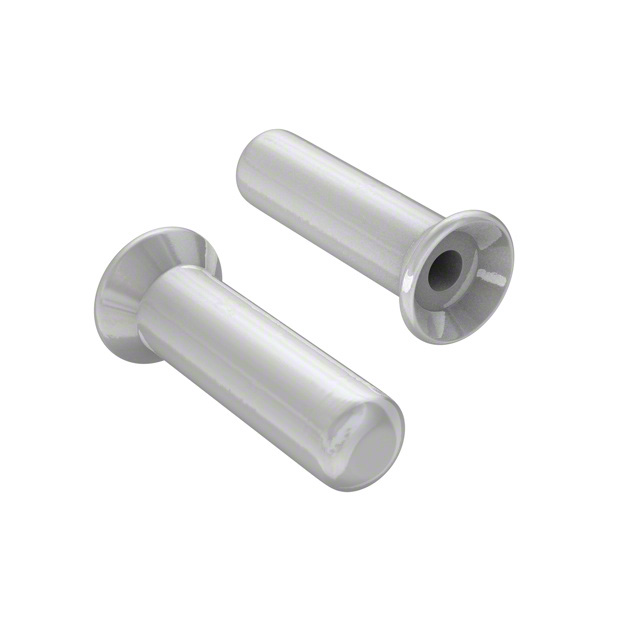

6-5330808-5

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : 1
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.142" (3.61mm)
Accepts Pin Diameter : 0.013" ~ 0.020" (0.33mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.040" ~ 0.041" (1.02mm ~ 1.04mm)
Flange Diameter : 0.059" (1.50mm)
Tail Diameter : -
Socket Depth : 0.130" (3.30mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

24058 in stock

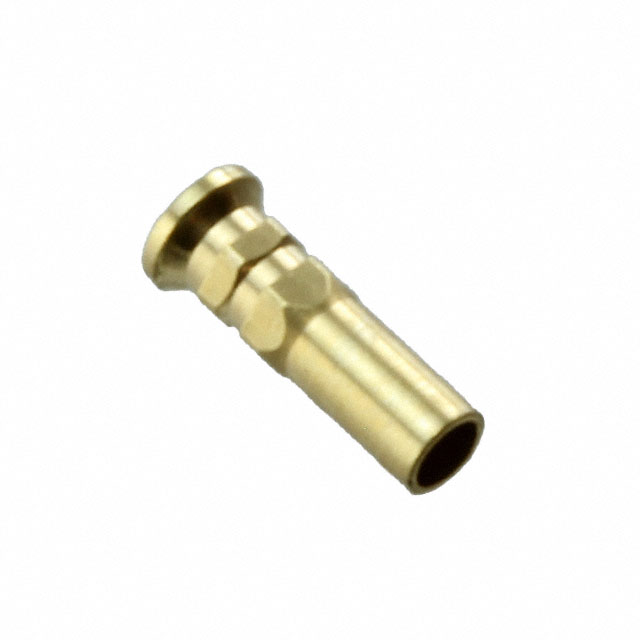

6553-0-15-15-11-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 6553
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.138" (3.51mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.041" (1.04mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.138" (3.51mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

2914 in stock

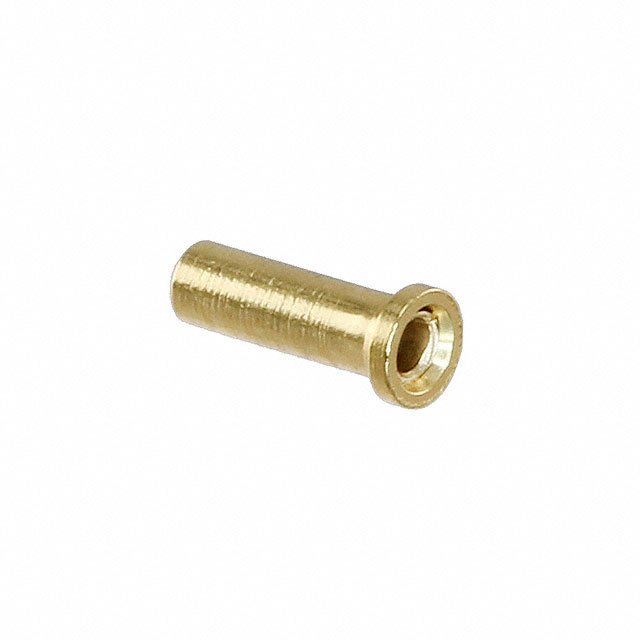

6561-0-15-15-05-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 6561
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.196" (4.98mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.051" (1.30mm)
Flange Diameter : 0.070" (1.78mm)
Tail Diameter : -
Socket Depth : 0.196" (4.98mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1750 in stock

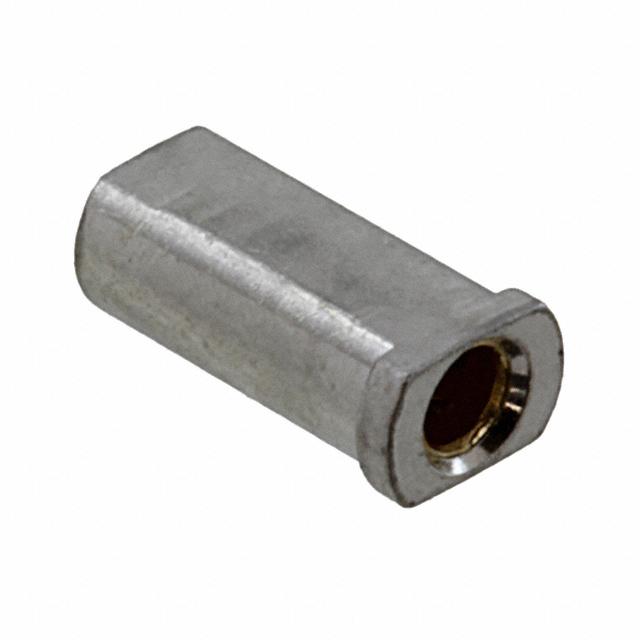

6628-0-18-01-18-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 6628
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount
Length - Overall : 0.200" (5.08mm)
Accepts Pin Diameter : 0.037" ~ 0.043" (0.94mm ~ 1.09mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.054" (1.37mm)
Mounting Hole Diameter : -
Flange Diameter : 0.105" (2.67mm)
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

3682 in stock

6628-0-18-15-18-27-10-0

Mill-Max

950 in stock
