Part Number
Manufacturer
Description
Unit Price
In Stock

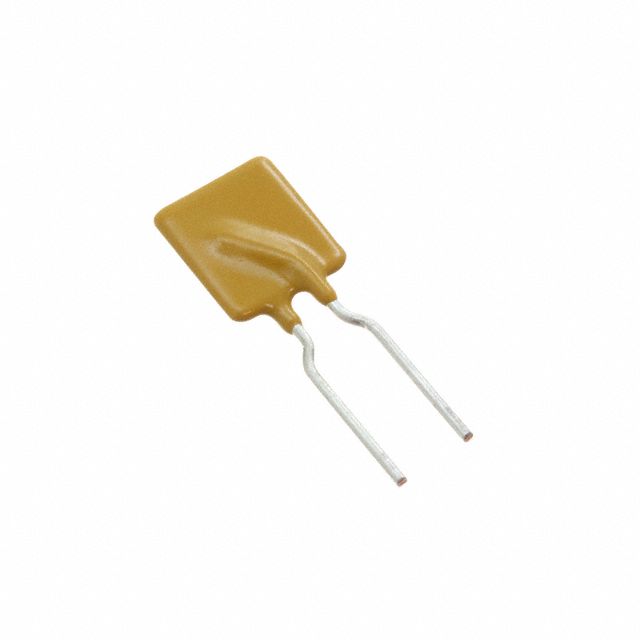

0ZRN0400FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 24 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.394" L x 0.118" W (10.00mm x 3.00mm)
Height - Seated (Max) : 0.591" (15.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 24 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.394" L x 0.118" W (10.00mm x 3.00mm)
Height - Seated (Max) : 0.591" (15.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
3000 in stock

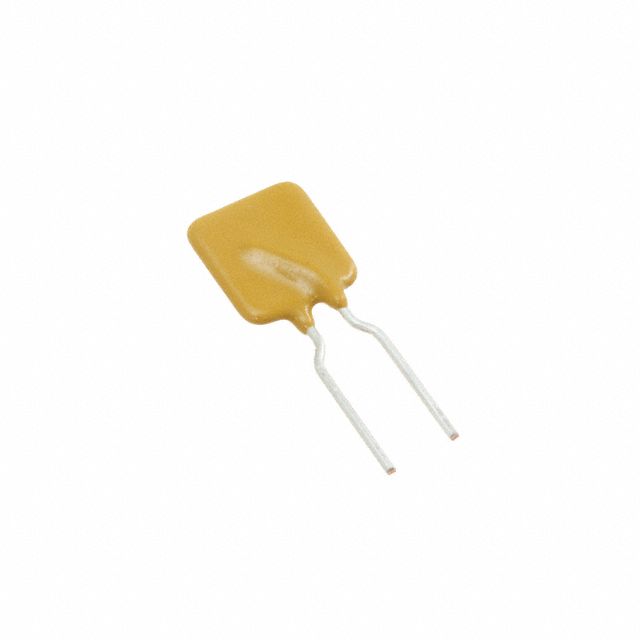

0ZRN0450FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4.5A
Current - Trip (It) : 7.8A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 22 mOhms
Resistance - Post Trip (R1) (Max) : 54 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.409" L x 0.118" W (10.40mm x 3.00mm)
Height - Seated (Max) : 0.614" (15.60mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4.5A
Current - Trip (It) : 7.8A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 22 mOhms
Resistance - Post Trip (R1) (Max) : 54 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.409" L x 0.118" W (10.40mm x 3.00mm)
Height - Seated (Max) : 0.614" (15.60mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
3000 in stock
0ZRN0550FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5.5A
Current - Trip (It) : 10A
Time to Trip : 6s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 37 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.441" L x 0.118" W (11.20mm x 3.00mm)
Height - Seated (Max) : 0.744" (18.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5.5A
Current - Trip (It) : 10A
Time to Trip : 6s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 37 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.441" L x 0.118" W (11.20mm x 3.00mm)
Height - Seated (Max) : 0.744" (18.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
3000 in stock
0ZRN0600FF1A
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 6A
Current - Trip (It) : 10.8A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 13 mOhms
Resistance - Post Trip (R1) (Max) : 32 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.441" L x 0.118" W (11.20mm x 3.00mm)
Height - Seated (Max) : 0.827" (21.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 6A
Current - Trip (It) : 10.8A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 13 mOhms
Resistance - Post Trip (R1) (Max) : 32 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.441" L x 0.118" W (11.20mm x 3.00mm)
Height - Seated (Max) : 0.827" (21.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1000 in stock

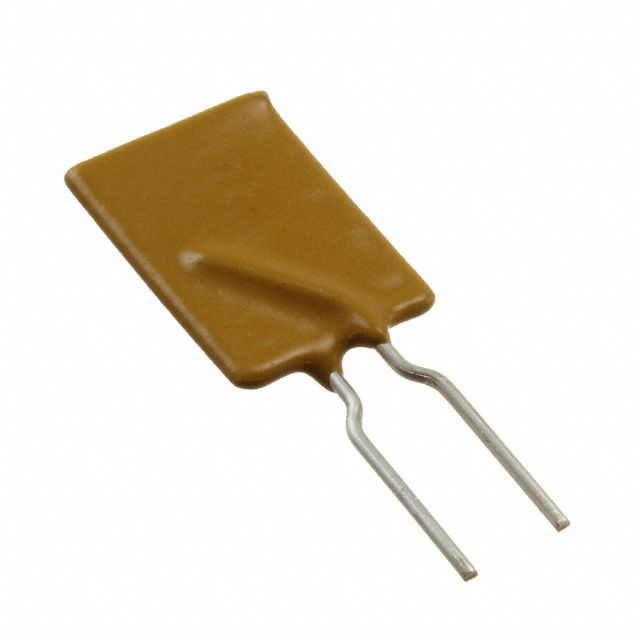

0ZRN0650FF1A
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 6.5A
Current - Trip (It) : 12A
Time to Trip : 5.5s
Resistance - Initial (Ri) (Min) : 11 mOhms
Resistance - Post Trip (R1) (Max) : 26 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.500" L x 0.118" W (12.70mm x 3.00mm)
Height - Seated (Max) : 0.874" (22.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : -
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 6.5A
Current - Trip (It) : 12A
Time to Trip : 5.5s
Resistance - Initial (Ri) (Min) : 11 mOhms
Resistance - Post Trip (R1) (Max) : 26 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.500" L x 0.118" W (12.70mm x 3.00mm)
Height - Seated (Max) : 0.874" (22.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1000 in stock

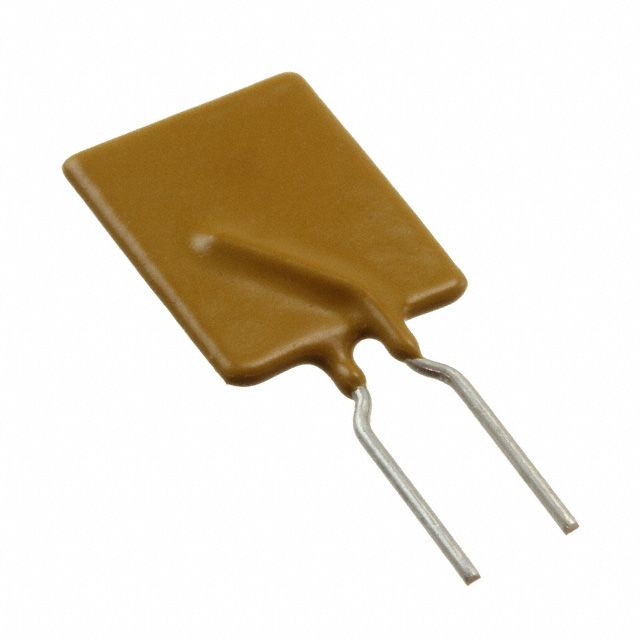

0ZRN0700FF1A
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 7A
Current - Trip (It) : 13A
Time to Trip : 7s
Resistance - Initial (Ri) (Min) : 10 mOhms
Resistance - Post Trip (R1) (Max) : 25 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.551" L x 0.118" W (14.00mm x 3.00mm)
Height - Seated (Max) : 0.862" (21.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : -
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 7A
Current - Trip (It) : 13A
Time to Trip : 7s
Resistance - Initial (Ri) (Min) : 10 mOhms
Resistance - Post Trip (R1) (Max) : 25 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.551" L x 0.118" W (14.00mm x 3.00mm)
Height - Seated (Max) : 0.862" (21.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1000 in stock
0ZRN0750FF1A
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 7.5A
Current - Trip (It) : 13.1A
Time to Trip : 7s
Resistance - Initial (Ri) (Min) : 9.4 mOhms
Resistance - Post Trip (R1) (Max) : 22 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.551" L x 0.118" W (14.00mm x 3.00mm)
Height - Seated (Max) : 0.925" (23.50mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : -
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 7.5A
Current - Trip (It) : 13.1A
Time to Trip : 7s
Resistance - Initial (Ri) (Min) : 9.4 mOhms
Resistance - Post Trip (R1) (Max) : 22 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.551" L x 0.118" W (14.00mm x 3.00mm)
Height - Seated (Max) : 0.925" (23.50mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1000 in stock
0ZRN0800FF1A
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 8A
Current - Trip (It) : 15A
Time to Trip : 8s
Resistance - Initial (Ri) (Min) : 8 mOhms
Resistance - Post Trip (R1) (Max) : 20 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.650" L x 0.118" W (16.50mm x 3.00mm)
Height - Seated (Max) : 0.886" (22.50mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : -
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 8A
Current - Trip (It) : 15A
Time to Trip : 8s
Resistance - Initial (Ri) (Min) : 8 mOhms
Resistance - Post Trip (R1) (Max) : 20 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.650" L x 0.118" W (16.50mm x 3.00mm)
Height - Seated (Max) : 0.886" (22.50mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1000 in stock
0ZRN0900FF1A
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 9A
Current - Trip (It) : 16.5A
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 7.4 mOhms
Resistance - Post Trip (R1) (Max) : 17 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.650" L x 0.118" W (16.50mm x 3.00mm)
Height - Seated (Max) : 1.012" (25.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : -
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 9A
Current - Trip (It) : 16.5A
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 7.4 mOhms
Resistance - Post Trip (R1) (Max) : 17 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.650" L x 0.118" W (16.50mm x 3.00mm)
Height - Seated (Max) : 1.012" (25.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1000 in stock
0ZRN1000FF1A
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 10A
Current - Trip (It) : 18.5A
Time to Trip : 9s
Resistance - Initial (Ri) (Min) : 6.2 mOhms
Resistance - Post Trip (R1) (Max) : 15 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.689" L x 0.118" W (17.50mm x 3.00mm)
Height - Seated (Max) : 1.043" (26.50mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : -
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 10A
Current - Trip (It) : 18.5A
Time to Trip : 9s
Resistance - Initial (Ri) (Min) : 6.2 mOhms
Resistance - Post Trip (R1) (Max) : 15 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.689" L x 0.118" W (17.50mm x 3.00mm)
Height - Seated (Max) : 1.043" (26.50mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
1000 in stock
0ZRN1100FF1A
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 11A
Current - Trip (It) : 20A
Time to Trip : 11s
Resistance - Initial (Ri) (Min) : 5.5 mOhms
Resistance - Post Trip (R1) (Max) : 13 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.827" L x 0.118" W (21.00mm x 3.00mm)
Height - Seated (Max) : 1.028" (26.10mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : -
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 11A
Current - Trip (It) : 20A
Time to Trip : 11s
Resistance - Initial (Ri) (Min) : 5.5 mOhms
Resistance - Post Trip (R1) (Max) : 13 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.827" L x 0.118" W (21.00mm x 3.00mm)
Height - Seated (Max) : 1.028" (26.10mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
1000 in stock
0ZRN1300FF1A
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 13A
Current - Trip (It) : 24A
Time to Trip : 13s
Resistance - Initial (Ri) (Min) : 4.1 mOhms
Resistance - Post Trip (R1) (Max) : 10 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.925" L x 0.142" W (23.50mm x 3.60mm)
Height - Seated (Max) : 1.130" (28.70mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : -
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 13A
Current - Trip (It) : 24A
Time to Trip : 13s
Resistance - Initial (Ri) (Min) : 4.1 mOhms
Resistance - Post Trip (R1) (Max) : 10 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.925" L x 0.142" W (23.50mm x 3.60mm)
Height - Seated (Max) : 1.130" (28.70mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
1000 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
