Part Number
Manufacturer
Description
Unit Price
In Stock

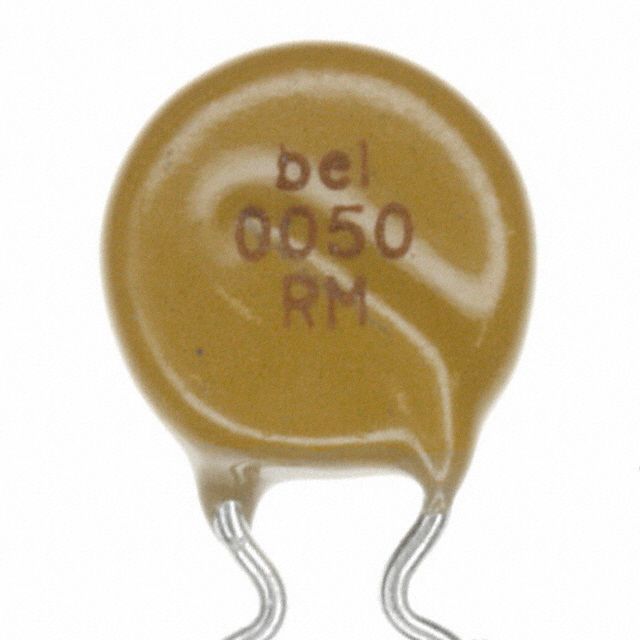

0ZRM0050FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Bulk
Series : 0ZRM
Part Status : Active
Type : Polymeric
Voltage - Max : 120V
Current - Max : 3A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 6s
Resistance - Initial (Ri) (Min) : 500 mOhms
Resistance - Post Trip (R1) (Max) : 1.17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.362" Dia x 0.150" T (9.20mm x 3.80mm)
Height - Seated (Max) : 0.587" (14.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : 0ZRM
Part Status : Active
Type : Polymeric
Voltage - Max : 120V
Current - Max : 3A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 6s
Resistance - Initial (Ri) (Min) : 500 mOhms
Resistance - Post Trip (R1) (Max) : 1.17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.362" Dia x 0.150" T (9.20mm x 3.80mm)
Height - Seated (Max) : 0.587" (14.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
6655 in stock

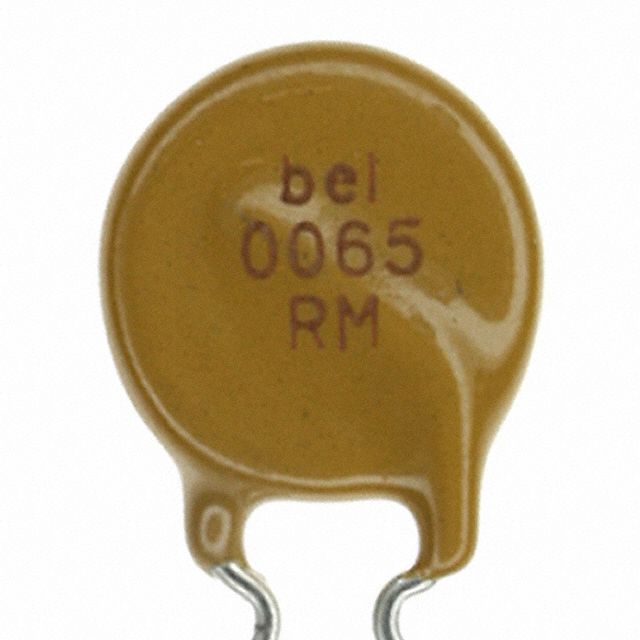

0ZRM0065FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Bulk
Series : 0ZRM
Part Status : Active
Type : Polymeric
Voltage - Max : 120V
Current - Max : 5A
Current - Hold (Ih) (Max) : 650mA
Current - Trip (It) : 1.3A
Time to Trip : 5.7s
Resistance - Initial (Ri) (Min) : 310 mOhms
Resistance - Post Trip (R1) (Max) : 720 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.382" Dia x 0.150" T (9.70mm x 3.80mm)
Height - Seated (Max) : 0.587" (14.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : 0ZRM
Part Status : Active
Type : Polymeric
Voltage - Max : 120V
Current - Max : 5A
Current - Hold (Ih) (Max) : 650mA
Current - Trip (It) : 1.3A
Time to Trip : 5.7s
Resistance - Initial (Ri) (Min) : 310 mOhms
Resistance - Post Trip (R1) (Max) : 720 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.382" Dia x 0.150" T (9.70mm x 3.80mm)
Height - Seated (Max) : 0.587" (14.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
2950 in stock

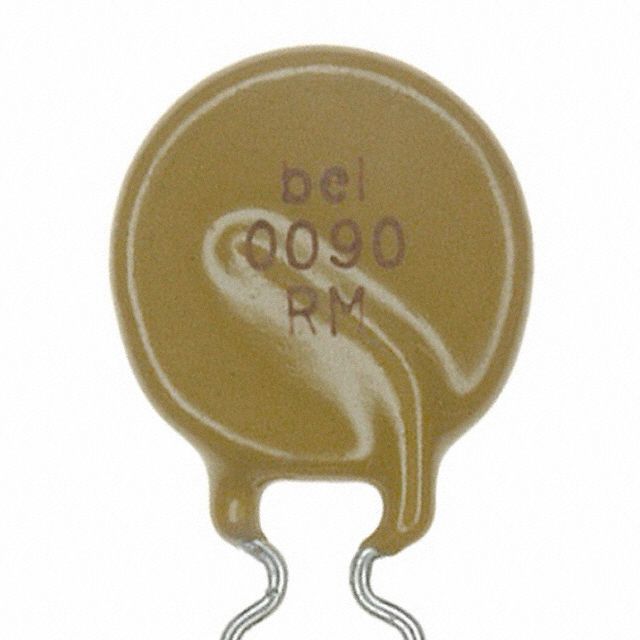

0ZRM0090FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Bulk
Series : 0ZRM
Part Status : Active
Type : Polymeric
Voltage - Max : 120V
Current - Max : 5A
Current - Hold (Ih) (Max) : 900mA
Current - Trip (It) : 1.8A
Time to Trip : 7.2s
Resistance - Initial (Ri) (Min) : 200 mOhms
Resistance - Post Trip (R1) (Max) : 470 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.469" Dia x 0.150" T (11.90mm x 3.80mm)
Height - Seated (Max) : 0.626" (15.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : 0ZRM
Part Status : Active
Type : Polymeric
Voltage - Max : 120V
Current - Max : 5A
Current - Hold (Ih) (Max) : 900mA
Current - Trip (It) : 1.8A
Time to Trip : 7.2s
Resistance - Initial (Ri) (Min) : 200 mOhms
Resistance - Post Trip (R1) (Max) : 470 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.469" Dia x 0.150" T (11.90mm x 3.80mm)
Height - Seated (Max) : 0.626" (15.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
2989 in stock

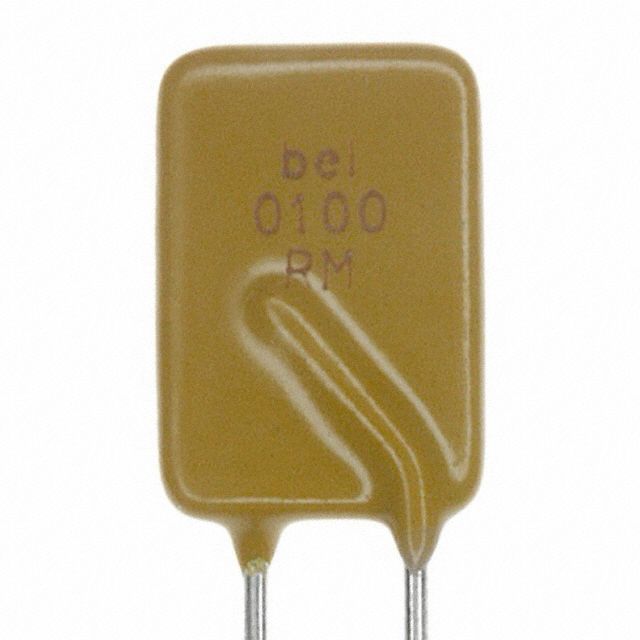

0ZRM0100FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Bulk
Series : 0ZRM
Part Status : Active
Type : Polymeric
Voltage - Max : 120V
Current - Max : 10A
Current - Hold (Ih) (Max) : 1A
Current - Trip (It) : 2A
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 180 mOhms
Resistance - Post Trip (R1) (Max) : 470 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.453" Dia x 0.161" T (11.50mm x 4.10mm)
Height - Seated (Max) : 0.791" (20.10mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : 0ZRM
Part Status : Active
Type : Polymeric
Voltage - Max : 120V
Current - Max : 10A
Current - Hold (Ih) (Max) : 1A
Current - Trip (It) : 2A
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 180 mOhms
Resistance - Post Trip (R1) (Max) : 470 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.453" Dia x 0.161" T (11.50mm x 4.10mm)
Height - Seated (Max) : 0.791" (20.10mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
13615 in stock

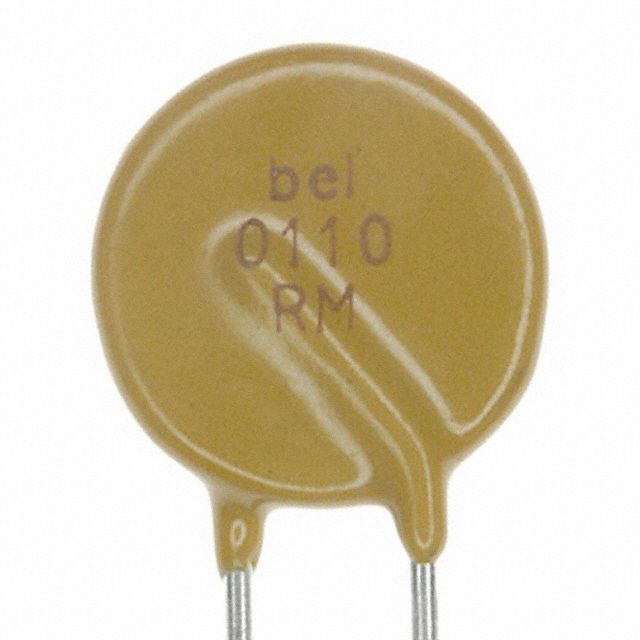

0ZRM0110FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Bulk
Series : 0ZRM
Part Status : Active
Type : Polymeric
Voltage - Max : 120V
Current - Max : 8A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 8.2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 380 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.524" Dia x 0.161" T (13.30mm x 4.10mm)
Height - Seated (Max) : 0.720" (18.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : 0ZRM
Part Status : Active
Type : Polymeric
Voltage - Max : 120V
Current - Max : 8A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 8.2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 380 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.524" Dia x 0.161" T (13.30mm x 4.10mm)
Height - Seated (Max) : 0.720" (18.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
3946 in stock

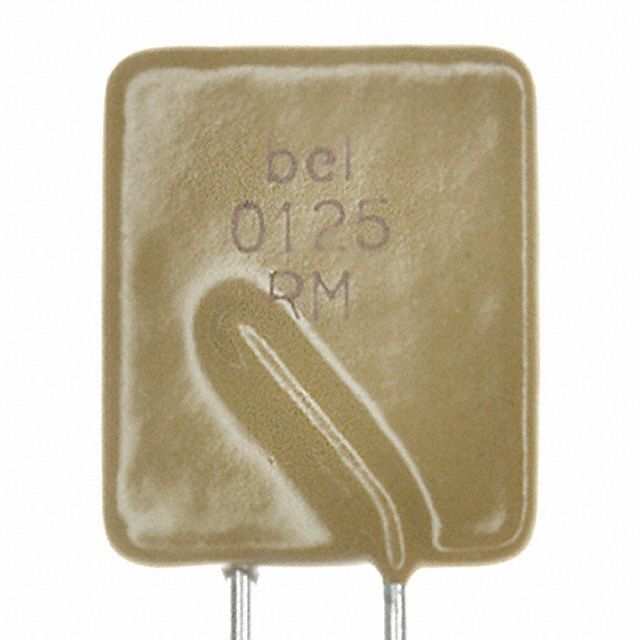

0ZRM0125FF1A
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Bulk
Series : 0ZRM
Part Status : Active
Type : Polymeric
Voltage - Max : 120V
Current - Max : 12.5A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 110 mOhms
Resistance - Post Trip (R1) (Max) : 330 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.551" L x 0.161" W (14.00mm x 4.10mm)
Height - Seated (Max) : 0.854" (21.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : 0ZRM
Part Status : Active
Type : Polymeric
Voltage - Max : 120V
Current - Max : 12.5A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 110 mOhms
Resistance - Post Trip (R1) (Max) : 330 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.551" L x 0.161" W (14.00mm x 4.10mm)
Height - Seated (Max) : 0.854" (21.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
713 in stock

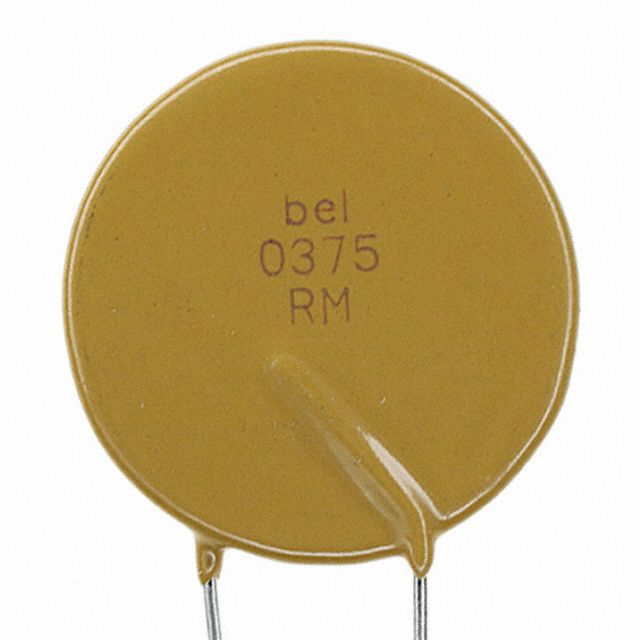

0ZRM0375FF1A
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Bulk
Series : 0ZRM
Part Status : Active
Type : Polymeric
Voltage - Max : 120V
Current - Max : 20A
Current - Hold (Ih) (Max) : 3.75A
Current - Trip (It) : 7.5A
Time to Trip : 24s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 80 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 1.161" Dia x 0.161" T (29.50mm x 4.10mm)
Height - Seated (Max) : 1.339" (34.00mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : Bulk
Series : 0ZRM
Part Status : Active
Type : Polymeric
Voltage - Max : 120V
Current - Max : 20A
Current - Hold (Ih) (Max) : 3.75A
Current - Trip (It) : 7.5A
Time to Trip : 24s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 80 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 1.161" Dia x 0.161" T (29.50mm x 4.10mm)
Height - Seated (Max) : 1.339" (34.00mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
6916 in stock

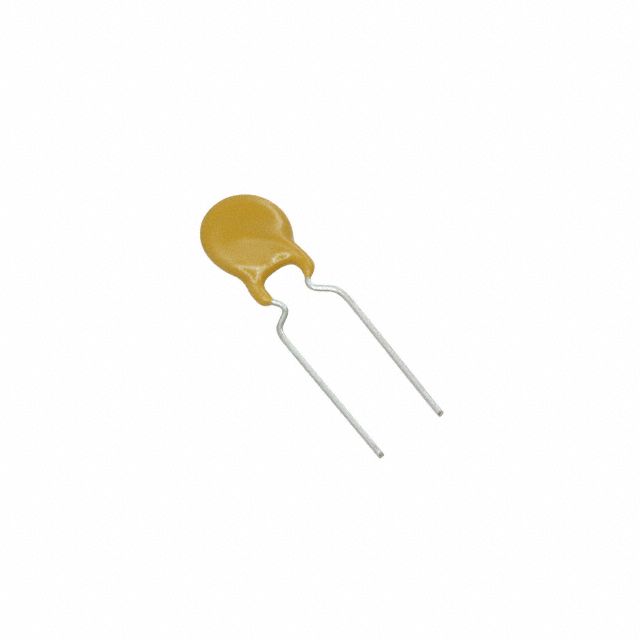

0ZRN0050FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 900mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 480 mOhms
Resistance - Post Trip (R1) (Max) : 1.1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 900mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 480 mOhms
Resistance - Post Trip (R1) (Max) : 1.1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
2980 in stock

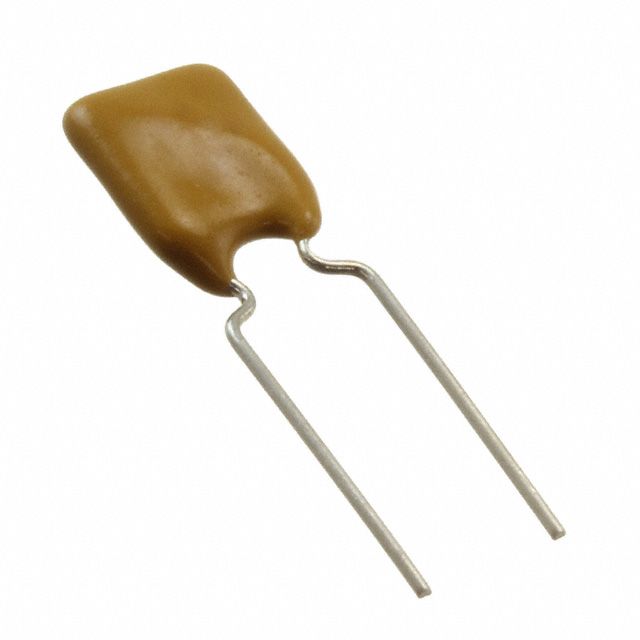

0ZRN0070FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 700mA
Current - Trip (It) : 1.4A
Time to Trip : 3.2s
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 800 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.272" L x 0.118" W (6.90mm x 3.00mm)
Height - Seated (Max) : 0.425" (10.80mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 700mA
Current - Trip (It) : 1.4A
Time to Trip : 3.2s
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 800 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.272" L x 0.118" W (6.90mm x 3.00mm)
Height - Seated (Max) : 0.425" (10.80mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
3000 in stock

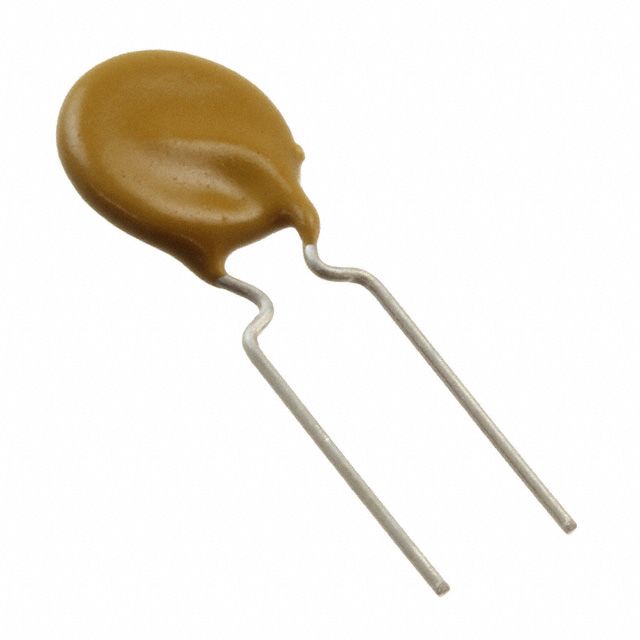

0ZRN0100FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1A
Current - Trip (It) : 1.8A
Time to Trip : 5.2s
Resistance - Initial (Ri) (Min) : 180 mOhms
Resistance - Post Trip (R1) (Max) : 430 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.382" Dia x 0.118" T (9.70mm x 3.00mm)
Height - Seated (Max) : 0.535" (13.60mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1A
Current - Trip (It) : 1.8A
Time to Trip : 5.2s
Resistance - Initial (Ri) (Min) : 180 mOhms
Resistance - Post Trip (R1) (Max) : 430 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.382" Dia x 0.118" T (9.70mm x 3.00mm)
Height - Seated (Max) : 0.535" (13.60mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
3000 in stock

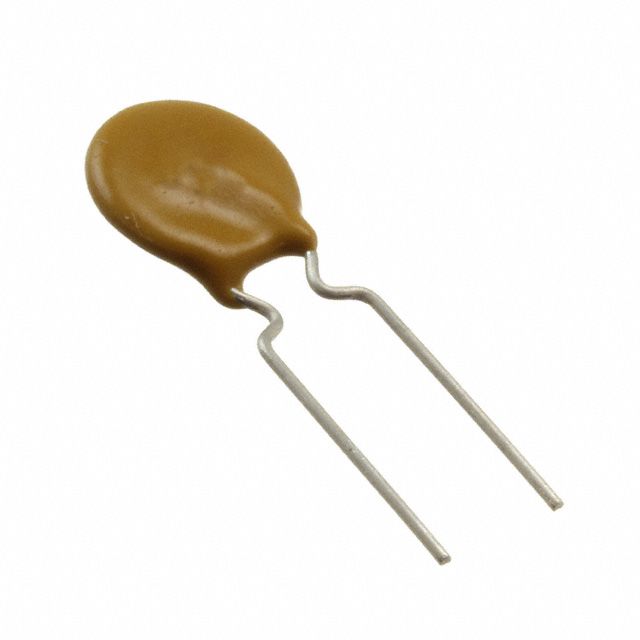

0ZRN0200FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 3.8A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 45 mOhms
Resistance - Post Trip (R1) (Max) : 110 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.370" Dia x 0.118" T (9.40mm x 3.00mm)
Height - Seated (Max) : 0.567" (14.40mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 3.8A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 45 mOhms
Resistance - Post Trip (R1) (Max) : 110 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.370" Dia x 0.118" T (9.40mm x 3.00mm)
Height - Seated (Max) : 0.567" (14.40mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
2999 in stock

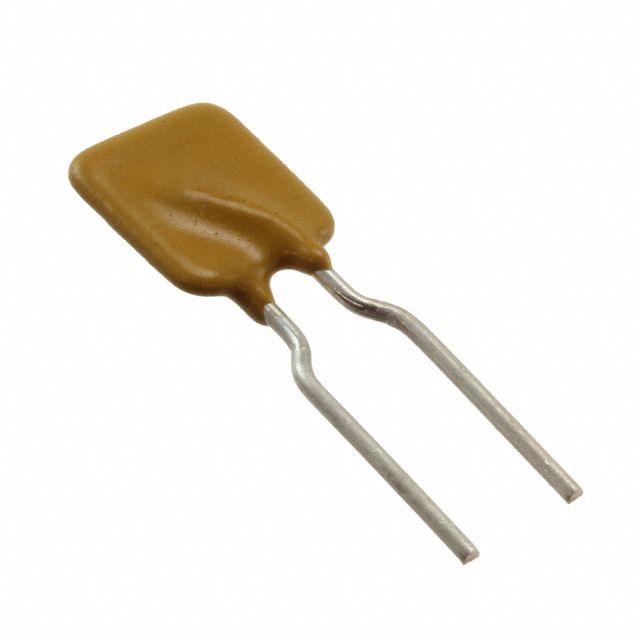

0ZRN0300FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 33 mOhms
Resistance - Post Trip (R1) (Max) : 79 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.346" L x 0.118" W (8.80mm x 3.00mm)
Height - Seated (Max) : 0.543" (13.80mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : -
Alternate Packaging
Series : 0ZRN
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 33 mOhms
Resistance - Post Trip (R1) (Max) : 79 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.346" L x 0.118" W (8.80mm x 3.00mm)
Height - Seated (Max) : 0.543" (13.80mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
3000 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
