WeEn Semiconductors Co., Ltd
- WeEn Semiconductors Co., Ltd, is the global joint venture between NXP Semiconductors N.V. and Beijing JianGuang Asset Management Co. Ltd (JAC Capital). WeEn Semiconductors was officially opened on 19th January, 2016 with the business and operations center located in Shanghai, China. WeEn Semiconductors is registered at Nanchang city which is the capital city of Jiangxi province, China. It fully owns subsidiaries and branches in Jilin city for bipolar production, in Shanghai and the United Kingdom for R&D and production support, in Hong Kong for Sales activities, and in many other countries for sales and customer services, respectively.
As a key player in the semiconductors industry, WeEn combines the advanced bipolar power technology and the strong resource of JAC Capital in Chinese manufacturing industry and distribution channels, to focus on developing a complete portfolio of industry-leading bipolar power products including silicon controlled rectifiers, power diodes, high voltage transistors, silicon carbide which are widely used in the automotive, telecommunications, computers and consumer electronics, intelligent home appliances, lighting, and power management markets. The aim is to help the customers achieve higher cost-efficiency and production efficiency and to contribute to the development of China and global intelligent manufacturing.
The NXP Bi-Polar Division product portfolio (Diodes, Thyristors & Transistors) has been transferred to WeEn Semiconductors (Jan 19, 2017).
Part Number
Manufacturer
Description
Unit Price
In Stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 1.2kV
Voltage - Gate Trigger (Vgt) (Max) : 1V
Current - Gate Trigger (Igt) (Max) : 50mA
Voltage - On State (Vtm) (Max) : 1.5V
Current - On State (It (AV)) (Max) : 50A
Current - On State (It (RMS)) (Max) : 79A
Current - Hold (Ih) (Max) : 200mA
Current - Off State (Max) : 3mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 650A, 715A
SCR Type : Standard Recovery
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
302 in stock

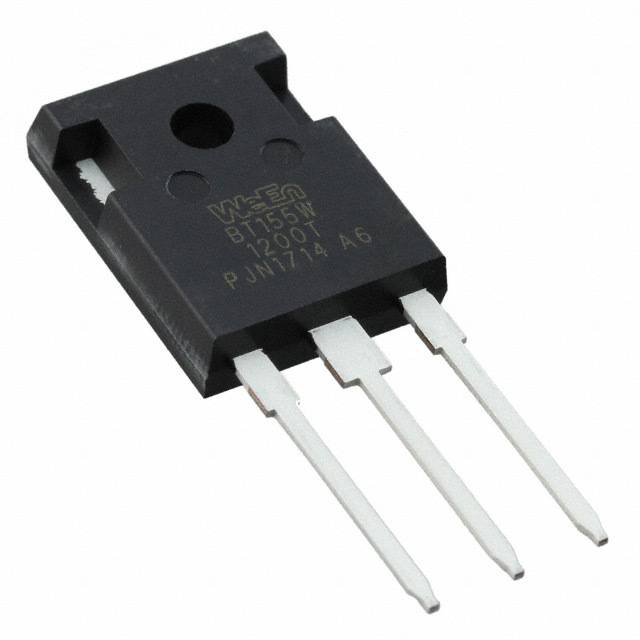

WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 1.2kV
Voltage - Gate Trigger (Vgt) (Max) : 1V
Current - Gate Trigger (Igt) (Max) : 50mA
Voltage - On State (Vtm) (Max) : 1.5V
Current - On State (It (AV)) (Max) : 50A
Current - On State (It (RMS)) (Max) : 79A
Current - Hold (Ih) (Max) : 200mA
Current - Off State (Max) : 3mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 650A, 715A
SCR Type : Standard Recovery
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
267 in stock

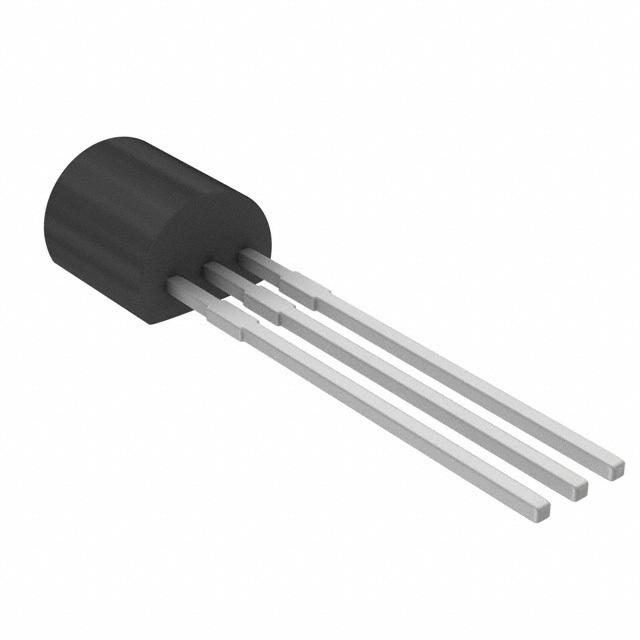

WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Bulk
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 800mV
Current - Gate Trigger (Igt) (Max) : 200µA
Voltage - On State (Vtm) (Max) : 1.7V
Current - On State (It (AV)) (Max) : 500mA
Current - On State (It (RMS)) (Max) : 800mA
Current - Hold (Ih) (Max) : 5mA
Current - Off State (Max) : 100µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8A, 9A
SCR Type : Sensitive Gate
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92-3
0
3802 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 800mV
Current - Gate Trigger (Igt) (Max) : 200µA
Voltage - On State (Vtm) (Max) : 1.7V
Current - On State (It (AV)) (Max) : 630mA
Current - On State (It (RMS)) (Max) : 1A
Current - Hold (Ih) (Max) : 5mA
Current - Off State (Max) : 100µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8A, 9A
SCR Type : Sensitive Gate
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
1670 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 800mV
Current - Gate Trigger (Igt) (Max) : 450µA
Voltage - On State (Vtm) (Max) : 1.7V
Current - On State (It (AV)) (Max) : 630mA
Current - On State (It (RMS)) (Max) : 1A
Current - Hold (Ih) (Max) : 10mA
Current - Off State (Max) : 100µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8A, 9A
SCR Type : Sensitive Gate
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
4698 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Bulk
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 800mV
Current - Gate Trigger (Igt) (Max) : 200µA
Voltage - On State (Vtm) (Max) : 1.7V
Current - On State (It (AV)) (Max) : 500mA
Current - On State (It (RMS)) (Max) : 800mA
Current - Hold (Ih) (Max) : 5mA
Current - Off State (Max) : 100µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8A, 9A
SCR Type : Sensitive Gate
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92-3
0
15783 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 800mV
Current - Gate Trigger (Igt) (Max) : 200µA
Voltage - On State (Vtm) (Max) : 1.7V
Current - On State (It (AV)) (Max) : 500mA
Current - On State (It (RMS)) (Max) : 800mA
Current - Hold (Ih) (Max) : 5mA
Current - Off State (Max) : 100µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8A, 9A
SCR Type : Sensitive Gate
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92-3
0
9 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 800mV
Current - Gate Trigger (Igt) (Max) : 200µA
Voltage - On State (Vtm) (Max) : 1.7V
Current - On State (It (AV)) (Max) : 500mA
Current - On State (It (RMS)) (Max) : 800mA
Current - Hold (Ih) (Max) : 5mA
Current - Off State (Max) : 100µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8A, 9A
SCR Type : Sensitive Gate
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92-3
0
7719 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 800mV
Current - Gate Trigger (Igt) (Max) : 200µA
Voltage - On State (Vtm) (Max) : 1.7V
Current - On State (It (AV)) (Max) : 500mA
Current - On State (It (RMS)) (Max) : 800mA
Current - Hold (Ih) (Max) : 5mA
Current - Off State (Max) : 100µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8A, 9A
SCR Type : Sensitive Gate
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92-3
0
9972 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 800mV
Current - Gate Trigger (Igt) (Max) : 50µA
Voltage - On State (Vtm) (Max) : 1.7V
Current - On State (It (AV)) (Max) : 500mA
Current - On State (It (RMS)) (Max) : 800mA
Current - Hold (Ih) (Max) : 1mA
Current - Off State (Max) : 2µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8A, 9A
SCR Type : Sensitive Gate
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92
0
8590 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Bulk
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 800mV
Current - Gate Trigger (Igt) (Max) : 200µA
Voltage - On State (Vtm) (Max) : 1.7V
Current - On State (It (AV)) (Max) : 500mA
Current - On State (It (RMS)) (Max) : 800mA
Current - Hold (Ih) (Max) : 5mA
Current - Off State (Max) : 100µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8A, 9A
SCR Type : Sensitive Gate
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92-3
0
114 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 800mV
Current - Gate Trigger (Igt) (Max) : 200µA
Voltage - On State (Vtm) (Max) : 1.7V
Current - On State (It (AV)) (Max) : 500mA
Current - On State (It (RMS)) (Max) : 800mA
Current - Hold (Ih) (Max) : 5mA
Current - Off State (Max) : 100µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8A, 9A
SCR Type : Sensitive Gate
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92-3
0
5335 in stock
