WeEn Semiconductors Co., Ltd
- WeEn Semiconductors Co., Ltd, is the global joint venture between NXP Semiconductors N.V. and Beijing JianGuang Asset Management Co. Ltd (JAC Capital). WeEn Semiconductors was officially opened on 19th January, 2016 with the business and operations center located in Shanghai, China. WeEn Semiconductors is registered at Nanchang city which is the capital city of Jiangxi province, China. It fully owns subsidiaries and branches in Jilin city for bipolar production, in Shanghai and the United Kingdom for R&D and production support, in Hong Kong for Sales activities, and in many other countries for sales and customer services, respectively.
As a key player in the semiconductors industry, WeEn combines the advanced bipolar power technology and the strong resource of JAC Capital in Chinese manufacturing industry and distribution channels, to focus on developing a complete portfolio of industry-leading bipolar power products including silicon controlled rectifiers, power diodes, high voltage transistors, silicon carbide which are widely used in the automotive, telecommunications, computers and consumer electronics, intelligent home appliances, lighting, and power management markets. The aim is to help the customers achieve higher cost-efficiency and production efficiency and to contribute to the development of China and global intelligent manufacturing.
The NXP Bi-Polar Division product portfolio (Diodes, Thyristors & Transistors) has been transferred to WeEn Semiconductors (Jan 19, 2017).
Part Number
Manufacturer
Description
Unit Price
In Stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 650V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.75V
Current - On State (It (AV)) (Max) : 7.5A
Current - On State (It (RMS)) (Max) : 12A
Current - Hold (Ih) (Max) : 20mA
Current - Off State (Max) : 500µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 120A, 132A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
12635 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 800V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.75V
Current - On State (It (AV)) (Max) : 7.5A
Current - On State (It (RMS)) (Max) : 12A
Current - Hold (Ih) (Max) : 20mA
Current - Off State (Max) : 500µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 120A, 132A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
2015 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 500V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.75V
Current - On State (It (AV)) (Max) : 7.5A
Current - On State (It (RMS)) (Max) : 12A
Current - Hold (Ih) (Max) : 20mA
Current - Off State (Max) : 500µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 120A, 132A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : TO-220-3
0
2761 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 500V
Voltage - Gate Trigger (Vgt) (Max) : -
Current - Gate Trigger (Igt) (Max) : -
Voltage - On State (Vtm) (Max) : -
Current - On State (It (AV)) (Max) : -
Current - On State (It (RMS)) (Max) : -
Current - Hold (Ih) (Max) : -
Current - Off State (Max) : -
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
SCR Type : Standard Recovery
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : TO-220-3
0
4995 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 800V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.75V
Current - On State (It (AV)) (Max) : 7.5A
Current - On State (It (RMS)) (Max) : 12A
Current - Hold (Ih) (Max) : 20mA
Current - Off State (Max) : 500µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 120A, 132A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : TO-220-3
0
6719 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 800V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.75V
Current - On State (It (AV)) (Max) : 7.5A
Current - On State (It (RMS)) (Max) : 12A
Current - Hold (Ih) (Max) : 20mA
Current - Off State (Max) : 500µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 120A, 132A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : TO-220F
0
4742 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 450V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 32mA
Voltage - On State (Vtm) (Max) : 1.75V
Current - On State (It (AV)) (Max) : 13A
Current - On State (It (RMS)) (Max) : 20A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 1mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 200A, 220A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
4346 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 800V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 32mA
Voltage - On State (Vtm) (Max) : 1.75V
Current - On State (It (AV)) (Max) : 13A
Current - On State (It (RMS)) (Max) : 20A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 1mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 200A, 220A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
679 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 450V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 32mA
Voltage - On State (Vtm) (Max) : 1.75V
Current - On State (It (AV)) (Max) : 13A
Current - On State (It (RMS)) (Max) : 20A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 1mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 200A, 220A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount

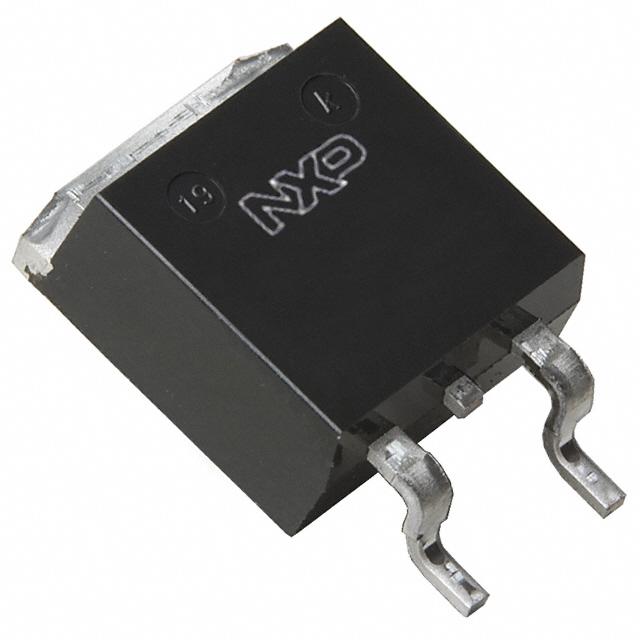

Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
1000 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 650V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 32mA
Voltage - On State (Vtm) (Max) : 1.75V
Current - On State (It (AV)) (Max) : 13A
Current - On State (It (RMS)) (Max) : 20A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 1mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 200A, 220A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
159 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Voltage - Off State : 800V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 32mA
Voltage - On State (Vtm) (Max) : 1.75V
Current - On State (It (AV)) (Max) : 13A
Current - On State (It (RMS)) (Max) : 20A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 1mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 200A, 220A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
15 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 800V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 32mA
Voltage - On State (Vtm) (Max) : 1.75V
Current - On State (It (AV)) (Max) : 13A
Current - On State (It (RMS)) (Max) : 20A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 1mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 200A, 220A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : TO-220-3
0
4797 in stock
