Vishay
- Vishay’s product portfolio is an unmatched collection of discrete semiconductors (diodes, MOSFETs, and optoelectronics) and passive components (resistors, inductors, and capacitors). These components are used in virtually all types of electronic devices and equipment in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, and medical markets. Vishay is proud to be a major partner with Digi-Key.
Part Number
Manufacturer
Description
Unit Price
In Stock

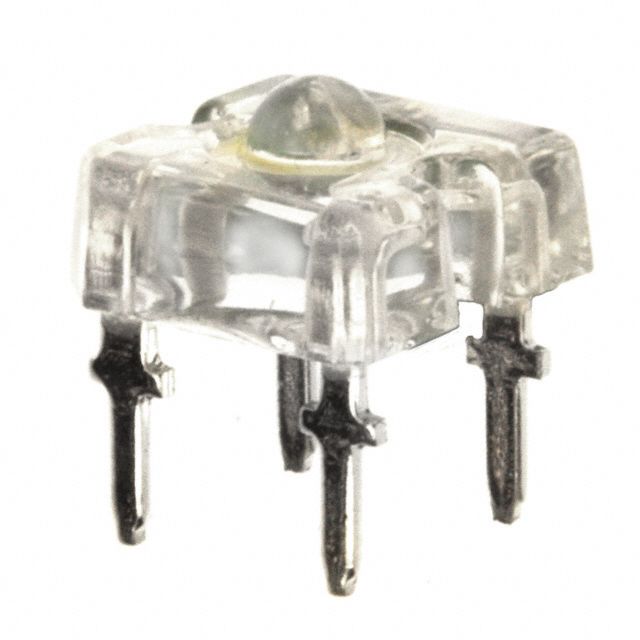

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : TELUX™
Part Status : Obsolete
Color : White, Cool
Configuration : Standard
Lens Color : -
Lens Transparency : Clear
Millicandela Rating : 0.8mcd
Lens Style : Round with Domed Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 4.3V
Current - Test : 50mA
Viewing Angle : 60°
Mounting Type : Through Hole
Wavelength - Dominant : 5500K
Wavelength - Peak : -
Features : -
Package / Case : 4-DIP (0.200", 5.08mm)
Supplier Device Package : -
Size / Dimension : 7.62mm L x 7.62mm W
Height (Max) : 6.40mm
0
100 in stock

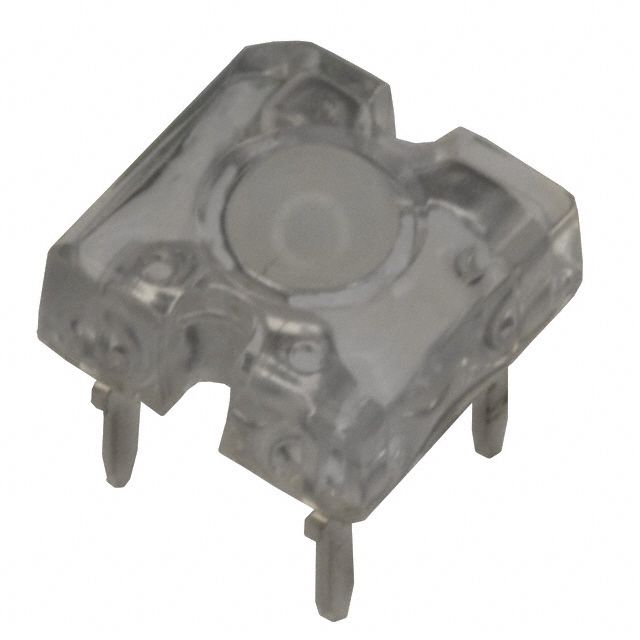

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : TELUX™
Part Status : Obsolete
Color : White, Cool
Configuration : Standard
Lens Color : -
Lens Transparency : Clear
Millicandela Rating : 0.7mcd
Lens Style : Round with Domed Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 4.3V
Current - Test : 50mA
Viewing Angle : 90°
Mounting Type : Through Hole
Wavelength - Dominant : 5500K
Wavelength - Peak : -
Features : -
Package / Case : 4-DIP (0.200", 5.08mm)
Supplier Device Package : -
Size / Dimension : 7.62mm L x 7.62mm W
Height (Max) : 6.40mm
0
100 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : TELUX™
Part Status : Active
Color : Yellow
Configuration : Standard
Lens Color : -
Lens Transparency : Clear
Millicandela Rating : 0.7mcd
Lens Style : Round with Domed Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 2.2V
Current - Test : 70mA
Viewing Angle : 90°
Mounting Type : Through Hole
Wavelength - Dominant : 592nm
Wavelength - Peak : 594nm
Features : -
Package / Case : 4-DIP (0.200", 5.08mm)
Supplier Device Package : -
Size / Dimension : 7.62mm L x 7.62mm W
Height (Max) : 6.40mm
0
100 in stock

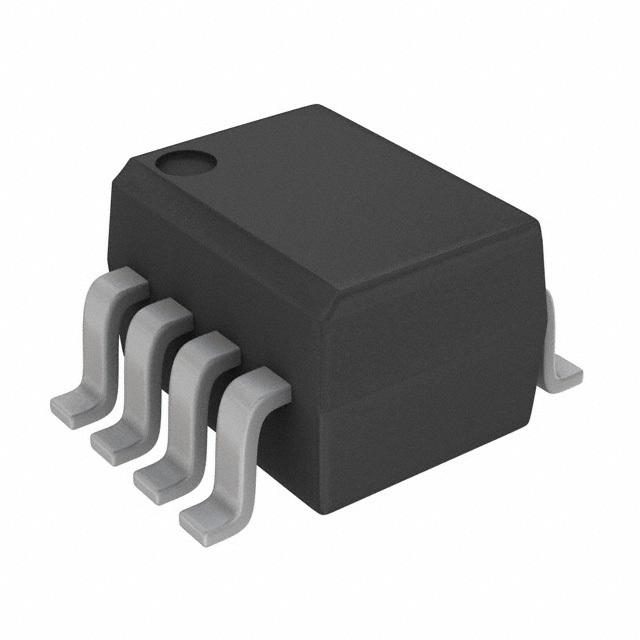

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 4000Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 23ns, 7ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
1947 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 4000Vrms
Common Mode Transient Immunity (Min) : 5kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 23ns, 7ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 60mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
12485 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 4000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 23ns, 7ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
1592 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 4000Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 23ns, 7ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 15mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
1773 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 4000Vrms
Common Mode Transient Immunity (Min) : 5kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 23ns, 7ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 15mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
1776 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 4000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 23ns, 7ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 15mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
1960 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 16µs, 472µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 16.5V
Current - Output / Channel : 3µA
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
100 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 16µs, 472µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 16.5V
Current - Output / Channel : 3µA
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
100 in stock

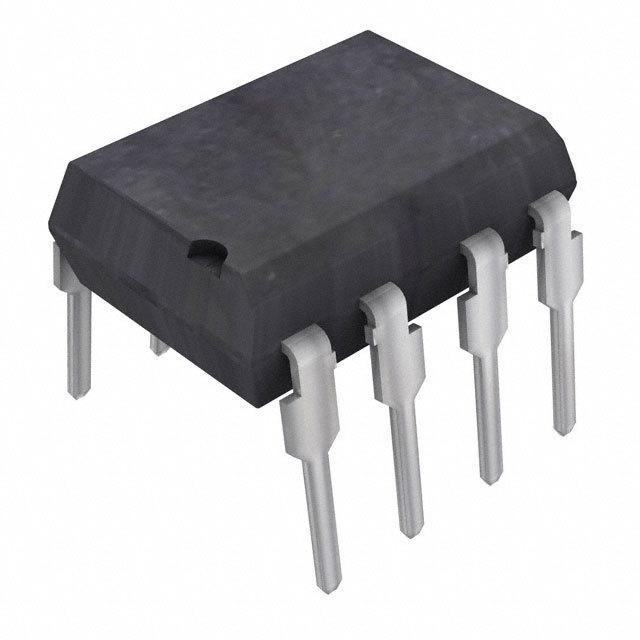

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 16µs, 472µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 16.5V
Current - Output / Channel : 3µA
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
813 in stock
