Vishay
- Vishay’s product portfolio is an unmatched collection of discrete semiconductors (diodes, MOSFETs, and optoelectronics) and passive components (resistors, inductors, and capacitors). These components are used in virtually all types of electronic devices and equipment in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, and medical markets. Vishay is proud to be a major partner with Digi-Key.
Part Number
Manufacturer
Description
Unit Price
In Stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 500mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
4865 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 500mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
0
2471 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : 4.5µs, 3µs
Rise / Fall Time (Typ) : 2.5µs, 2.7µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
1990 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 5.5µs, 4µs
Rise / Fall Time (Typ) : 3µs, 3.7µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
379 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 160% @ 10mA
Current Transfer Ratio (Max) : 320% @ 10mA
Turn On / Turn Off Time (Typ) : 7µs, 5µs
Rise / Fall Time (Typ) : 4.2µs, 4.7µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
1795 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : 4.5µs, 3µs
Rise / Fall Time (Typ) : 2.5µs, 2.7µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
2789 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 5.5µs, 4µs
Rise / Fall Time (Typ) : 3µs, 3.7µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
5615 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 160% @ 10mA
Current Transfer Ratio (Max) : 320% @ 10mA
Turn On / Turn Off Time (Typ) : 7µs, 5µs
Rise / Fall Time (Typ) : 4.2µs, 4.7µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
4873 in stock

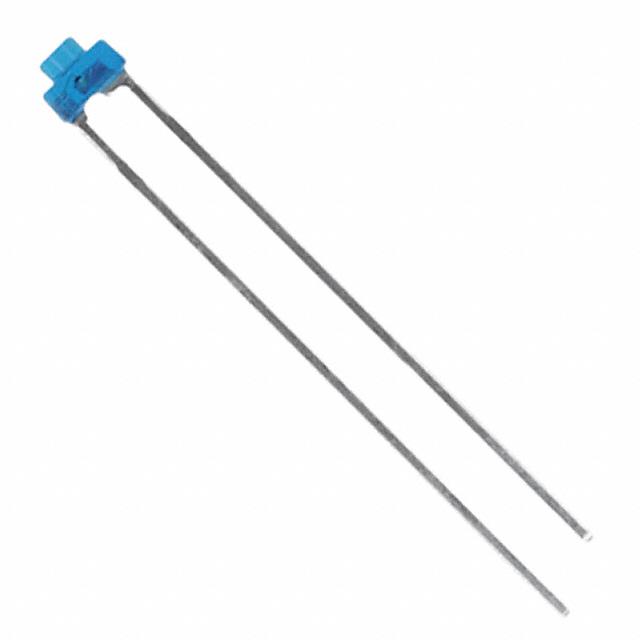

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 0.7mW/sr @ 50mA
Wavelength : 950nm
Voltage - Forward (Vf) (Typ) : 1.3V
Viewing Angle : 110°
Orientation : Top View
Operating Temperature : -25°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, 1.8mm (T-3/4)
0
130 in stock

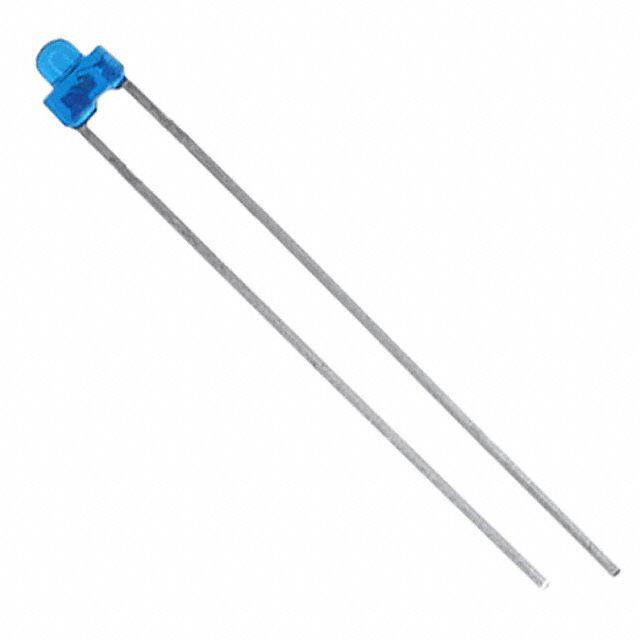

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 2.2mW/sr @ 50mA
Wavelength : 950nm
Voltage - Forward (Vf) (Typ) : 1.3V
Viewing Angle : 24°
Orientation : Top View
Operating Temperature : -25°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, 1.8mm (T-3/4)
0
3148 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 10mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 11µs, 7µs
Rise / Fall Time (Typ) : 7µs, 6.7µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 32V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
1833 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 10mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 11µs, 7µs
Rise / Fall Time (Typ) : 7µs, 6.7µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 32V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.400", 10.16mm)
Supplier Device Package : 6-DIP
0
4050 in stock
