TT Electronics/Optek Technology

- Optek Technology designs and manufactures electronic components for customers across defense and aerospace, medical, transportation, energy and industrial electronics markets.

Key applications are sensing, illumination and indication in office equipment, encoders, military and Hi-Rel applications, and medical diagnostic equipment.

Products include: optoelectronics – discrete LEDs, surface mount and thru-hole LEDs and Hall effect sensors.


Part Number

Manufacturer

Description

Unit Price

In Stock

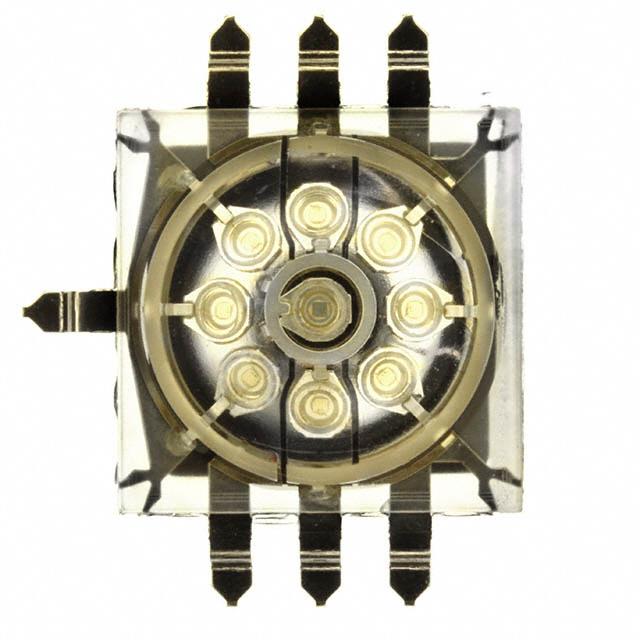

Picture of OVTL09LG3G

OVTL09LG3G

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tray
Series : -
Part Status : Obsolete
Color : Green
Wavelength : 515nm (510nm ~ 520nm)
Current - Test : 1.05A
Voltage - Forward (Vf) (Typ) : 10.8V
Lumens/Watt @ Current - Test : 46 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 522 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 8-SMD (7 Leads), Gull Wing
Supplier Device Package : SMD
Size / Dimension : 1.148" L x 1.148" W (29.15mm x 29.15mm)
Height - Seated (Max) : 0.341" (8.65mm)

0

100 in stock

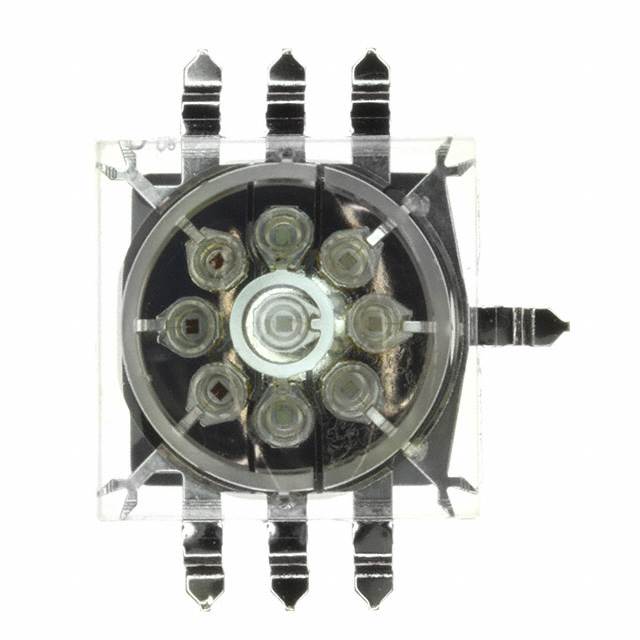

Picture of OVTL09LG3M

OVTL09LG3M

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tray
Series : -
Part Status : Obsolete
Color : Red, Green, Blue (RGB)
Wavelength : 625nm Red, 515nm Green, 460nm Blue
Current - Test : 1.05A Red, 1.05A Green, 1.05A Blue
Voltage - Forward (Vf) (Typ) : 9.2V Red, 9.2V Green, 9.2V Blue
Lumens/Watt @ Current - Test : 31 lm/W Red, 31 lm/W Green, 31 lm/W Blue
Current - Max : 1.05A Red, 1.05A Green, 1.05A Blue
Flux @ Current/Temperature - Test : 300 lm Red, 300 lm Green, 300 lm Blue
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 8-SMD (7 Leads), Gull Wing
Supplier Device Package : SMD
Size / Dimension : 1.148" L x 1.148" W (29.15mm x 29.15mm)
Height - Seated (Max) : 0.341" (8.65mm)

0

100 in stock

Picture of OVTL09LG3R

OVTL09LG3R

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tray
Series : -
Part Status : Obsolete
Color : Red
Wavelength : 625nm (620nm ~ 630nm)
Current - Test : 1.05A
Voltage - Forward (Vf) (Typ) : 6.9V
Lumens/Watt @ Current - Test : 55 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 400 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 8-SMD (7 Leads), Gull Wing
Supplier Device Package : SMD
Size / Dimension : 1.148" L x 1.148" W (29.15mm x 29.15mm)
Height - Seated (Max) : 0.341" (8.65mm)

0

100 in stock

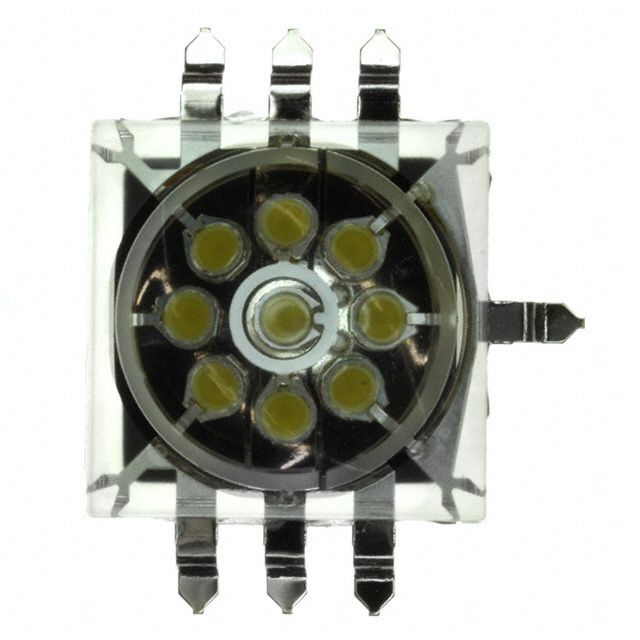

Picture of OVTL09LG3W

OVTL09LG3W

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tray
Series : Lednium
Part Status : Obsolete
Color : White, Cool
CCT (K) : 7000K (6400K ~ 7600K)
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 565 lm (Typ)
Current - Test : 1.05A
Voltage - Forward (Vf) (Typ) : 10.2V
Lumens/Watt @ Current - Test : 53 lm/W
CRI (Color Rendering Index) : -
Current - Max : 1.05A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 8-SMD (7 Leads), Gull Wing
Supplier Device Package : SMD
Size / Dimension : 1.148" L x 0.846" W (29.15mm x 21.50mm)
Height - Seated (Max) : 0.341" (8.65mm)

0

100 in stock

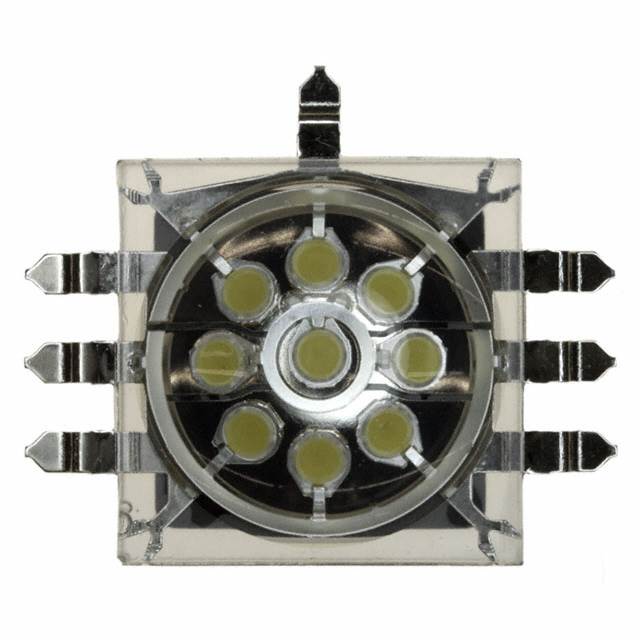

Picture of OVTL09LG3WD

OVTL09LG3WD

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tray
Series : Lednium
Part Status : Obsolete
Color : White, Cool
CCT (K) : 5800K (5200K ~ 6400K)
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 522 lm (Typ)
Current - Test : 1.05A
Voltage - Forward (Vf) (Typ) : 10.2V
Lumens/Watt @ Current - Test : 49 lm/W
CRI (Color Rendering Index) : -
Current - Max : 1.05A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 8-SMD (7 Leads), Gull Wing
Supplier Device Package : SMD
Size / Dimension : 1.148" L x 0.846" W (29.15mm x 21.50mm)
Height - Seated (Max) : 0.341" (8.65mm)

0

100 in stock

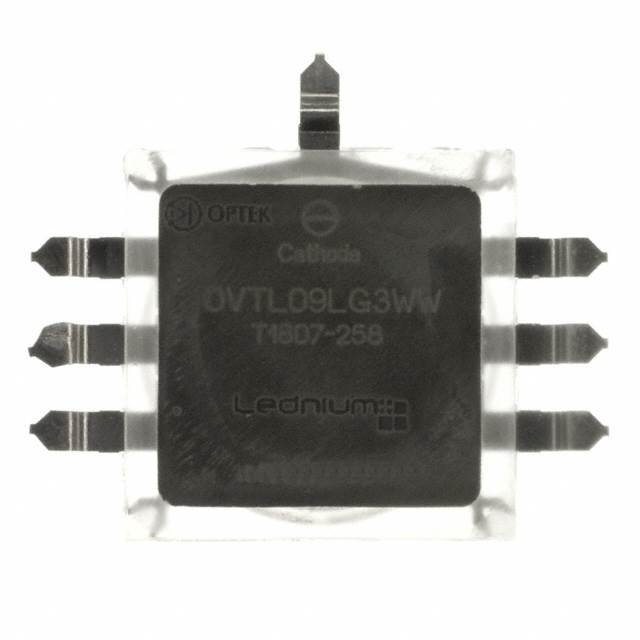

Picture of OVTL09LG3WW

OVTL09LG3WW

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tray
Series : Lednium
Part Status : Obsolete
Color : White, Warm
CCT (K) : 3500K (3200K ~ 3800K)
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 435 lm (Typ)
Current - Test : 1.05A
Voltage - Forward (Vf) (Typ) : 10.2V
Lumens/Watt @ Current - Test : 41 lm/W
CRI (Color Rendering Index) : -
Current - Max : 1.05A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 8-SMD (7 Leads), Gull Wing
Supplier Device Package : SMD
Size / Dimension : 1.148" L x 0.846" W (29.15mm x 21.50mm)
Height - Seated (Max) : 0.341" (8.65mm)

0

100 in stock

Picture of OVTL09LGAA

OVTL09LGAA

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tray
Series : -
Part Status : Obsolete
Color : Amber
Wavelength : 595nm (590nm ~ 600nm)
Current - Test : 1.05A
Voltage - Forward (Vf) (Typ) : 7V
Lumens/Watt @ Current - Test : 45 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 330 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 8-SMD (7 Leads), Gull Wing
Supplier Device Package : SMD
Size / Dimension : 1.299" L x 1.299" W (33.00mm x 33.00mm)
Height - Seated (Max) : 0.315" (8.00mm)

0

100 in stock

Picture of OVTL09LGAB

OVTL09LGAB

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tray
Series : -
Part Status : Obsolete
Color : Blue
Wavelength : 460nm (457nm ~ 463nm)
Current - Test : 1.05A
Voltage - Forward (Vf) (Typ) : 10.2V
Lumens/Watt @ Current - Test : 6 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 60 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 8-SMD (7 Leads), Gull Wing
Supplier Device Package : SMD
Size / Dimension : 1.299" L x 1.299" W (33.00mm x 33.00mm)
Height - Seated (Max) : 0.315" (8.00mm)

0

100 in stock

Picture of OVTL09LGAG

OVTL09LGAG

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tray
Series : -
Part Status : Obsolete
Color : Green
Wavelength : 525nm (520nm ~ 530nm)
Current - Test : 1.05A
Voltage - Forward (Vf) (Typ) : 11V
Lumens/Watt @ Current - Test : 25 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 290 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 8-SMD (7 Leads), Gull Wing
Supplier Device Package : SMD
Size / Dimension : 1.299" L x 1.299" W (33.00mm x 33.00mm)
Height - Seated (Max) : 0.315" (8.00mm)

0

100 in stock

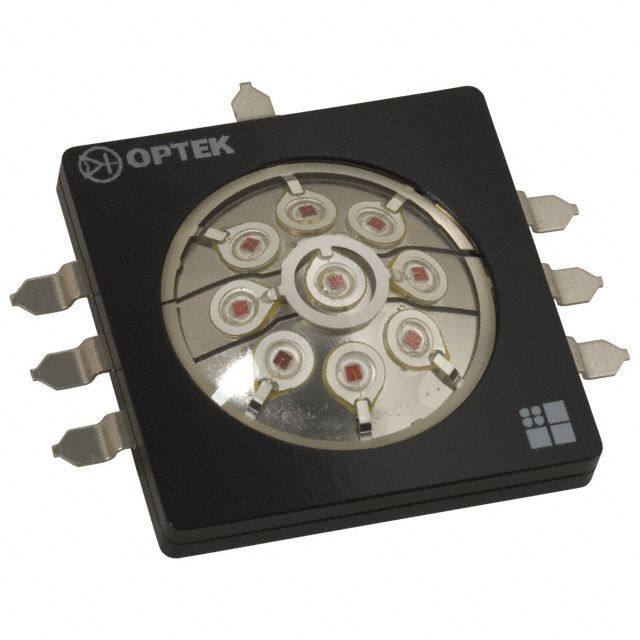

Picture of OVTL09LGAR

OVTL09LGAR

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tray
Series : -
Part Status : Obsolete
Color : Red
Wavelength : 625nm (620nm ~ 630nm)
Current - Test : 1.05A
Voltage - Forward (Vf) (Typ) : 7V
Lumens/Watt @ Current - Test : 34 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 247 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 8-SMD (7 Leads), Gull Wing
Supplier Device Package : SMD
Size / Dimension : 1.299" L x 1.299" W (33.00mm x 33.00mm)
Height - Seated (Max) : 0.315" (8.00mm)

0

100 in stock

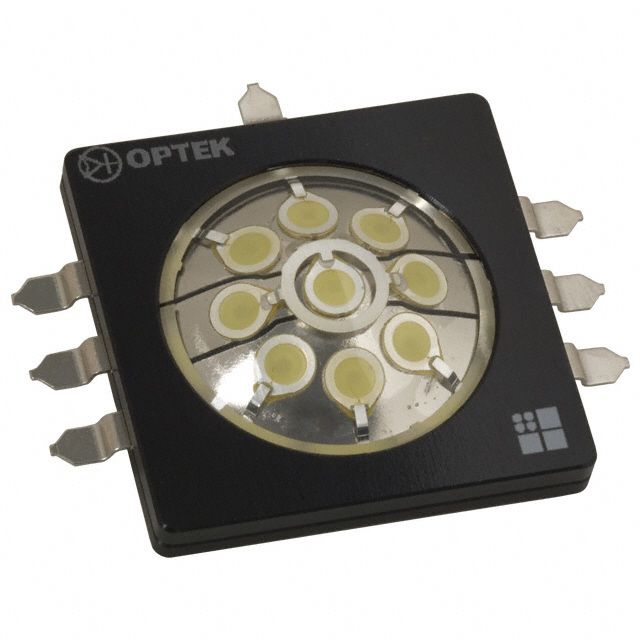

Picture of OVTL09LGAW

OVTL09LGAW

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tray
Series : Lednium
Part Status : Obsolete
Color : White
CCT (K) : -
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 250 lm (Typ)
Current - Test : 1.05A
Voltage - Forward (Vf) (Typ) : 10.2V
Lumens/Watt @ Current - Test : 23 lm/W
CRI (Color Rendering Index) : -
Current - Max : 3A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 8-SMD (7 Leads), Gull Wing
Supplier Device Package : SMD
Size / Dimension : 1.148" L x 0.846" W (29.15mm x 21.50mm)
Height - Seated (Max) : 0.341" (8.65mm)

0

100 in stock

Picture of OVTLZ1GAA

OVTLZ1GAA

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : Optimal I Star
Part Status : Obsolete
Type : LED Module
Color : Amber
CCT (K) : -
Wavelength : 595nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 35 lm (Typ)
Current - Test : 350mA
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : 2.3V
Lumens/Watt @ Current - Test : 43 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 135°
Features : -
Size / Dimension : 19.80mm Diameter
Height : 1.00mm
Light Emitting Surface (LES) : -
Lens Type : Flat

0

100 in stock
