TT Electronics/Optek Technology

- Optek Technology designs and manufactures electronic components for customers across defense and aerospace, medical, transportation, energy and industrial electronics markets.

Key applications are sensing, illumination and indication in office equipment, encoders, military and Hi-Rel applications, and medical diagnostic equipment.

Products include: optoelectronics – discrete LEDs, surface mount and thru-hole LEDs and Hall effect sensors.


Part Number

Manufacturer

Description

Unit Price

In Stock

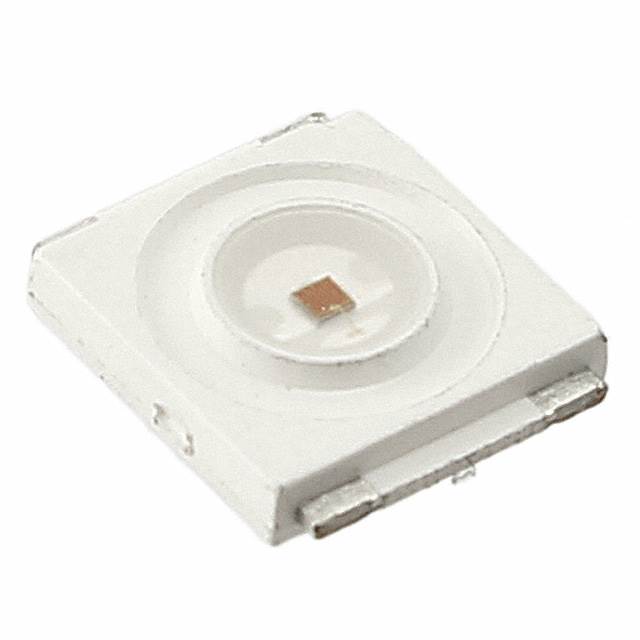

Picture of OVSPRBCR4

OVSPRBCR4

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Red
Wavelength : 625nm (620nm ~ 630nm)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : 44 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 44 lm (33 lm ~ 54 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 2424 (6060 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.059" (1.50mm)

0

100 in stock

Picture of OVSPRBCR44

OVSPRBCR44

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Red
Wavelength : 625nm (620nm ~ 630nm)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : 30 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 30 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 40°
Mounting Type : Surface Mount
Package / Case : 2424 (6060 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.189" (4.80mm)

0

100 in stock

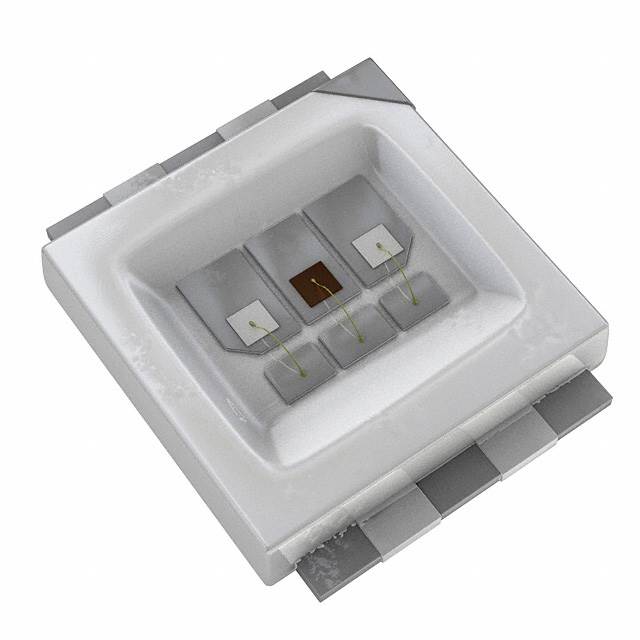

Picture of OVSPRGBCR4

OVSPRGBCR4

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Red, Green, Blue (RGB)
Configuration : Independent
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 9000mcd Red, 14000mcd Green, 3550mcd Blue
Lens Style : Round with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 2.3V Red, 3.4V Green, 3.4V Blue
Current - Test : 250mA Red, 250mA Green, 250mA Blue
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 625nm Red, 525nm Green, 465nm Blue
Wavelength - Peak : -
Features : -
Package / Case : 6-SMD, Flat Leads
Supplier Device Package : 6-SMD
Size / Dimension : 6.00mm L x 6.00mm W
Height (Max) : 1.50mm

0

100 in stock

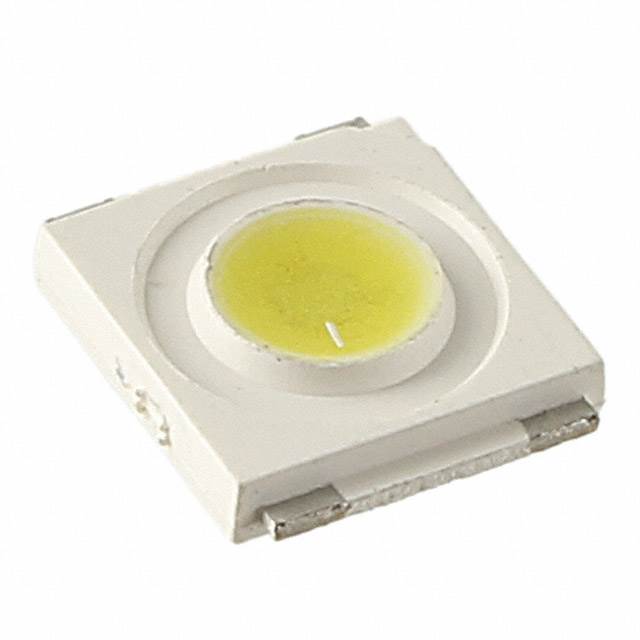

Picture of OVSPW1BCR4

OVSPW1BCR4

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Color : White
CCT (K) : -
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 90 lm (67 lm ~ 114 lm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.5V
Lumens/Watt @ Current - Test : 73 lm/W
CRI (Color Rendering Index) : -
Current - Max : 350mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max) : 0.063" (1.60mm)

0

100 in stock

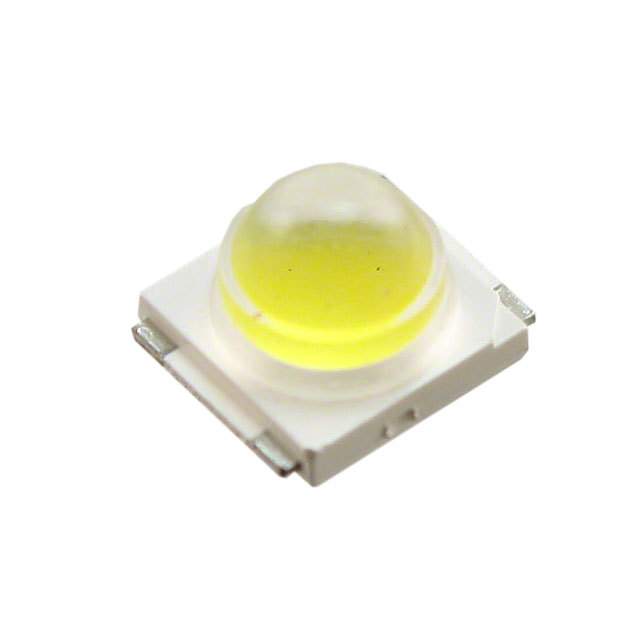

Picture of OVSPW1BCR44

OVSPW1BCR44

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White
CCT (K) : -
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 62 lm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.5V
Lumens/Watt @ Current - Test : 51 lm/W
CRI (Color Rendering Index) : -
Current - Max : 350mA
Viewing Angle : 70°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max) : 0.063" (1.60mm)

0

100 in stock

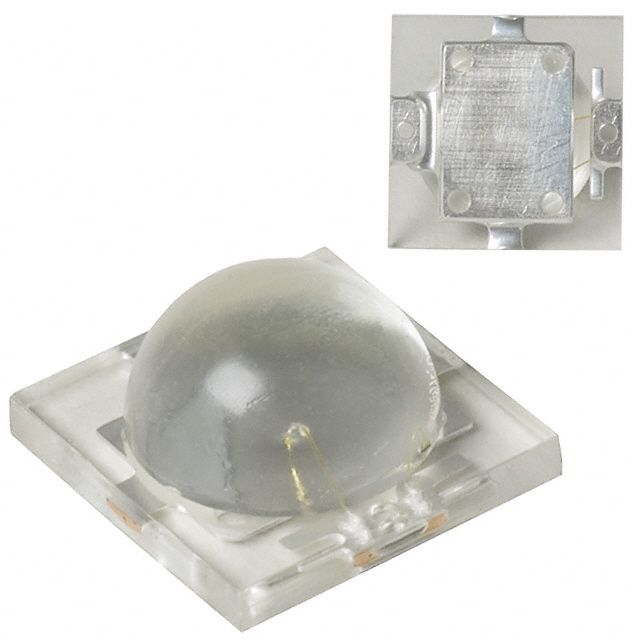

Picture of OVSPW7CR8

OVSPW7CR8

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White
CCT (K) : -
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 23 lm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 18 lm/W
CRI (Color Rendering Index) : -
Current - Max : 500mA
Viewing Angle : 70°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.146" (3.70mm)

0

100 in stock

Picture of OVSPWBCR4

OVSPWBCR4

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Warm
CCT (K) : -
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 75 lm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.5V
Lumens/Watt @ Current - Test : 61 lm/W
CRI (Color Rendering Index) : -
Current - Max : 350mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max) : 0.059" (1.50mm)

0

100 in stock

Picture of OVSPWBCR44

OVSPWBCR44

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White
CCT (K) : -
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 50 lm (39 lm ~ 61 lm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 40 lm/W
CRI (Color Rendering Index) : -
Current - Max : 350mA
Viewing Angle : 60°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max) : 0.189" (4.80mm)

0

100 in stock

Picture of OVSPWFCR6

OVSPWFCR6

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tape & Box (TB)
Series : -
Part Status : Obsolete
Color : -
Configuration : -
Lens Color : -
Lens Transparency : -
Millicandela Rating : -
Lens Style : -
Lens Size : -
Voltage - Forward (Vf) (Typ) : -
Current - Test : -
Viewing Angle : -
Mounting Type : Surface Mount, Right Angle
Wavelength - Dominant : -
Wavelength - Peak : -
Features : -
Package / Case : 2-SMD
Supplier Device Package : SMD
Size / Dimension : 2.80mm L x 1.20mm W
Height (Max) : 0.80mm

0

100 in stock

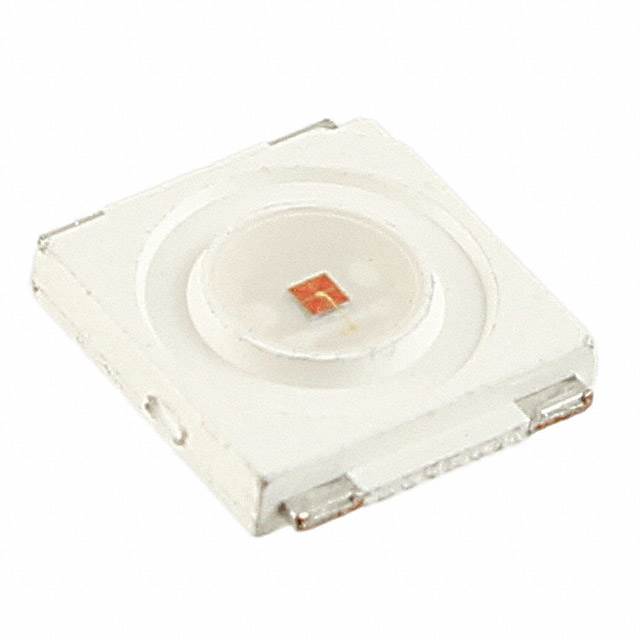

Picture of OVSPYBCR4

OVSPYBCR4

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Yellow
Wavelength : 591nm (585nm ~ 597nm)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : 35 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 35 lm (27 lm ~ 42 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 2424 (6060 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.063" (1.60mm)

0

100 in stock

Picture of OVSPYBCR44

OVSPYBCR44

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Yellow
Wavelength : 589nm (Typ)
Current - Test : 400mA
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : 35 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 35 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 40°
Mounting Type : Surface Mount
Package / Case : 2424 (6060 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.189" (4.80mm)

0

100 in stock

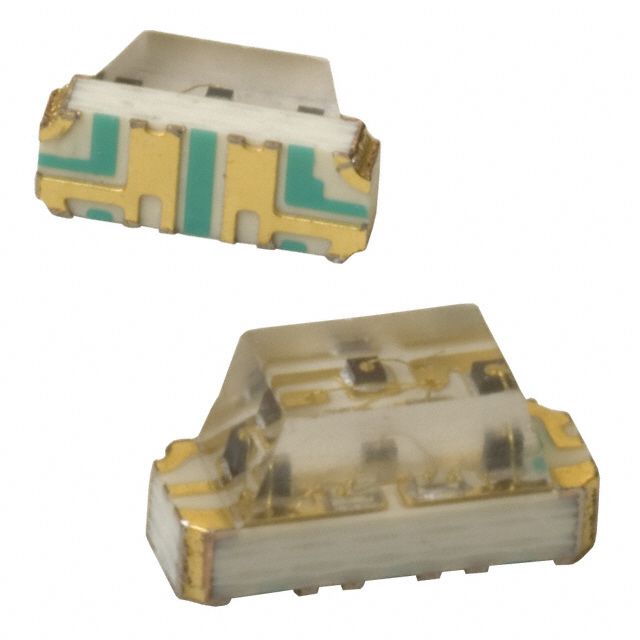

Picture of OVSRRGBBC9

OVSRRGBBC9

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Red, Green, Blue (RGB)
Configuration : Common Anode
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 72mcd Red, 180mcd Green, 45mcd Blue
Lens Style : Rectangle with Flat Top
Lens Size : 1.50mm x 1.00mm
Voltage - Forward (Vf) (Typ) : 2V Red, 3.3V Green, 3.3V Blue
Current - Test : 20mA Red, 20mA Green, 20mA Blue
Viewing Angle : 120°
Mounting Type : Surface Mount, Right Angle
Wavelength - Dominant : 623nm Red, 525nm Green, 470nm Blue
Wavelength - Peak : 632nm Red, 518nm Green, 468nm Blue
Features : -
Package / Case : 2-SMD, No Lead
Supplier Device Package : SMD
Size / Dimension : 2.70mm L x 1.35mm W
Height (Max) : 1.00mm

0

100 in stock
