TDK Corporation
TDK Corporation (Tokyo Denkikagaku Kogyo) was established in December 1935 with the aim of becoming the world's first commercial manufacturer of the magnetic material ferrite. TDK, since then, has continued ceaselessly to turn out a variety of products and services making use of its materials technology, centering on ferrite and ceramics, and processing technology, which draws out the properties of materials to the maximum degree. The founding spirit of TDK, "contribute to culture and industry through creativity," continues to this day to pulsate throughout the company.
Part Number
Manufacturer
Description
Unit Price
In Stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Plastic Box
Series : VLS-EX
Part Status : Active
Kit Type : Fixed
Style : Wirewound
Material - Core : Ferrite
Quantity : 60 Pieces (12 Values - 5 Each)
Inductance Range : 1µH ~ 220µH
Mounting Type : Surface Mount
Packages Included : Non-Standard SMD
Features : -
Shielding : Shielded
0
5 in stock

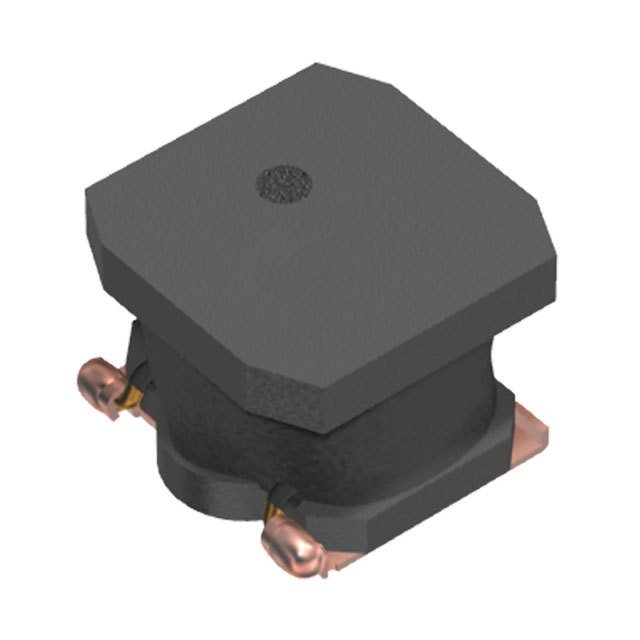

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 470nH
Tolerance : ±30%
Current Rating : 7A
Current - Saturation : 13.5A
Shielding : Shielded
DC Resistance (DCR) : 13 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1492 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Plastic Box
Series : VLS-CX-1
Part Status : Active
Kit Type : Fixed
Style : Wirewound
Material - Core : Ferrite
Quantity : 120 Pieces (20 Values - 6 Each)
Inductance Range : 240nH ~ 22µH
Mounting Type : Surface Mount
Packages Included : Non-Standard SMD
Features : -
Shielding : -
0
8 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : -
Series : VGT
Part Status : Active
Transformer Type : -
Inductance : 350µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1:1:1
Mounting Type : Surface Mount
Size / Dimension : 0.409" L x 0.409" W (10.40mm x 10.40mm)
Height - Seated (Max) : 0.417" (10.60mm)
Operating Temperature : -40°C ~ 130°C
0
100 in stock
TDK Corporation
Manufacturer : TDK Corporation
Series : WR
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 16.6µH
Tolerance : -
DC Resistance (DCR) : 1 Ohm
Q @ Freq : -
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -
Size / Dimension : 0.433" Dia x 0.055" H (11.00mm x 1.40mm)
0
992 in stock
TDK Corporation
Manufacturer : TDK Corporation
Series : WR
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 31.8µH
Tolerance : ±5%
DC Resistance (DCR) : 1.34 Ohm
Q @ Freq : -
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -
Size / Dimension : 0.433" Dia x 0.063" H (11.00mm x 1.60mm)
0
381 in stock
TDK Corporation
Manufacturer : TDK Corporation
Series : WR
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 8.32µH
Tolerance : ±5%
DC Resistance (DCR) : 950 mOhm
Q @ Freq : -
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -
Size / Dimension : 0.472" Dia x 0.013" H (12.00mm x 0.32mm)
0
437 in stock
TDK Corporation
Manufacturer : TDK Corporation
Series : WR
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 27.1µH
Tolerance : -
DC Resistance (DCR) : 500 mOhm
Q @ Freq : -
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -
Size / Dimension : 0.591" Dia x 0.104" H (15.00mm x 2.63mm)
0
375 in stock
TDK Corporation
Manufacturer : TDK Corporation
Series : WR
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 11µH
Tolerance : ±5%
DC Resistance (DCR) : 350 mOhm
Q @ Freq : -
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -
Size / Dimension : 0.787" Dia x 0.033" H (20.00mm x 0.84mm)
0
1326 in stock
TDK Corporation
Manufacturer : TDK Corporation
Series : WR
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 10.68µH
Tolerance : ±5%
DC Resistance (DCR) : 350 mOhm
Q @ Freq : -
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -
Size / Dimension : 0.787" Dia x 0.033" H (20.00mm x 0.84mm)
0
179 in stock
TDK Corporation
Manufacturer : TDK Corporation
Series : WR
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 9.9µH
Tolerance : -
DC Resistance (DCR) : 520 mOhm
Q @ Freq : -
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -
Size / Dimension : 0.787" Dia x 0.024" H (20.00mm x 0.60mm)
0
178 in stock
TDK Corporation
Manufacturer : TDK Corporation
Series : WR
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 27.9µH
Tolerance : -
DC Resistance (DCR) : 1.21 Ohm Max
Q @ Freq : -
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -
Size / Dimension : -
0
529 in stock
