TDK Corporation

TDK Corporation (Tokyo Denkikagaku Kogyo) was established in December 1935 with the aim of becoming the world's first commercial manufacturer of the magnetic material ferrite. TDK, since then, has continued ceaselessly to turn out a variety of products and services making use of its materials technology, centering on ferrite and ceramics, and processing technology, which draws out the properties of materials to the maximum degree. The founding spirit of TDK, "contribute to culture and industry through creativity," continues to this day to pulsate throughout the company.

Part Number
Manufacturer
Description
Unit Price
In Stock

VLS6045EX-220M-H VLS6045EX-220M-H

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX-H
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±20%
Current Rating : 1.9A
Current - Saturation : 2.4A
Shielding : Shielded
DC Resistance (DCR) : 105 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.248" L x 0.236" W (6.30mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
100 in stock

VLS6045EX-221M VLS6045EX-221M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±20%
Current Rating : 500mA
Current - Saturation : 800mA
Shielding : Shielded
DC Resistance (DCR) : 1.495 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3232 in stock

VLS6045EX-221M-CA VLS6045EX-221M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±20%
Current Rating : 500mA
Current - Saturation : 800mA
Shielding : Shielded
DC Resistance (DCR) : 1.495 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
2248 in stock

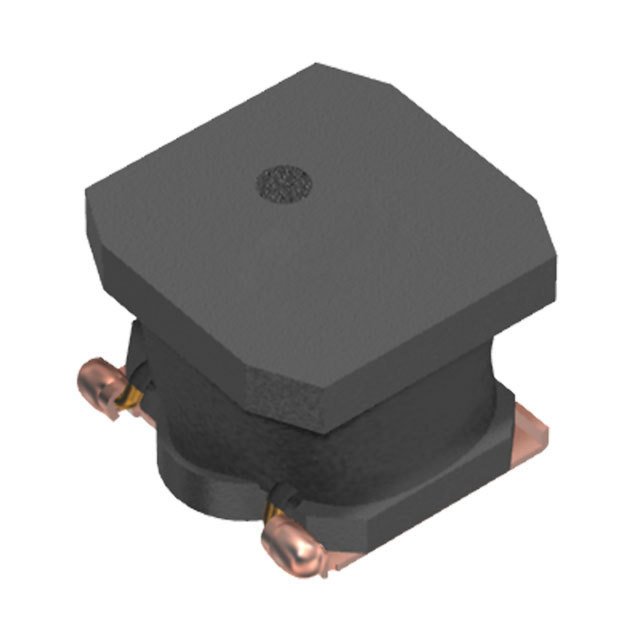

VLS6045EX-2R0N VLS6045EX-2R0N

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS-EX
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 2µH
Tolerance : ±30%
Current Rating : 5.2A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 18 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
6000 in stock

VLS6045EX-2R2N VLS6045EX-2R2N

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±30%
Current Rating : 5.1A
Current - Saturation : 7.5A
Shielding : Shielded
DC Resistance (DCR) : 25 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
6277 in stock

VLS6045EX-2R2N-CA VLS6045EX-2R2N-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±30%
Current Rating : 5.1A
Current - Saturation : 7.5A
Shielding : Shielded
DC Resistance (DCR) : 24.7 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1338 in stock

VLS6045EX-330M VLS6045EX-330M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±20%
Current Rating : 1.5A
Current - Saturation : 1.9A
Shielding : Shielded
DC Resistance (DCR) : 228 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
5413 in stock

VLS6045EX-330M-CA VLS6045EX-330M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±20%
Current Rating : 1.5A
Current - Saturation : 1.9A
Shielding : Shielded
DC Resistance (DCR) : 227.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
2885 in stock

VLS6045EX-331M VLS6045EX-331M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±20%
Current Rating : 470mA
Current - Saturation : 500mA
Shielding : Shielded
DC Resistance (DCR) : 1.44 Ohm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
100 in stock

VLS6045EX-3R0N VLS6045EX-3R0N

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS-EX
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 3µH
Tolerance : ±30%
Current Rating : 5A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 22 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1500 in stock

VLS6045EX-3R3N VLS6045EX-3R3N

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±30%
Current Rating : 4.95A
Current - Saturation : 6.5A
Shielding : Shielded
DC Resistance (DCR) : 30 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
4812 in stock

VLS6045EX-3R3N-CA VLS6045EX-3R3N-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±30%
Current Rating : 4.95A
Current - Saturation : 6.5A
Shielding : Shielded
DC Resistance (DCR) : 29.9 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
2413 in stock
