SWITCHCRAFT®
- SWITCHCRAFT®, founded in 1946, is headquartered in Chicago, IL USA and still manufactures product in Chicago today. In 1999, SWITCHCRAFT® acquired Conxall®, located in Villa Park, IL, a leading manufacturer of harsh environment connectors and custom cable assemblies, adding to the already extensive line of SWITCHCRAFT® connector products.
SWITCHCRAFT®, Inc. is a leading US based manufacturer of connectors, jacks, plugs, switches, molded cable assemblies and patchbays. SWITCHCRAFT® products are used in a variety of applications from broadcast and pro audio to medical, lighting, security, transportation and other industrial applications. Experience and attention to detail make Switchcraft a leader in Harsh Environment Connectivity Solutions.
Conxall manufactures a wide range of circular sealed plastic connectors and molded cable assemblies. In addition to their line of standard product they also specialize in custom cable assemblies and connector options. Conxall products are used in a wide variety of applications, especially those requiring protection from harsh environmental conditions. Experience and attention to detail make Conxall a leader in Harsh Environment Connectivity Solutions.
Part Number
Manufacturer
Description
Unit Price
In Stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : Extension Jax®
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 2 Conductors, 2 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Free Hanging (In-Line)
Termination : Solder Eyelet(s)
Shielding : Shielded
Features : -
Insulation Color : -
0
310 in stock

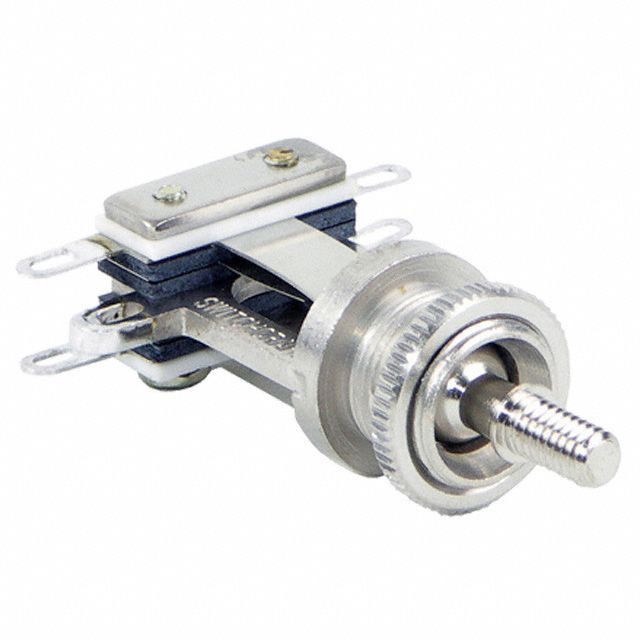

Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : 12000
Part Status : Active
Circuit : -
Switch Function : On-On-On
Current Rating : 3A (AC)
Voltage Rating - AC : -
Voltage Rating - DC : -
Actuator Type : -
Actuator Length : -
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Mounting Type : Panel Mount
Termination Style : Solder Lug
Panel Cutout Dimensions : -
Bushing Thread : -
Ingress Protection : -
Features : -
Operating Temperature : -
0
21 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : Extension Jax®
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 2 Conductors, 2 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Free Hanging (In-Line)
Termination : Solder Eyelet(s)
Shielding : Shielded
Features : -
Insulation Color : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : Extension Jax®
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.253" (6.43mm)
Number of Positions/Contacts : 3 Conductors, 3 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Free Hanging (In-Line)
Termination : Screw
Shielding : Shielded
Features : -
Insulation Color : -
0
43 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : Extension Jax®
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.253" (6.43mm)
Number of Positions/Contacts : 3 Conductors, 3 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Free Hanging (In-Line)
Termination : Solder Eyelet(s)
Shielding : Shielded
Features : -
Insulation Color : -
0
63 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : Tini-Extension Jax®
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 3.55mm (0.14", Tini Plug)
Actual Diameter : 0.144" (3.66mm)
Number of Positions/Contacts : 2 Conductors, 2 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Free Hanging (In-Line)
Termination : Solder Eyelet(s)
Shielding : Shielded
Features : -
Insulation Color : -
0
381 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : Extension Jax®
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.253" (6.43mm)
Number of Positions/Contacts : 2 Conductors, 2 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Free Hanging (In-Line)
Termination : Solder Eyelet(s)
Shielding : Shielded
Features : -
Insulation Color : -
0
58 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : Extension Jax®
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.253" (6.43mm)
Number of Positions/Contacts : 2 Conductors, 2 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Free Hanging (In-Line)
Termination : Solder Eyelet(s)
Shielding : Shielded
Features : -
Insulation Color : -
0
100 in stock

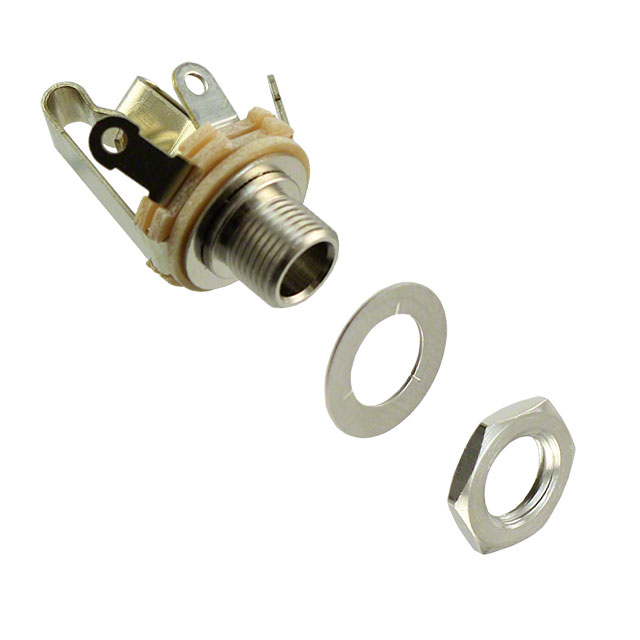

Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : LITTEL-JAX®
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.253" (6.43mm)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch
Mounting Type : Panel Mount, Through Hole
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
2119 in stock

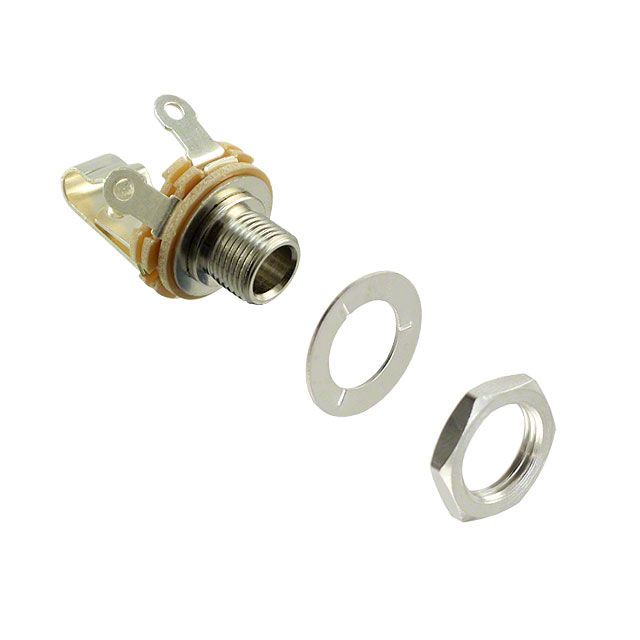

Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : LITTEL-JAX®
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 3 Conductors, 3 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Panel Mount, Through Hole
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
6243 in stock

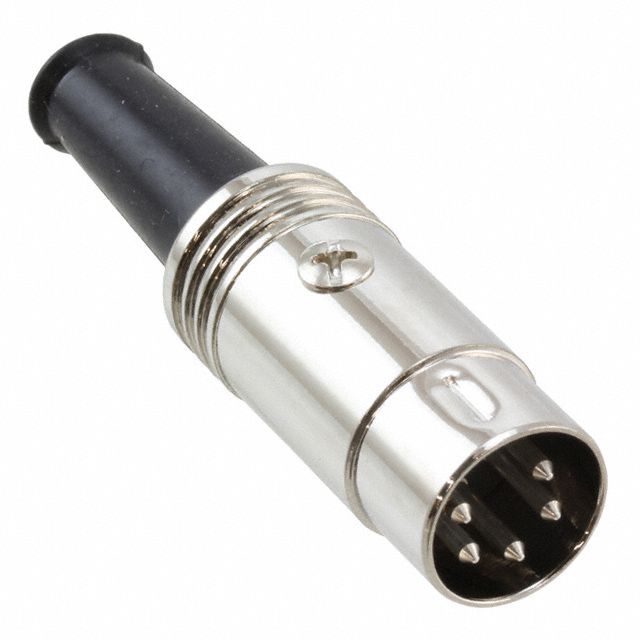

Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Plug, Male Pins
Number of Positions : 5
Shell Size - Insert : DIN (240 Degree)
Shell Size, MIL : -
Mounting Type : Free Hanging (In-Line)
Mounting Feature : -
Termination : Solder
Fastening Type : Push-Pull
Orientation : 4
Shell Material : Zinc Die Cast
Shell Finish : Nickel
Contact Finish - Mating : Tin
Color : Silver
Ingress Protection : -
Material Flammability Rating : -
Features : Backshell, Cable Clamp, Strain Relief
Shielding : -
Current Rating : 3A
Voltage Rating : 34VDC
0
91 in stock

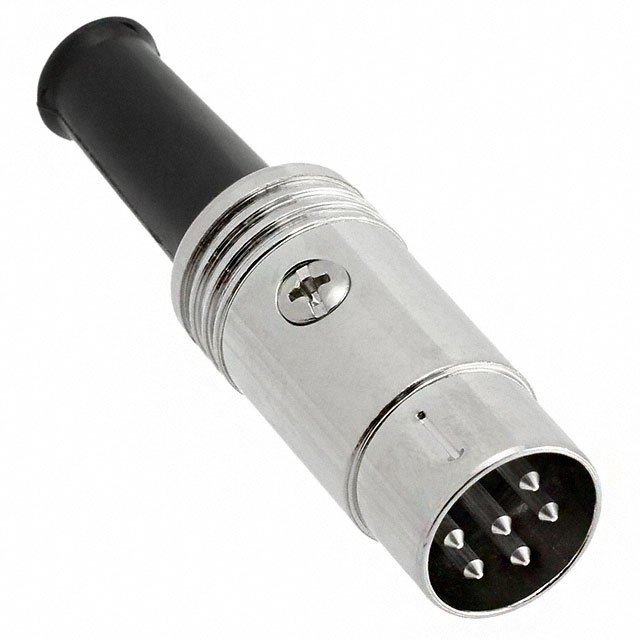

Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Plug, Male Pins
Number of Positions : 6
Shell Size - Insert : DIN (240 Degree)
Shell Size, MIL : -
Mounting Type : Free Hanging (In-Line)
Mounting Feature : -
Termination : Solder
Fastening Type : Push-Pull
Orientation : 6
Shell Material : Zinc Die Cast
Shell Finish : Nickel
Contact Finish - Mating : Tin
Color : Silver
Ingress Protection : -
Material Flammability Rating : -
Features : Backshell, Cable Clamp, Strain Relief
Shielding : -
Current Rating : -
Voltage Rating : -
0
347 in stock
